Automatinė elektrinė vakuuminė rankena stiklui ir plytelėms

Trumpai apie prekę

Prekė: Automatinė elektrinė vakuuminė rankena stiklui ir plytelėms. Kategorija: Plytelėms skirtos siurbtukai.

• Gamintojas: Vortex
• Modelis: VX3023

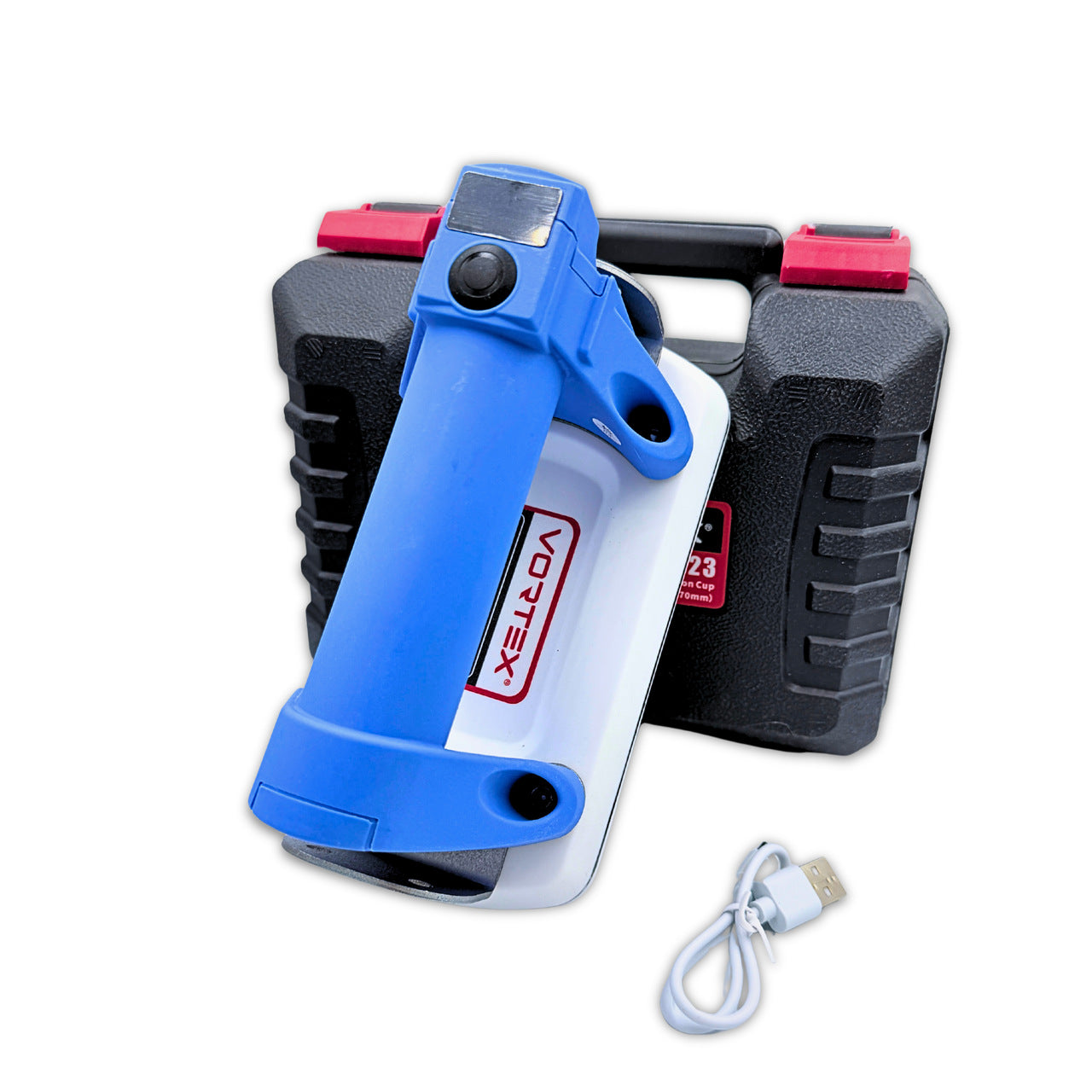

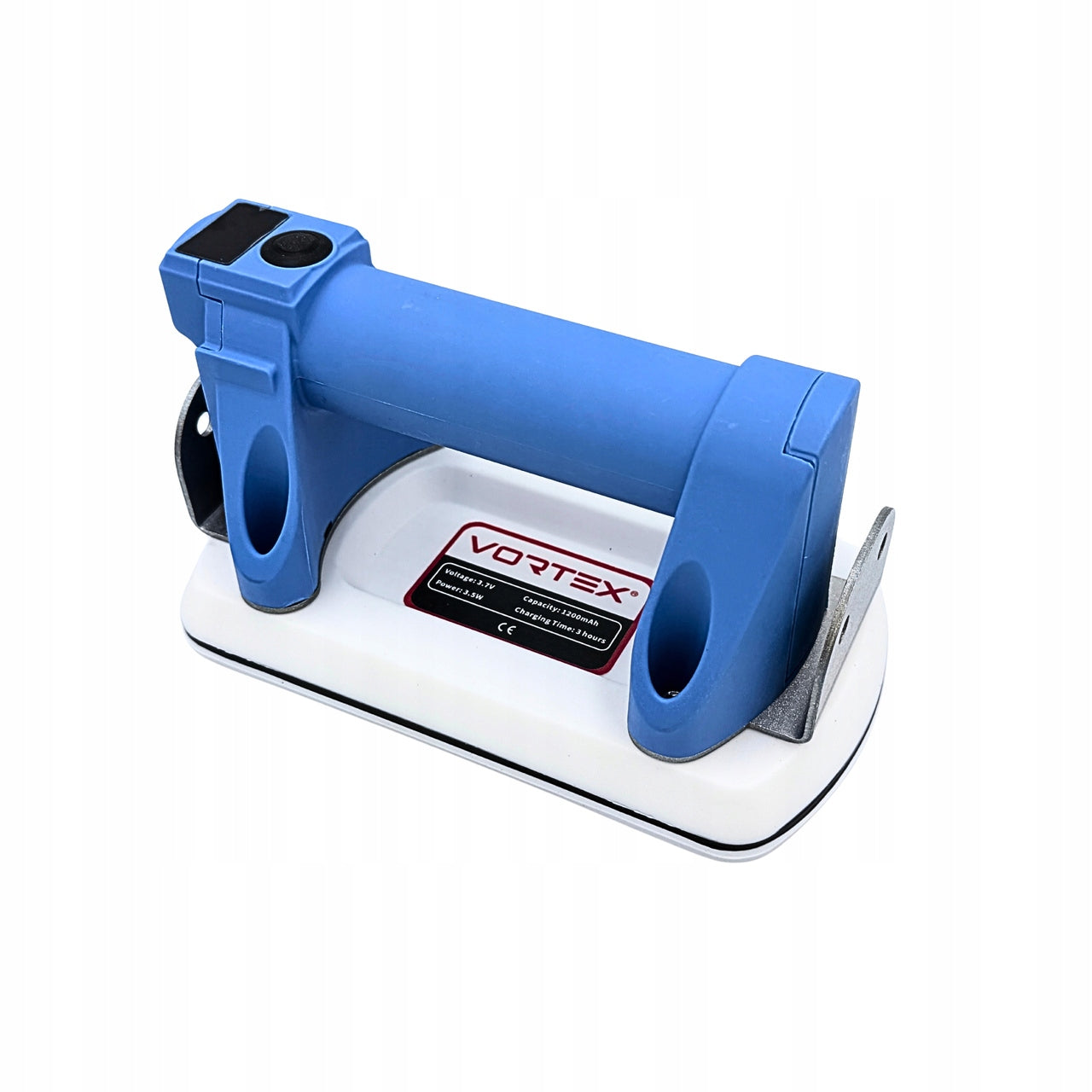

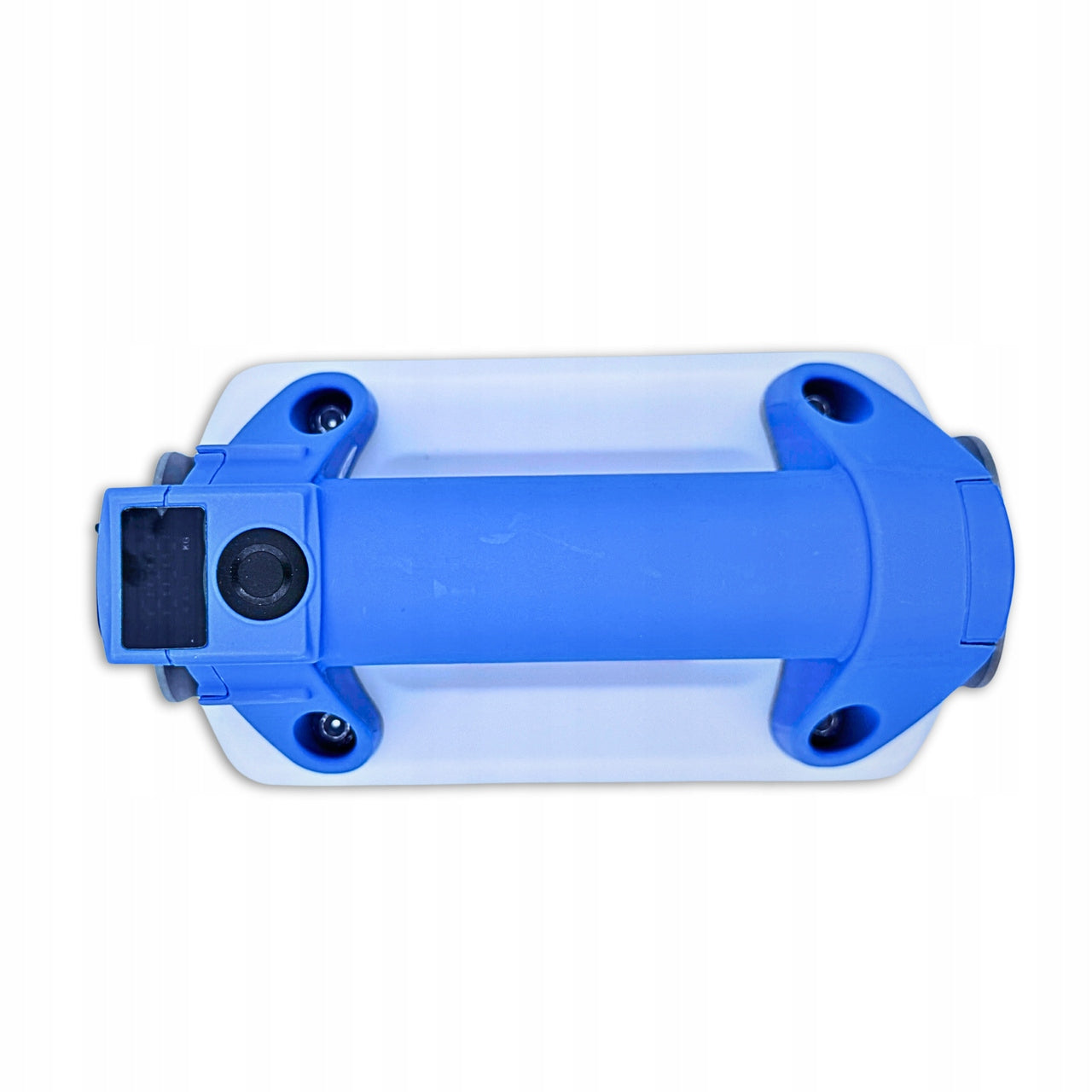

Vacuum suction cup Vortex VX3023 –

precise and compact for tiles, glass

and stone

Vortex VX3023 is a professional vacuum suction cup with automatic pump, designed for safe handling and installation of tiles, glass and stone elements. Its design has been developed to work in places where a secure grip, stability and the ability to precisely position the material counts.

The biggest advantage of the VX3023 is the rectangular base with dimensions of 170 × 93 mm. Thanks to this, the shorter side of 93 mm allows you to work with narrow tile formats, such as panel, wood-like, slatted or decorative tiles, which standard, round suction cups often can not cope with.

⚠ The most important distinguishing features of the VX3023

✔ Base 170 × 93 mm — ideal for narrow panel tiles and long wood-like formats.

✔ Lifting capacity up to 100 kg – safe handling of heavy components.

✔ Automatic vacuum pump – maintains a constant vacuum and inflates it when needed.

✔ Silicone work surface — high adhesion on smooth and slightly rough surfaces.

✔ Metal fenders – after suction, you can finish the plate with a rubber hammer, which makes it easy to level and move it perfectly.

✔ 1200 mAh battery – long working time, USB‑C charging.

✔ Digital display — control of vacuum and operation of the device.

✔ Durable construction — ABS, metal and rubber ensure resistance to heavy use.

⚠ Application

Vortex VX3023 is suitable for handling and assembly:

✔ gres and ceramic tiles,

✔ panel and wood-like tiles (thanks to 93 mm shorter side),

✔ glass, mirrors and windows,

✔ elements of marble, granite, terrazzo,

✔ blach and plastics.

The compact shape of the base allows you to work with formats that are problematic for large, round suction cups.

⚠ Contents of the set

✔ Vacuum suction cup Vortex VX3023,

✔ USB‑C cable,

✔ 2 dust filters,

✔ Transport case,

✔ Instruction manual.

⚠ Technical data

✔ Model: Vortex VX3023

✔ Lifting capacity: 100 kg

✔ Base dimensions: 170 × 93 mm

✔ Handle length: 90 mm

✔ Rechargeable battery: 1200 mAh

✔ Charging time: approx. 3 h

✔ Power: 3,5 W

✔ Voltage: 3,7 V

✔ Materials: ABS, metal, silicone

✔ Display: digital

Why VX3023?

This tool is designed for tilers who need a suction cup capable of working with narrow tile formats. Rectangular base 170 × 93 mm and metal fenders make the VX3023 an extremely practical solution when installing, leveling and finishing tiles with a rubber hammer.
