Automatinis dvivėrių vartų pavaros mechanizmas ETM-01Fortis, 600 kg

Trumpai apie prekę

Prekė: Automatinis dvivėrių vartų pavaros mechanizmas ETM-01Fortis, 600 kg. Kategorija: Kietieji diskai.

• Gamintojas: Elektrobim
• Modelis: ETM-01 Fortis
• Įtampa: 24 V

• Quiet and fast operation
• Set for narrow metal posts
• High quality workmanship
• Dedicated mounting brackets
• Professional control panel
• Two four-channel remote control radios
• Functions e.g. soft start/stop
• Simple self-assembly without loss of warranty
• Optional installation of the fender

It is natural that in order for you to enjoy the automatic opening of your gate, it must first simply work. When you drive up to your property, you want to be sure that every time the gate will work – this is the primary purpose of this product. For many years of correct operation of the gate, you need a machine of solid quality, with proven materials and thoroughly tested for service life and resistance to weather conditions.

ETM-01 Fortis:

The ETM-01Fortis series electric linear actuator is a world-class device due to its excellent weather resistance as well as technical specification. The slim shape means that it fits into any type of gate without disfiguring it. The installation of this actuator is very simple thanks to the matching mounts included. The equipment has been used on various types of gates, but also in specialized devices due to the simplicity of use. The change in the direction of extension depends on the direction of polarity (polarity). The device has been additionally equipped with unlocking the transmission with a key, which is very useful during power outages.

The scope of work is determined by means of an overload switch.

• Actuator designed for metal posts.
• The set is equipped with a solid, universal and very flexible in terms of mounting options. This makes it perfect for double-leaf gates in virtually any configuration.

ETM headquarters:

The box is equipped with a digital control panel powered by a toroidal transformer connected to the 230V network. The included clear instructions make the control panel a breeze to use. Voltage spikes and all surges go into oblivion by replacing the electronic converter with a classic transformer in the power section.

• Dual-digit red LED display that helps to configure the parameters of the control panel
• Possibility of connecting 12V and 24V actuators
• Soft start and release of actuator rotations before closing
• Automatic closing function (adjustable time to auto-closing)
• Cooperation with many types of gates, including closed "on the tab"
• Operation function of only one actuator (e.g. for opening gates or only one gate leaf)
• Indication of the operating status of the device with LEDs

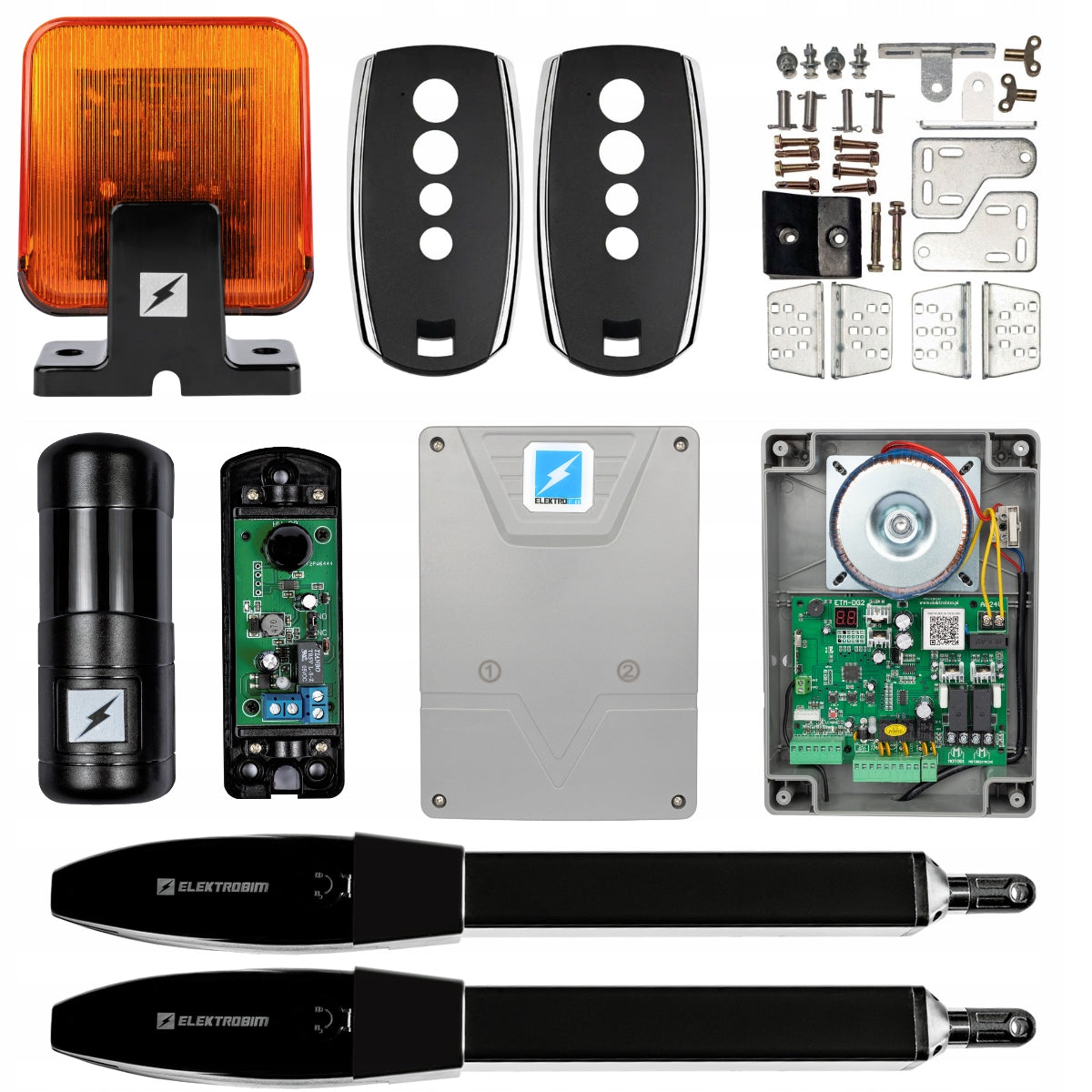

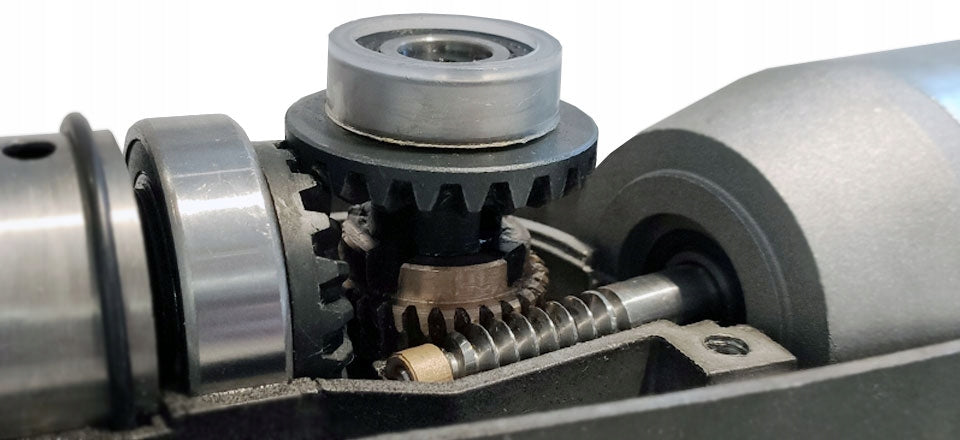

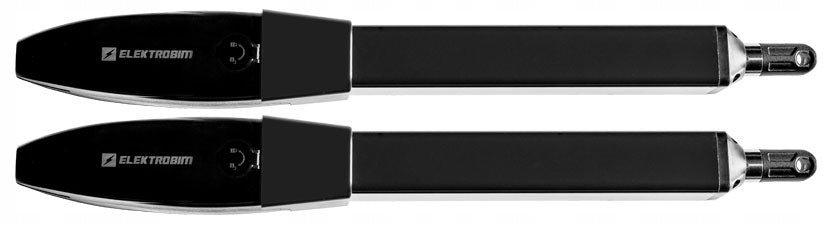

Two pieces of ETM-01 actuator with 300mm extension designed for gates with metal posts. Quiet and stable operation even in demanding conditions. Elegant shape and made of the best materials. Resistant to weather conditions. Unlocked with a key. Actuators equipped with metal gears.

Digital ETM control panel to control the set. The digital display helps to program the operating parameters. It has a number of protections against surges and other threats. In addition, equipped with useful functions such as soft start/stop. Thanks to the latest software of our production, the control panels can be freely configured to work with the remote control according to. own needs.

Two pieces of 4-channel remote controls to control the control panel. This small device has great potential. Four channels allow you to upload additional devices of our brand, if of course they are no longer reserved for any of the slots. For example, if we assign 2 buttons to the set, we can operate the garage door with the others.

Optical barrier with angle adjustment is an additional protection after the overload switch. Thanks to it, the operation of the machine will be stopped if something breaks the infrared beam when closing the gate (e.g. car). Thanks to the adjustable plate, we can set the convenient angle of the infrared beam in the range of up to 90°.

Bright LED signal lamp informs about the operation of automation. Visible even on a sunny day. Fastenings allow for side mounting as well as fixing on the top of the post.

Dedicated mounts along with mounting screws ensure the freedom of mounting actuators. We know that each gate is different, hence thanks to these handles we can freely configure actuators on each gate. The mounts are accompanied by keys for emergency unlocking in the event of a power outage, a fender for stopping the gate wings and mounting bushings.

Dimensions of the actuator

• Total length in the assembly state: 700mm
• Arm extension: 300mm

Other actuator data

• Engine power: 24VDC 60W
• Pull-out speed: 24mm/s
• Weight: ~3.2kg
• Hinge depth: up to 10cm
• Max. length of opening sash: 2.5m
• Max. Wing opening weight: 300kg
• Max. wing filling: 75%
• Protection class: IP55

Control panel

• Driver power supply: 230VAC +/- 15%
• Actuator supply voltage: 12VDC/24VDC
• Remote control frequency: 433.92 MHz
• Max. Remote control range: 100 meters
• Possibility to connect an emergency battery: 24V 5Ah
• Protection class: IP55
• Operating temperature: -25°C ~ +65°C
