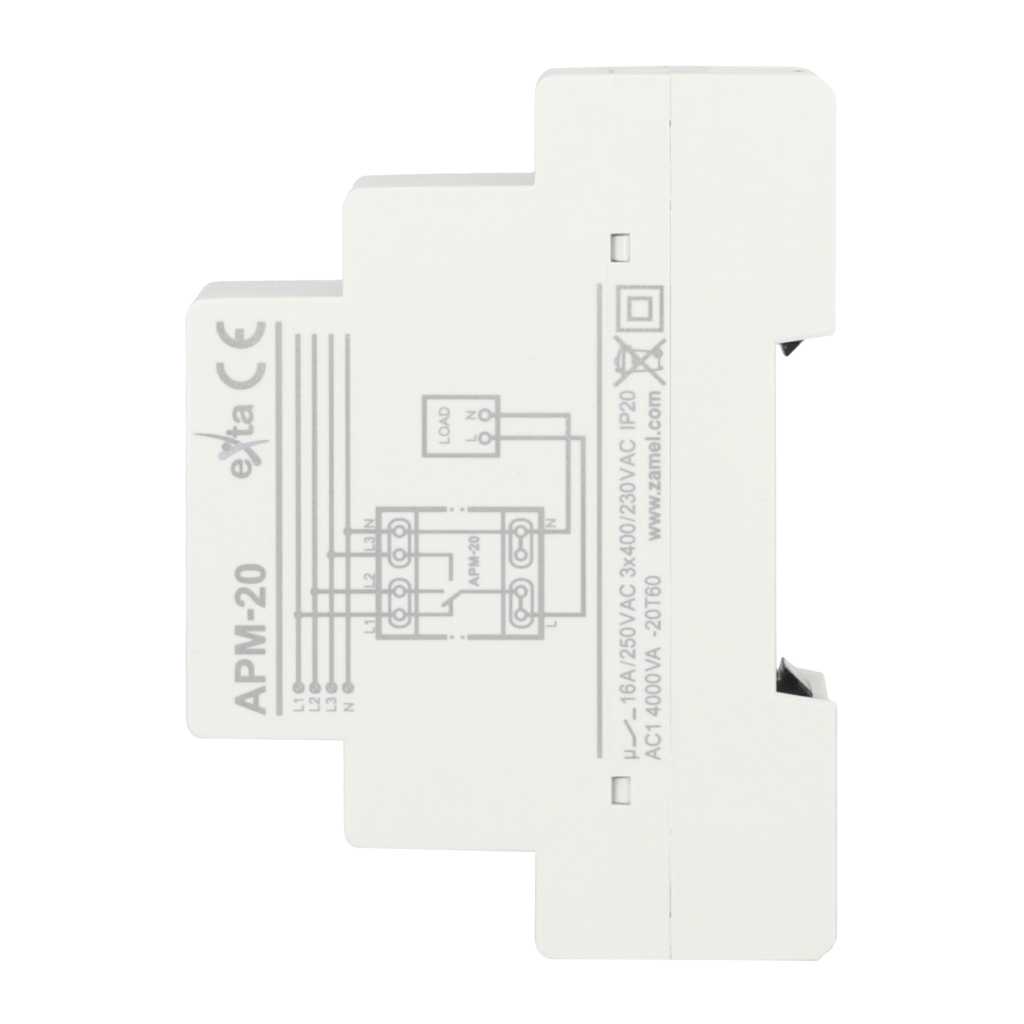

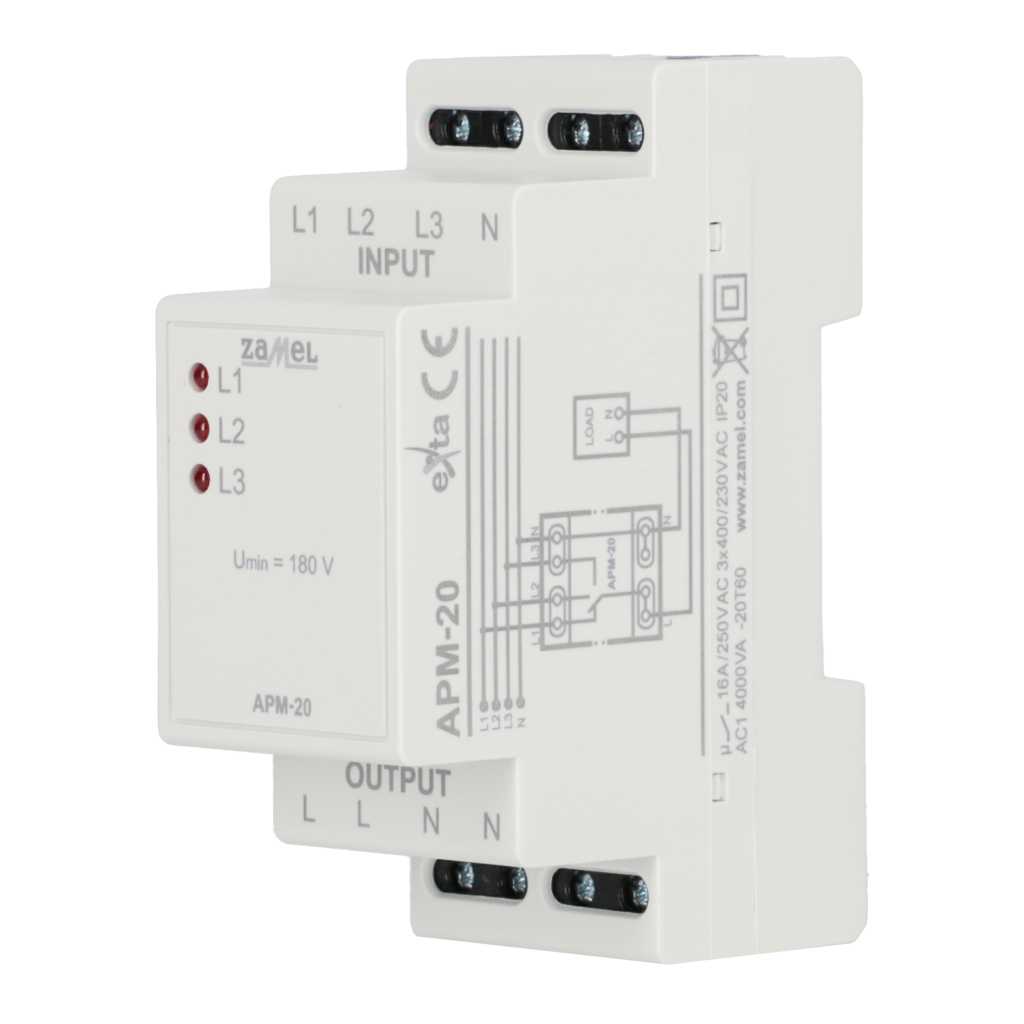

Automatinis fazių perjungiklis Zamel APM-20 L1-L2-L3

Trumpai apie prekę

Prekė: Automatinis fazių perjungiklis Zamel APM-20 L1-L2-L3. Kategorija: Išoriniai moduliai.

• Gamintojas: Zamel
• Modelis: APM-20

The APM-20 automatic phase switch is a device whose main task is to maintain the continuity of power supply to a single-phase receiver when the phase disappears or the value of effective voltage falls below the norm. The main advantage of the device is a small relative voltage measurement error not exceeding 1% even for highly deformed waveforms. This was achieved through the software implementation of the True RMS converter. The APM-20 is powered by three phases L1, L2, L3 with the L1 phase being a priority phase. The voltage switching threshold (180 V AC), switching time (150 ms) and voltage hysteresis (10 V AC) are factory set without the possibility of changing by the user. LEDs on the front panel illustrate the parameters of each phase. The internal system of output contacts provides increased resistance to their bonding and protects against interphase short circuit. The maximum output load capacity should not exceed 16A for receivers in AC1 class. APM-20 is designed for installation in switchgears (TH-35). The housing occupies the width of 2 modules.

Perfect gift for newborn parents, newborn mother, newborn father, baby shower, birthday, Christmas, festival and so on.

• Ensuring the continuity of power supply of a single-phase receiver
• three-phase power supply L1-L2-L3 (L1-priority phase),
• automatic phase switching at the loss of voltage or drop of its value below 180 V AC,
• switching time of 150 ms
• voltage switching threshold, switching time and voltage hysteresis set factory without the possibility of change,
• high accuracy of voltage measurement – relative error < 1%,
• voltage measurement of deformed signals (True RMS),
• Output load capacity – up to 16 A for AC1 loads,

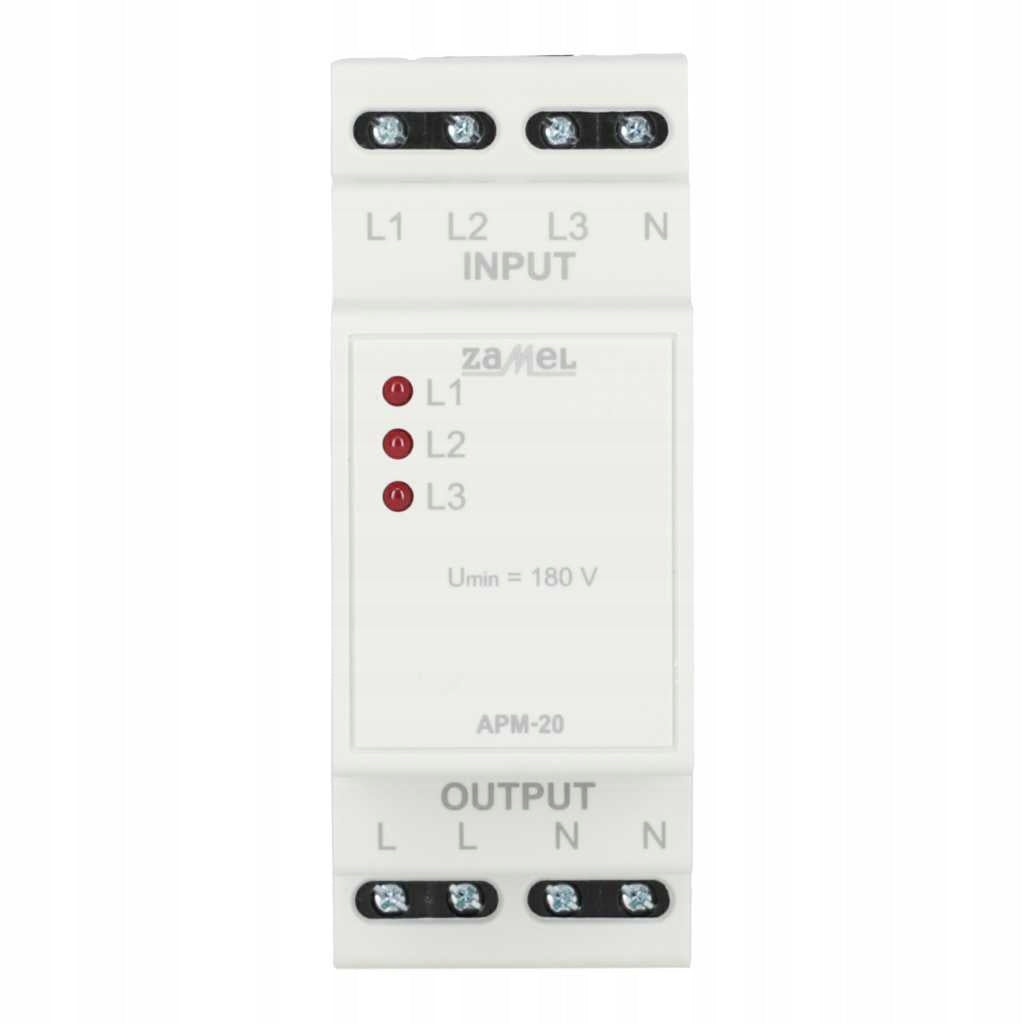

• signalling the parameters of individual power supply phases – 3 x LEDs,
• installation in the switchgear (TH35 rail) – width 2 modules

TECHNICAL DATA (APM-20)

Rated supply voltage 230 V AC

Maximum contact voltage 250 V

Voltage threshold setting range (Umin) 180 V

Category of use AC1

Maximum relay power 4000 VA

Contact system 1NO/NC

Relay current 16 A

Degree of protection of housing IP20

Housing mounting rail TH35 (PN-EN 60715)

• Dimensions: 90 x 35 x 65 mm
• Weight: 200 g
