Automatinis perjungiklis SZR ATS15-400GDA DAEWOO generatoriams

Trumpai apie prekę

Prekė: Automatinis perjungiklis SZR ATS15-400GDA DAEWOO generatoriams. Kategorija: Elektros generatoriai.

• Gamintojas: Daewoo
• Modelis: ATS15-400GDA

ATS15-400GDA

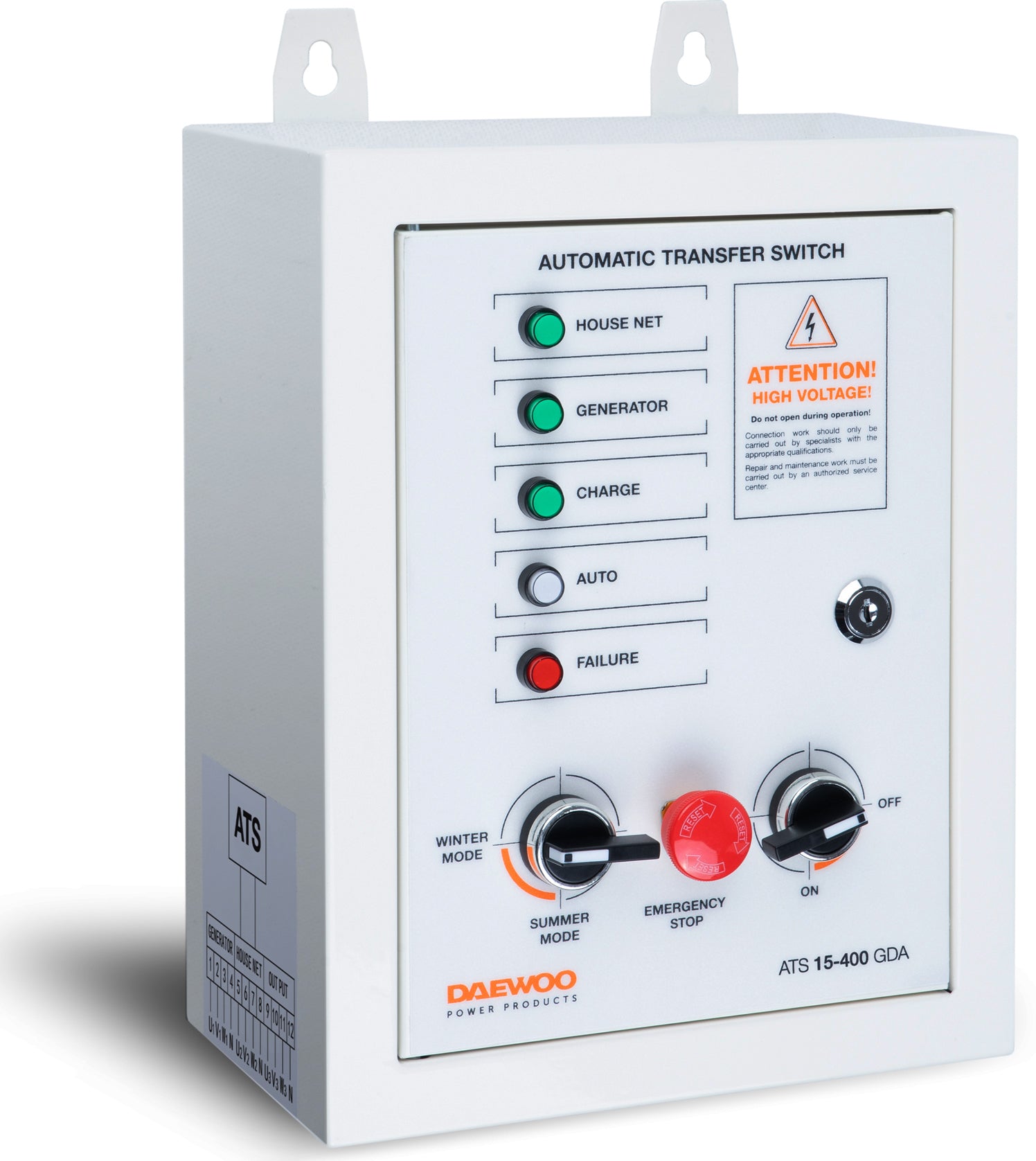

The DAEWOO ATS15-400GDA automatic generator set control module is designed to work with three-phase gasoline generator sets DAEWOO GDA series:

• DAEWOO GDA 7500E-3
• DAEWOO GDA 7500DPE-3 (400V operating modes)
• DAEWOO GDA 8500E-3
• DAEWOO GDA 9500DPE-3 (400V operating modes)

The automation module, also called ATS (Automatic Transfer Switch) or SZR (Reserve Switching Controller), is used to automatically switch the power supply between the primary and backup sources.

In the event of a power failure or voltage drop in the primary network, the module starts the generator. After resuming the supply of electricity, the return switch to the primary power supply track takes place, and the unit is switched off and goes into standby mode.

The module also constantly monitors the voltage of the starter battery of the unit and, if necessary, switches on charging.

The device has convenient mounting wall brackets and a solid metal housing with a key.

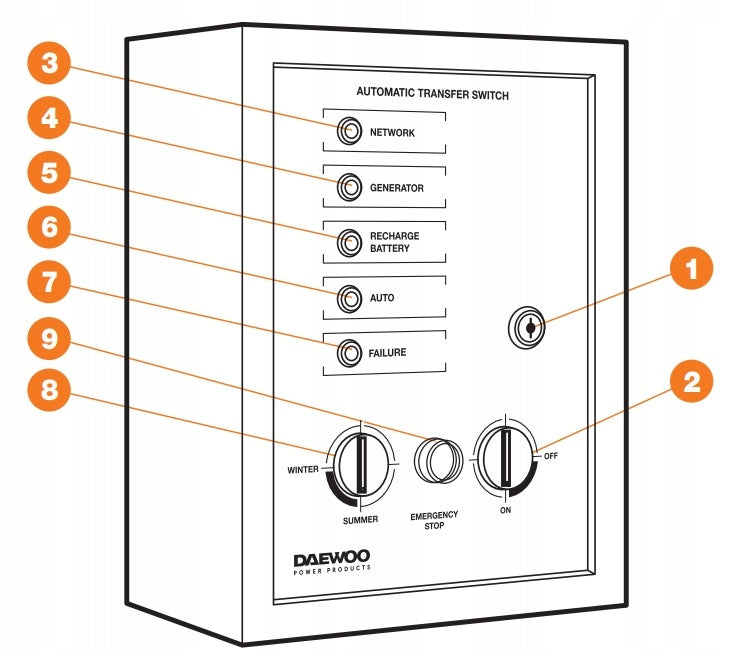

1. Module door lock
2. Switch
3. Indicator of the presence of voltage in the primary network
4. Indicator of the presence of the output voltage of the aggregate
5. Battery charging indicator
6. Automatic mode operating indicator
7. Error rate
8. WINTER/SUMMER Mode Switch
9. Emergency stop button

Specifications
