Automatinis suvirinimo skydelis Magnum Panorama 3D LCD TrueView+

Trumpai apie prekę

Prekė: Automatinis suvirinimo skydelis Magnum Panorama 3D LCD TrueView+. Kategorija: Kaukės.

• Gamintojas: Magnum
• Modelis: POS-T-PAN LCD
• Spalva: black
• Medžiaga: polyamide

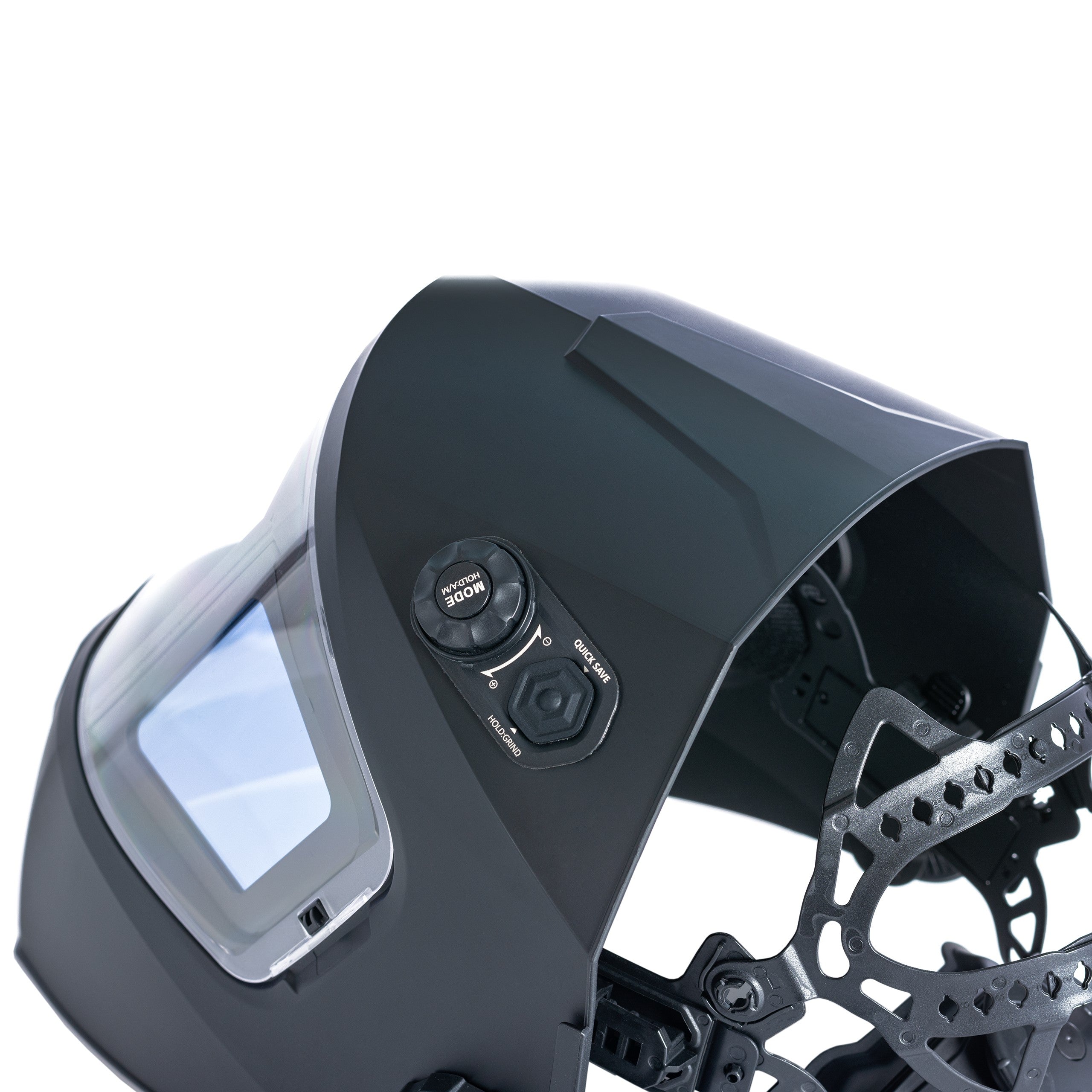

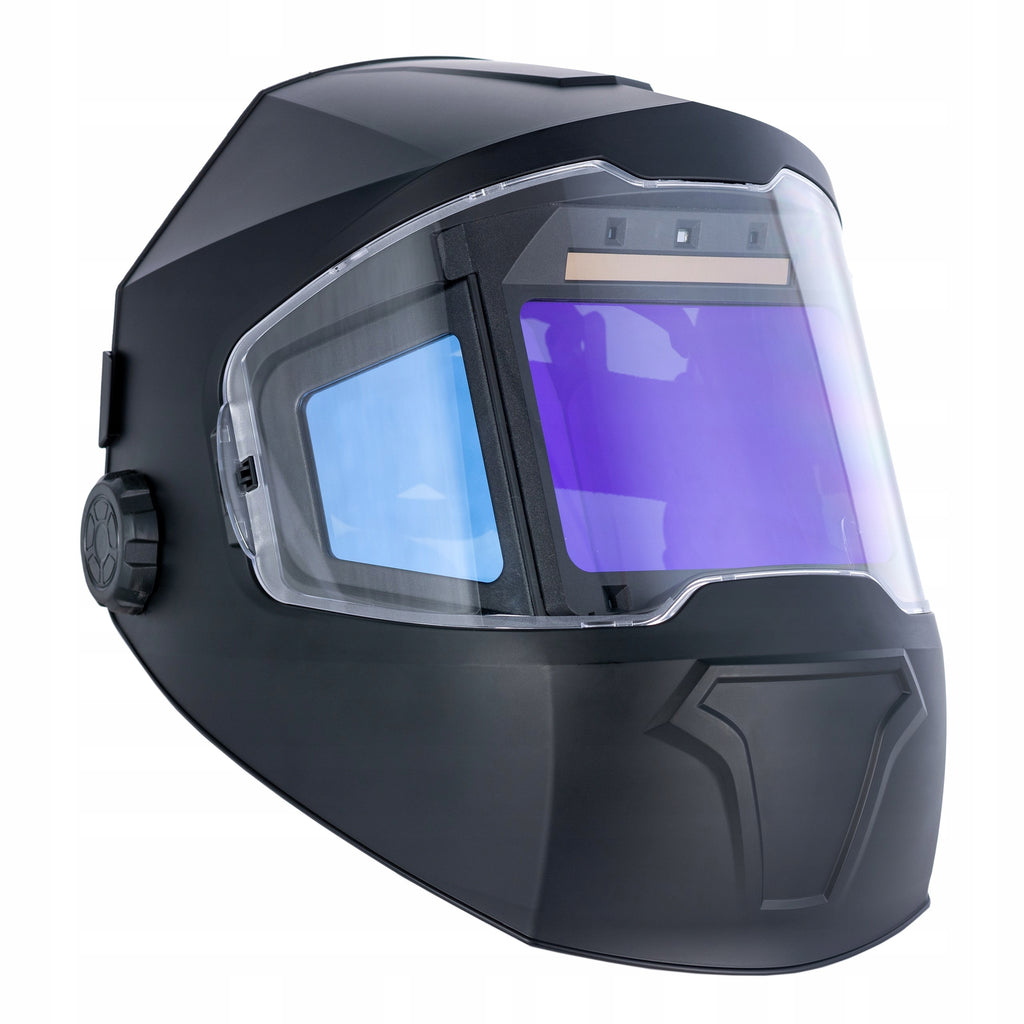

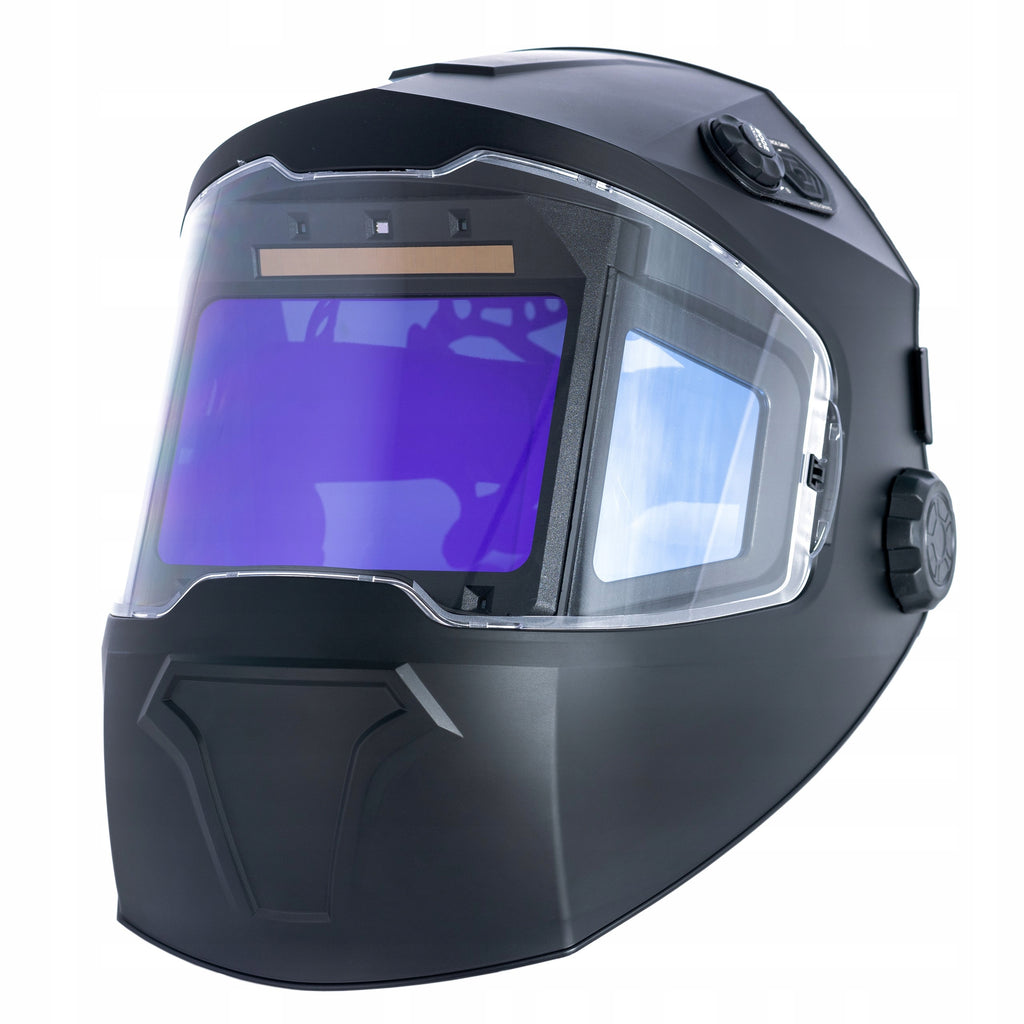

Professional automatic welding visor Magnum Panorama LCD 3D equipped with three active welding filters, made in the highest optical class. Main filter with smooth blackout change and side filters with a constant darkening degree and two operating options.

The visor uses the latest TrueView+ technology, which provides excellent color reception. Filters before welding are transparent, so the welder has the ability to accurately observe the workplace. Thanks to the use of three automatic filters, the visor has a panoramic field of view 180°, through a large main filter combined with side filters. When an electric arc is formed, the filters immediately darken when the arc expires, the filters automatically become transparent.

The automatic visor Magnum Panorama LCD 3D provides complete protection against UV / IR rays even when the filters are brightened. The visor operator has the ability to smoothly adjust the darkening degree in a very wide range from 4 - 13 DIN. Setting the sensitivity, darkening degree and brightening delay can be done in manual and automatic mode. In addition, this visor has the ability to save nine of its own settings, thanks to which we can easily personalize the visor for several different works or several welders.

The visor is powered by a replaceable battery and solar cells. The visor is equipped with five photo-sensors, providing high sensitivity and fast response, five-strip header with an innovative adjustment system, ensuring comfort for every user. In addition, the visor is made of a thermo stable, wear-resistant polymer, into which welding chips do not blend.

Features and benefits of the visor:

✅ TrueView+ technology

✅ Large field of view 180°

✅ Wide adjustment range 4-13 DIN

✅ Constant blackout of side filters 10 DIN

✅ Protection against radiation UV/IR

✅ Solar cells

✅ Five photo-sensors

✅ Innovative header adjustment system

✅ Operation in automatic and manual mode

✅ Built-in memory for saving your own settings

✅ Three operating modes WELD 9-13 DIN, CUT 4-8 DIN, GRIND 3 DIN

✅ Constant blackout mode 4-13 DIN

✅ Function of constant darkening of side fields

✅ automatic test function of self-tinting module

✅ mild brightening function after welding

✅ Battery level indicator

✅ External operating mode switch with adjustment

✅ Quick save button with the possibility of smooth transition to grinding mode

TECHNICAL DATA:

• Field of view : 116 x 81 [mm]
• Side field of view: 2x 75/50*60 [mm]
• Filter type: Monochrome LCD
• Grinding function: YES
• Optical class 1/1/1/1
• UV/IR protection: Permanent, 16 DIN
• Main and side filter- banner status: 3 DIN
• Number of sensors: 4+1
• Response speed : 0,04 [ms]
• Sensitivity: Adjustable
• Power supply: photocell + replaceable batteries 2x CR 2032
• Minimum amperage for TIG: >2 [A]
• Battery indicator: YES
• Darkening adjustment: 4-13 DIN
• Brightening time adjustment: 0,04 - 2,0 [s]
• Number of memory channels: 9
• Canopy material: Polyamide
• Operating temperature: -5 [°C] ÷ +55 [°C]
• Weight: 650 [g]
