Aprašymas
Trumpai apie prekę

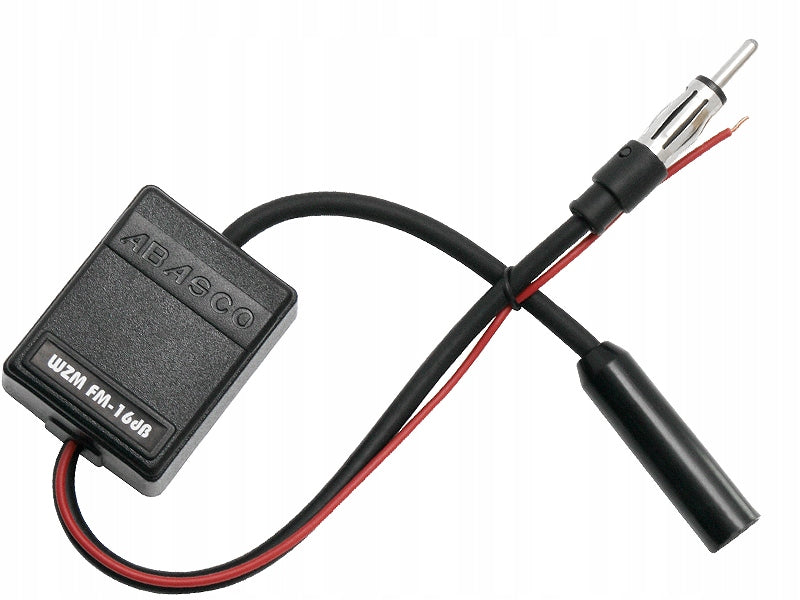

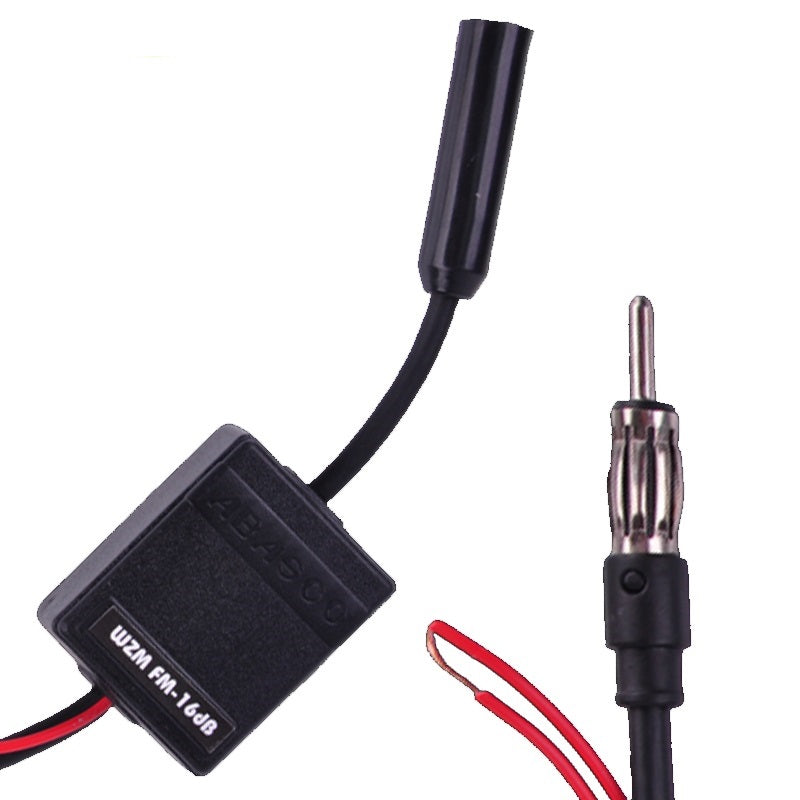

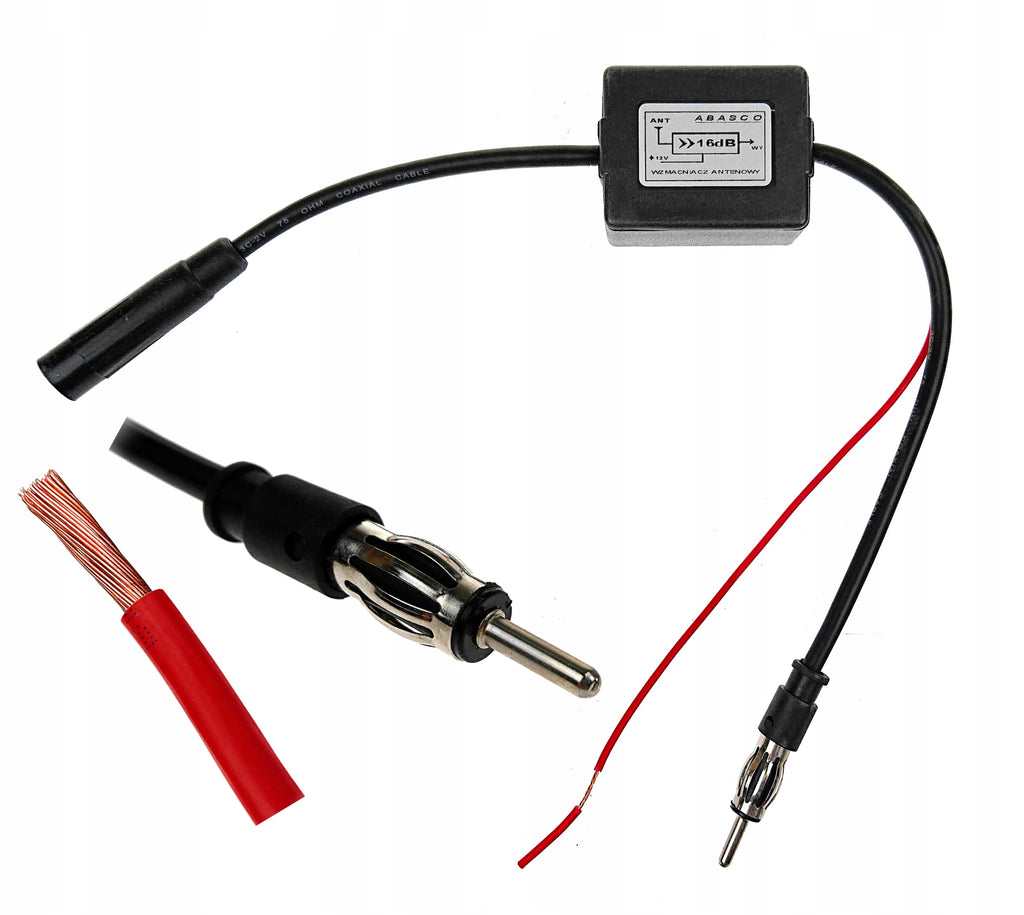

Prekė: Automobilinė FM radijo antenos stiprintuvas Universal. Kategorija: Stiprintuvai.
- Gamintojas: Abasco
- Modelis: UKF16DB
Is your car receiving radio waves correctly?
✅ Extremely easy connection - thanks to the built-in plugs, just plug the amplifier between the antenna and the radio, connect the red cable to 12V.
✅ Powerful amplifier ensures stable wave reception, you will finally receive the radio without noise and crackling.
1. Does the amplifier work with every radio and antenna?
The amplifier is universal, but can only be used with antennas that do not have a built-in amplifier. In this situation, an additional amplifier will not help in receiving waves.
2. Is assembly complicated?
Installation of the amplifier is an extremely easy activity due to the fact that the plug and the amplifier socket are adapted to direct connection to the antenna circuit.
3. Where to connect the red wire?
The red wire is used to power the amplifier, so it must be connected to +12V. Most often, the cable is connected to the blue cable in the ISO cube behind the radio (on which there is 12V when the radio is turned on). If you do not have such a cable or such a radio cube, it is okay, connect the red cable to the plus "after the ignition", so that after turning on the ignition and starting the car, the antenna will be powered and ready.
Additional advantages:
✅ Very good quality connectors and copper wire
✅ Compact, small and compact housing - will allow installation even in the case of a small amount of space
Characteristic:
- FM frequency range: 83- 108 MHz
- Impedance: 75 Ohms
- Reinforcement: 16 dBi (+/- 4dBi)
- Power supply voltage: 11-14V
- Cable: terminated with antenna plug
- Connection: car antenna plug DIN SIMPLE Dimensions: 50x40x20 mm
- Cable length: ok. 15cm and approx. 10cm
- Power supply voltage: +12V
- Power consumption: 15mA
- Reinforcement: UKF: 16dB, AM,LM: 9dB
✅ Cable terminated with the universal most popular plug
✅ The highest quality cables ensure great reception without noise!
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With a VAT invoice |
| Parametry | Brand | Abasco |
| Parametry | Model | UKF16DB |
| Parametry | Manufacturer code | URZ2290 |
| Parametry | Packaging status | original |
| Parametry | Certificates of conformity | CE |
