Automobilinė vaizdo kamera HA721 4K

Trumpai apie prekę

Prekė: Automobilinė vaizdo kamera HA721 4K. Kategorija: Vaizdo registratoriai.

• Gamintojas: Home Automation
• Modelis: HE721

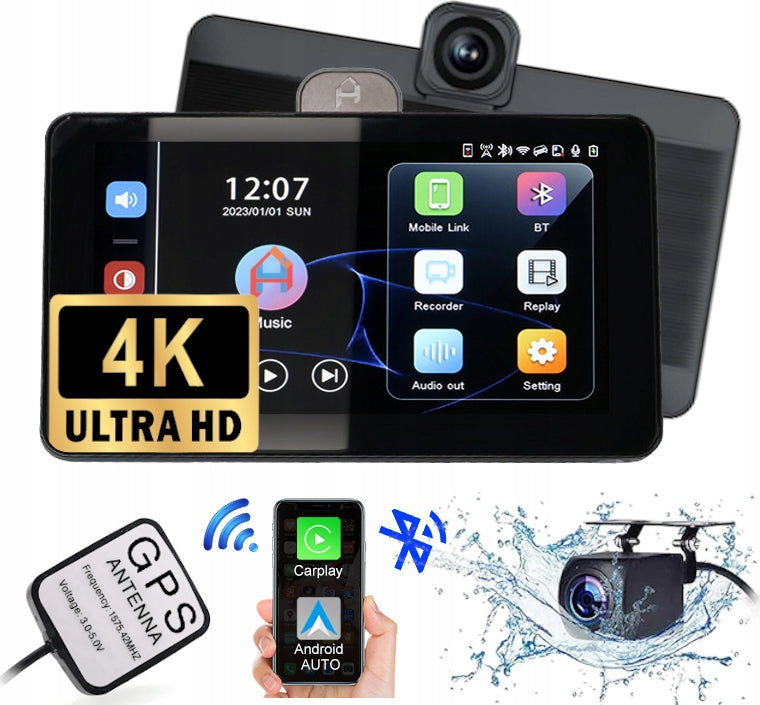

DVR, Rear-view mirror (camera cable 6m or 10m (surcharge),video recorder, reverse camera, touch screen 7 inches,GPS, audio recording, 3-axis overload sensor - G-Sensor,loop recording, built-in microphone and speaker, TF/SD memory card reader 128GB max.,mini USB connector, excellent night vision,, view angle of front camera 170° (2160P) and rear camera 140° (1080P) WDR, as well as:

• Bluetooth 5.0
• Android Auto and Car Play via WiFi
• Instruction in Polish

Even without additional ANDROID software, it is worth having a reversing camera and a rearview mirror not obscured by any obstacles. Neither splashed with rain or snow, nor dirty rear window, or packed up to the roof car will not be an obstacle to have a full-screen, ten-inch view of what is happening in the back, and you have the opportunity to connect via WiFi with your phone and pair your Android Auto and Car Play device.

Whether day or night there can always be a crash, scratch or act of vandalism and it is worth having hard evidence in the form of clear video recording revealing the perpetrator.

⚠ Larger version of the device - 10 inches is available in the Allegro 16498086048 offer

(Enter the number in the Allegro search engine)

1. Automatic start of recording - The recorder starts automatically and starts recording when the car ignition is turned on and automatically turns off when the ignition is turned off (with a delay of several seconds). The recorder must be constantly connected to the power supply from the car cigarette lighter socket.

2. Rearview camera with cable 6 or 10 meters (surcharge) - real-time image, undisturbed weather conditions, vehicle length irrelevant.

3. The 7-inch full-format touchscreen provides crystal clear images without any lag. HDR, WDR and Auto Adjusting Brightness Streaming Mirror systems make the user experience amazing.

4. Recording in 4K, the front camera captures an image of 2160P, and the rear camera 1080P. The wide dynamic range of the systems controlling the adaptation of image parameters allow you to record optimally even in poor visibility by adjusting the exposure time to make the recording readable.

5. The 170° wide-angle lens significantly expands the driver’s field of view and allows you to capture every road event from a wider perspective. It allows you to record details even outside the driver's eye area.

6. Night mode WDR (Wide Dynamic Range). This function works in car cameras by using appropriate algorithms to analyze image exposure and dynamically changing the values of underexposed and overexposed pixels of monitored scenes in order to show underexposed elements in the image. Thanks to this, we have the ability to accurately record the scene despite high contrast. Thanks to the wide lens and WDR technology, the device performs well even in difficult lighting conditions. The extended dynamic range of the image allows for a clear and detailed image, thanks to the skilful leveling of both too bright and darkened fragments of the recording. Thanks to the WDR function, it is possible to maintain the readability of the entire observed scene.

7. The system records both video channels at all times in a loop on the micro SD card (the oldest recordings are overwritten by the latest) and secures the recording in memory automatically when shock or impact is detected by the shock sensor (G-sensor). Security consists in copying a file to a protected folder whose contents are not overwritten by the recording loop

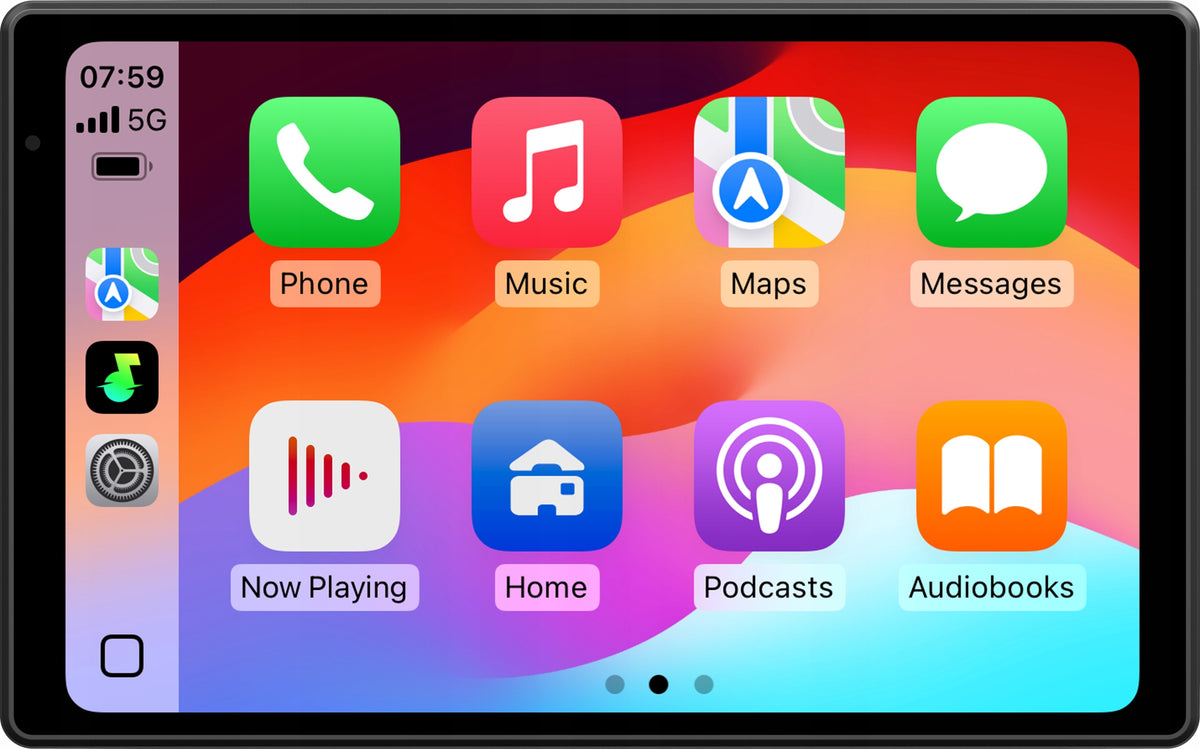

8. Wireless screen for smartphone

After activating the connection to the phone using Android Auto, Mirror Link or Car Play, applications from the phone are available on the screen of the device and you can freely use navigation, multimedia, the Internet or phone calls.

Applications compatible with Android Auto and Carplay include:

• Phone calls and text messages (e.g. voice reading and dictation of messages);
• instant messaging (e.g. Messenger, WhatsApp, or Skype);
• applications, navigation, Google Maps, Yanosik;
• Playing music (from phone memory or e.g. Spotify, Tidal, Deezer, and Google Play Music).
• It is possible to remotely receive images from cameras and control the device using an application on a smartphone via a WiFi wireless network, which is emitted by a built-in module compliant with the 802.11 a/b/g/n standard.

⚠ In the highest models of premium phones, e.g. Samsung galaxy S25 ultra, very often you need to go into the programming options of the phone and allow Android Auto wirelessly.

9. Alternative methods of sound output

Hands-free phone functions and music transmission from the device to car speakers can be realized by FM transmission from the device to the car radio or by connecting a mini Jack cable to the AUX input in the car.

Connection via cable eliminates noise heard in radio transmission, and the AUX output of the device is equipped with active filters of high and low frequencies. A module was also used to reduce the noise generated by the connection using a cable, through an impedance fit.

Audio Output Methods:

• Device Speaker
• Aux output (mini Jack 3,5mm)
• FM Transmitter
• Bluetooth connection

NOTE - BlueTooth is necessary to maintain the connection of the smartphone with the device in Android Auto, Carplay or Mirror Link mode, therefore it is not possible to transmit audio via BT

10. GPS antenna

In the event of a collision or police control, information about the exact position of the vehicle or its speed at a given moment is often needed, which is why the recorder is also equipped with the ability to record these parameters. Each recorded frame of video material is accompanied by information about the speed and GPS coordinates of the vehicle.

GPS Logger function - provides marking each frame of the film with GPS position coordinates in which the vehicle was at the moment, along with a satellite-synchronized timestamp.

Determining the current position of the vehicle on an ongoing basis. Control the route and current position of your car. Each recording secured by the device has a built-in GPS position marker, time and speed.

Recordings are saved in a special way that allows you to read GPS coordinates saved on recordings by a dedicated HIT GPS Player program, which allows you to visualize the course of the car route on the map and play it back with a recorded footage from cameras frame by frame on a PC or laptop with Windows.

This makes it easy to find a recorded video presenting the situation on the road from a given place selected on the map.

The program is recorded to an SD card automatically when formatting it on the device.

Specification:

• Screen size: full screen, rectangular, 7 inch screen HD IPS 1024x600 touch screen
• Front Resolution: 4K 2160P@25fps (F/1.8)
• Back resolution: 1080P@25fps (F/2.0), cable: 6m/10m (extra charge)
• Allwinner V535 Processor
• External memory: max. 128GB micro SD, Class 10 u3/V30
• RAM: 2GB DDR3
• Camera Viewing Angle: Front 170°, rear 140°
• Speaker and Microphone: Built-in
• Number of Video Channels: 2
• WiFi Connectivity: Supported
• Bluetooth Connectivity: Supported

Elements of the set:

Screen for dashboard HE721N

1. Dashboard screen with mounting system
2. Rear camera with 6m cable (surcharge up to 10m on offer 17646347298)
3. Dedicated car power supply with GPS antenna socket LUB dedicated power supply for fuses with GPS socket
4. AUX cable, length 1,5m
5. GPS antenna

NOTE: You should select ONE power supply and inform us about your choice. In the absence of a choice, any will be sent.

If you want to buy both power supplies, you must make a deposit in the offer 17867758749 (just copy this number in the Allegro search engine)

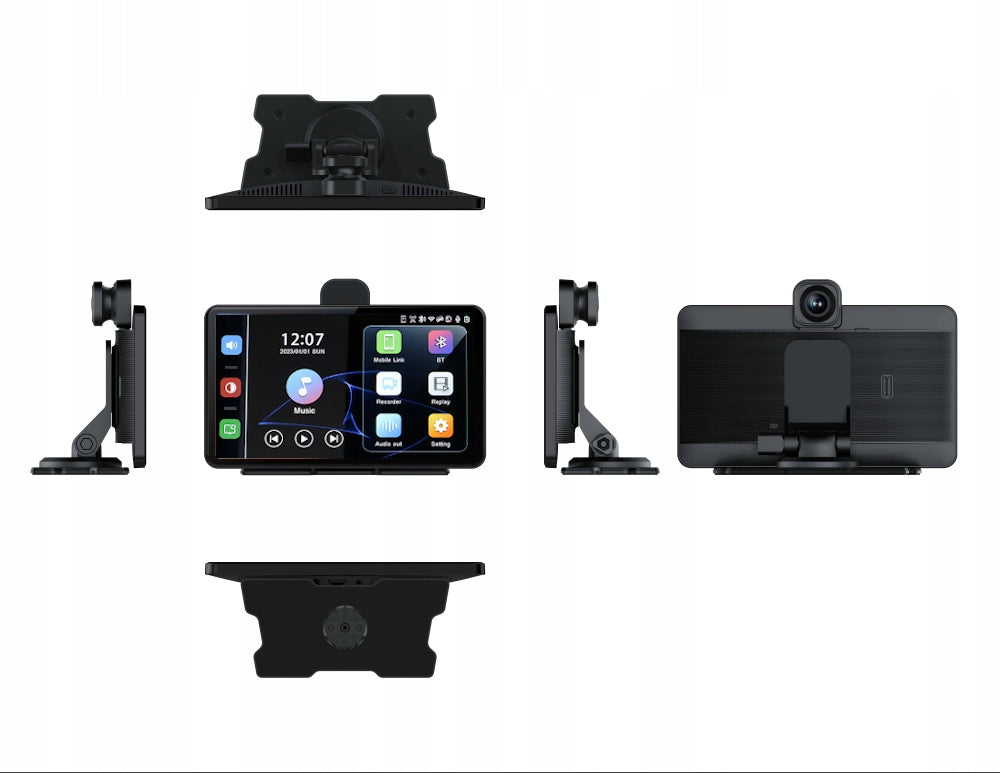

Installation of the device on the cockpit:

For fastening, an extremely durable double-sided adhesive made of polyurethane foam with a shape matching the mounting base is used. It should be applied to a clean, dry and degreased gasoline extraction surface of the cockpit in a previously selected place ensuring convenient touch operation of the display and full visibility of the device screen.

It is also possible to strengthen the connection with screws through the holes provided for this purpose in the base.

It should be noted that the view obtained for the front camera was as unobstructed as possible, the frame captured by it was as large as possible, giving a full picture of the situation on the road.

Connection of power supply and rear camera:

Parking power supply:

The cables derived from the power supply are terminated with car mini fuses, making it easy to connect them to the power supply in the vehicle fuse box.

The BAT+ cable should be installed in the fuse socket, where there is a constant voltage of +12V at all times, even when the ignition is turned off.

The ACC cable is a trigger input to which a constant voltage of +12V must be given, which wakes the device from hibernation to normal operation and prevents its further sleep. It can be any fuse socket in the box, which is powered after switching the ignition to the first position, i.e. in a typical case, e.g. radio fuse, or dashboard backlight. Usually, it is not even necessary to replace the existing fuse with a fuse, which terminates the power supply cable, because there are several free sockets in the box, which are powered only after unlocking the ignition.

Car power supply:

Rear camera

The camera is connected to the device using a cable terminated with a mini Jack 3,5mm plug from the screen side and a 4-pin connector from the camera side. Although our camera is waterproof (IP67 class), the same connector is not, so it is necessary to protect the connector from moisture with the included heat shrink cover.

The reversing camera mode together with the auxiliary lines is activated automatically on the screen when the reverse gear is turned on, provided that the activation cable is connected to the +12V DC reversing light in the car.

Rear camera

The camera is connected to the device using a cable terminated with a mini Jack 3,5mm plug from the screen side and a 4-pin connector from the camera side. Although our camera is waterproof (IP67 class), the same connector is not, so it is necessary to protect the connector from moisture with the included heat shrink cover.

The reversing camera mode together with the auxiliary lines is activated automatically on the screen when the reverse gear is turned on, provided that the activation cable is connected to the +12V DC reversing light in the car.
