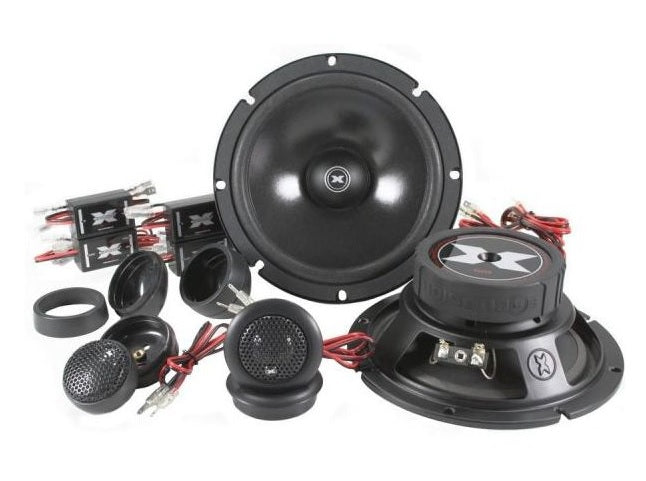

Automobiliniai garsiakalbiai 16,5 cm su kryžmine sistema Excursion SX6C

Trumpai apie prekę

Prekė: Automobiliniai garsiakalbiai 16,5 cm su kryžmine sistema Excursion SX6C. Kategorija: 160 ir 165 mm.

• Gamintojas: Excursion
• Modelis: SX-6c

EXCURSION SX-6C SPEAKERS SYSTEM 16,5cm

Producer: EXCURSION

The car speakers of the German brand EXCURSION SX series were designed in Germany for universal applications and as excellent and inexpensive replacements for factory speaker systems (OEM). During the construction of the speakers in this series, a number of proven natural materials, technologies and solutions were used, which for many years have been recognized as one of the best for this type of products offered by the Home and Car Audio industry, also in models positioned in a much higher price class. These include, among others, retail-sounding silk tweeter domes and rigid and lightweight woofer membranes made of 2-layer pressed paper externally impregnated with a special anti-resonance substance. It has been known for a long time that paper membranes provide the most dynamic, faithful and natural sound of low and medium tones. Especially for the Excursion SX series, rigid steel wofer baskets have also been designed in the Euro-DIN standard for easy installation. The baskets have additional holes symmetrically distributed under the lower suspension, whose task is to support the ventilation and cooling system of the coil. Thanks to this, the coils are even more resistant to higher power loads. All this makes the SX series Excursion speakers clearly distinguished in their class primarily by high performance, sound quality, ease of installation and attractive price. It is also an excellent solution for those who would like to start their adventure with car audio by gradually completing a good quality audio system at a moderate price.

Excursion SX-6C

2-way car component speaker system with a woofer diameter of 165 mm. The set includes 2 tweeters, 2 mid-woofers and 4 Plug&Play crossovers separate for each speaker. The crossovers are equipped with high-quality MKP capacitors and provide a wide range of connection configurations (e.g. Bi-Wiring). Woofer magnets have central vents that ventilate and lower the resonant frequency (FS), as well as further improve the efficiency of the coil cooling system. On the other hand, woofer diaphragms have received specially designed dust caps (dustcap) in the style of phase equalizers, whose task is to improve the sound of medium tones in the event of too large listening angle (e.g. with low positioning of door woofers).

BASIC PARAMETERS:

• 2-Way Car Speaker System
• Woofer diameter: 165 mm (6,5 inches)
• RMS power: 75 W
• Max Power: 200 W
• Impedance: 4 Ohms
• frequency response: 55 - 20 000 Hz
• Efficiency (1W/1m): 90 dB
• Woofer Magnet: 10 oz
• installation depth: 57 mm
• Tweeters:
• 25 mm dome membrane made of natural silk impregnated with a thin layer of anti-resonance substance - provides a clean, faithful and detailed sound of high tones
• efficient neodymium magnetic system with coil cooling system
• additional enclosures and accessories for individual installation and adjustment of the sound propagation angle
• Medium-woofers (woofers):
• diameter 165 mm

lightweight and rigid ADC (Activ Damping Coating) conical membrane made of 2-layer paper coated with an anti-resonance substance reducing sound distortion and additionally impregnating and protecting the membrane against moisture. This diaphragm design provides a natural and balanced midrange sound and abundant and dynamic bass.

LXPD (Lineal X-point Phase Plug Design)-style pollen cap – improves the detail of midrange tones and their tonal balance in a wider range of listening angles, e.g. with low-mounted woofers (large listening angle on the driver's side),

upper suspension providing large linear deflections of the membrane over a wide frequency range made of double-pressed foam with high damping properties, additionally protected against the harmful effects of sunlight (UV). The result - higher midrange resolution (e.g. vocals), more bass and higher performance while reducing unwanted distortion.

rigid black pressed steel basket with large holes, ensuring free flow of air "pumped" through the back of the membrane. The basket also features additional symmetrically distributed holes under the lower suspension, providing efficient ventilation and cooling of the coil, making it more resistant to higher power loads.

efficient magnetic system EFF (Efficient Flux Field) with a central hole lowering the resonant frequency and additionally supporting the coil cooling system,

carefully designed pure copper coil that has been precisely wound onto an aluminum carcass. Copper is one of the best conductors of current, and aluminum, one of the best conductors of heat, at the same time having a very low weight, slightly burdening the moving elements of the speaker. This guarantees very efficient operation, good heat dissipation from the coil and long and trouble-free operation of the speaker.

magnet protected by a rubber protective cap,

metal mesh grilles are optional equipment (XGR6 - sold separately)

Passive crossovers:

4 independent crossovers 6dB/oct. for each speaker (2pcs. for tweeters and 2pcs. for woofers)

high-quality MKP capacitors significantly improving the sound quality

convenient and quick Plug & Play installation on speaker cables (In-Line),

high flexibility in the configuration of different connection versions (e.g. triple 6dB/oct. in line, Bi-Wiring, etc. )

small dimensions for easy installation anywhere: 44x25x19 mm

possibility of using additional In-Line Plug&Play resistive silencers lowering the volume level of tweeters (XLR silencers are sold separately)

cable connectors for changing the polarity of tweeters (see notes below)

ATTENTION!

Operation of the set without properly connected crossovers threatens permanent damage to tweeters. Such damage is not covered by the warranty.

Depending on the location of the tweeters and the direction of the tweeters and the distance between the speakers and the listener, in some cases it may be helpful to change the polarity of the tweeter wires (replacement of tweeter wires). This is aimed at more accurate alignment of the frequency-phase characteristics around the crossover division point, if at this point an unfavourable boost of this part of the acoustic band would be created, which is most often manifested by a stronger exposure of the higher parts of the midrange. Crossover connectors are designed to easily change the polarity of tweeters.

In order to lower the signal level for tweeters and adjust their volume to your preferences, you can use easy-to-install resistive Excursion XRL silencers (sold separately), lowering the signal level in the range of 2-10dB.

The set includes:

- 2 tweeters (tweeters)

- 2 mid-woofers (woofers)

- 4 crossovers (2xTW, 2xWO)

- set of wires

- accessories for mounting tweeters

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Design	two-way
Parametry	Model	SX-6c
Parametry	Brand	Excursion
Parametry	EAN (GTIN)	4250877811261
Parametry	Manufacturer code	4250877811261
Parametry	PMPO music power	200 W
Parametry	Rated RMS power	75 W
Parametry	Rated impedance	4 Ω
Parametry	Mounting depth	57 mm
