Automobiliniai garsiakalbiai 165 mm 480 W, komponentų rinkinys TAMDEL GK-6500

Trumpai apie prekę

Prekė: Automobiliniai garsiakalbiai 165 mm 480 W, komponentų rinkinys TAMDEL GK-6500. Kategorija: 160 ir 165 mm.

• Gamintojas: TAMDEL
• Modelis: GK-6500

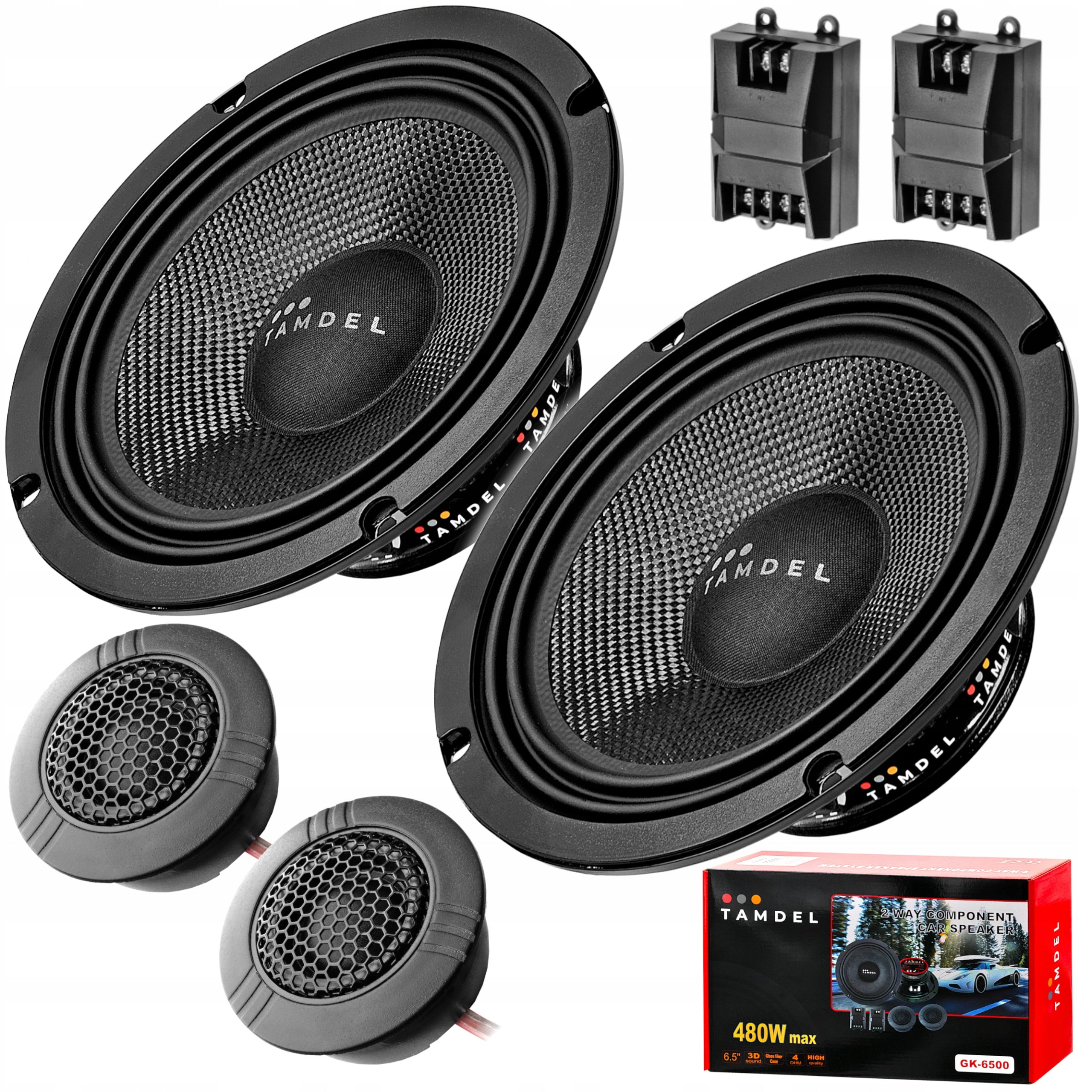

TAMDEL GK-6500 is a set of separated car speakers 165 mm / 6,5” with separate tweeters and crossovers.

✔ For replacement of factory car sound system

✔ Better soundstage than regular coaxial speakers

✔ Cleaner treble with separate tweeters

✔ Operation without additional amplifier — directly under the radio

✅ Main features of TAMDEL GK-6500

✔ Component set – woofer + tweeter + crossover

✔ Separate tweeters – better soundstage and clearer treble

✔ Passive crossovers – bandwidth separation between woofer and tweeter

✔ Woofer 165 mm / 6,5” – low and medium tones in the car door

✔ Maximum power 480 W / RMS 60 W – dynamic sound

✔ PP membrane and rubber suspension – stable operation and durability

⭐ The price is for the set – 2 woofers + 2 tweeters + 2 crossovers

✅ Technical parameters – TAMDEL GK-6500

• Type: two-way, component set

• Woofer: 6.5" / 165 mm

• Maximum power: 480 W

• RMS power: 60 W

• Frequency response: 50 Hz – 22 000 Hz

• Sensitivity: 93 dB

• Impedance: 4 Ω

• Membrane: PP plastic (textured structure)

• Suspension: rubber

• Tweeter: 54 mm, dome, adjustable

• Crossover: filter 3.5 kHz

• Woofer mounting depth: 65 mm

• Mounting diameter: 145 mm

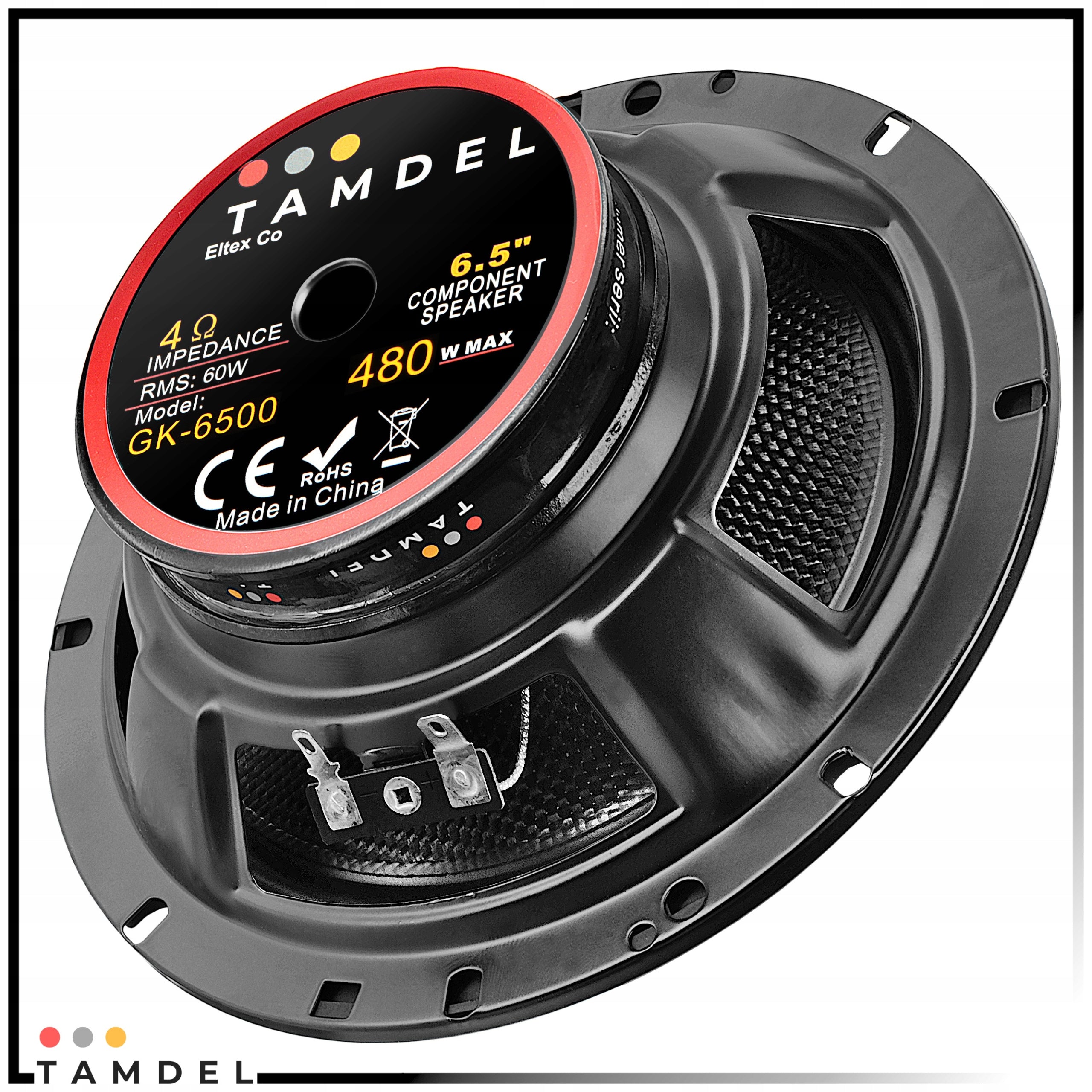

✅ Mounting dimensions – woofer TAMDEL GK-6500

• Outer diameter of the frame: 165 mm

• Mounting hole diameter: 145 mm

• Mounting hole spacing (diameter): 155 mm

• Mounting depth (to basket): 55 mm

• Total depth: 65 mm

• Magnet diameter (lower part of the basket): 85 mm

✅ Mounting dimensions – tweeter TAMDEL GK-6500

• Outside diameter: 54 mm

• Mounting diameter (hole): 46 mm

• Overall depth: 26 mm

• Mounting depth (recessed part): 19 mm

• Dome diameter: 37 mm

• Mounting type: recessed or surface

✅ Tweeter can be removed from the case

With a small amount of space (e.g. in post A or mirror triangle) the tweeter can be removed from the plastic housing, which reduces its mounting depth.

✔ easier installation in factory locations

✔ less space needed behind the grille

✔ no need to modify the upholstery

A simple solution when every millimeter counts.

✅ Mounting dimensions – crossover TAMDEL GK-6500

• Height: 68 mm

• Width: 50 mm

• Depth: 37 mm

✅ Connection diagram of the TAMDEL GK-6500

Description of connections:

• +IN / –IN – signal input from the radio (factory or aftermarket)

• +W / –W – output to 6.5" woofer

• +T / –T – tweeter output

Principle of operation:

The signal from the radio goes first to the crossover, which splits the band into two ranges:

– low and medium frequencies → woofer,

– high frequencies → tweeter.

Cable Coloring:

• red – plus (+)

• blue – minus (–)

Note: Connect the speakers with proper polarity to avoid bass drop.

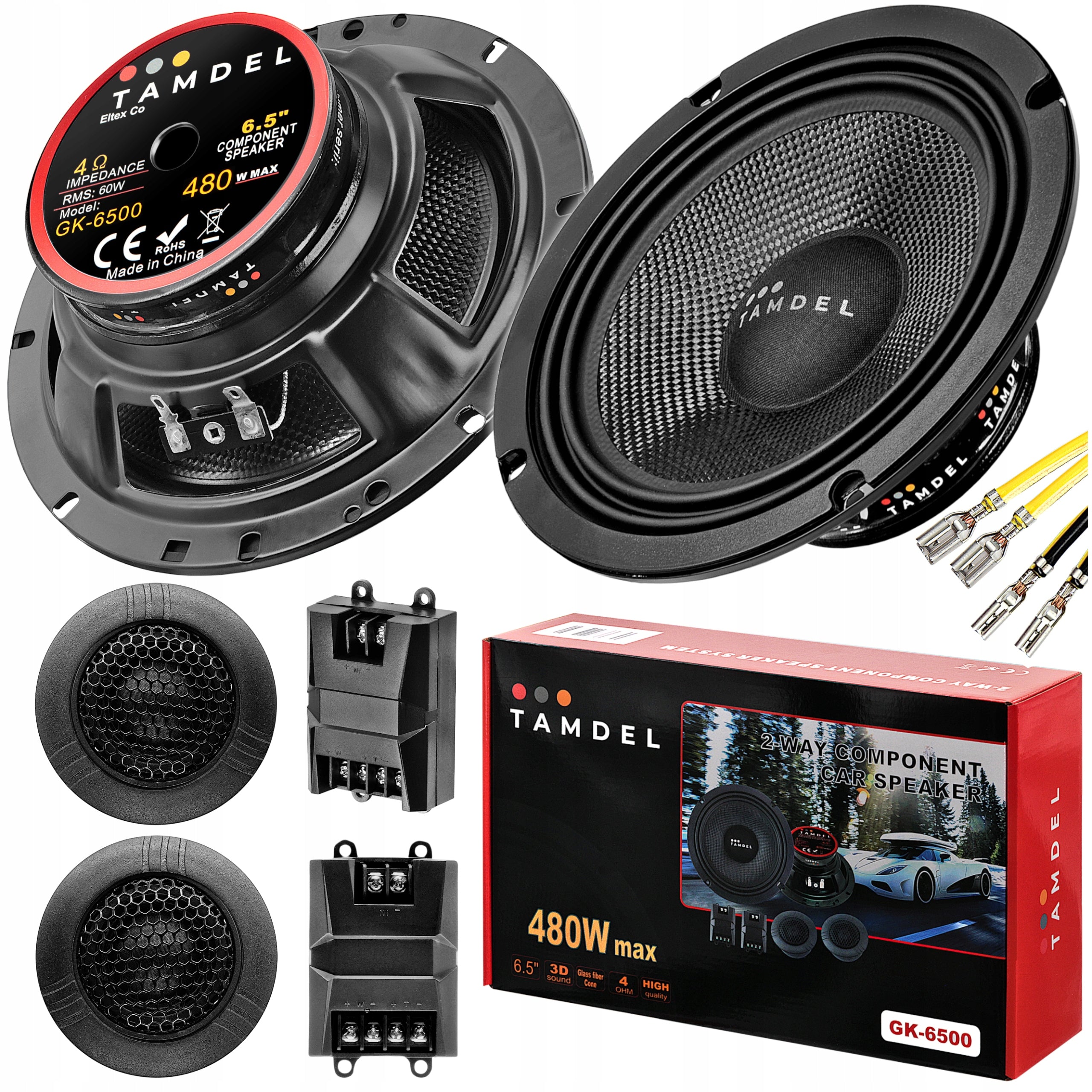

✅ The set includes

• 2 × 165 mm / 6.5" woofer TAMDEL GK-6500

• 2 × tweeter

• 2 × passive crossover

• 2 × connecting cables with terminals

• 8 × mounting screws

• instructions in Polish

• original TAMDEL packaging
