Automobiliniai garsiakalbiai R165EM EVO2, 165 mm, 2x100 W, 2 juostų

Trumpai apie prekę

Prekė: Automobiliniai garsiakalbiai R165EM EVO2, 165 mm, 2x100 W, 2 juostų. Kategorija: 160 ir 165 mm.

• Gamintojas: Audio System
• Modelis: R 165 EM EVO 2

Audio System R165EM EVO2 is the installation version of the R165EVO2 edition kit since 2021. One of the most popular and successful loudspeaker sets with a woofer diameter of 165mm in its price and quality class. The use of a coil with an impedance of 3 Ohms allows the system to achieve high efficiency and to obtain 25% more power from the radio and amplifier.

The set plays great under the radio itself.

The set received a distinction during tests in the industry press "CAR & HIFI" in terms of great value for money in the middle class.

TECHNICAL SPECIFICATION:

• Outer diameter: 165 mm
• Installation depth: 62 mm
• Diameter of mounting hole: 143 mm
• Transmission bandwidth: 50Hz - 24kHz
• Impedance: 3 Ohms
• Power: 2 x 130W MAX / 100W RMS

FULL SPECIFICATION OF THE SET IN THE ANNEX BELOW (tab: "Additional information").

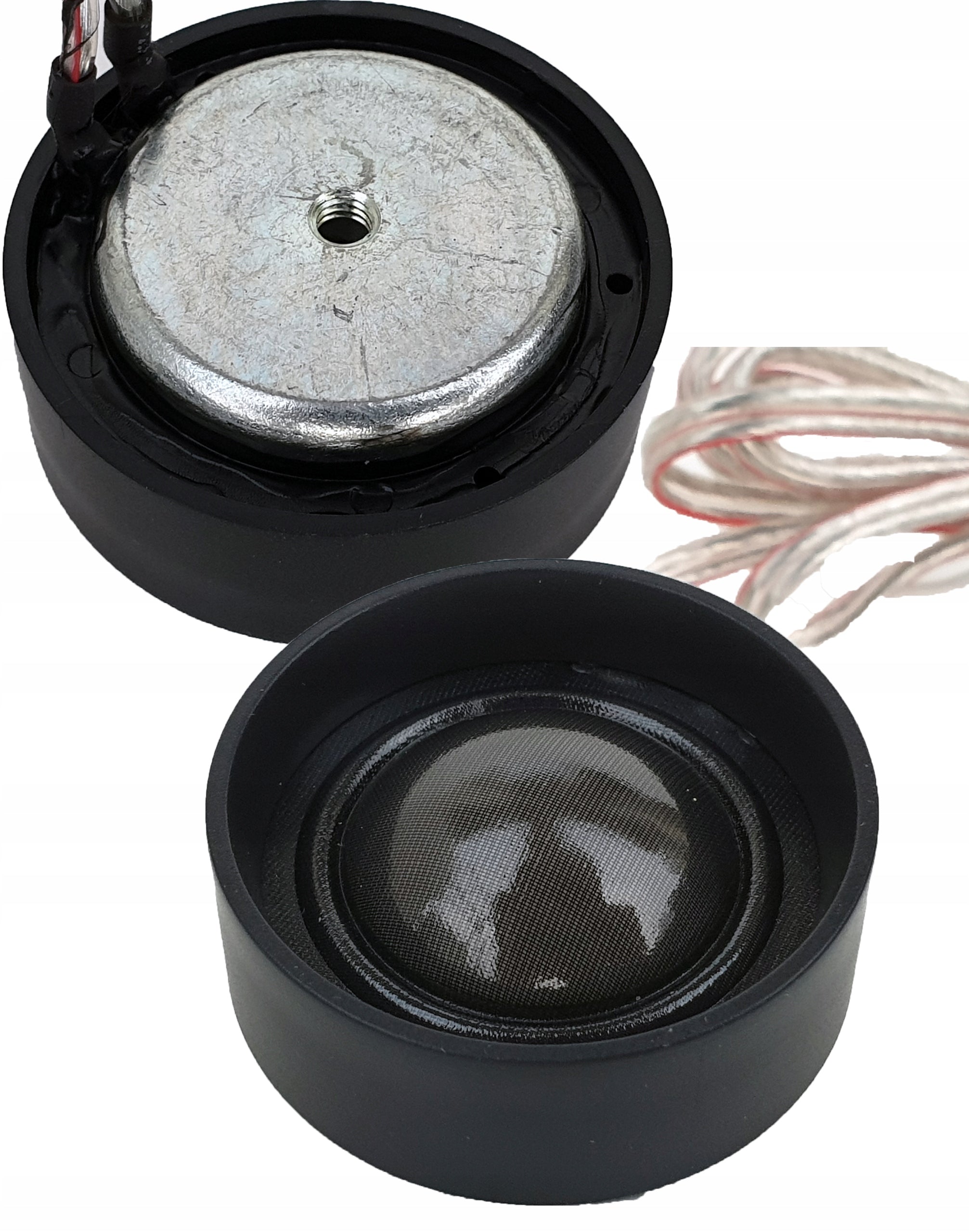

HS24EM EVO2 tweeters (tweeters):

• almost perfectly linear characteristics in the audible range and in the higher harmonic range of the audible range, up to 24.000Hz
• High coil and upper suspension allows free movement of the tweeter diaphragm
• Extended bandwidth up to 24.000Hz (-6dB/Oct.)
• Great resolution and selectivity
• Infinitely large amount of details, small details, unattainable in cheap systems
• cultural, juicy sound without sand, strong but delicate

Midwoofers 165mm AS165EM EVO:

• Midbass speaker diaphragm made of noble 3-layer sandwitch - ultra-light diaphragm for speakers under the radio itself
• Nano-ceramic CeraCoat layer covering the membrane gives lightness to medium tones and "opens" the stereo scene
• 3-ohm coil is +25% more power from radio or amplifier
• Enlarged HEM magnet, 2x larger than cheaper models of this brand
• Coil multiventilation - ventilation holes in the basket and magnet yoke - greater load capacity, deeper bass thanks to lowering Fs

Additional low-pass crossovers for FWK MW midbasses:

• We use them only when powered from a stronger amplifier
• Improve bandwidth division at the expense of slightly lower bass intensity
• When mounting speakers under the radio itself (without amplifier) we do not mount these crossovers!

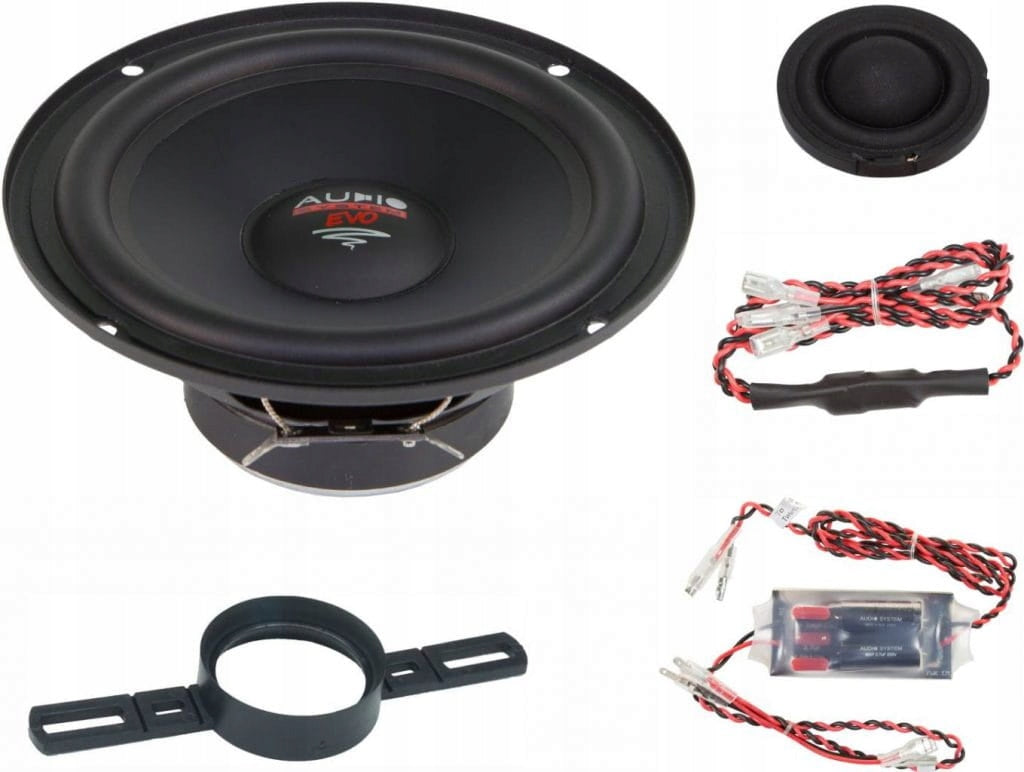

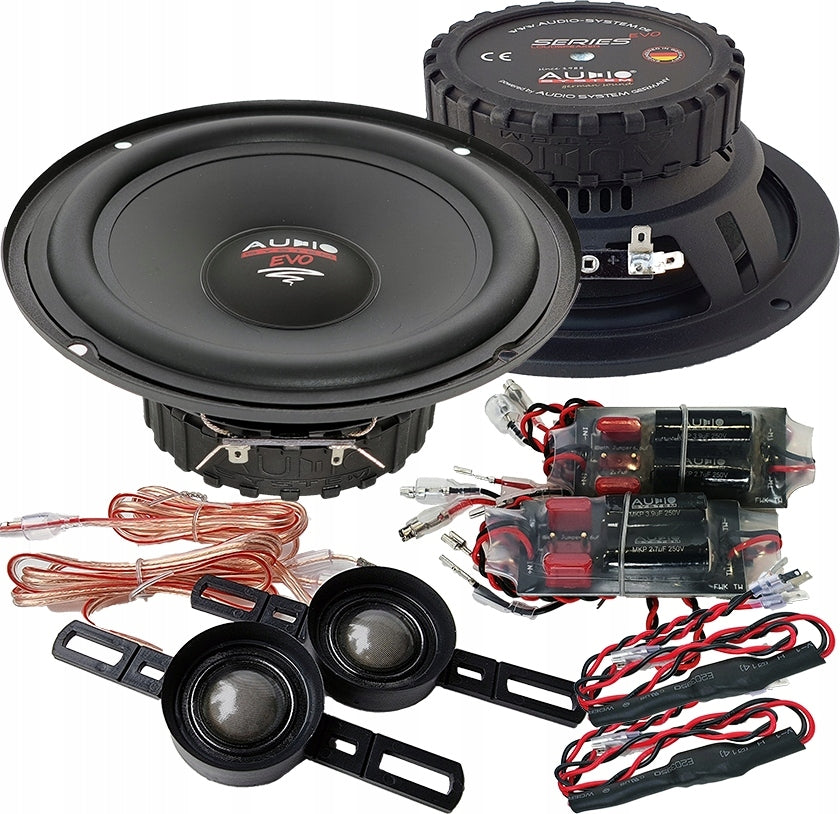

THE SET INCLUDES:

• 2x Midwoofers 165mm AS 165 EM EVO
• 2x HS 24 EM EVO 2 Tweeters with 25mm Silk, High Quality Dome
• 2x FWK TW plug and play mounting crossovers for tweeters with 3 configuration options (3 different frequency division values)
• 2x FWK MW plug and play crossovers for mid-woofers (midwoofers)
• Enclosures for tweeters
• Set of screws
