Automobilinis įtampos keitiklis 24V, 1500W/3000W, pilna sinusinė banga, USB, TIR, pagaminta Lenkijoje

Trumpai apie prekę

Prekė: Automobilinis įtampos keitiklis 24V, 1500W/3000W, pilna sinusinė banga, USB, TIR, pagaminta Lenkijoje. Kategorija: Įtampos keitikliai.

• Gamintojas: Volt

• Total power (instantaneous): 3000VA
• Permanent power: 1500W
• Battery voltage: 24V
• Input voltage: 21-31V
• Output voltage: 225-235V
• Output voltage frequency: 50Hz(+-2Hz)
• Full load efficiency: 92%
• Undervoltage protection threshold: 21,4V(+-0,6V)
• Working temperature: -10-40°C
• Dimensions: 355 x 205 x 75 mm
• Weight: 3,2 kg
• Product code: 20841

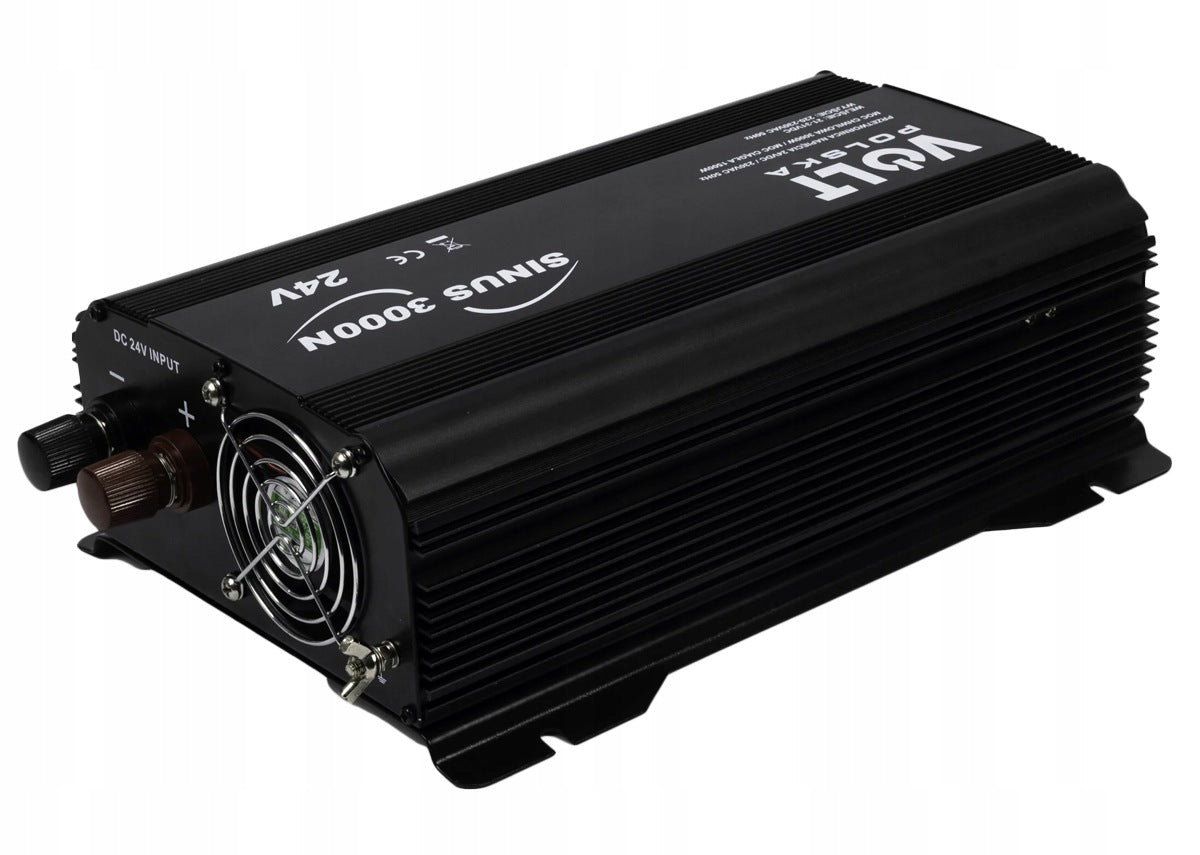

Electronic converter SINUS 3000 24V is used to power electrical devices requiring 230V AC voltage from batteries and automotive installations with a constant voltage of 24V.

It is perfect for vehicles and places where there is no possibility of direct connection to the power grid.

In addition, the product is equipped with a USB socket for powering or charging mobile devices.

• The SINUS pure converter produces a “sine waveform” voltage at the output, the same as in the power grid.
• It can power devices of an inductive nature (m.in. power tools, air compressors, air conditioners, refrigerators, freezers, etc.).

A number of protections are responsible for the safe operation of the converter protecting both connected devices and the electrical system of the vehicle. The converter will turn off automatically in case the load rises above 120%, as well as in case of short circuit.

• Short-circuit protection
• Thermal protection
• Undervoltage protection
• Overvoltage protection
• Overload protection

No forms of fuses, including surge protectors, i.e. popular distributors with protection, should be used at the output of voltage converters. The only safe form of protection of the system is to install a fuse on the battery side and the only allowed form of separation from the mains sockets is the use of a basic distributor, devoid of protection, diodes and switches.

• Refrigerators, freezers
• Air conditioners
• Electronic devices, e.g. TVs, consoles, speakers, etc.
• LED lighting
• Home automation and smart home devices
• Power tools, e.g. drills, grinders, angles, etc.
• Household appliances, e.g. washing machines, microwaves, etc.
• CO pumps
• Engines for automatic gates and elevators

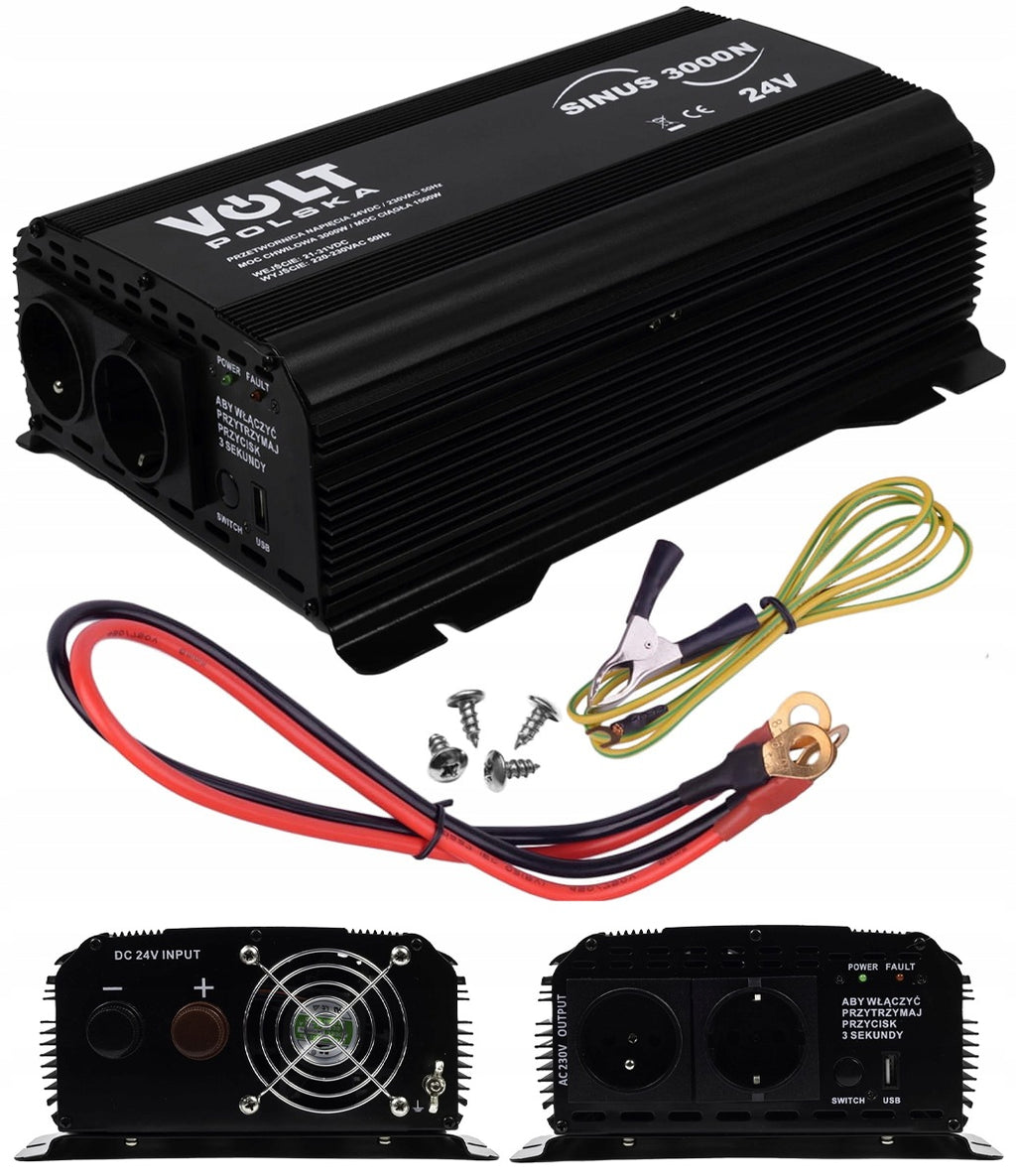

• Voltage converter VOLT SINUS 3000 24V 3000VA/1500W 24/230V
• Wiring for battery power

Specifications
