Automobilinis stiprintuvas, 2 kanalų, 2x30 W, Class AB, 12 V

Trumpai apie prekę

Prekė: Automobilinis stiprintuvas, 2 kanalų, 2x30 W, Class AB, 12 V. Kategorija: Stiprintuvai.

• Gamintojas: New Audio
• Modelis: TDA7377

Dual Channel Car Amplifier

This compact stereo device powered from a DC 9 to 15 V source (12 V recommended) provides the ability to connect speakers with an impedance of 4 to 8 Ω. The maximum output power is 2 x 35 W at 14,4 V at 4 Ω load. 🎵

• Power supply parameters: operating voltage DC 9 to 15 V, recommended 12 V; output power up to 2 x 35 W at 14,4 V and 4 Ω; possibility of connecting speakers 4 to 8 Ω.
• Class AB: Class AB design provides good sound and stability.
• Control: Dual channel module with volume control knob for easy sound level adjustment.

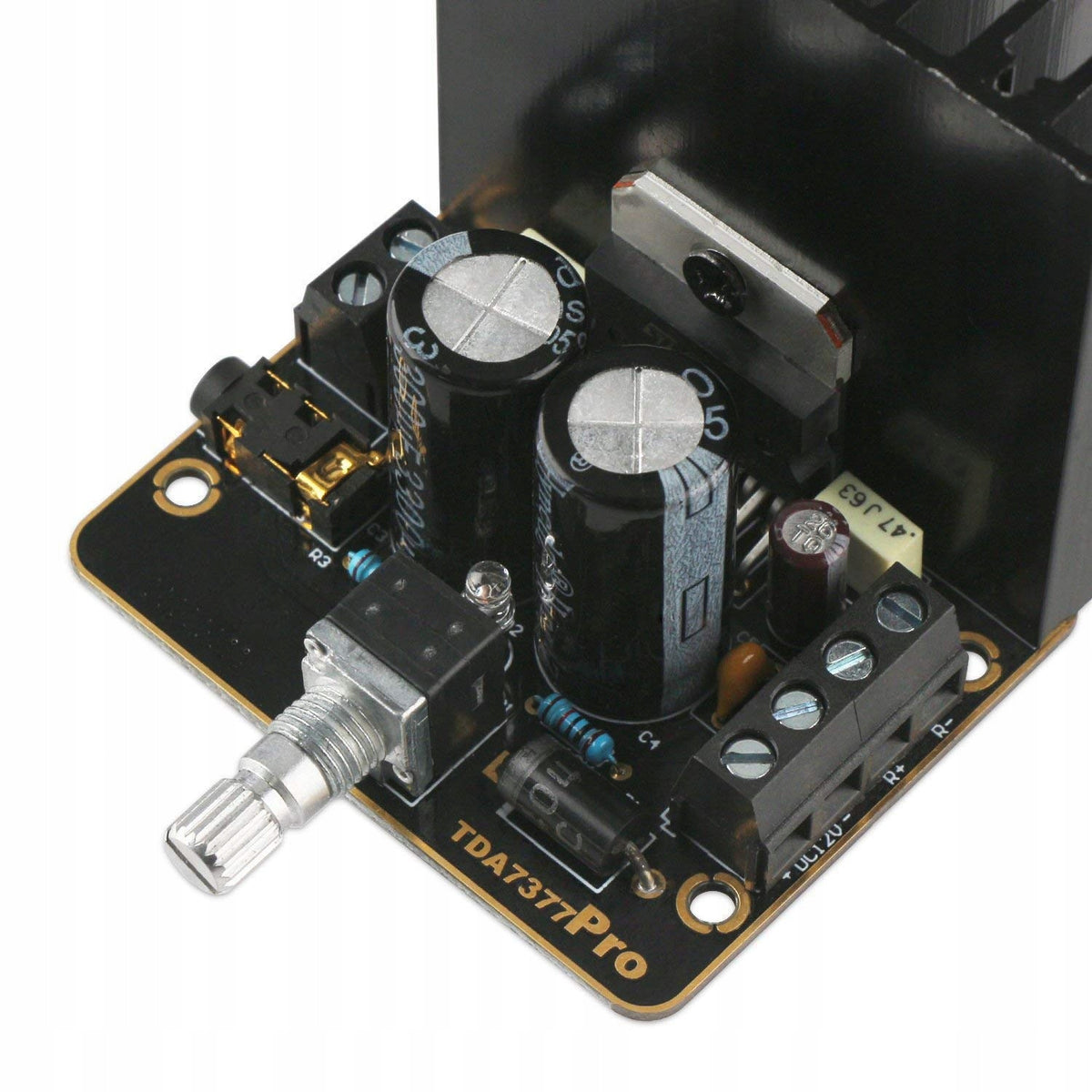

• Materials and workmanship: black immersion printed circuit board, high-capacity filter capacitor and black input and connector terminal blocks.
• Protection: protection against reverse connection, short circuit, overload and overheating.
• Audio input: 3,5 mm audio input for quick connection of audio sources.
• Package contents: in a pack of 1 car stereo amplifier board; package dimensions 15,1 x 12 x 4,7 cm, weight 80 g.
• Design parameters: PCB size 55,12 x 45,21 mm; total dimensions of the device with heat sinks 55,12 x 59,09 x 50 mm.

Power supply parameters

Operating voltage DC 9 to 15 V, recommended 12 V; output power up to 2 x 35 W at 14,4 V and 4 Ω; possibility of connecting 4 to 8 Ω speakers.

Specifications
