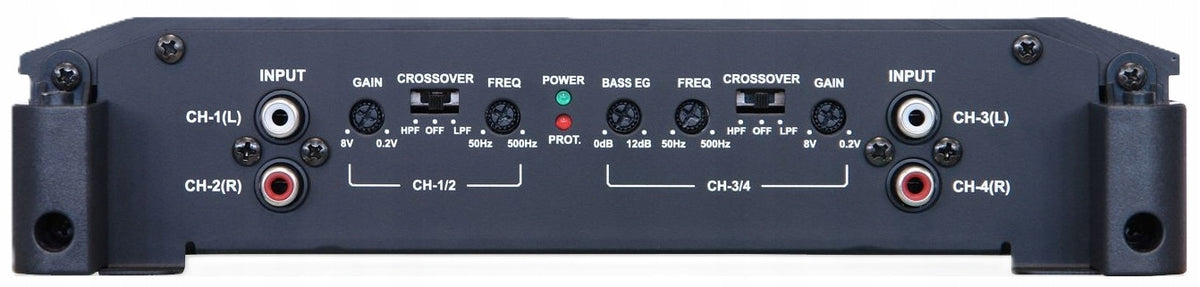

Automobilinis stiprintuvas ALPINE BBX-F1200, 4 kanalų, 4 x 70 W / 2 x 130 W, AB klasė

Trumpai apie prekę

Prekė: Automobilinis stiprintuvas ALPINE BBX-F1200, 4 kanalų, 4 x 70 W / 2 x 130 W, AB klasė. Kategorija: Stiprintuvai.

• Gamintojas: Alpine
• Modelis: BBX-F1200

New, pre-packaged.

This new BBX amplifier delivers effective Alpine power at an astounding price. It is designed to fit easily into almost any system.

You buy in a reputable Car Audio store from an authorized dealer of the Alpine brand in Poland, original products with a Polish guarantee.

High-pass and low-pass filter

These two filters allow you to specify frequency points for high, medium and low ranges to ensure optimal performance for your speakers.

Equalization of bass to emphasize the sound of low tones

Bass EQ allows you to maximize the performance of your system and extract even more powerful bass tones.

Features

Assembly

• Terminal system: double-sided
• Screw Mount / Wire Guard: Integrated Wire Mounting Screw Clamps

General

• Amplifier Type: Class-A/B
• Channel layout: 4/3/2 channels
• Thermal protection: The temperature management system
• Power Supply Design: DC-DC PWM
• Power Supply: MOSFET
• Current protection: excessive intensity, too high voltage and protection against overheating
• Crossover: variable high-pass and low-pass filters
• LED Status Indicator: Green/Red
• 2 Pairs of RCA Inputs

Specification:

Maximum output powera

• Maximum power: 600W

RMS rated power

• Power 4 x 50W at 4Ω (≤1%THD+N)
• Power 4 x 70 W at 2Ω (≤1%THD+N)
• Power 2 x 130W at 4Ω (bridged mode)(≤1%THD+N)

Sound tuning

• Crossover frequency (Variable, OFF/LPF/HPF to choose from)
• Channels 1/2: LP/HP: 50Hz – 500Hz
• 3/4 Channels: LP/HP: 50Hz – 500Hz
• EQ (Equalizer): Fixed Frequency
• Bass EQ 45 Hz, Q=0.5, Selectable gain from 0dB to +12dB (only on 3/4 channel)

Dimensions

• Compact size: 330 x 52 x 240 mm

General

• Power Requirement: 14.4 V DC (11 V to 16 V
• Input Sensitivity: 0.2 - 8.0 V
• Response frequency: 5 Hz - 50 kHz (+ 0,-3 dB)
• Speaker Impendation: 4 or 2 Ω
• Signal-to-noise ratio: (IHF A-weighted, Reference: rated power at 4ohms) 95 dB
• Weight: 2.7 kg

OUR OFFER INCLUDES AND AVAILABLE ALL MODELS OF THE ALPINE BRAND, OF COURSE NEW FROM THE POLISH DISTRIBUTION NETWORK.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	Alpine
Parametry	Model	BBX-F1200
Parametry	Number of channels	4-channel
Parametry	Product weight with unit packaging	3 kg
Parametry	Manufacturer code	BBX-F1200
