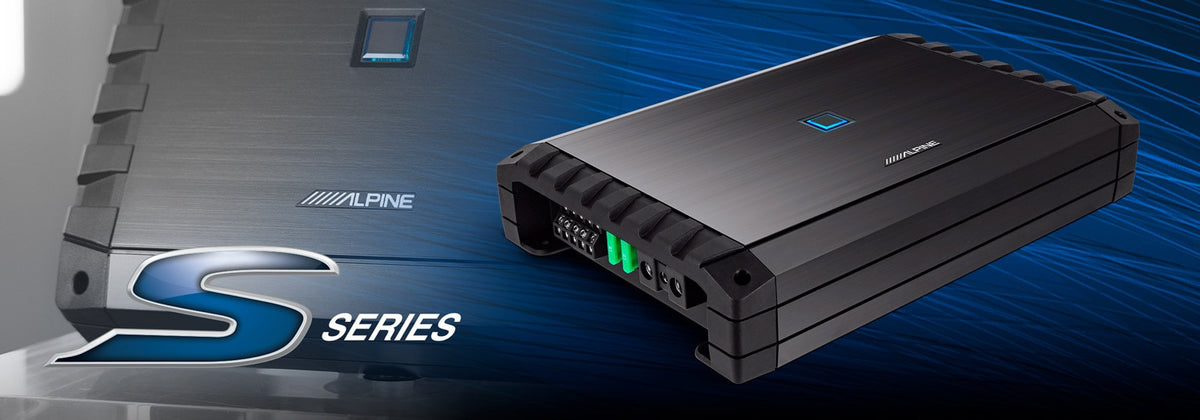

Automobilinis stiprintuvas Alpine S2-A55V, 5 kanalų, klasė D, 4x60W + 1x300W

Trumpai apie prekę

Prekė: Automobilinis stiprintuvas Alpine S2-A55V, 5 kanalų, klasė D, 4x60W + 1x300W. Kategorija: Stiprintuvai.

• Gamintojas: Alpine
• Modelis: S2-A55V

Alpine S2-A55V - 5-channel Class D amplifier with 4x 60W + 1x 300W at 2 Ohms.

New, pre-packaged.

The 5-channel S-Series S2-A55V amplifier delivers 60W RMS at 2 ohms of pristine high-quality power to each of the car’s front and rear speakers, while powering the subwoofer with up to 300W RMS. Combining the power of a Hi-Res Audio-enabled amplifier in a 4-channel section and the added bass power from a dedicated channel brings your music to life, with all the precise details, powerful punch, and clearly revealed emotional power.

For a 3-channel 2 way system, you can also use an amplifier to drive a pair of high-performance front speakers with power of 120W RMS each, while powering a 300W subwoofer. Variable bass boost in a dedicated channel allows you to get additional punch and low-frequency sound power in the system.

You can even add an optional RUX-KNOB2 wired remote control to control the level of the rear channels from the front seat.

You buy in a reputable Car Audio store from an authorized dealer of the Alpine brand in Poland, original products with a Polish guarantee.

New S series

The next generation of Alpine S-series amplifiers are designed to take your car audio experience to the next level without ruining your wallet. With a new sleek design and enhanced features taken from their predecessors, these amplifiers offer exceptional performance and power at an affordable price.

The S Series amplifiers are available in two mono, 4-channel and 5-channel configurations.

Basic-level sound has just been improved with the 5-channel S2-A55V amplifier. Its sleek, redesigned design incorporates a class D Alpine amplifier circuit and offers Hi-Res Audio support.

High-pass and low-pass filters provide control over the frequency spectrum reaching the speakers and subwoofers. The amplifier includes preamplifier and speaker level inputs, so it can be installed in almost any vehicle, even one with a factory radio. When using speaker inputs, the amplifier can detect the incoming signal and turn on, eliminating the need for a separate switching cable to the receiver or fuse box.

Hi-Res Audio Certificate

The 5-channel next-generation Alpine S-Series S2-A55V amplifier is Hi-Res Audio certified and capable of reproducing frequency responses up to 40 kHz. This ultra-wide bandwidth combined with the improved design of the S Series sets new standards for entry-level performance and price.

Flexibility of use

The next-generation S-series amplifiers are now equipped with a new selectable remote switch circuit, a three-position switch that ensures the amplifier is turned on and off at the right time. This system is crucial for newer technology used in vehicles and enables proper integration into any factory or commercial system.

Easy access to control panel

The amplifier has sound controls located on the side panels instead of the top panel, which makes it easier to control the gain and crossover when installed under the vehicle seats or in shallow places. Added removable end caps to cover side controls and connectors for a clean, sleek finish to your amplifier.

Power for the whole system

With its versatile 5-channel design, the S2-A55V amplifier is the perfect solution for powering your entire sound system in a single enclosure. This amplifier delivers crisp and clear sound for up to four speakers and an additional subwoofer, providing a complete audio system experience.

Key Features:

• Class D amplification (digital)
• Hi-Res Audio Certificate
• Channel Support: 5/4/3 Channel
• Controls on the side panel
• Temperature management control
• Top Mounted LED Power/State Indicator
• Speaker level input3 on modes (DC HI, Remote HI, Remote LO)
• Input Channel Selector Switch for Subwoofer
• Crossover: Variable low-pass filter (LPF) and high-pass filter (HPF),
• Adjustable gain control
• Bass equalizer
• Optional remote bass control (RUX-KNOB2) (for channel 5 only)

Specification:

RMS rated power

• Per channel at 2 ohms, 14.4 V (≤1% THD+N): 4 x 60 W + 1 x 300 W
• Per channel at 4 ohms, 14.4 V (≤1% THD+N): 4 x 40 W + 1 x 200 W
• Bridged, 4 ohms, 14.4 V: 2 x 120 W

Tuning the sound

• Crossover: Variable HPF/LPF: 50-400Hz (-12dB/oct. / -24dB/oct. for subwoofer)
• Bass EQ (50Hz to +12dB bass boost)

Installation

• Terminal Layout: Double-sided
• Clamp covers included
• Screw terminals (for speaker and power cables)

General

• Power Requirements: 14.4 V DC (Acceptable 9 to 16 V)
• Input Sensitivity (RCA Input): Hi: 0.5V - 10V / Low: 0.2V - 4.0V
• High level input with automatic switch-on
• Frequency Response: 10 Hz – 40 kHz
• THD+N (@10 W at 4 ohms): < 0,03%
• Attenuation factor: >100 (speaker channels) / > 750 (subwoofer channel)
• Weight: 3.2 kg
• Dimensions: 302 x 57 x 210

OUR OFFER INCLUDES AND AVAILABLE ALL MODELS OF THE ALPINE BRAND, OF COURSE NEW FROM THE POLISH DISTRIBUTION NETWORK.
