Automobilinis stiprintuvas Audio System CO 400.1 MD, 1 kanalo, tinka mikro žemųjų dažnių garsiakalbiui

Trumpai apie prekę

Prekė: Automobilinis stiprintuvas Audio System CO 400.1 MD, 1 kanalo, tinka mikro žemųjų dažnių garsiakalbiui. Kategorija: Stiprintuvai.

• Gamintojas: Audio System
• Modelis: CO-400.1MD

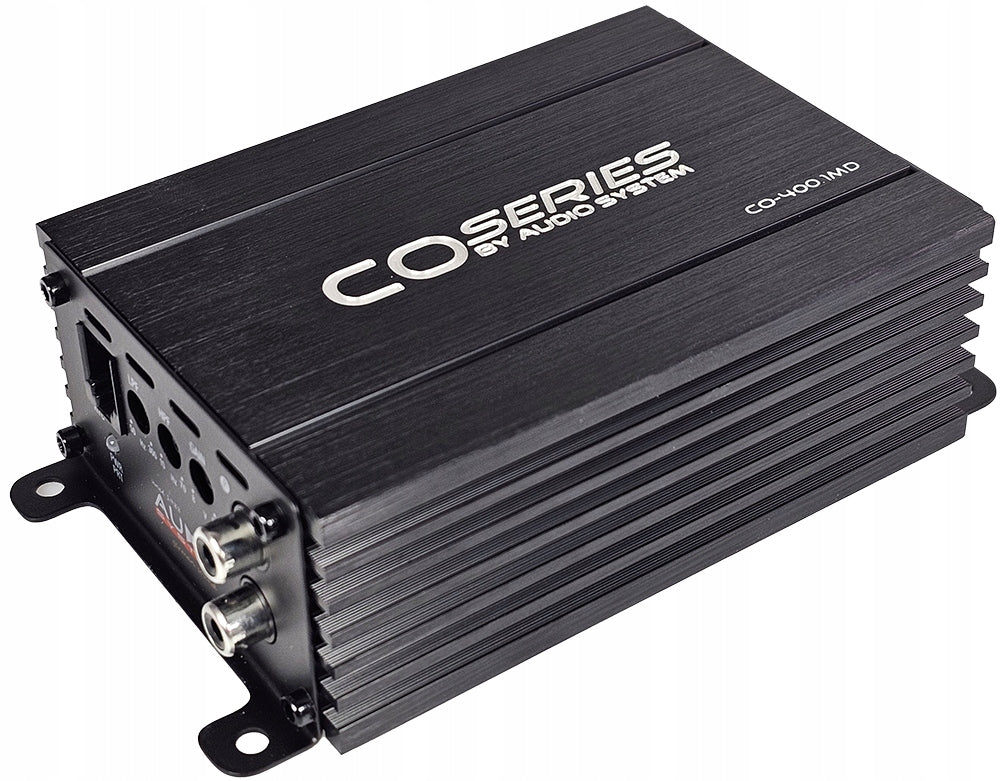

Audio System CO 400.1 MD

1 Channel Amplifier for Subwoofer

CO SERIES 1-channel compact digital mono amplifier.

Very small amplifier with excellent audio parameters.

Thanks to the built-in High-Low converter, you can connect it to the factory radio for speaker outputs.

Super-compact, stable and powerful amplifier for the latest generation subwoofer stable from 8 Ohm up to 1 Ohm (8,4,3,2 or 1 Ohm).

Technical specification:

• 1-Channel Digital Mono Amplifier
• 1 entrance
• Load stability up to 1 ohm in mono mode
• Low-pass filter
• Input sensitivity 0,2 to 8 V
• High-level RCA input with automatic switch-on
• RTC-PC clock included
• Efficient protection system (MWPC) against overheating, overvoltage, short circuit and DC voltage at the speaker output
• Adjustable low-pass filter from 50 to 300 Hz
• Adjustable subsonic filter from 10 to 70 Hz
• Efficiency up to 84%
• Signal-to-noise ratio: >96 dB
• Low Pass Filter: 50~300Hz
• Subsonic filter: 10~70Hz
• Frequency Response 10 ~ 300 Hz (+/-3 dB)
• Distortion rate at 4 ohms at 1/2 rated power < 0,1%
• Input sensitivity 400 mV ~ 8 V (+/- 5%)
• Fuse: 1 x 35 A
• Supply Voltage: 10 to 16 V

Output power at 14,4V/3% THD:

• 1 x 180 W RMS power at 4 ohms
• 1 x 300 W RMS power at 2 ohms
• 1 x 400 W RMS power at 1 ohm

Dimensions

• 121 x 43,7 x 88 mm
• Weight: 0,645 kg

Set Contents:

• Amplifier Audio System CO-400.1 MD
• Assembly and operation instructions
• Fasteners
• Allen Wrench
• Original box

Specifications
