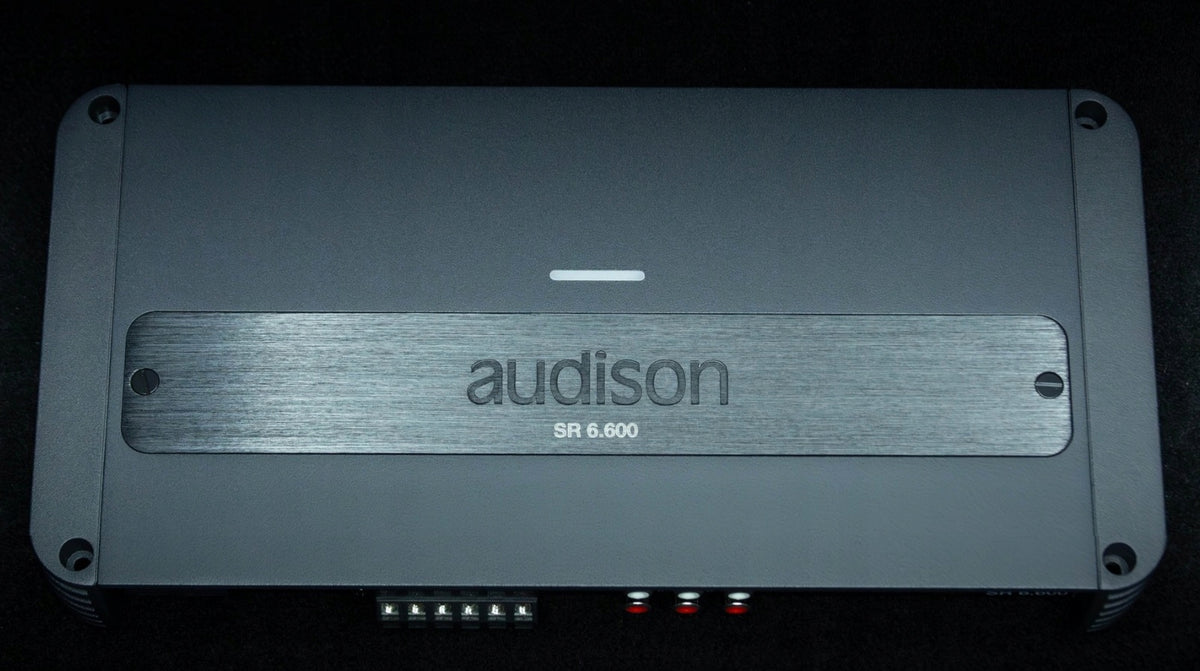

Automobilinis stiprintuvas Audison SR 6.600, 6 kanalų, klasė D, 1120 W

Trumpai apie prekę

Prekė: Automobilinis stiprintuvas Audison SR 6.600, 6 kanalų, klasė D, 1120 W. Kategorija: Stiprintuvai.

• Gamintojas: Audison
• Modelis: SR 6.600

New, pre-packaged.

At Audison, we consistently strive for unparalleled sound quality and innovation in automotive audio systems. We are pleased to present our latest masterpiece – the 6-channel Audison SR 6.600 amplifier with Hi-Res Audio certificate. This amplifier is designed to redefine the listening experience in your car, setting a new standard in sound excellence.

You buy in a reputable Car Audio store from an authorized dealer of the Audison brand in Poland, original products with a Polish guarantee.

Complete control on the top panel

According to tradition, SR amplifiers confirm their calling for versatility, including in all models a complete filter section, suitable for any type of audio system configuration. The controls, protected by a satin aluminum panel, are located on the top panel of the amplifier and are easily accessible from above, even after the product is installed. When the system includes a Audison bit processor, the filter section can be completely excluded.

Boundless connectivity

All models are equipped with balanced high-level inputs for connection to the speaker output of the OEM main unit and low-level RCA for aftermarket speakers. When a high-level input is used, you can turn on the ART function (automatic remote on/off) to control the on of the amplifiers using the main device on button.

In addition, there is a remote IN/OUT jack that allows you to control multiple cascading amplifiers turned on as needed.

Audison USS

Thanks to the integration of Audison USS (Universal Speakers Simulator) technology in high-level inputs, SR amplifiers can also be properly connected to OEM sources equipped with a “speaker load detection” function that monitors the presence of low-impedance load to turn on the audio output.

Design without edges

When it comes to electronics design, the Audison design center took care of every aesthetic and functional detail, obtaining a compact amplifier made of extruded aluminum with rounded corners for easy installation of the product in narrow spaces. Thanks to the extensive heat sinks on the two shorter sides of the amplifiers, internal cooling fans are not needed, which is often the cause of noise and dust accumulation.

Key Features:

• The ability to work at high current provides high power even at the most difficult loads (1Ω stereo, 2Ω bridged, for 5/6)
• Gradual power optimized for active 3-way front with more power for woofers or 600W bridge power for sub-5 channel output mode to create a five-channel system with a 2Ω subwoofer
• Flexible crossover filter networks provide active 3-way power, front/rear/subwoofer or six high-pass channels
• ADT (Audison D-Class) technology provides a stable 2Ω output for certified Hi-Res sound quality, superior performance and compact size.
• Compact extruded aluminum construction with fanless convection cooling system
• Built-in USS (Universal Speakers Simulator)
• Balanced inputs with a high level of noise cancellation for speakers (for original main units) and RCA (for replacement main units).
• ART (Automatic remote on/off) automatically turns the amplifier on/off when the original main device is turned on/off (can be turned on/off via speaker inputs)
• Accepts input signal up to 40V (speaker input)
• Bass gain (50 Hz) adjustable up to 12 dB, increasing the bass strength of the subwooferLow-pass and high-pass filters with 12 dB adjustment (50 Hz to 5000 Hz) enabling the construction of a 3-way system, a 2-way front + rear system or a 2-way front + one powerful subwoofer (2Ω)
• Optional remote control VCR-S2/ARC 01 allows you to adjust the volume of the output OUT 5/6

Specification:

• Channels: 6
• Class: Class D
• Efficiency >87%
• High level entrance
• Low level entrance
• Supply voltage / fuse: 11 ÷ 17 V DC
• Operating supply voltage: 11 ÷ 17 V DC / 2 x 30 A
• Idle Current: 2,2 A
• Idle current off: 0,04 mA
• Power consumption at 14,4 V DC, 2Ω, max. Musical power 54 A
• Remote outputs: 4 ÷ 15 V DC (150 mA)
• Remote input: 4 ÷ 15 V DC (1 mA)
• ART - Automatic remote switching on/off of OUTPUT BTL speakers (optional)1,5 ÷ 7 V DC

Degree of amplifier

• Distortion - THD at 100 Hz, 4Ω, 70% rated power0,05%
• Bandwidth A10Hz ÷ 42 kHz
• Signal-to-noise ratio A102 dBA
• AA Ch/B Ch 100C Ch 400 damping factor
• Input Sensitivity Pre-In0,32 ÷ 8 VRMS
• Pre-input impedance >10 kOhm
• Speaker input sensitivity1,6 ÷ 40 VRMS
• Speaker input impedance3Ohm ÷ 100kOhm (depends on Polyfuse specification)
• Total effective power: 1120 W

Minimum load impedance

• Channels 1-4: 2Ω
• Channels 5-6: 1Ω
• 1+2/3+4 Bridged: 4Ω
• 5+6 Bridged: 2Ω



Output power (RMS) at 14,4 V DC, 1% THD

Mode 6Ch

• at 4Ω: 85 x 4 + 110 x 2
• at 2Ω: 140 x 4 + 185 x 2
• Ch1-4 at 4Ω, Ch5-6 at 1Ω: 75 x 4 + 340 x 2
• Ch1-4 at 2Ω, Ch5-6 at 1Ω: 140 x 4 + 300 x 2

Mode 5Ch

• at 4Ω: 85 x 4 + 370 x 1 (bridged Ch5/6)
• at 2Ω: 130 x 4 + 600 x 1 (bridged Ch5/6)

4Ch mode

• at 4Ω: 280 x 2 (bridged) + 110 x 2
• at 2Ω: 130 x 2 + 260 x 1 + 600 x 1

Mode 3Ch

• at 4Ω: 280 x 2 + 370 x 1 (bridged channels 5/6)
• 280 x 2 (bridged channels 1-4 at 4Ω) + 600 x 1 (bridged channels 5/6 at 2Ω)

Adjustable crossover

Inputs

• Input typePreamplifier input/speaker input
• Pass A filter
• Full high-pass filter: 50 ÷ 5 kHz at 12 dB/oct.
• Pass B filter
• Full high-pass filter: 50 ÷ 500 Hz at 12 dB/oct.
• Band filter: 50 ÷ 700 Hz (Hi) / 50 ÷ 5 kHz (Lo) at 12 dB/oct.
• Pass C filter
• Full high-pass filter: 50 ÷ 700 Hz at 12 dB/oct
• Low-pass filter: 50 ÷ 700 Hz at 12 dB/oct

Weight: 2,52 kg

OUR OFFER INCLUDES AND AVAILABLE ALL MODELS OF THE AUDISON BRAND, OF COURSE NEW FROM THE POLISH DISTRIBUTION NETWORK.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	Audison
Parametry	Model	SR 6.600
Parametry	Number of channels	other
Parametry	Amplifier class	D
Parametry	Product weight with unit packaging	4 kg
Parametry	Manufacturer code	SR 6.600
Parametry	Packaging status	original
