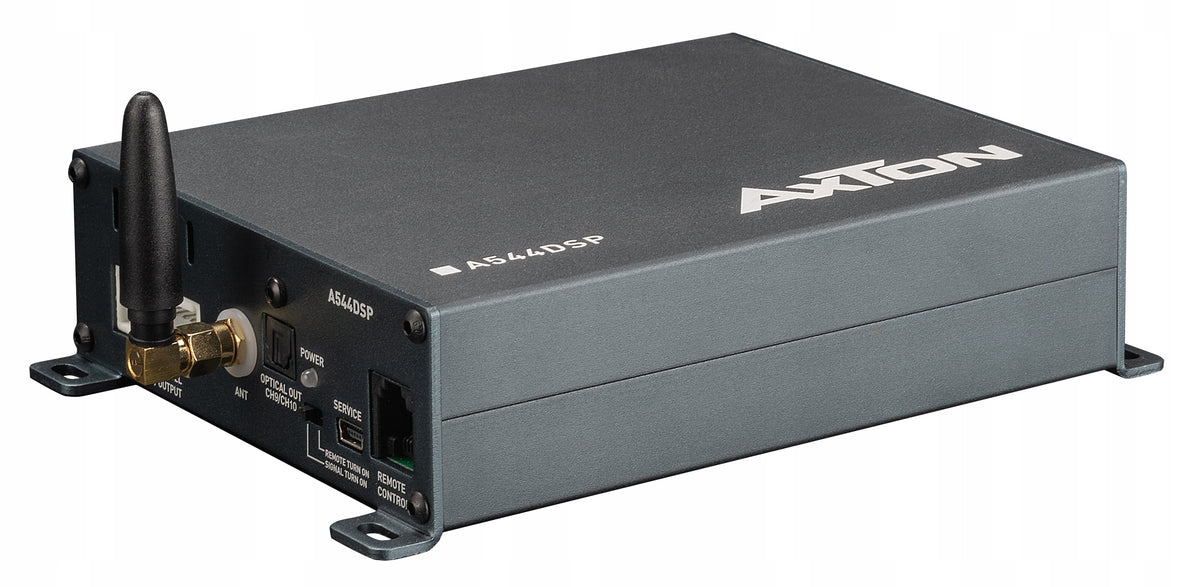

Automobilinis stiprintuvas Axton A544DSP, 10 kanalų DSP, 4 kanalų aukštos kokybės garso transliacija, Plug&Play

Trumpai apie prekę

Prekė: Automobilinis stiprintuvas Axton A544DSP, 10 kanalų DSP, 4 kanalų aukštos kokybės garso transliacija, Plug&Play. Kategorija: Stiprintuvai.

• Gamintojas: Axton
• Modelis: Axton A544DSP

Alfa Romeo, Audi, BMW, Citroen, Chevrolet, Chrysler, Dacia, Dodge, Fiat, Ford, GT86, Honda, Hyundai, Jaguar, Jeep, Kia, Lancia, Land Rover, Lexus, Mazda, Mercedes, Mitsubishi, Nissan, Opel, Porsche, Peugeot, Renault, Seat, Skoda, Smart, Subaru, Toyota, Volkswagen, Volvo

All about the A544DSP DSP amplifier:

The new AXTON A544DSP DSP amplifier is not only super powerful in terms of features, but also in terms of price. Amazing 10 channels can be set up through the app. If even more DSP channels are needed, the audio signal can be transmitted losslessly through the optical output to another AXTON DSP amplifier with optical input, resulting in up to 20 DSP channels. With this concept, it is theoretically even possible to create an infinite number of DSP channels. Of course, each DSP channel is equipped with a parametric 15-band equalizer, crossovers up to 24 dB/oct, delay correction and phase correction. The revised crossover now offers three filter characteristics: Butterworth, Linkwitz and Bessel. The new 9-band INPUT EQ ensures that all signal sources have identical frequency characteristics. Newly integrated channel routing greatly simplifies channel assignment. What was previously done using cable adapters at the input is now done with just a few moves in the AXTON DSP app. The integrated Class A/B amplifier powers 4 output channels with 4 x 25/50 W RMS power. This is enough power to noticeably amplify standard speakers and sound drive mid/high-pitch speakers in 2-way or 3-way concepts. The remaining 6 outputs of the preamplifier can be conveniently directed to the Axton A601, obtaining a powerful combination of 4 x 25 W RMS + 6 x 100 W RMS amplifier, which can be used in multi-channel systems of many car manufacturers. Plug & Play connection cable is also affordable - the Axton range includes more than 30 car brands. The ABT50 interface allows you to play Hi-Res Audio or music in studio-quality master via the A544DSP. .

The most important features

• 4-Channel Class A/B Smart Amplifier with DSP Audio Controlled Features via iOS or Android Apps
• 10-channel DSP processor with 6 processed preamplifier outputs (5 V), including remote output for controlling additional amplifiers
• Optical and coaxial input for high-resolution audio interface ABT50 or other processor Axton DSP
• Optical output for connecting the signal to another Axton DSP amplifier
• Bluetooth audio streaming with automatic source switching
• Plug'N'Play installation with optional connection cables for your vehicle
• Automatic switch-on function by high level input
• DSP functions
• Freely adjustable active crossover: High/low/band/bypass with 6/12/18/24 dB/oct inclination. per channel (Butterworth, Bessel or Linkwitz-Riley)
• Freely adjustable 15-band parametric equalizer per channel
• Freely adjustable 9-band parametric equalizer for input source
• Gain, phase switch and mute function per channel
• Adjustable delay correction per channel (0 - 550 cm / 0 - 15,8 ms)
• Memory locations for your own settings: 5 on the amplifier, unlimited on your smartphone
• Dynamic bass function for powerful performance without a subwoofer
• Noise gate function to reduce radio background noise

Sound specification

• DSP
• DSP Processor Type: AKM7735 Dual DSP
• ADC: 2x 24-bit
• DAC: 2x 32-bit
• DSP processor MHz: 2x 150 MHz
• Audio sampling rate: 192 kHz
• Resolution: 240 x 240 px
• Bluetooth Class: 2
• Bluetooth Power: 1mW / 0dBm
• Bluetooth range: 10 m
• Bluetooth Frequency: 2,4 - 2,48 GHz

Tweeter Dome tweeter 1,9 cm

• Musical Output Power 4/2 Ohms: 30W x 4
• RMS 4/2 Ohm Output Power: 25W x 4
• Playback Range: 20 Hz ~ 48 kHz
• High level sensitivity: 4,2 Vrms
• High Level Sensitivity: 39 Ohms
• Maximum RCA Voltage: 5 Vrms
• Operating voltage: 7,5 V - 16,5 V
• Signal-to-noise ratio of digital input: > 112 dB
• Signal-to-noise ratio on analog input: > 106 dB
• THD: 1 KHz < 0,02%
• Damping factor: >= 200
• No-load current consumption: 0,23 A
• Maximum current consumption: 20 A
• Memory clock speed Remote Output Current: 0,3 A
• Dimensions (L. x W x H ) 177 x 40 x 114 mm
