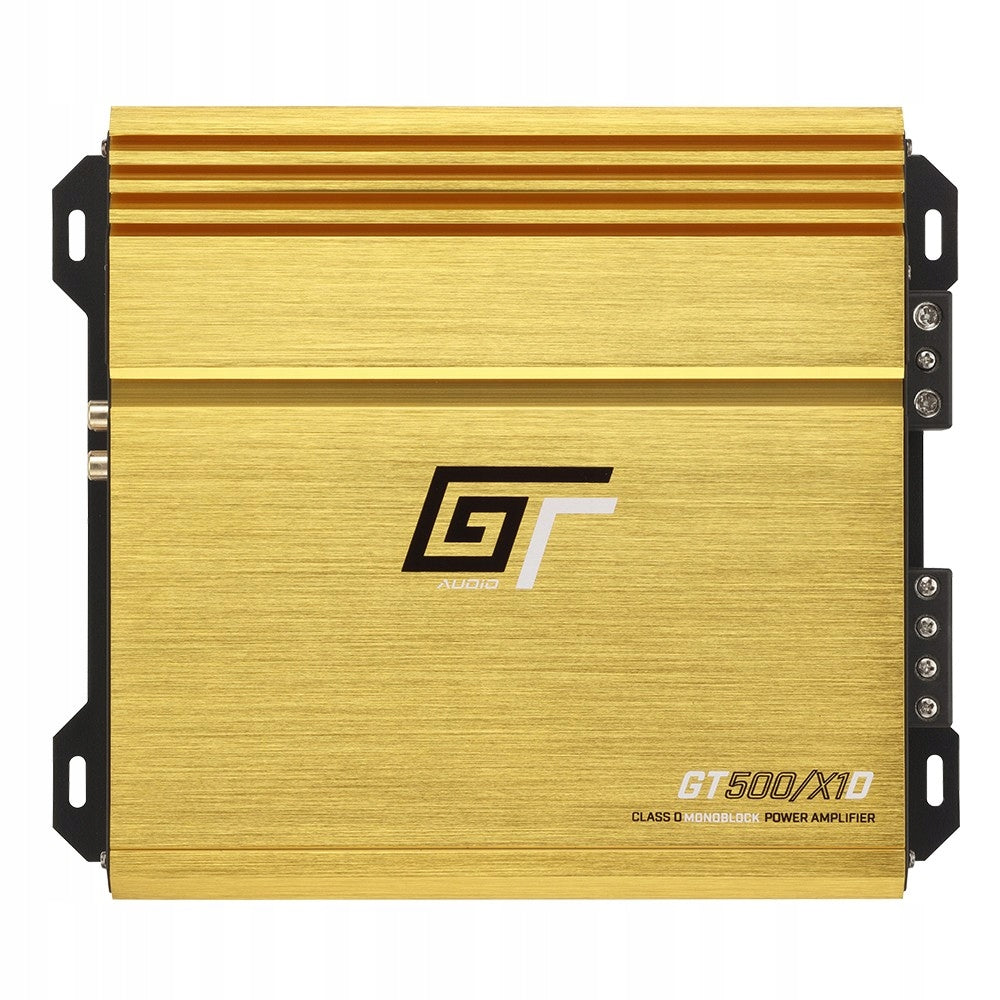

Automobilinis stiprintuvas Bassface GT Audio 500/x1D, 1 kanalas, 500W RMS

Trumpai apie prekę

Prekė: Automobilinis stiprintuvas Bassface GT Audio 500/x1D, 1 kanalas, 500W RMS. Kategorija: Stiprintuvai.

• Gamintojas: Bassface
• Modelis: GT-500/x1D

The amplifiers from the GT Audio line by Bassface offer a very high level of performance with a strong focus on offering the best possible value for money.

The GT-500/x1D amplifier is a modern Class D design that offers the absolute highest possible performance to drive a subwoofer at this price. An adjustable low-pass filter is built in, next to the necessary subsonic filter to ensure optimal power utilization.

Class D GT amplifiers are stable up to 1 Ohm and produce maximum power at this load.

• Class D Technology - Mono Power Amplifier for Subwoofer
• Output power 1x500W RMS at 1 Ohm load
• Output power 1x380W RMS at 2 Ohm load
• Output power 1x220W RMS at 4 Ohm load
• RCA Input + Line Out
• Crossovers 40>180 Hz LPF / 0>50 Hz HPF
• Minimum power supply 60 A via 1 x 4AWG input
• Frequency Response 10>190 Hz
• Signal-to-noise ratio 88 dB
• Maximum supply voltage 16 V
• Includes wired bass control remote and cable

• Real useful power RMS, 4 Ohm < 1% THD, 14 V: 1x220 Watt
• Real useful power RMS, 2 Ohm < 1% THD, 14 V: 1x380 Watt
• Real useful power RMS, 1 Ohm < 1% THD, 14 V: 1x500 Watt
• Frequency Response: 10>190 Hz
• Signal-to-noise ratio: 88 dB
• Low-pass filter: 40>180 Hz 12 dB/octave
• Bass boost: 0>12 dB
• Boost Frequency: 30>80 Hz
• Subsonic filter: 0>50 Hz 24 dB/octave
• Audio signal input voltage: 0,2>6 V

• Amplifier Topology: Class D
• Maximum input voltage: 16 V
• Fuse Intensity: 3x40 A
• Power cord cross-section: 20 mm2
• Minimum recommended end load per channel: 1 Ohm Mono
• Input Impedance: 22 kOhm
• Net weight of product: 2010 g
• Product height: 52 mm
• Product Length: 220 mm
• Product Width: 219 mm
