Automobilinis stiprintuvas CRUNCH GPX1200.4, 4 kanalų, su laidais 8,5 mm² CCA-48

Trumpai apie prekę

Prekė: Automobilinis stiprintuvas CRUNCH GPX1200.4, 4 kanalų, su laidais 8,5 mm² CCA-48. Kategorija: Stiprintuvai.

• Gamintojas: Xtreme
• Modelis: GPX1200.4+CCA-48

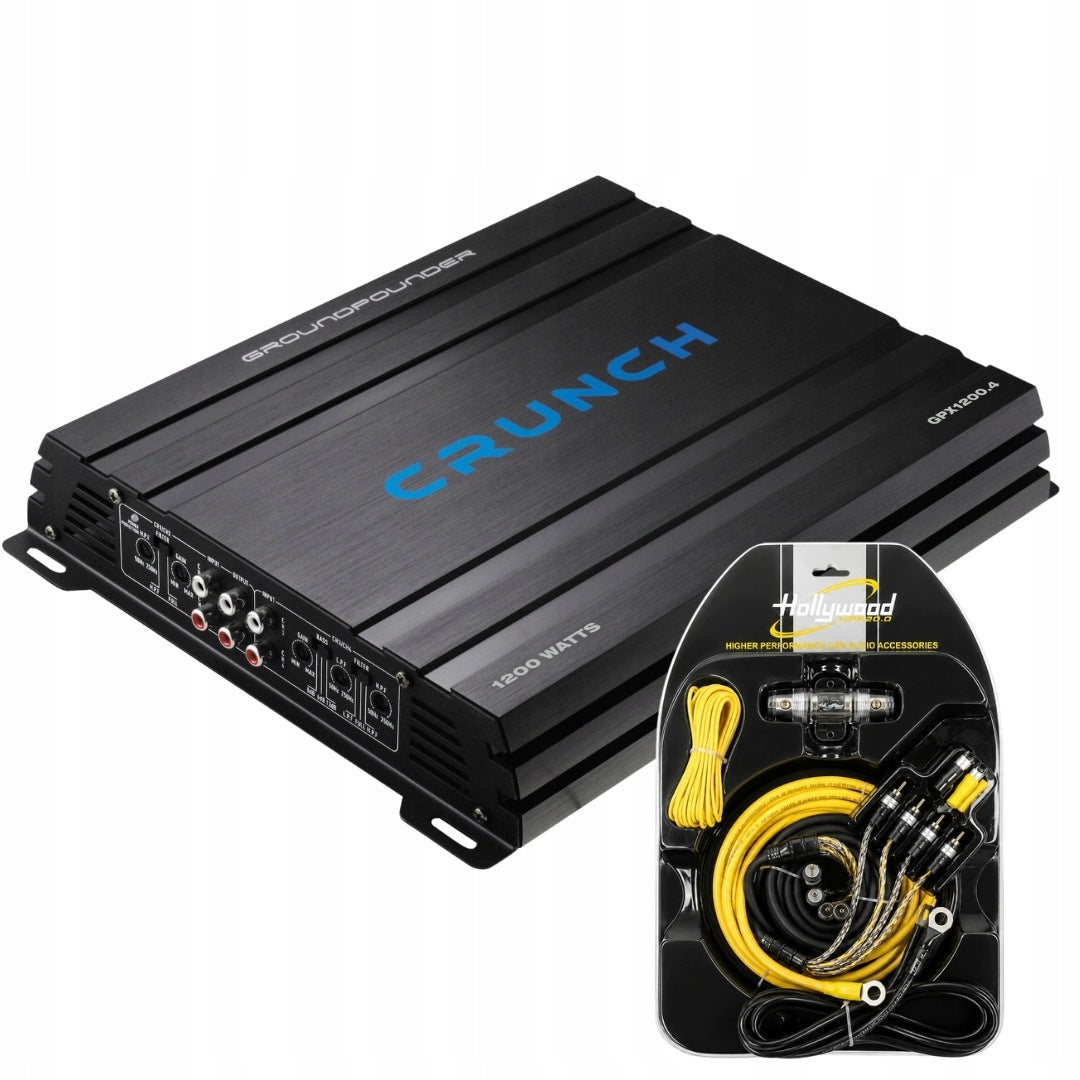

READY-MADE ASSEMBLY KIT – AMPLIFIER + 4-CHANNEL CABLES

A good Car Audio system starts with properly selected components. The amplifier itself is just the beginning – equally important is the proper wiring, which ensures stable power supply, clean signal transmission and trouble-free installation of the entire system.

That is why we have prepared a ready-made set consisting of:

✔ CRUNCH GPX1200.4 amplifier

✔ Hollywood CCA-48 Cable Set

By buying this set, you get properly selected components that allow you to quickly and professionally mount a 4-channel amplifier.

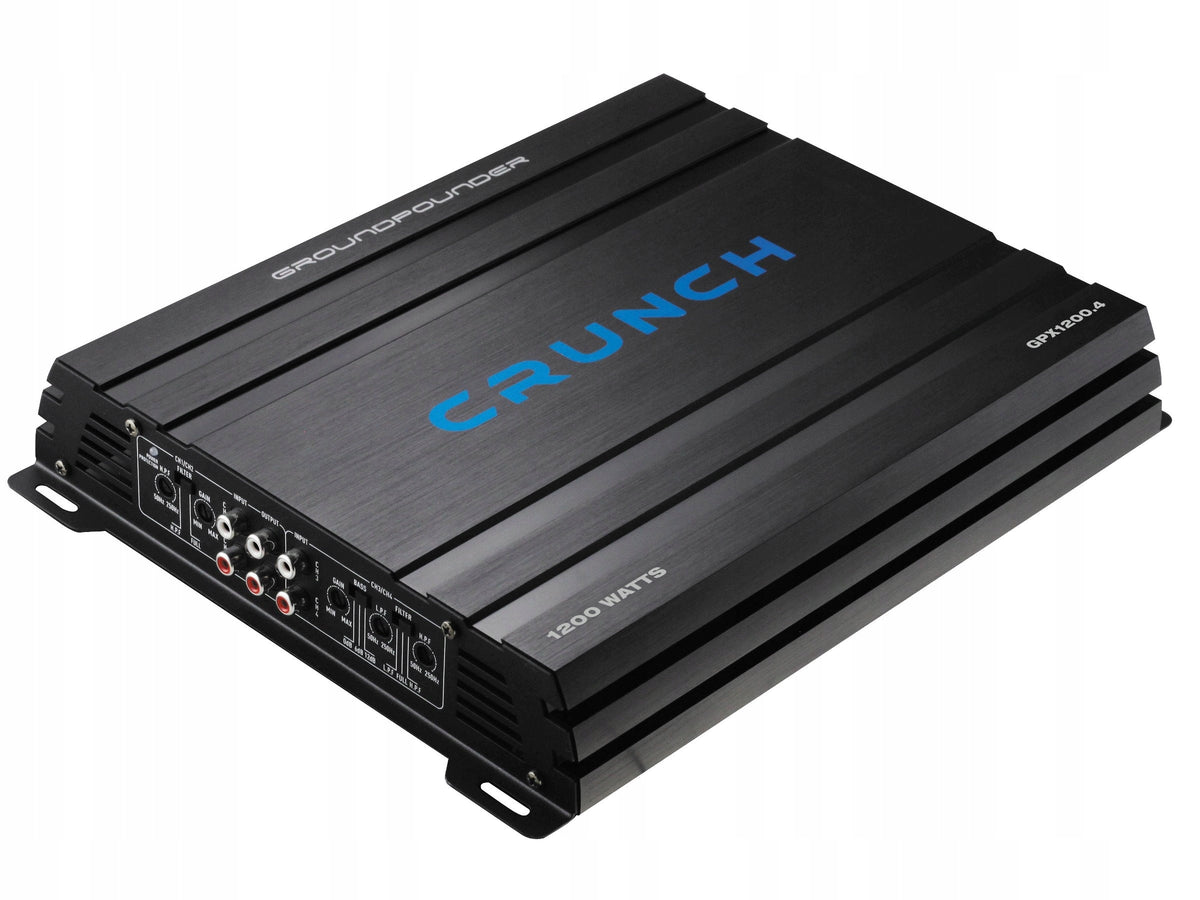

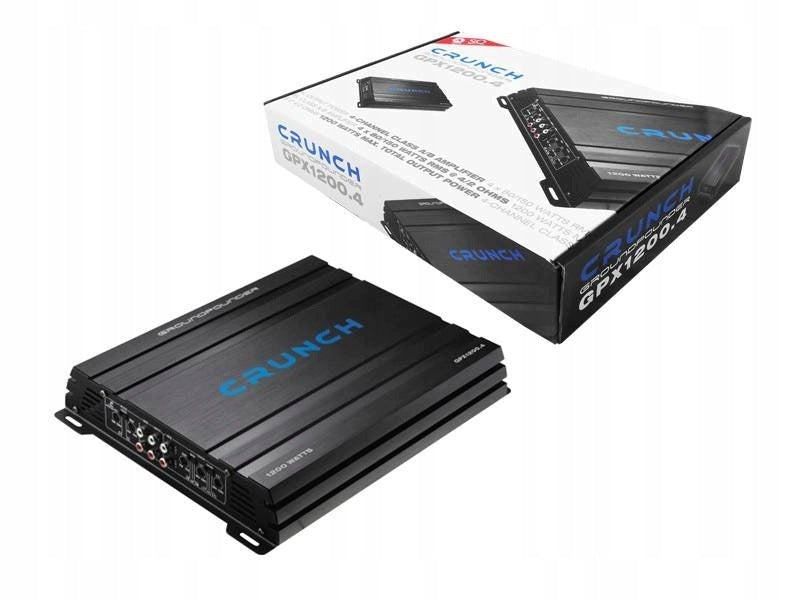

🔊 GPX1200.4 CRUNCH AMPLIFIER – MORE POWER FOR SPEAKERS AND SUBWOOFER

CRUNCH GPX1200.4 is a modern 4-channel amplifier class A/B, designed for people who expect dynamic, clean sound and more power than the factory radio offers. It is perfect for both driving a set of front and rear speakers, as well as in a configuration with bridging two channels to power the subwoofer.

It is equipped with independent high-pass and low-pass filters, switchable Bass Boost and RCA output for further expansion of the Car Audio system. With its powerful A/B design, it provides natural sound and excellent control over your speakers.

⭐ Technical specification

• Model: CRUNCH GPX1200.4
• Type: 4-Channel
• Amplifier class: A/B
• Number of channels: 4
• RMS power at 4 Ω: 4 × 80 W
• RMS power at 2 Ω: 4 × 150 W
• RMS power in bridge 4 Ω: 2 × 300 W
• Maximum power at 4 Ω: 4 × 160 W
• Maximum power at 2 Ω: 4 × 300 W
• Maximum power in the bridge: 2 × 600 W
• Stable operation at 2 Ω
• Frequency Response: 5 Hz – 40 kHz
• THD: < 0,5%
• Signal/Noise Ratio: >90 dB
• Input sensitivity: 0,1–7 V
• Input Impedance: 10 kΩ
• HPF filter (CH1/2 and CH3/4): 50 – 250 Hz
• LPF filter (CH3/4): 50 – 250 Hz
• Bass Boost (CH3/4): 0 / 6 / 12 dB
• RCA Output
• Fuses: 2 × 20 A
• Dimensions: 254 × 46 × 330 mm

🔌 HOLLYWOOD CCA-48 – COMPLETE 4-CHANNEL AMPLIFIER ASSEMBLY KIT

Even the best amplifier will not work at full capacity if it is connected with too thin or poorly selected wires.

Properly selected cables have a huge impact on the operation of the amplifier. The greater its power, the greater the current it draws from the battery. Too thin wires cause voltage drops, limit the power achieved and can lead to overheating of the installation.

Hollywood CCA-48 is a complete set of cables designed for mounting 2- and 4-channel car amplifiers. All elements have been properly selected to ensure quick, aesthetic and safe installation.

⭐ CONTENT OF HOLLYWOOD CCA-48

✅ Yellow 8 GA power cord (approx. 8,5 mm² CCA) – 5 m

✅ Black mass cable 8 GA (approx. 8,5 mm² CCA) – 1 m

✅ Signal cable 4×RCA PRO OFC Level-2 – 5 m

✅ Control cable REMOTE – 5 m

✅ 2×16 GA speaker cable (approx. 2×1,5 mm² CCA) – 15 m

✅ Fuse holder AGU

✅ Fuse AGU 50 A

✅ Eyelet connectors for 10 mm² – 2 pcs.

✅ Fork connectors for cable 10 mm² – 2 pcs.

✅ Original packaging Hollywood

⚙ WHAT ARE THE INDIVIDUAL ELEMENTS USED FOR?

✔ Power cord – supplies energy from the battery to the amplifier.

✔ Mass cable – ensures proper closure of the electrical circuit and stable operation of the device.

✔ 4×RCA cable – allows signal transmission to all four amplifier channels.

✔ REMOTE cable – automatically starts the amplifier when the radio is turned on.

✔ Speaker cable – used to connect speakers to the amplifier.

✔ Fuse AGU 50 A – protects the installation against short circuit and overload.

✔ Connectors – facilitate the performance of durable and aesthetic assembly.

⭐ WHY CHOOSE THIS SET?

✔ All elements have been properly selected.

✔ Amplifier and wiring make a fully compatible set.

✔ The 4×RCA cable allows the use of all four amplifier channels.

✔ 8 GA power cables are perfect for installations with power up to about 300 W RMS.

✔ The finished set facilitates installation and eliminates the problem of selecting the right wires and accessories.

💡 WHY DID WE CREATE THIS SET?

For over 20 years we have specialized in Car Audio and we know that properly selected components have a huge impact on the sound quality and reliability of the entire system.

That is why we have combined the CRUNCH GPX1200.4 amplifier with a complete set of Hollywood CCA-48 cables. Such a selected set ensures stable power supply, clear signal transmission and allows you to fully use the amplifier's capabilities both in speaker systems and configurations with a bridged subwoofer.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	Xtreme
Parametry	Model	GPX1200.4+CCA-48
Parametry	Number of channels	4-channel
Parametry	Amplifier class	A/B
Parametry	Product weight with unit packaging	6 kg
Parametry	Manufacturer code	GPX1200.4+CCA-48
Parametry	Impedance	2 Ω
Parametry	THD distortion	0.5%
Parametry	Signal-to-noise ratio	90 dB
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
