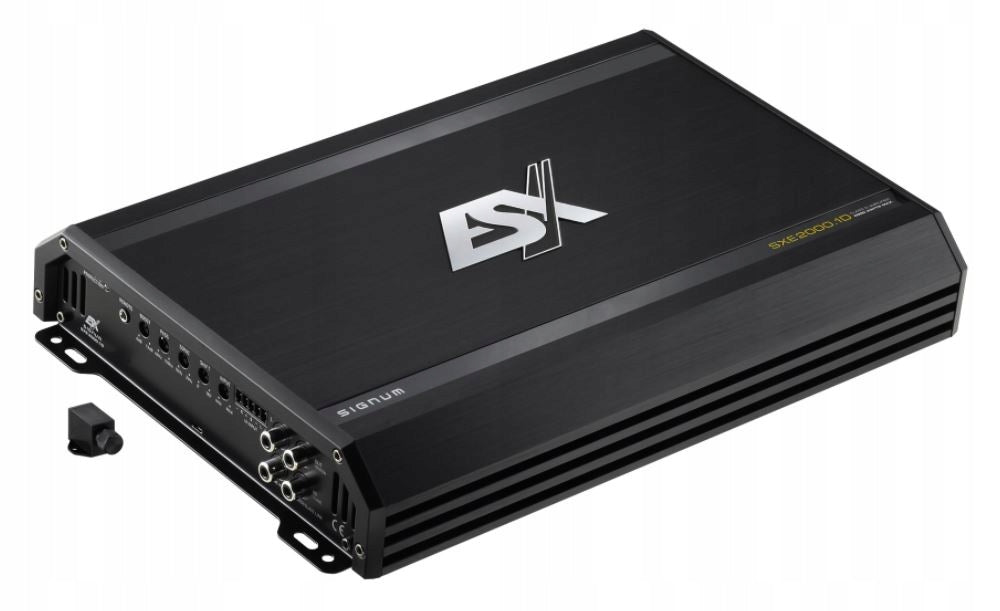

Automobilinis stiprintuvas ESX SXE2000.1D, 1000 W, 1 oma

Trumpai apie prekę

Prekė: Automobilinis stiprintuvas ESX SXE2000.1D, 1000 W, 1 oma. Kategorija: Stiprintuvai.

• Gamintojas: ESX
• Modelis: SXE2000.1D

Model: SXE2000.1D

Mono Amplifier, RMS Power 1 x 1000 Watt at 1 Ohms

The SIGNUM SXE series of amplifiers was built on the basis of the highly successful HORIZON HXE series, but the quality of parameters and finish was improved. Massive connection terminals and aluminum side panels were used.

Also, the sound parameters have improved - the use of high-quality NE5532 operational amplifiers in the input section provide the best resolution over the entire frequency range and guarantee the lowest distortion values.

A very important feature that was introduced in the SIGNUM series is the high-level input. It allows you to connect the amplifier to a factory radio player that does not have RCA outputs. The appropriate input allows you to deliver a signal from the speaker wires, and turning on the amplifier provides an automatic switch-on function.

What is new is the EPS system - Error Protection System - Error Protection System. It ensures that when connected to factory radios, no function is disturbed and no errors are saved in the vehicle memory.

All models are equipped with filters that allow proper positioning for the speaker used.

• Massive aluminum case with acrylic recessed logo
• Aluminum side panels
• Massive connection terminals
• Bottom panel with solid mounting brackets
• High-level inputs with error protection system
• Automatic switch-on using high-level input.
• PWM MOSFET power supply with triple protection system

TECHNICAL SPECIFICATION:

• Number of Channels: 1
• RMS power at 4Ω: 1 x 400 Watt
• RMS power at 2Ω: 1 x 700 Watt
• RMS power at 1Ω: 1 x 1000 Watt
• Maximum power at 4Ω: 1 x 800 Watt
• Maximum power at 2Ω: 1 x 1400 Watt
• Maximum power at 1Ω: 1 x 2000 Watt
• Master/Slave mode
• Frequency Response: 10Hz - 160Hz ( -3dB )
• Crossover Settings: Low Pass - Subsonic
• Low-pass crossover: adjustable 40 - 150 Hz 12dB/octave
• Subsonic crossover (subsonic filter): adjustable 10 - 35 Hz 12dB/octave
• Bass boost: 0 - 12 dB at 40Hz
• Signal-to-noise ratio: >105 dB
• Sum of harmonic distortion T.H.D: < 0,5% at 80Hz
• Input Sensitivity: 0,2V - 5V
• Input Impedance: 10 kOhm
• RCA signal line input
• Hi-level signal input: yes via the included connector
• Signal Output: Master RCA
• Remote control of bass
• Diagnostic indicators: power supply / protection / overheating
• Class Circuit: Digital D
• Current protection: 3 x 30A
• Dimensions (H x W x L): 53 x 220 x 328 mm
• Weight: 4,10 kg

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	ESX
Parametry	Model	SXE2000.1D
Parametry	Number of channels	1-channel
Parametry	Product weight with unit packaging	3 kg
Parametry	Manufacturer code	SXE2000.1D
Parametry	Rated RMS power	400 W
Parametry	Impedance	4 Ω
Parametry	THD distortion	0.5%
Parametry	Signal-to-noise ratio	105 dB
