Automobilinis stiprintuvas GAS MAX PA1-1500.1DZ2, 1500W, monofoninis

Trumpai apie prekę

Prekė: Automobilinis stiprintuvas GAS MAX PA1-1500.1DZ2, 1500W, monofoninis. Kategorija: Stiprintuvai.

• Gamintojas: no brand
• Modelis: Wzmacniacz

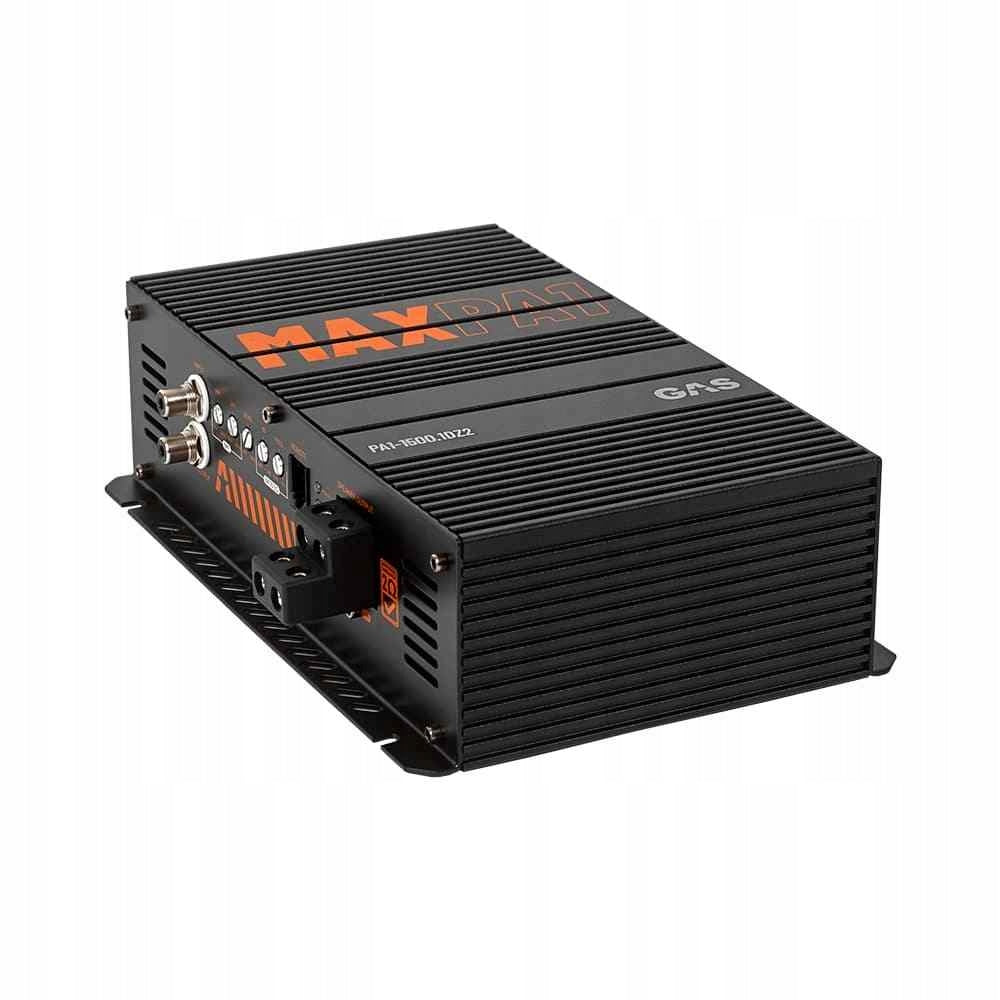

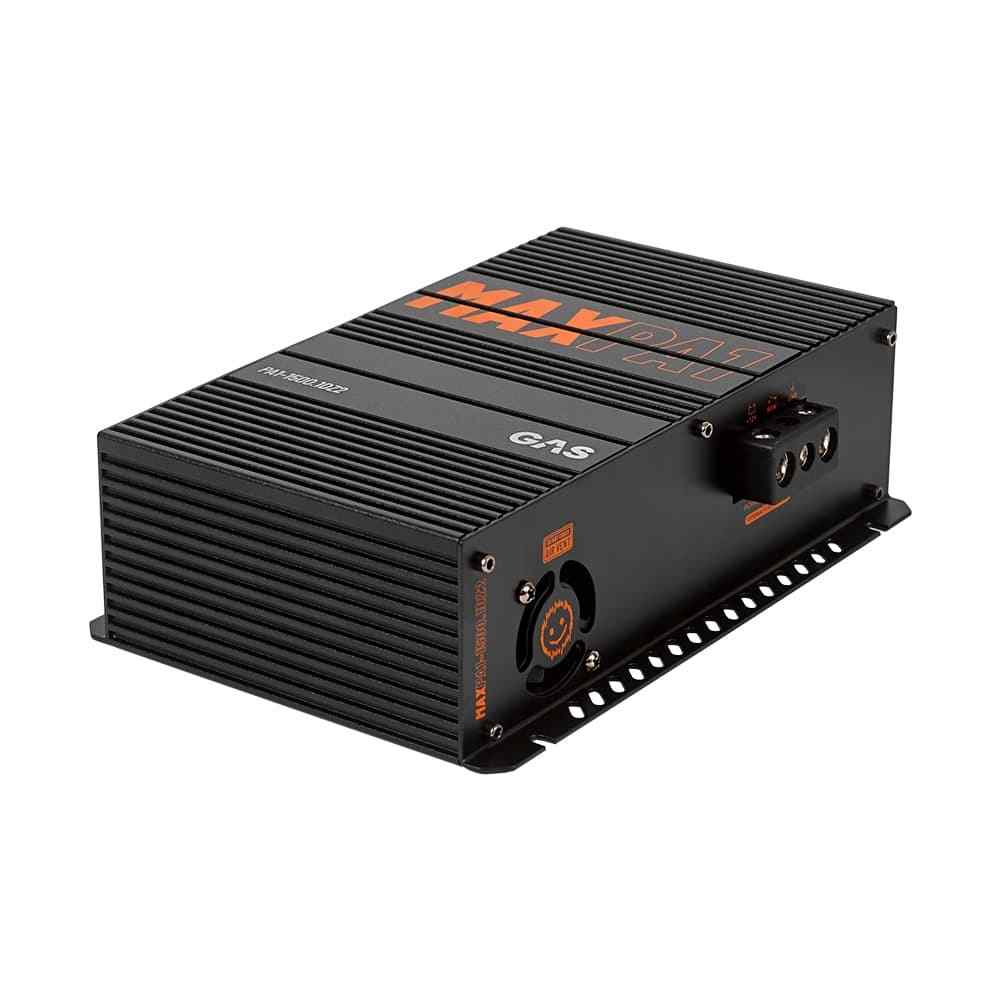

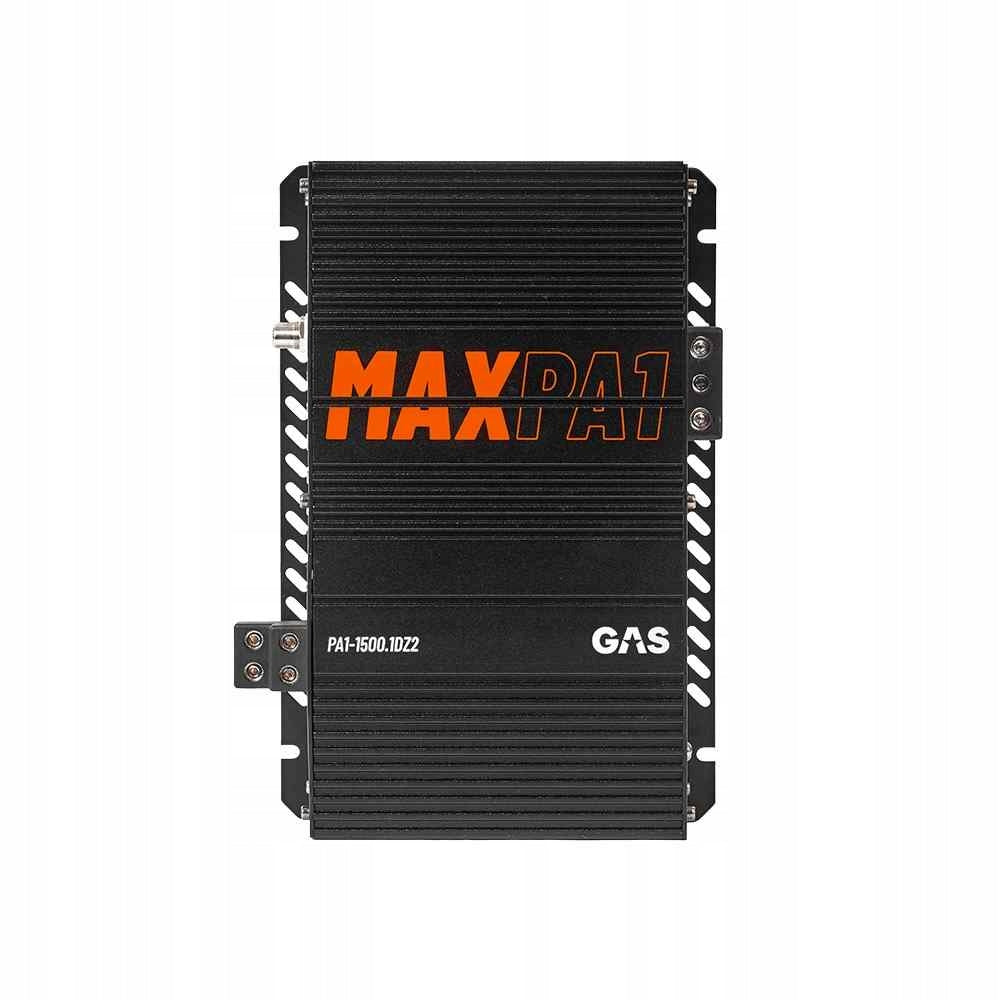

GAS MAX PA1-1500.1DZ2 is an advanced class D single channel car amplifier designed for systems that are designed to play very loudly while maintaining full control and stability of operation. The MAX series was created for more demanding users than the MAD line, offering higher RMS power endurance, brute force and deep, controlled bass. The model delivers a powerful 1 x 1500 W RMS at 2 Ω, making it perfect for both extended subwoofer systems and advanced full range installations.

⚙ Technical specification

• Series: MAX
• Model: PA1-1500.1DZ2
• Number of channels: 1
• Input mode: Mono
• RMS power at 2 Ω: 1 x 1500 W
• RMS power at 4 Ω: 1 x 850 W
• Transmission bandwidth: 15-22 000 Hz
• Low pass filter LPF: 50-22 000 Hz
• High-pass filter HPF: 15-80 Hz
• Signal-to-noise ratio: >92 dB
• Bass EQ: 0-12 dB @ 45 Hz
• Crossover slope: 12 dB
• Power supply voltage: 10-16 V
• Input sensitivity: 0,2-10 V
• THD: < 0,1%
• Suppression factor: >120
• RCA Line Out: Yes

GAS MAX PA1-1500.1DZ2 at a glance, the most important features:

✨ Efficient 1500W RMS at 2 Ω – a powerful dose of raw force and a huge reservoir of power for demanding bass sections.

✨ Full Range – a universal design that allows cooperation with subwoofer, drivers, tweeters and midrange speakers.

✨ CLIP LED – a diode informing about signal overdrive placed both on the amplifier housing and on the remote control.

✨ VCC cooling system – an advanced Vented Cross Cooling system that improves air flow and thermal stability.

✨ Stabilized power supply – advanced power supply and 4-layer PCB to help maintain consistent performance with voltage fluctuations.

Included:

• 1 x GAS MAX PA1-1500.1DZ2 Amplifier
• 1 x User Manual
• 2 x Allen Wrench
• 6 x Mounting screw
• 1 x GAS Sticker
• 1 x Remote Control Cable
• 1 x Bass Remote Control

Benefits for you:

⮕ Huge power, high efficiency and reliable bass control

The amplifier generates a stable 1500 W RMS at a load of 2 Ω, which gives the system a powerful energy supply and excellent ability to maintain stability even under very heavy loads.

Class D digital architecture provides high energy efficiency, and a damping factor of more than 120 directly improves membrane operation control and impulse response of the system. Thanks to this, nlow tones are compact, deep and confidently guided, without losing the stability of the entire bass installation.

⮕ MAX class technology, thermal stability and versatility of configuration

The 4-layer PCB design, high-end components and stabilized power supply effectively helps maintain consistent performance regardless of voltage fluctuations in the car's electrical system.

The safety of the equipment is ensured by the VCC (Vented Cross Cooling) cooling system, which optimizes the airflow through the housing and supports thermal stability during long gaming with high power.

In addition, a very wide range of built-in HPF and LPF filters makes the device successfully finds itself not only when driving the subwoofer, but also in non-standard, loud configurations such as full range.
