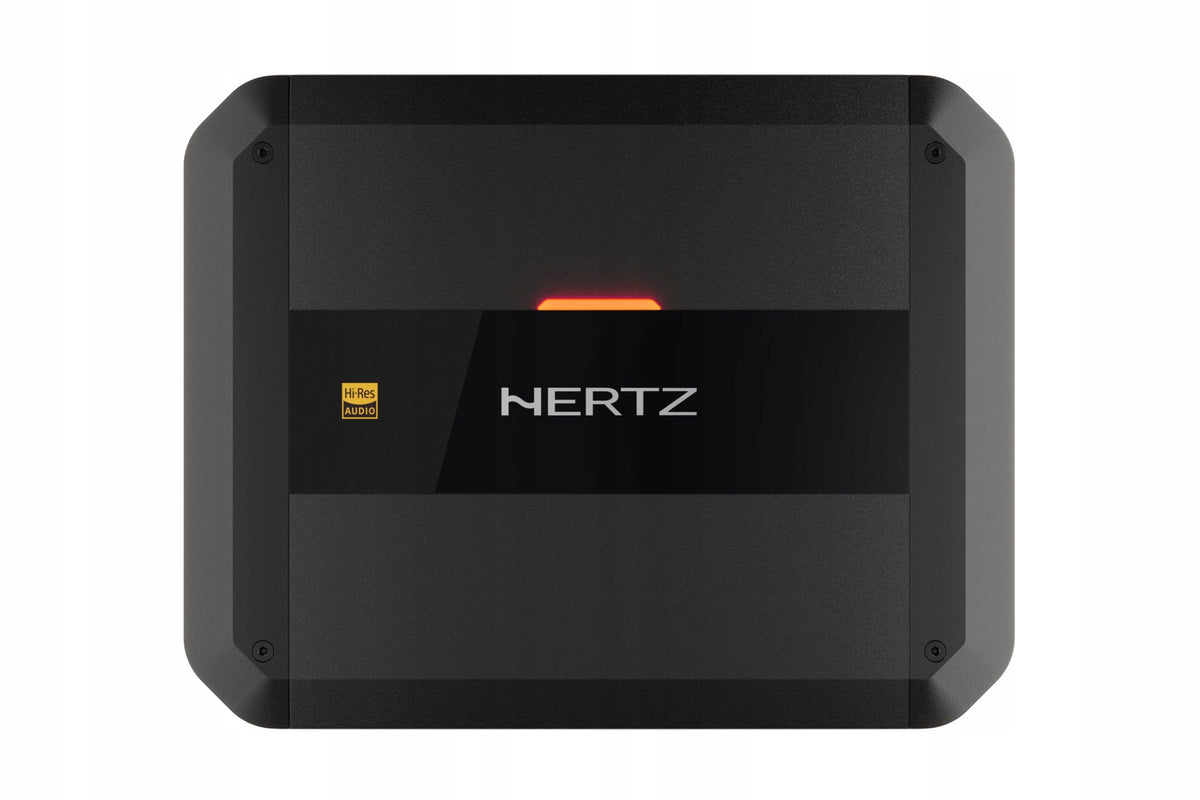

Automobilinis stiprintuvas HERTZ DP 2.200, 2 kanalai, 260 W

Trumpai apie prekę

Prekė: Automobilinis stiprintuvas HERTZ DP 2.200, 2 kanalai, 260 W. Kategorija: Stiprintuvai.

• Gamintojas: Hertz
• Modelis: DP 2.200

BRAND NEW AMPLIFIER

.

- 2-channel,

- Class AB technology

- 2×110 W at 2 Ω, 220 W in bridge mode at 4 Ω, anodized aluminum construction

The Hertz DIECI POWER DP 2.200 amplifier is a powerful audio design designed to take your car audio experience to an unprecedented level. With a High-Resolution Audio certification, this amplifier delivers impressive frequency response from 10 Hz to 45 kHz, ensuring that every musical nuance is reproduced faithfully with crystal-clear precision.

Despite its compact size, the DP 2.200 offers impressive power output, fully bridgeable 4-channel AB-class gain and 2Ω stability. This innovative design delivers high-quality sound without sacrificing space, making it the perfect choice for those looking for uncompromising sound in a compact design.

The aesthetics of the amplifier are as impressive as its performance. The sleek status LED, solidly machined terminal block, and removable top panel, protecting controls and connectors, create a sleek and sophisticated design that integrates seamlessly into any car's interior.

Universal compatibility is a key feature of the DP 2.200, offering a supply voltage of 6,5 to 16,5 V and a speaker input sensitivity of 1,6 to 40 Vrms. The integrated Universal Speaker Simulator enhances versatility for optimal performance with a wide range of audio sources.

Experience high noise reduction with balanced input circuits of the preamplifier and speaker input for clear and interference-free signal transmission. Full set of controls including adjustable input levels, high-pass/low-pass filters (50-4000 Hz, 12 dB/oct. ) and bass amplification, provides users with the flexibility to tune the sound to their own preferences.

Convenience connects to intelligence with an automatic remote on/off function, seamlessly activated by factory radio speaker outputs. This ensures trouble-free operation and efficient energy management system. Whether you use speaker inputs or a preamplifier, the DP 2.200 offers full-range preamplifier outputs for added flexibility in your system setup. Upgrade your car’s audio system with the Hertz DIECI POWER DP 2.200 amplifier – where power, precision and style combine for an unparalleled listening experience on the road.

General specification

Channels 2 - 1

Amplifier class AB

POWER SUPPLY

Nominal supply voltage (fuse) 11 ÷ 15 VDC (2 x 20 A)

Operating supply voltage 6,5 ÷ 16,5 VDC

Idle current 0,65 A

Power consumption in standby mode 5 uA

Current consumption, minimum load impedance (maximum musical power) 15 A

Remote Input 4÷ 15 VDC (1,5 mA) ART - Automatic Remote On/Off from SPK-IN Input (BTL Radio Only) 1,5 VDC

Efficiency 60%

DEGREE OF AMPLIFIER

Distortion - THD @ 100 Hz, 70%

Rated Power 0,01%

Damping factor @ 1 kHz, 1 W 130

Band @ -3 dB 10 Hz ÷ 45 kHz

Signal/noise ratio (A-weighted at 1 V input) 100 dBA

Minimum load impedance @ 2 channels: 2 Ω @ 1 channel: 4 Ω

Adjustable crossovers: yes

.

Output power

Output power (RMS) at 1% THD: 2 channels at 4 Ω 80 W x 2 2 channels at 2 Ω 110 W x 2 1 channel at 4 Ω 220 W x 1

Output power (RMS) at 14,4 V DC, THD 10%: 2 channels at 4 Ω 95 W x 2 2 channels at 2 Ω 130 W x 2 1 channel at 4 Ω 260 W x 1 Total power 260 W

- Products purchased from us are 100% original

- Factory packed

- They come from the polish distribution network

- Covered by 2-year-old gw.

Why risk buying a product of unknown origin when you can be sure of the legality and originality of the purchased goods.
