Automobilinis stiprintuvas JBL Club A1000, mono, 600 W RMS (4 Ω), 1000 W RMS (2 Ω)

Trumpai apie prekę

Prekė: Automobilinis stiprintuvas JBL Club A1000, mono, 600 W RMS (4 Ω), 1000 W RMS (2 Ω). Kategorija: Stiprintuvai.

• Gamintojas: JBL
• Modelis: Club A1000

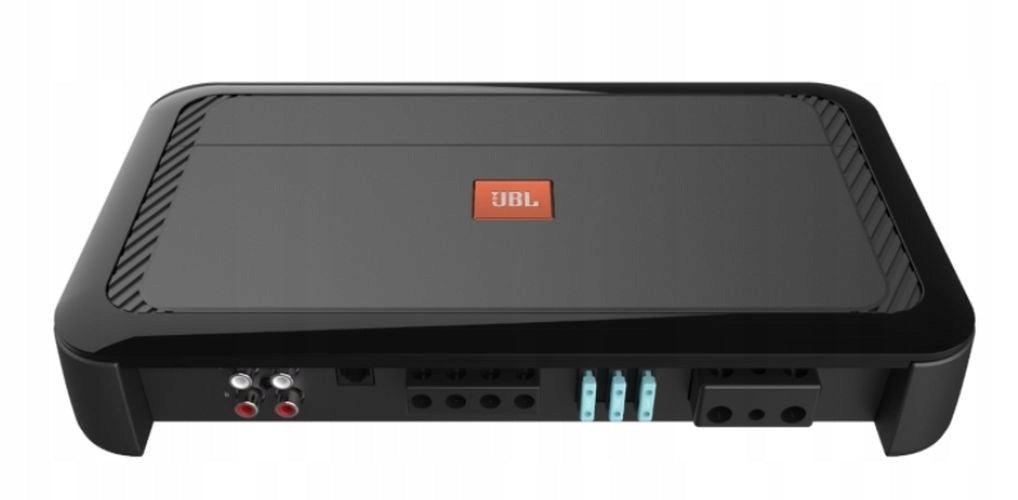

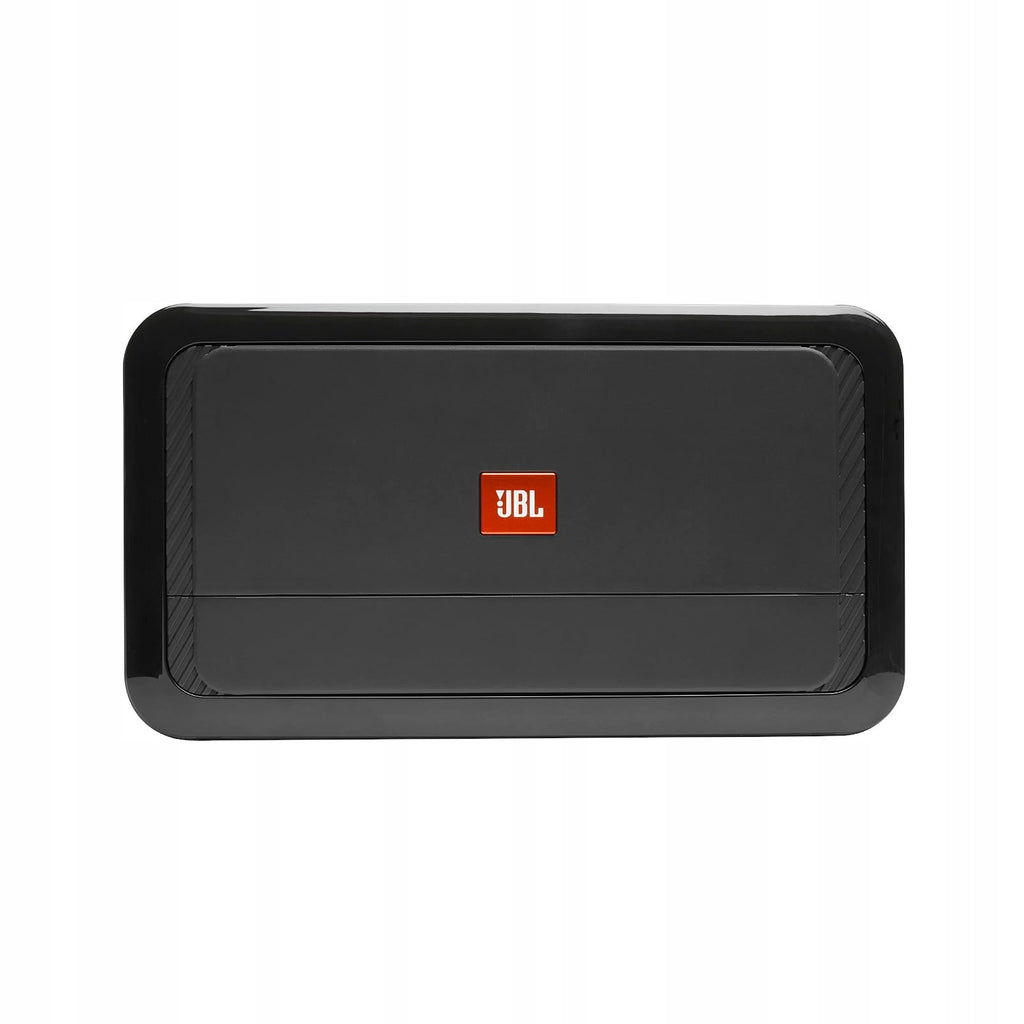

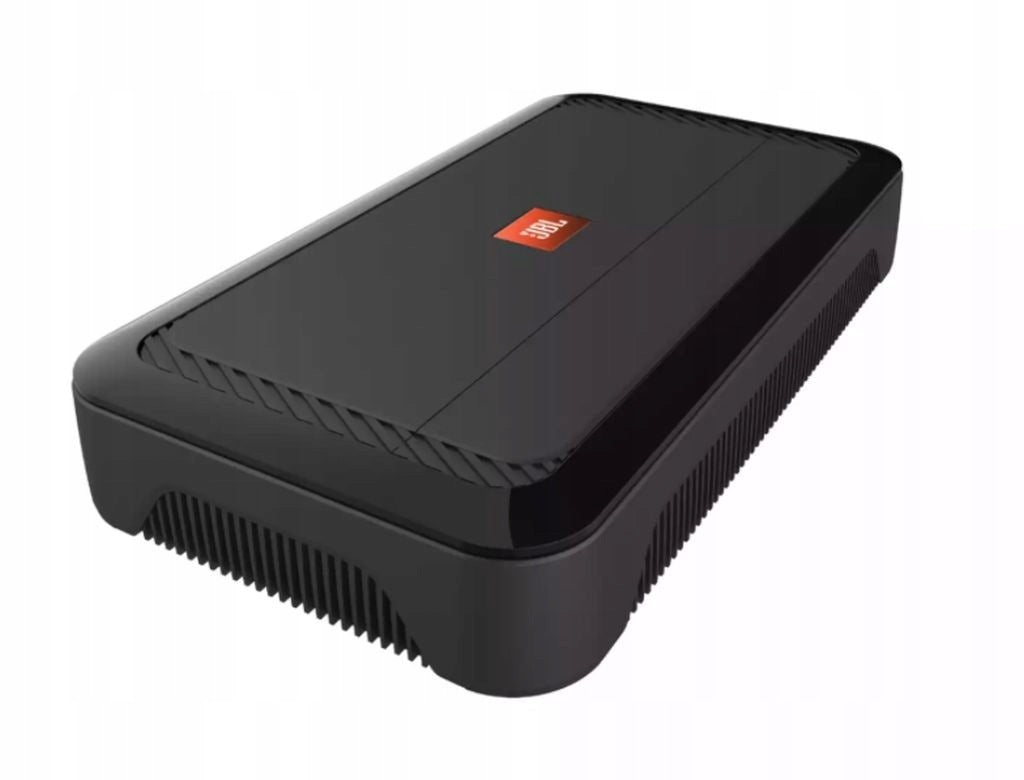

JBL Club A1000

1 Channel Mono Block Car Amplifier

1000W RMS 2Ohm

600W RMS 4Ohm

JBL Club A1000 is a single-channel monoblock car amplifier designed for lovers of powerful bass. The device can deliver up to 1000W RMS of power at 2 ohms, making it an ideal choice for powering a subwoofer in a car audio system.

Key features of the product

• Monoblock – 1-channel amplifier ideal for subwoofer
• Output Power: 1000W RMS at 2Ω
• Class D – efficient technology with low power consumption and low load on the car installation
• Supply voltage range: 12 to 16 V
• Possibility to connect to both factory and aftermarket radio (inputs to speaker signal and RCA)
• Low-pass filter and adjustable bass boost – adjust the subwoofer sound to your preferences
• Phase switch for better cooperation with the rest of the audio system
• Wired remote control to control the bass level from the car cabin
• Package Dimensions: 303 x 226 x 133 mm
• Quick start instructions included

Purpose

The JBL Club A1000 amplifier is perfect for audio systems that require high, stable power to power the subwoofer. With its advanced D-class design, it is energy-efficient and easy to install, even with limited space in your car.

Technical data

• Powerful Mono Car Amplifier for Subwoofers
• 1 x 600 W RMS at 4 ohms
• 1 x 1000 W RMS at 2 ohms
• Class D amplifier technology
• Frequency Response: 10 – 320 Hz
• Adjustable low-pass filter (32 – 320 Hz, 12 dB/octave)
• Adjustable bass gain (0 to 12 dB at 45 Hz)
• Phase switch (0, 180 degree)
• Comes with a wired remote control to adjust the volume level
• Preamplifier inputs and outputs
• Speaker level inputs (includes adapter from speaker cable to cinch connector)
• Recommended 4-wire power and ground cables
• Cables and accessories not included in the amplifier kit
• Protection: 35 A x 3
• Width. x H x D. = 320 mm x 51,3 mm x 180 mm
• Width. x H x D. = 12-5/8" x 2-1/16" x 7-1/8"

What is included in the set?

• 1 x Club A1000 Mono-Subwoofer Car Amplifier
• 6 x ATO 35 A fuses (3 built-in, 3 spare)
• 2 x "bare cable - RCA" adapters
• 1 x Remote Control Module for Bass Adjustment
• 1 x 16,5' remote control cable (RJ-25 plugs on both ends)
• 2 x Self-tapping screws for remote control (M3 x 15 mm)
• 4 x Mounting screws (M4 x 53 mm)
• 2 x JBL stickers
• 1 x User Manual
