Automobilinis stiprintuvas MUSWAY M4+V3 DSP 4x135W su Plug&Play BEAM laidynu Audi, VW, Skoda, Seat

Trumpai apie prekę

Prekė: Automobilinis stiprintuvas MUSWAY M4+V3 DSP 4x135W su Plug&Play BEAM laidynu Audi, VW, Skoda, Seat. Kategorija: Stiprintuvai.

• Gamintojas: Musway
• Modelis: WZMACNIACZ DSP MUSWAY M4+V3 QUADLOCK

⭐ MUSWAY M4+ V3-512K + QUADLOCK 52-PIN – PLUG&PLAY SET

MUSWAY M4+ V3-512K is a compact 4-channel Class D amplifier with integrated 8-channel DSP processor, designed for the expansion of factory Car Audio systems and the construction of advanced installations with the possibility of precise sound tuning.

In this offer, you get the amplifier as a ready Plug&Play set for selected Audi, Volkswagen, Škoda and Seat cars equipped with the appropriate Quadlock 52-pin connector and a basic audio system without an external OEM amplifier.

The set also includes a factory MX-Connect™ → ISO harness with a length of 2,5 m and an additional adapter Quadlock 52-pin → ISO, allowing the amplifier to be integrated into the factory installation of the car without cutting the speaker wires.

M4+ V3 offers 4 × 100 W RMS at 4 Ω, 4 × 135 W RMS at 2 Ω and 2 × 270 W RMS in bridge at 4 Ω.

At the heart of the device is the advanced 8-channel DSP 512K Analog Devices ADAU1452 processor, working with the high-end Burr-Brown PCM3168A converter.

Four additional RCA outputs controlled by DSP allow further expansion of the system, e.g. o separate monoblock powering the subwoofer.

✔ 4 × 100 W RMS at 4 Ω

✔ 4 × 135 W RMS at 2 Ω

✔ 2 × 270 W RMS in bridge at 4 Ω

✔ Advanced 8-channel DSP 512K

✔ Processor Analog Devices ADAU1452

✔ Burr-Brown PCM3168A converter

✔ 4 additional RCA outputs controlled by DSP

✔ High Level Inputs with EPS® Error Protection System

✔ Auto Turn-On

✔ Compatibility with Start-Stop systems

✔ Factory MX-Connect™ → ISO 2,5 m beam

✔ Adapter Quadlock 52-pin → ISO

✔ Possibility to install Plug&Play

✔ Compact housing 150 × 44 × 200 mm

⭐ PLUG&PLAY QUADLOCK 52-PIN – AUDI / VW / ŠKODA / SEAT

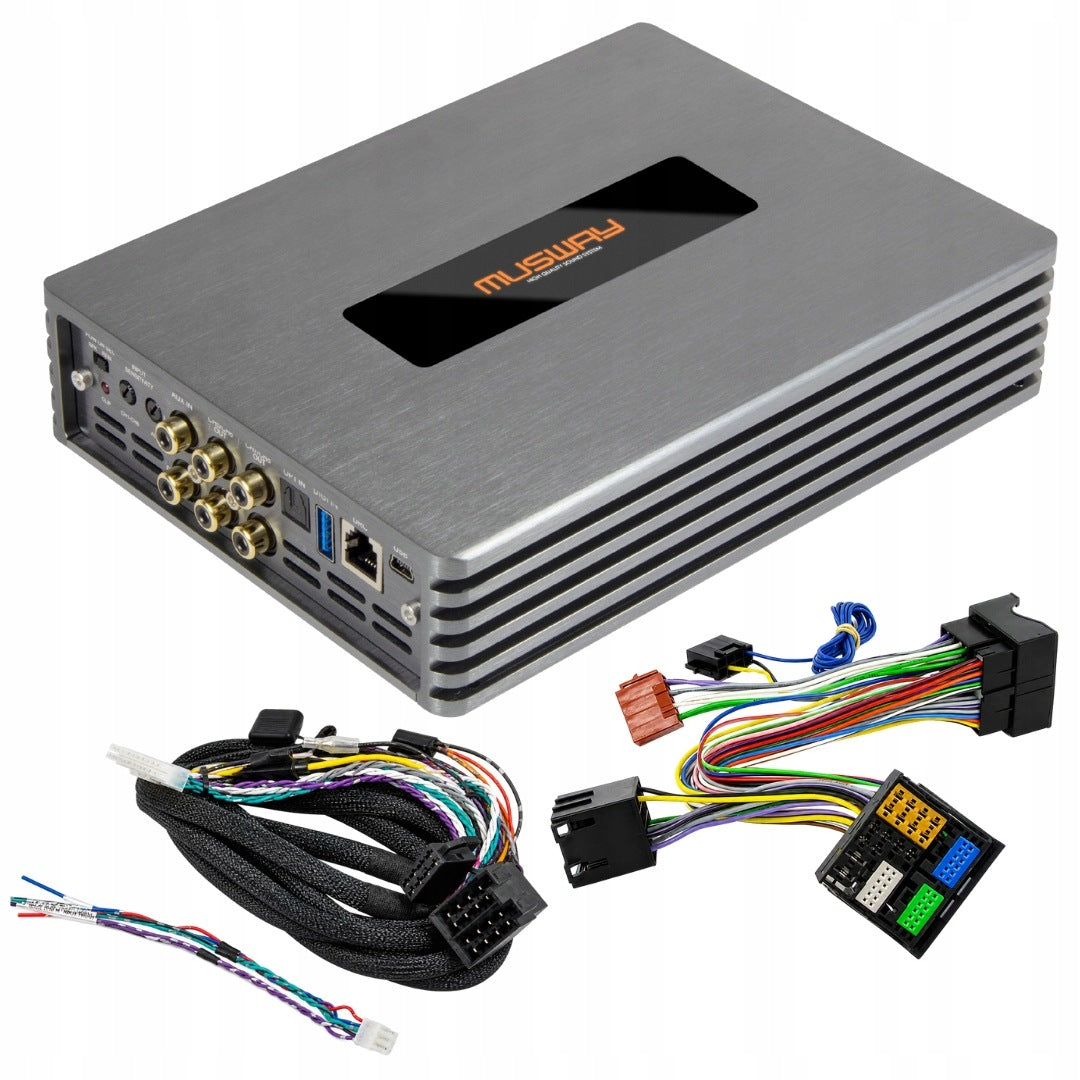

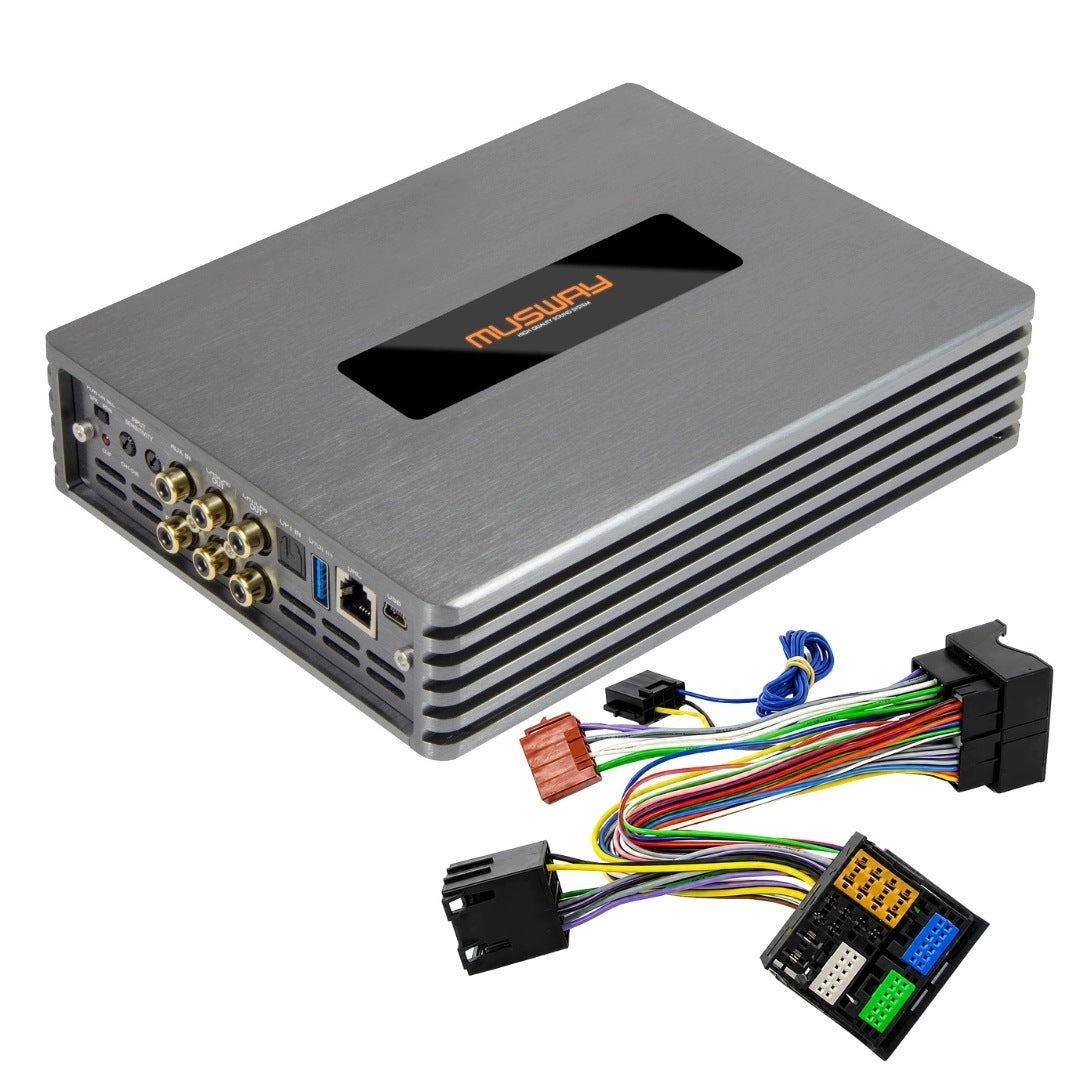

In this offer, the MUSWAY M4+ V3-512K amplifier comes with a factory MX-Connect™ → ISO beam with a length of 2,5 m and a Quadlock 52-pin → ISO adapter.

The kit allows you to integrate the amplifier with the factory audio installation in selected cars Audi, Volkswagen, Škoda and Seat, without having to cut the original speaker cables.

It is designed for cars equipped with:

✔ Factory Quadlock 52-pin connector

✔ Basic factory audio system

✔ OEM Radio with High Level Speaker Outputs

✔ Installation without external factory amplifier

MUSWAY M4+ V3 has high-level inputs with the EPS® (Error Protection System) system, thanks to which it has been prepared to cooperate with modern factory OEM units.

IMPORTANT: Within the same model and year of the car, there may be different radios, connectors and versions of the sound system. Before purchasing, please check if the car has a Quadlock 52-pin connector and a basic audio system without an external amplifier.

The kit is not designed to be directly connected with this harness to cars equipped with extensive systems with an OEM amplifier, e.g. selected versions of BOSE, Bang & Olufsen, Audi Sound System, etc. Other adapters may be required for such installations.

If you have any doubts about compatibility, you can check the type of factory audio system and connector in your car before purchasing.

⭐ 8-CHANNEL DSP 512K – FULL CONTROL OVER THE CAR AUDIO SYSTEM

MUSWAY M4+ V3 combines a 4-channel amplifier with an extensive 8-channel DSP processor, so it can be the central element of a complete Car Audio system.

Four amplifier channels are used to directly power the speakers, while 4 additional RCA outputs controlled by DSP allow you to connect additional power amplifiers.

This gives you the opportunity to create a system consisting of e.g. from front and rear speakers powered by M4+ and an additional amplifier designed for the subwoofer.

Analog Devices ADAU1452 in 512K DSP technology, cooperating with the Burr-Brown PCM3168A converter, is responsible for signal processing.

DSP allows you to precisely adjust the work of individual speakers to the acoustics of the car interior.

The device offers:

✔ 6 × High Level Input with EPS®

✔ 6 × Low Level RCA input – using an appropriate optional cable

✔ 2 × AUX RCA input

✔ 1 × Digital Optical Input Stereo

✔ 4 × reinforced speaker output

✔ 4 × RCA output configured by DSP

✔ Control DSP from computer

✔ Support for optional Bluetooth modules MUSWAY

✔ Support for optional digital controllers MUSWAY

⭐ TECHNICAL SPECIFICATION + SET CONTENTS

✅ Producer: MUSWAY

✅ Model: M4+ V3-512K

✅ Type: car amplifier with DSP

✅ Amplifier class: D

✅ Number of amplifier channels: 4

✅ Number of DSP channels: 8

✅ RMS power at 4 Ω: 4 × 100 W

✅ RMS power at 2 Ω: 4 × 135 W

✅ RMS power in the bridge at 4 Ω: 2 × 270 W

✅ DSP Processor: Analog Devices ADAU1452

✅ DSP Technology: 512K

✅ Transducer: Burr-Brown PCM3168A

✅ Frequency Response: 15 Hz – 22 kHz (-3 dB)

✅ Signal-to-noise ratio: 90 dB

✅ THD: 0,1%

✅ High Level Inputs: 6 channels with EPS®

✅ Speaker outputs: 4 channels

✅ DSP controlled RCA outputs: 4 channels

✅ AUX input: 2 × RCA

✅ Digital input: optical Stereo

✅ EPS® Error Protection System: yes

✅ Auto Turn-On: yes

✅ Start-Stop Ready: yes

✅ Soft-Clipping at 2 Ω: yes

✅ Amplifier Harness: MX-Connect™ → ISO

✅ Beam length: 2,5 m

✅ Car adapter: Quadlock 52-pin → ISO

✅ Amplifier dimensions: 150 × 44 × 200 mm

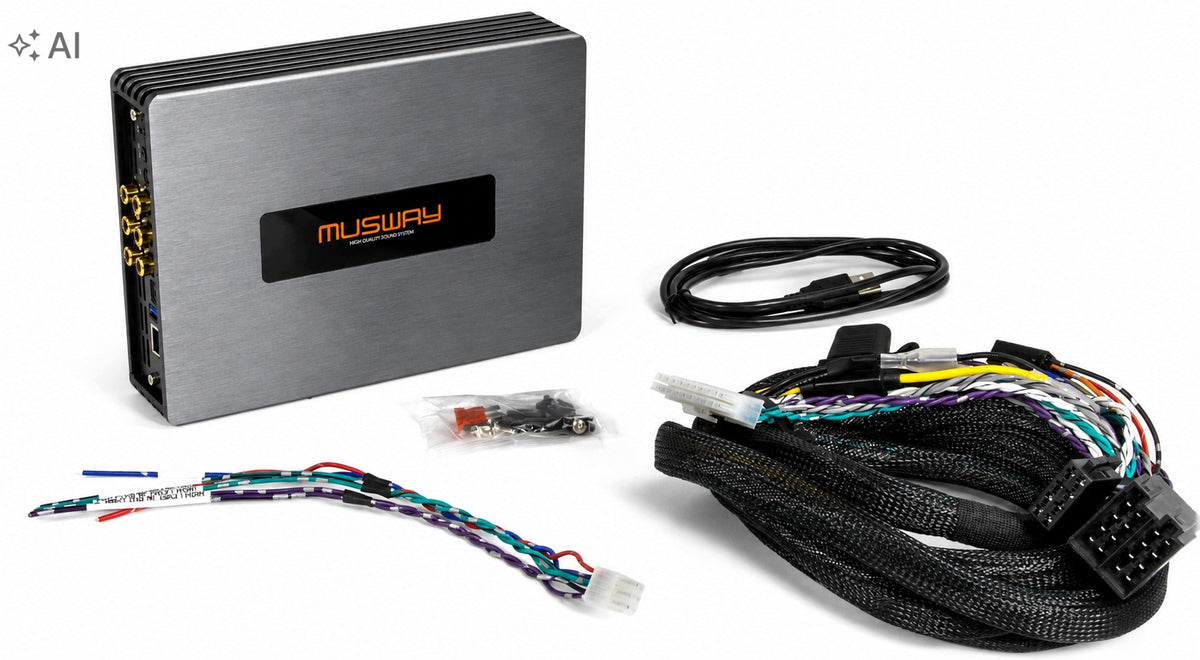

CONTENT OF THE SET

✅ MUSWAY M4+ V3-512K amplifier

✅ Factory MX-Connect™ → ISO 2,5 m beam

✅ Adapter Quadlock 52-pin → ISO Audi / VW / Šcode / Seat

✅ Wires and connectors included in the factory amplifier kit

✅ Assembly accessories

✅ Original packaging

MUSWAY M4+ V3-512K + Quadlock 52-pin is a ready-made set for the expansion of selected factory audio systems from Audi, Volkswagen, Škoda and Seat, combining high power, advanced DSP processor and the possibility of installation without cutting the factory speaker cabling.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	Musway
Parametry	Model	WZMACNIACZ DSP MUSWAY M4+V3 QUADLOCK
Parametry	Number of channels	4-channel
Parametry	Amplifier class	D
Parametry	Manufacturer code	WZMACNIACZ DSP MUSWAY M4+V3 QUADLOCK
Parametry	Impedance	2 Ω
Parametry	THD distortion	0.1%
Parametry	Signal-to-noise ratio	90 dB
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
