Automobilinis stiprintuvas MUSWAY M6 V4 DSP, 8 kanalai, 6x130 W, klasė D, aukštos klasės garso procesorius

Trumpai apie prekę

Prekė: Automobilinis stiprintuvas MUSWAY M6 V4 DSP, 8 kanalai, 6x130 W, klasė D, aukštos klasės garso procesorius. Kategorija: Stiprintuvai.

• Gamintojas: Musway
• Modelis: M6 V4-512K

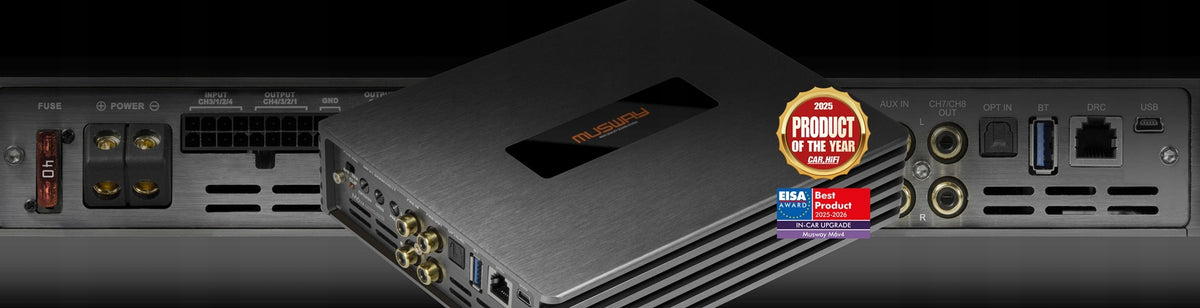

A new definition of power and precision in a compact format.

Musway M6v4 512k is an advanced 6-channel Class D amplifier with an 8-channel DSP processor, which in 2025 received the EISA award for the best product in the "In-Car Upgrade" category as well as the winner of the prestigious titles "BEST PRODUCT" and "PRODUCT OF THE YEAR 2025" according to Car & Hifi magazine.

The designation "512k" refers to the increased CPU memory, which enabled the introduction of new features such as the 10-band input equalizer with all-pass filters.

• 512K memory and uncompromising DSP: The designation “512K” is the key to a new era of tuning. With enhanced memory, the Analog Devices™ ADAU1452 processor now offers a 10-band input equalizer with advanced all-pass filters. This allows for perfect correction of the factory signal even before its processing.
• Audiophile components: The Burr-Brown™ (PCM3168A) drivers are responsible for crystal clear sound. Combining them with a powerful DSP processor allows precise adjustment of time delays, phases and advanced crossover configuration.
• Power that surprises: Although the specification says 80W per channel, independent tests have shown an impressive 96W at 4 Ohm and as much as 166W at 2 Ohm. It is a power supply that will bring any speaker system to life.
• Ease of installation Plug & Play: The set includes a 2,5-meter MX-Connect™ ISO beam, which allows you to quickly plug into the factory installation of the vehicle without interfering with the wiring.

• EPS® (Error Protection System): Protects against errors in the on-board computer when connected to high-level inputs (no diagnostic errors of the speakers).
• Start-Stop Ready: Stable operation even with voltage drops when starting the engine.
• Full control: Manage audio through a dedicated smartphone app or intuitive PC software.
• Sharing settings: WhatsApp's unique feature of sending and receiving DSP setups.
• Expandable: Additional 2 RCA output channels (DSP) allow you to connect and manage an external subwoofer amplifier from within the M6.

RMS output power:

• 6 x 80/130 W at 4/2 Ohms
• 3 x 260 W at 4 Ohm (bridge)

Inputs: 6 x High-Level, 6 x RCA (Low-Level), 2 x AUX RCA, 1 x Optical (PCM).

Outputs: 6 x amplified speaker, 2 x RCA preamplifier (controlled by DSP).

DSP Processor: Analog Devices ADAU1466, 32-bit, 295 MHz.

Dimensions: 150 x 44 x 200 mm – ultra-compact housing suitable for the seat or dashboard.

• Musway M6v4-512K amplifier,
• ISO MX-Connect cable bundle (2,5 m),
• instruction manual.

Specifications
