Automobilinis stiprintuvas SOUNDMAX SX-N1000.5, 5 kanalų, su nuotolinio valdymo pultu

Trumpai apie prekę

Prekė: Automobilinis stiprintuvas SOUNDMAX SX-N1000.5, 5 kanalų, su nuotolinio valdymo pultu. Kategorija: Stiprintuvai.

• Gamintojas: SoundMax
• Modelis: SX-N1000.5

⭐ SOUNDMAX SX-N1000.5 – 5-CHANNEL HYBRID AMPLIFIER

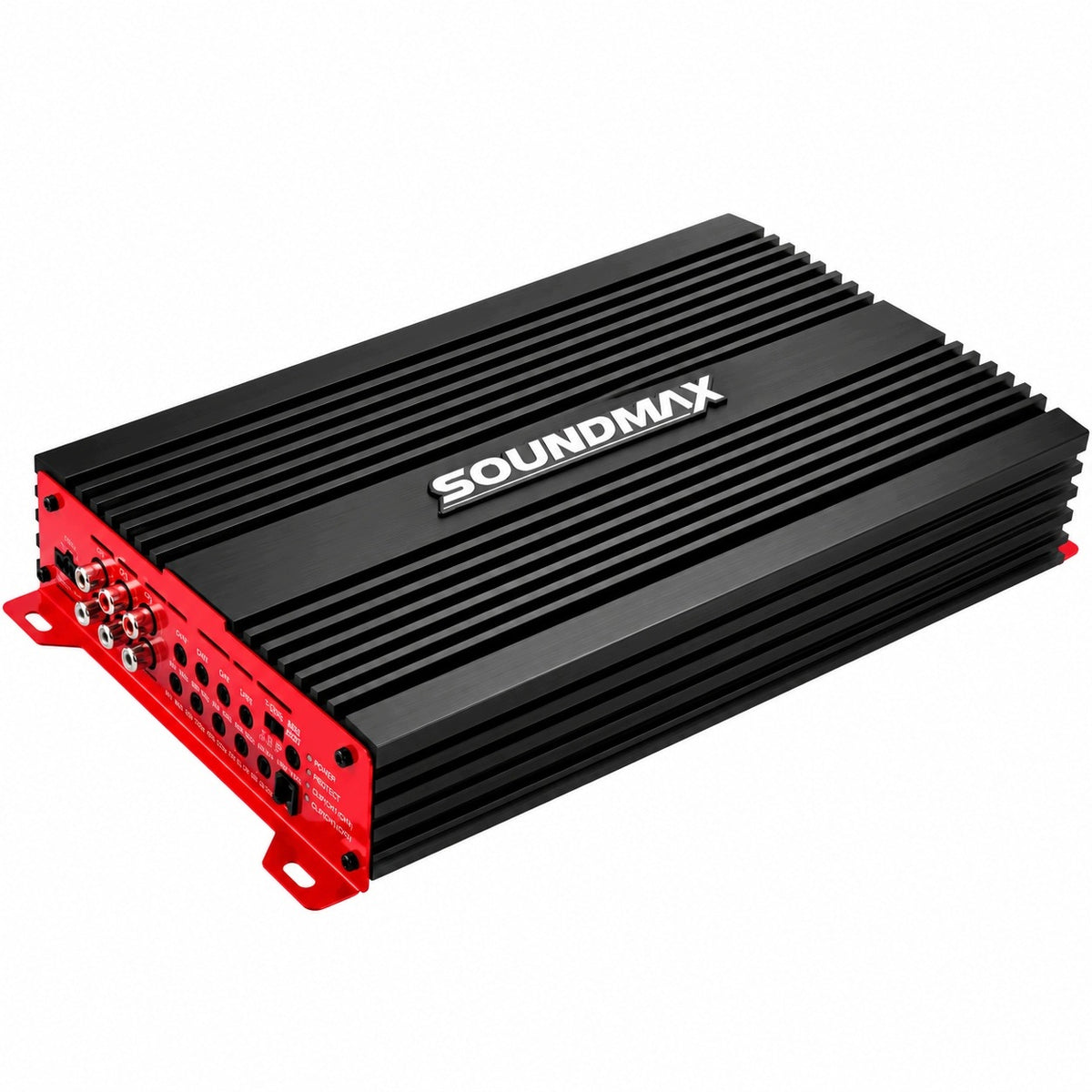

Soundmax SX-N1000.5 is a powerful five-channel car amplifier with a hybrid design, offering 4× 90 W RMS + 240 W RMS at 4Ω, designed to power a complete Car Audio system from a single device.

With four channels to power the speakers and a fifth channel dedicated to the subwoofer, the amplifier allows you to build a full sound system without the need for two separate amplifiers.

The hybrid design combines high-quality sound with efficient subwoofer power, while the built-in HPF, LPF, and Subsonic filters allow you to precisely match the sound characteristics to your connected speakers.

The most important advantages

✅ Car Amplifier Soundmax SX-N1000.5

✅ Five-channel hybrid design

✅ 4 speaker channels + 1 subwoofer channel

✅ Power 4 × 90 W + 240 W RMS at 4Ω

✅ Power 4 × 100 W + 400 W RMS at 2Ω

✅ Bridge Power 2 × 220W RMS at 4Ω for Speaker Channels

✅ Possibility to power the entire Car Audio system with one amplifier

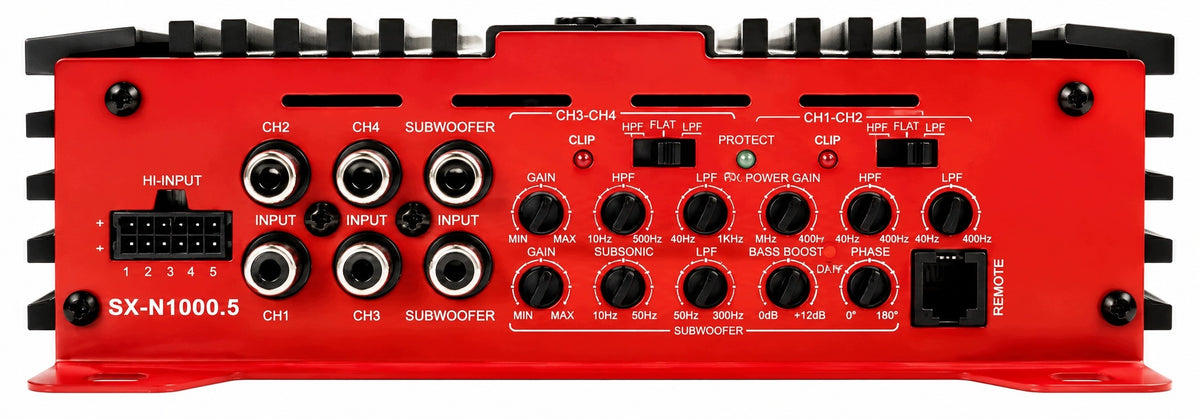

✅ Built-in adjustable HPF and LPF filters

✅ Subsonic filter 10 – 50 Hz

✅ Adjustable Bass Boost up to +12 dB

✅ High damping factor 170

✅ High Level Input

✅ Compact design for easy installation

⭐ SOUNDMAX SX-N1000.5 – ONE AMPLIFIER FOR SPEAKERS AND SUBWOOFER

The Soundmax SX-N1000.5 is designed to build complete Car Audio systems in which one amplifier powers both front and rear speakers as well as a car subwoofer.

Four speaker channels offer 90W RMS at 4Ω, while a dedicated subwoofer channel delivers 240W RMS at 4Ω or 400W RMS at 2Ω, providing adequate dynamics and low-frequency control.

The high damping factor of 170 promotes precise control of speaker operation, and extensive filters allow you to adjust the frequency range to individual elements of the system.

Thanks to the High Level input, the amplifier can also work with factory audio units, allowing you to upgrade the sound system without having to replace the radio.

Technical data

✅ Producer: Soundmax

✅ Model: SX-N1000.5

✅ Type: 5-channel car amplifier

✅ Working class: hybrid

✅ Number of channels: 5 (4 + 1 subwoofer)

✅ RMS power at 4Ω: 4 × 90 W + 1 × 240 W

✅ RMS power at 2Ω: 4 × 100 W + 1 × 400 W

✅ RMS power in bridge at 4Ω: 2 × 220 W

✅ Minimum impedance of speaker channels: 2Ω

✅ Minimum subwoofer channel impedance: 2Ω

✅ Frequency Response: 10 – 20 000 Hz

✅ High-pass filter HPF: 100 – 1000 Hz

✅ LPF low-pass filter for speaker channels: 40 – 400 Hz

✅ Low Pass Filter LPF Subwoofer Channel: 50 – 300 Hz

✅ Subsonic filter: 10 – 50 Hz

✅ Bass Boost: 0 to +12 dB

✅ Damping factor: 170

✅ Input sensitivity: 0,2 – 6 V

✅ High Level Input: High Level Input

✅ Supply voltage range: 9 to 16 V

✅ Signal-to-noise ratio: 90 dB

✅ Fuses: 2 × 50 A

✅ Length: 330 mm

✅ Width: 182 mm

✅ Height: 57 mm

⭐ SOUNDMAX SX-N1000.5 – COMPLETE CAR AUDIO SYSTEM FROM ONE AMPLIFIER

The Soundmax SX-N1000.5 is an excellent choice for people who want to build a complete Car Audio system with powerful speakers and subwoofer using only one amplifier.

The device will work well when powering the front component set, rear speakers and subwoofer, providing adequate power and the ability to independently adjust the range of operation of individual channels.

With its hybrid design, extensive filters and high-level input, the SX-N1000.5 provides a practical solution for both upgrading factory audio systems and building more advanced installations.

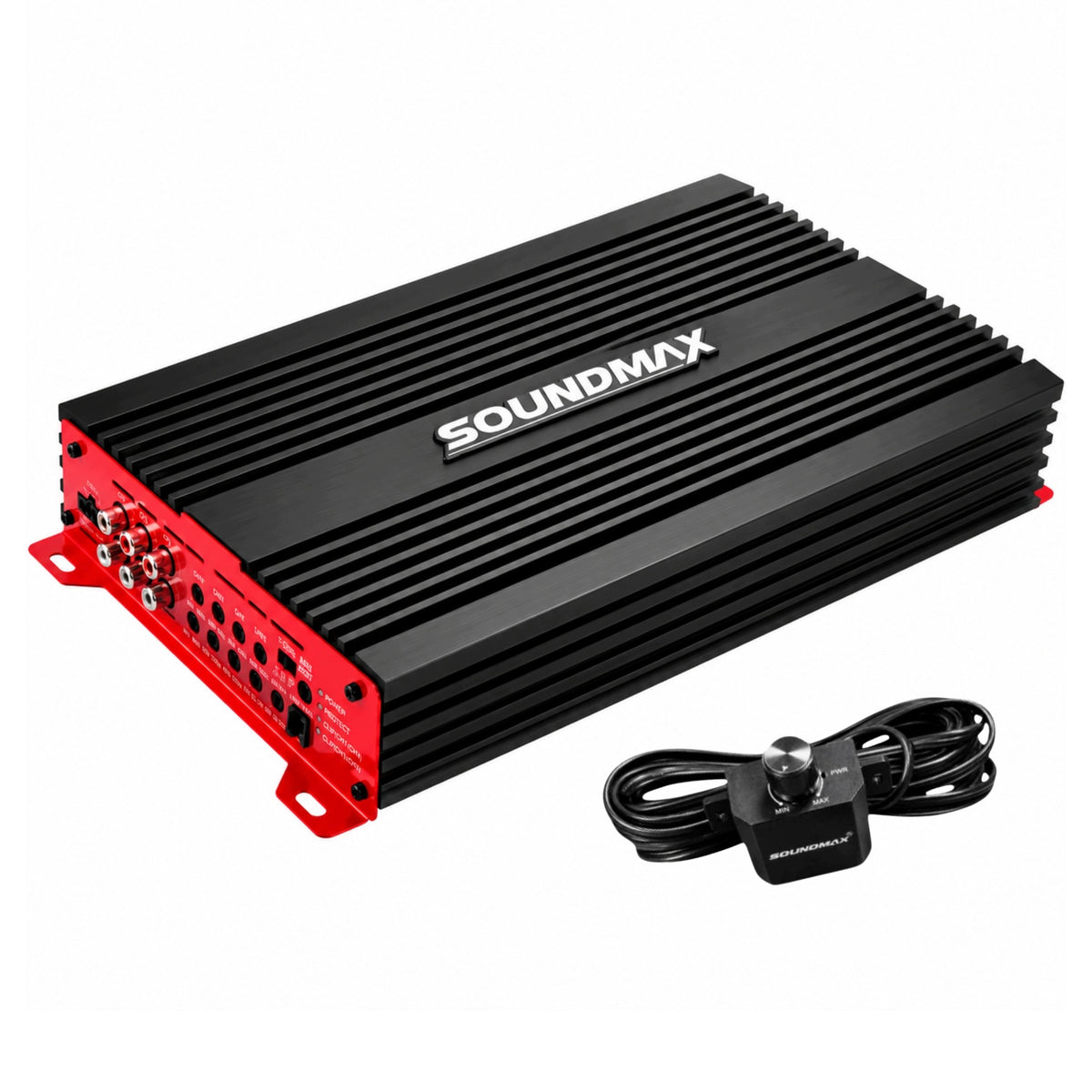

Contents of the set

✅ 1 × Soundmax SX-N1000.5 amplifier

✅ Pilot

Note: During installation, properly selected power and protection cables should be used and the minimum load impedance of individual channels should be observed. Efficient electrical installation and stable supply voltage are essential for the proper operation of the amplifier.
