Automobilinis žemų dažnių garsiakalbis TAMDEL CS-10A, 10", 150W RMS, aktyvus, bass reflex

Trumpai apie prekę

Prekė: Automobilinis žemų dažnių garsiakalbis TAMDEL CS-10A, 10", 150W RMS, aktyvus, bass reflex. Kategorija: Žemų dažnių garsiakalbių dėžės ir tūbos.

• Gamintojas: TAMDEL
• Modelis: CS-10A

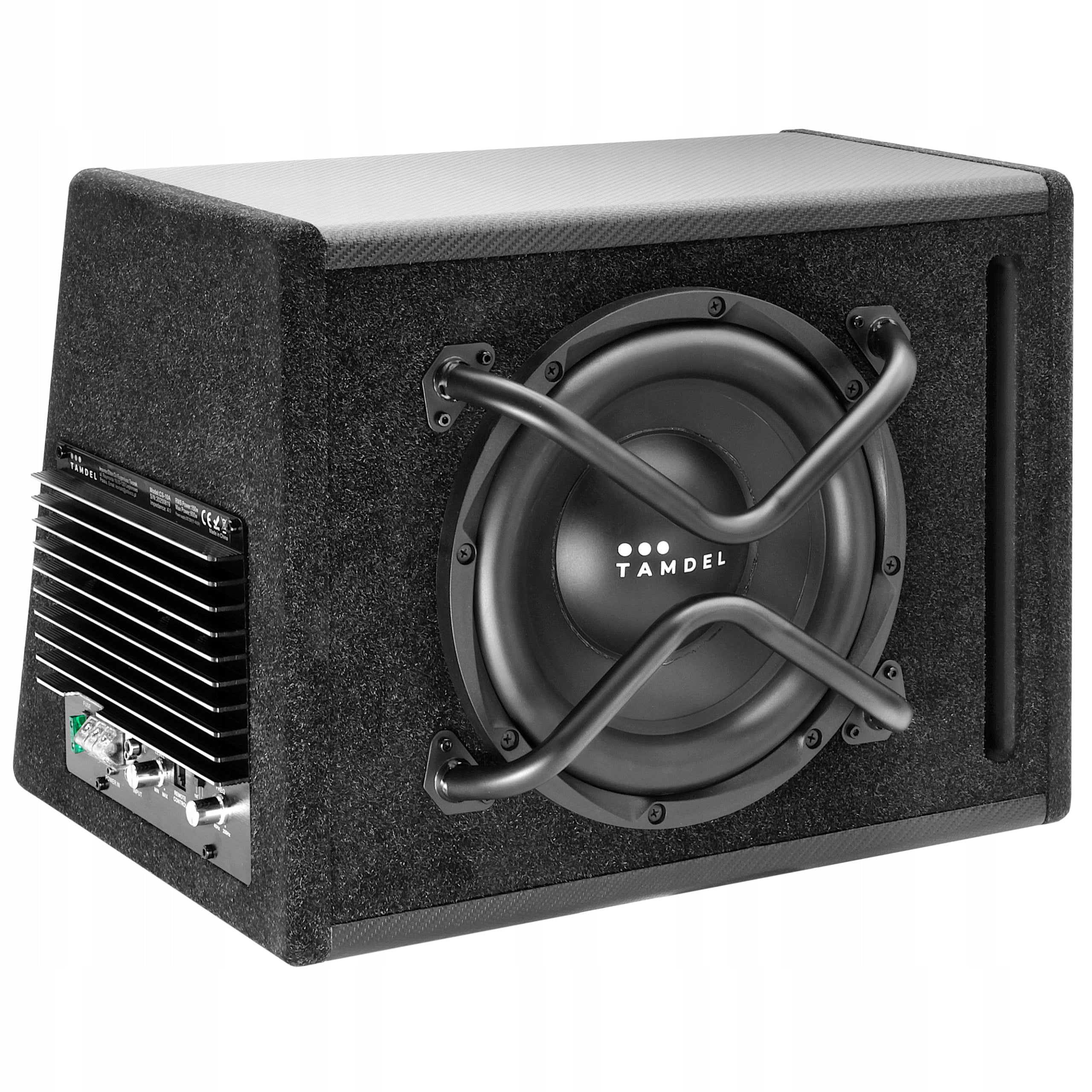

The TAMDEL CS-10A is an active car subwoofer with a diameter of 25 cm (10"), integrated with a bass-reflex slotted housing and a built-in mono amplifier. The design is designed to complement factory audio systems with a stable and controlled low frequency range.

The 30 Hz tuned housing allows for low and precise bass, while the 150 W RMS amplifier ensures constant operation at different volume levels.

The set includes a set of 8 AWG power wiring, allowing for correct and safe installation of the device.

✅ Main design features

• Built-in mono amplifier with 150 W RMS / 600 W max
• Woofer 25 cm (10")
• Housing bass-reflex slot tuned to 30 Hz
• Port with high air flow efficiency
• Control panel: LPF (40 – 200 Hz), Phase (0°/180°), Level (Gain)
• Reinforced, ventilated amplifier chamber
• Metal grille to protect the speaker
• Power wiring 8 AWG included
• Full set of installation and security cables
• Housing finished with black car lining
• Non-slip strap on the bottom – secure attachment of the box, no sliding while driving

✅ CE and RoHS quality certificates

TAMDEL products meet the European standards CE and RoHS, which confirms:

• safety of use,
• No harmful substances (m.in. lead, cadmium, mercury),
• compliance with the requirements of the European Union,
• high quality of workmanship and production control.

When buying this product, you choose equipment that is proven, safe and durable, approved for sale on the EU market.

✅ Technical parameters of TAMDEL CS-10A

• Speaker diameter: 10" / 25 cm
• Transducer Impedance: 4 Ω
• Frequency Response: 45 – 600 Hz
• Sensitivity: 90 dB
• Housing type: bass-reflex slotted
• Housing tuning: 30 Hz
• Amplifier power (RMS): 150 W
• Amplifier power (max): 600 W
• Amplifier type: 1-channel (mono)
• Power supply: 12 V (11 – 14,5 V)
• Amplifier adjustments:

  • LPF 40 – 200 Hz

  • Phase 0° / 180°

  • Level (Gain)

• Signal Inputs: RCA L/R
• Housing finish: black lining
• Protective elements: metal speaker grille

✅ Housing dimensions

The TAMDEL CS-10A model uses a trapezoidal housing with a bass-reflex port, adapted for installation in most car racks.

External dimensions:

• Width: 470 mm (front panel 450 mm)
• Height: 345 mm
• Bottom depth: 375 mm
• Top depth: 285 mm
• Rear depth: 240 mm

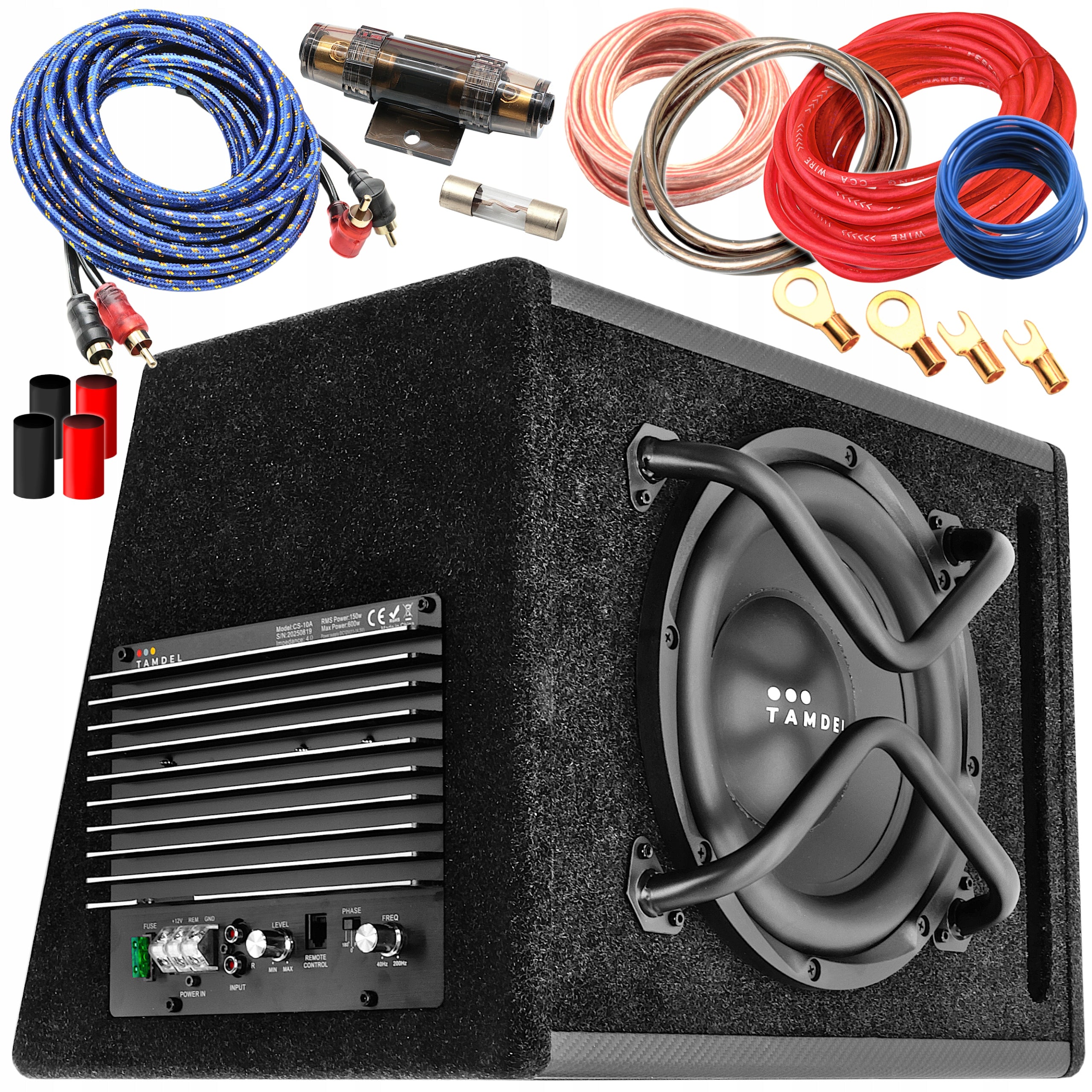

✅ Amplifier panel – functions and connections

The amplifier panel of the TAMDEL CS-10A model allows you to connect power, audio signal and adjust the basic parameters of the subwoofer.

Inputs and power supply:

• +12V / GND / REM – power supply and switching signal from the radio
• FUSE – protection of the installation (fuse in the panel)
• RCA L/R – audio signal inputs from radio or processor

Regulations:

• LEVEL (Gain) – input sensitivity
• LPF 40 – 200 Hz – low-pass filter
• PHASE 0° / 180° – subwoofer operating phase setting

Connection:

• +12V → connection to the battery (fuse as close to the battery as possible)
• GND → connection to unpainted body part
• REM → control signal from radio (Remote)
• RCA L/R → audio signal output in the radio receiver

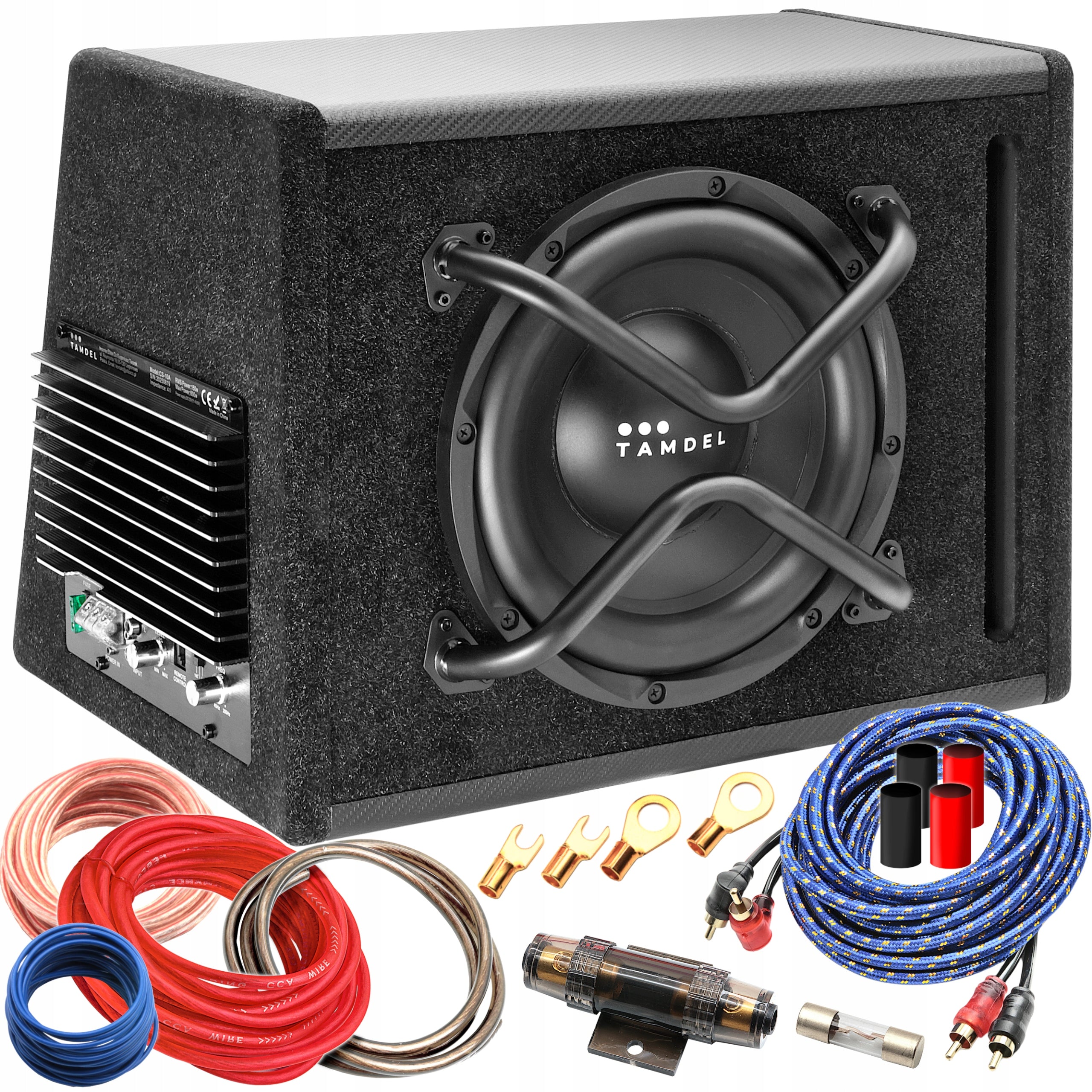

✅ Contents of the set

• Active subwoofer TAMDEL CS-10A (built-in amplifier 150 W RMS)
• Power cord 5 m – 8 AWG
• Mass cable 1 m – 8 AWG
• Signal cable 5 m – 2×RCA
• Control cable 5 m – REM
• Speaker cable 2 m – 18 AWG
• Fuse AGU 40 A in frame
• Set of mounting connectors
• User manual PL
