Automobilio akumuliatoriaus testeris UNI-T UT673A, skaitmeninis, 250Ah

Trumpai apie prekę

Prekė: Automobilio akumuliatoriaus testeris UNI-T UT673A, skaitmeninis, 250Ah. Kategorija: Baterijų testeriai.

• Gamintojas: UNI-T
• Modelis: UT673A

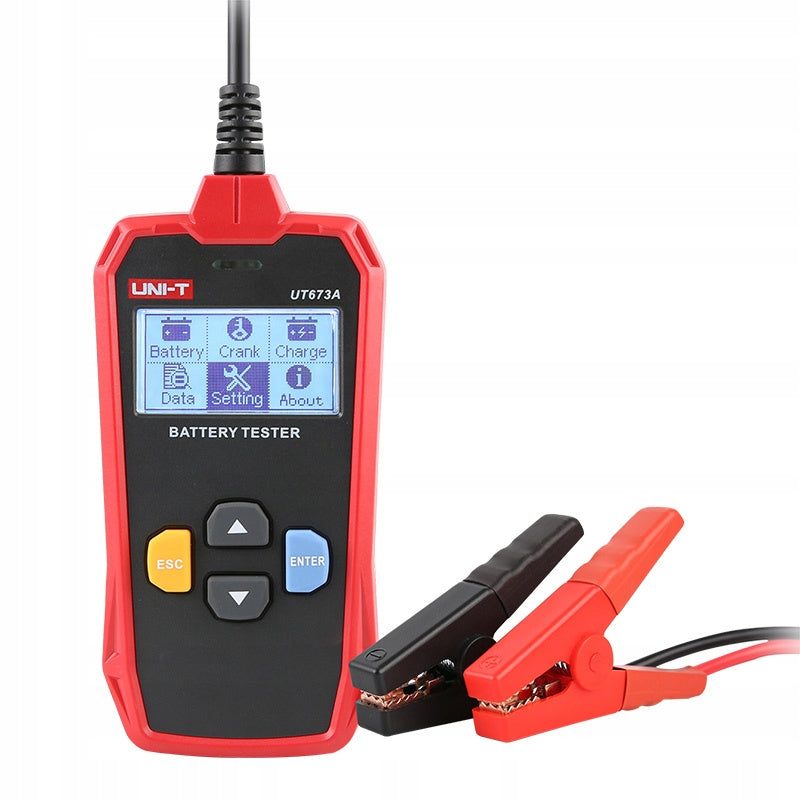

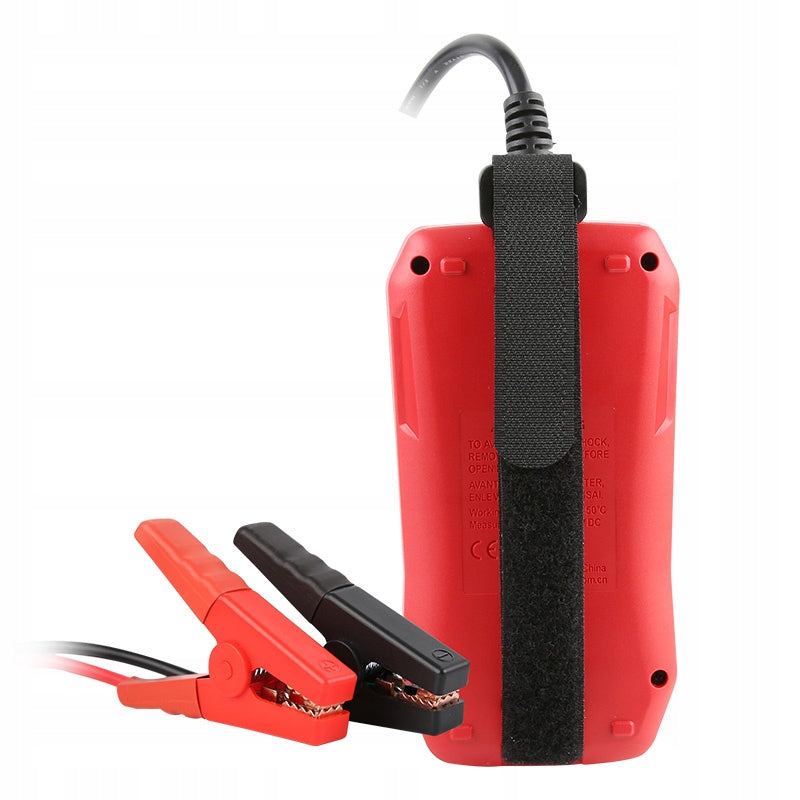

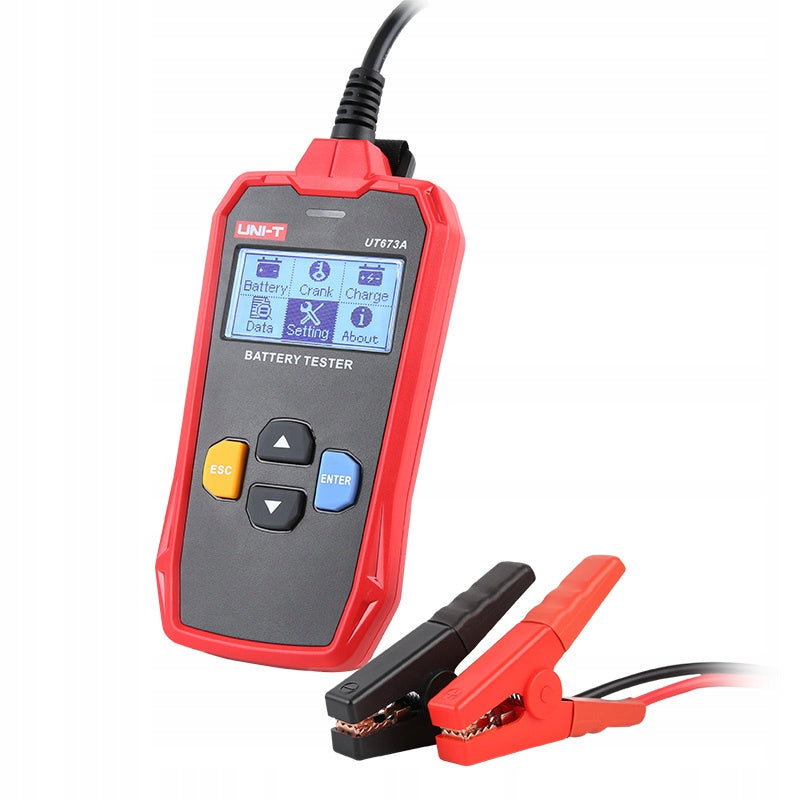

Car battery tester UNI-T UT673A is an advanced device enabling fast and accurate analysis of the condition of batteries with a capacity of from 3Ah to 250Ah. Certified according to CE, UKCA and FCC standards, the UT673A offers testing of 12V lead-acid starter batteries, as well as checking 12V/24V charging and starting systems. The tester displays key parameters such as capacity, voltage, resistance and battery life status. With a four-point Kelvin test and support for up to 10 different battery standards, the UT673A delivers high precision results without the need to disassemble batteries. In addition, the test result is presented in the form of a clear LED light signal.

✔ Comprehensive 3-in-1 diagnostics – the tester allows not only to check the battery (12V), but also to assess the efficiency of the starting system (starter) and charging system (alternator) in 12V and 24V installations.

✔ Precise Kelvin method – the use of four-point measurement eliminates the impact of resistance of measuring wires on the result, which guarantees high accuracy of internal resistance and inrush current readings.

✔ Support for a wide range of batteries – the device works with almost any type of lead-acid battery: from ordinary wet, through AGM (flat and spiral), to gel (GEL) and EFB, supporting capacities from 3Ah to 250Ah.

✔ Instant interpretation of the results – in addition to detailed data on the LCD display, the tester has a three-color LED signaling (green/yellow/red), which allows you to immediately assess whether the battery is functional, needs to be recharged or suitable for replacement.

✔ Full safety and versatility – built-in overvoltage and reverse polarity protection protect the vehicle electronics and the device itself. Support 10 international standards (m.in. CCA, EN, DIN, IEC) makes it a professional and versatile tool.

Specification:

• Manufacturer: UNI-T
• Model: UT673A
• Certificates: CE, FCC, RoHS
• Measuring ranges: 12V battery test: 7 to 16V DC; 12V/24V starter system test: 7 to 30V DC; 12V/24V charging system test: 7 to 30V DC
• Types of batteries supported: Ordinary lead-acid battery, AGM battery with flat plates, AGM spiral battery, gel battery (GEL), EFB battery
• Battery capacity range: 3–250 Ah
• Supported battery standards and ranges: CCA: 40–2000; BCI: 40–2000; CA: 40–2000; MCA: 40–2000; JIS: 26A17–245H52; DIN: 40–1400; IEC: 40–1400; EN: 40–2000; SAE: 40–2000; AH: 3–250 Ah
• Security: Overvoltage protection, reverse connection protection
• Poor contact signaling: Supported
• Battery status display: Supported
• Battery life display: Supported
• Battery capacity display: Supported
• Display internal battery resistance: Supported
• Display: 128 x 64, black and white
• Weight: 264 g
• Dimensions: 76 x 22 x 142 mm

Versatile measurement capabilities and intuitive operation

UNI-T UT673A enables comprehensive testing of both battery charge status and start-up system operation and vehicle charging. The device allows you to choose the operating language (Chinese or English), making it easy to use in a variety of work environments. The Kelvin four-point measurement feature eliminates the impact of wire resistance for even greater accuracy. Support for 10 types of battery standards allows you to tailor tests to different technologies and manufacturers, making the UT673A an extremely versatile tool in your automotive workshop or service.

Durable construction and comfortable use

The UT673A tester is distinguished by its robust design and compact form, making it perfect for both workshops and field work. The test results are presented in a clear way on the display, and additional color LED signaling allows for immediate assessment of the battery status. No need to disassemble the battery during testing significantly speeds up work and minimizes the risk of damage. UNI-T UT673A is a reliable support for anyone who focuses on professionalism and precision in battery diagnostics.
