Pristatymo terminas visoje Lietuvoje: 5-7 d.d.
Pristatymo kaina nurodytu adresu: Pristatymas nemokamas
Aprašymas
Trumpai apie prekę
Prekė: Automobilio kablio komplektas su 13 kontaktų moduliu Ford S-Max I 2006–2014, 2640 kg. Kategorija: Pilnas vilkimo kablys (sija + rutulys).
- Gamintojas: Imioła Hak-Pol
Complete tow hook kit with 13-pin installation and module for Ford S-Max I. The same hook also fits the Ford Galaxy II — full list below. It allows you to safely tow the trailer and mount the bicycle rack on the hook, and thanks to the use of a module that works with CAN-Bus and LED lighting, you have the correct operation of the trailer lights in a modern car. Parameters: pull 2640 kg, pressure 100 kg, approval E20 (e20*94/20*0172*00).
TOWING HOOK FROM HAK-POL IMIOŁA
Towing Hook Fits Cars:
✅ Ford S-Max I - 05/2006 - 12/2014
You can also mount the Imioła Hak-Pol E/038 towbar to:
- ✅ Ford Galaxy II - 07/2006 - 06/2015
Except for the Ford S-Max Expression, Individual and Titanium S.
COMPLETE HOOK for mounting — Towbar + 13Pin Module Company: IMIOŁA HAK-POL ✅
TOGETHER WITH AN ELECTRIC BEAM AND A UNIVERSAL MODULE WITH A 13 PIN SOCKET
Key benefits
- Drawing capacity: 2640 kg — solid base for cargo trailers, tow trucks and campsites (the limit depends on the car anyway).
- Ball pressure: 100 kg — more stable for bicycle racks and trailers (less "rocking").
- Hook approval: E20 (e20*94/20*0172*00) — legal installation and use (inspection / review).
- Module + 13 PIN beam included — dedicated electronics for modern installations.
- The module works with CAN-Bus and LED – less risk of errors after connecting the trailer.
- Trailer connection detection — the module "knows" when the trailer is connected.
- Assembly at factory points — hook beam for stringers through technological holes — requires removing the bumper, dismantling the crash beam (does not return to place) and cutting 100x50 mm at the bottom of the bumper.
COMPLETE HOOK for mounting Towbar + Module 13Pin
Companies: IMIOŁA HAK-POL ✅
TECHNICAL SPECIFICATION OF THE HOOK:
- ✔ Catalog No.: E/038
- ✔ Drawing: 2640 kg
- ✔ Pressure on the hook ball: 100 kg
- ✔ D-value: 12,50 kN
- ✔ 13pin MODULE is included
- ✔ Hook approval: E20 (e20*94/20*0172*00)
- ✔ Installation information: installation in stringers through technological holes – requires disassembly of the bumper and crash beam (beam does not return to place) and cut-out 100x50 mm at the bottom of the bumper

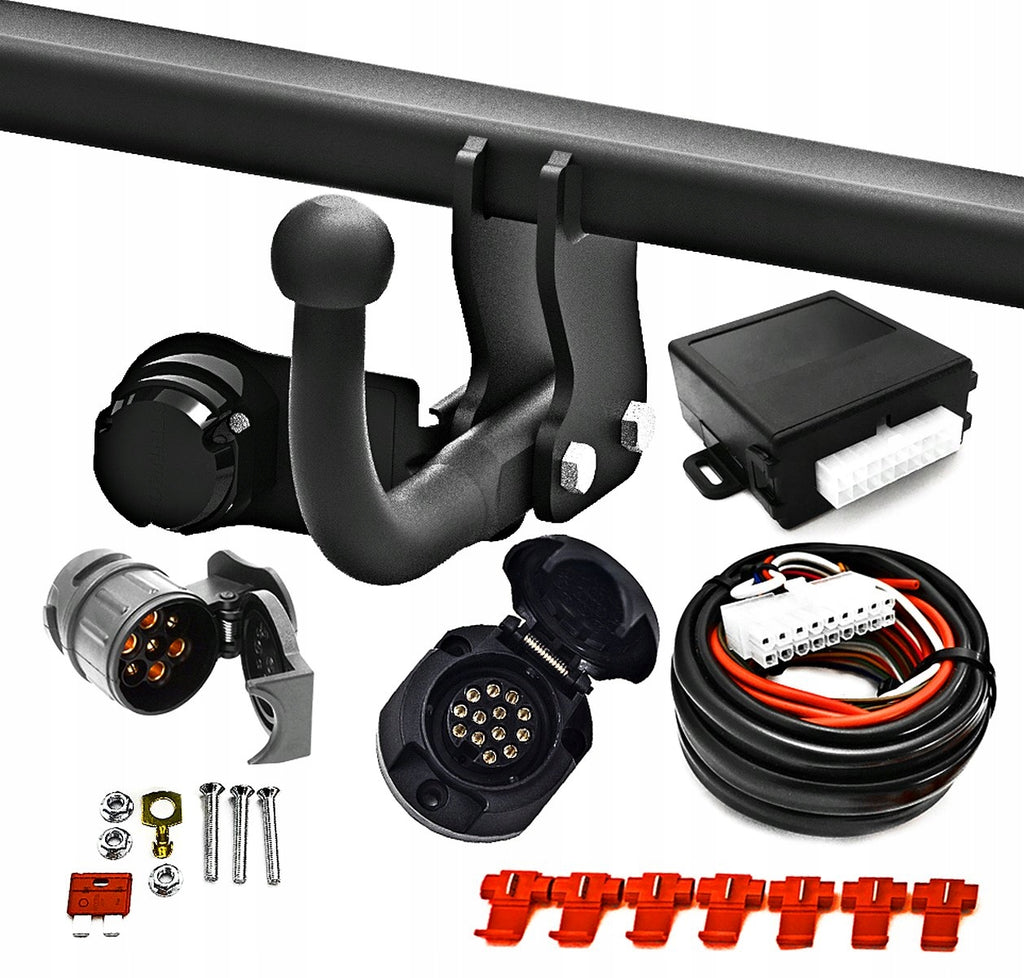

Towing Hook + Module 13 Pin Kit for Ford S-Max I Includes
Towing hook (assembly kit) + mounting hardware.
Electric set 13 PIN:
- module (12VDC control panel),
- 13-pole socket + gasket / gasket under the socket,
- bundle with fuse,
- connectors + mounting accessories (screws, nuts, bands),
- instruction PL,
- Certificate of Approval/Compliance E/20.
The manual shows the components and mounting points and the order of assembly step by step.

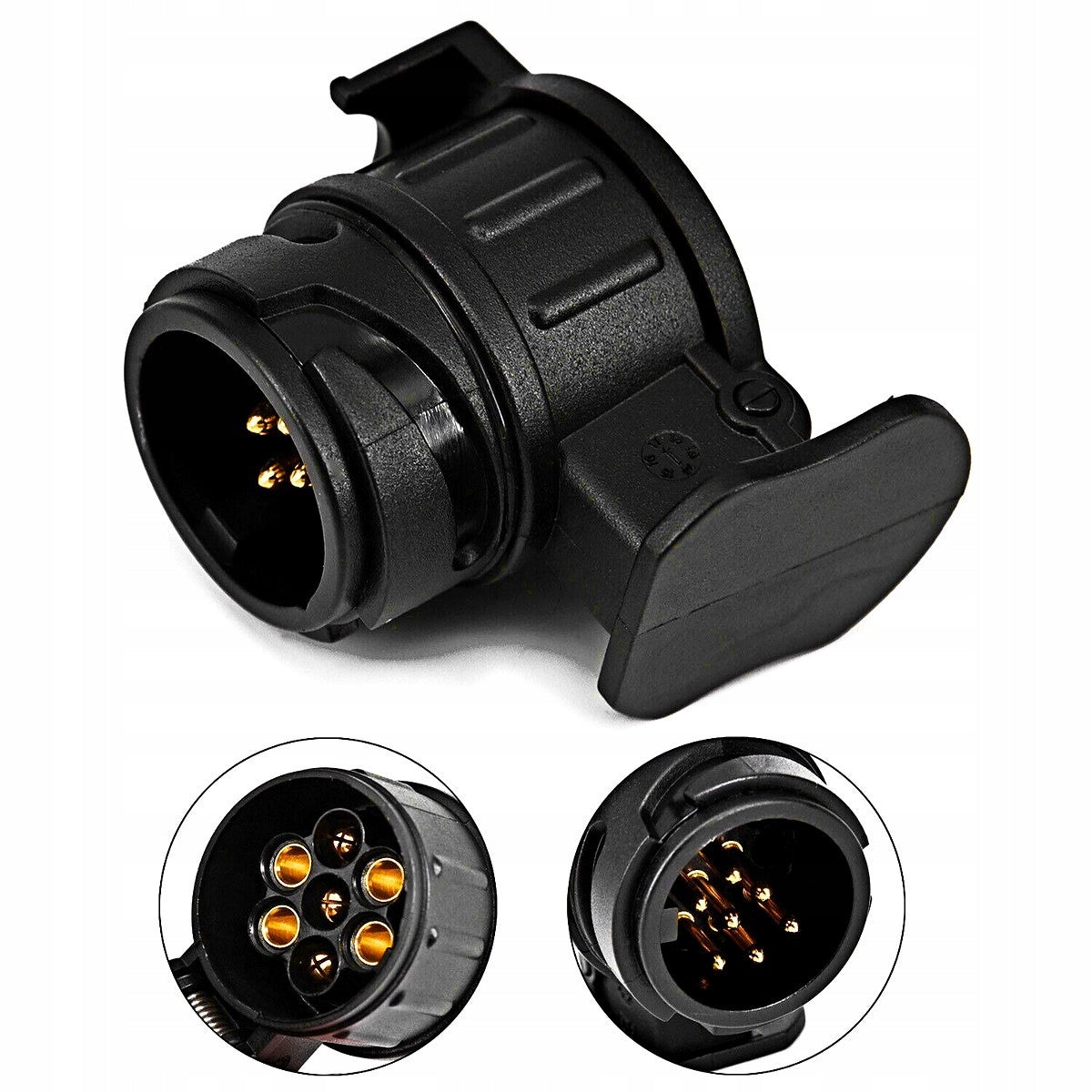

Free reduction from 13 pin to 7 pin
We know how important safety and security are to you – that’s why our hooks have the required approvals and certificates.
This allows you to install a compliant product and can tow legally and without stress during inspection or inspection.
The E20 approval (e20*94/20*0172*00) is peace of mind for you: you assemble a product approved for use and use the hook legally – without stress during inspection or inspection.
It is also a signal that the hook meets the strength requirements and has been evaluated in accordance with applicable standards.
13pin module + harness + module kit accessories
The module kit includes:
- connectors
- fuse
- screws
- nuts
- headbands
- instruction
Specification
- Works with CAN-Bus installation;
- Works with LED and single-filament lighting;
- To connect a 13 PIN socket;
- Trailer connection detection;
- E20 approval (e20*94/20*0172*00)
FUNCTIONS OF THE MODULE CONTROL UNIT
- fog lights - YES
- reversing lights - YES ✅
- STOP brake lights - YES
- position lights - YES
- turn signals - YES
- trailer module - YES
- CAN BUS - YES
- compatibility with parking sensors - NO (we have modules supporting parking/reversing sensors in another offer)
- homologation - YES, E20 (e20*94/20*0172*00)
Contents of the 13pin module kit:
- electronic module - 12VDC control unit,
- 13-pin socket with seal,
- harness with fuse,
- accessories needed for assembly,
- instructions in Polish ,
- SEAT GASKET
Imioła Hak-Pol – polish manufacturer since 1991.
Modern production (laser/robot/CNC) and confirmed quality: E20/e20 approvals + PIMOT certificate
Imioła Hak-Pol is a polish manufacturer of tow hooks operating since 1991, offering solutions tailored to over 500 models of passenger cars and vans.
You choose a brand that focuses on precision and repeatable quality: production is based on m.in. o laser cutting, robotic welding and CNC, which translates into a secure fit and durability.
Why does this matter to you?
- Peace and legality: products have the required approvals (E20/e20) and PIMOT certificate of conformity, and the hitches are tested in the laboratory of the Industrial Automotive Institute (PIMOT).
- Durability for years: anti-corrosion protection includes blasting, phosphating and powder coating with polyester paint — important if the car drives all year round and sees salt/winter.
- Repetitive build quality: modern technologies (laser/robots/CNC) mean less risk of "fighting during assembly" and greater certainty that the elements are evenly made.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer | Imioła Hak-Pol |
| Parametry | Ball type | screw‑off |
| Parametry | Harness included | 13 PIN z modułem |
| Parametry | Dedicated harness | no |
| Parametry | Type approval | yes |
| Parametry | Maximum vertical load of ball | 100 kg |
| Parametry | EAN (GTIN) | 5900000622002 |
| Parametry | Packaging status | original |
