Automobilio kiaunių atbaidytuvas Kemo M186, ultragarsas ir įtampos impulsai

Trumpai apie prekę

Prekė: Automobilio kiaunių atbaidytuvas Kemo M186, ultragarsas ir įtampos impulsai. Kategorija: Gyvūnų atbaidikliai.

• Gamintojas: Kemo
• Modelis: M186

🟦 Kemo M186 extends martens emitting high ultrasonic tones and electric shock in the engine compartment caused by touching tiles under voltage approx. 200 - 300 V/DC (weak current pulses that do not harm the animal, but only flush it out)

Particularly low power consumption (< 0,005 A) and automatic shutdown at a battery voltage < 11,5 V (will not discharge it at a longer vehicle stop).

🟦 Launch:

The fuse, which was removed from the fuse base before installation, must be reinstalled there. If everything is properly connected and the car is parked and the engine is turned off, the plates begin to conduct high voltage and a small LED light of the module begins to flash (every 5 - 12 seconds). During the first start, wait about five minutes for the LED to light up.

🟦 Technical specification:

◼ operating voltage: 12 - 15 V/DC (car battery)

◼ average current consumption: < 5 mA

◼ automatic shutdown: if the battery voltage drops below 11,5 V(± 5%)

◼ output voltage: approx. 200- 300 V/DC

◼ frequency of ultrasound: approx. 22 kHz ± 10%

◼ sound pressure: max. OK. 100 dB ± 15%

◼ ultrasound propagation angle: approx. 150 degrees

◼ speaker: special ceramic piezoelectric speaker with aluminum spherical diaphragm

◼ temperature range: approx. - 40 to + 80°C

◼ function optical indicator: flashing LED (every 5 - 12 seconds)

◼ length of high voltage cable: 2 x approx. 1,9 m (± 10%)

◼ fuse in fuse holder: 500 mA

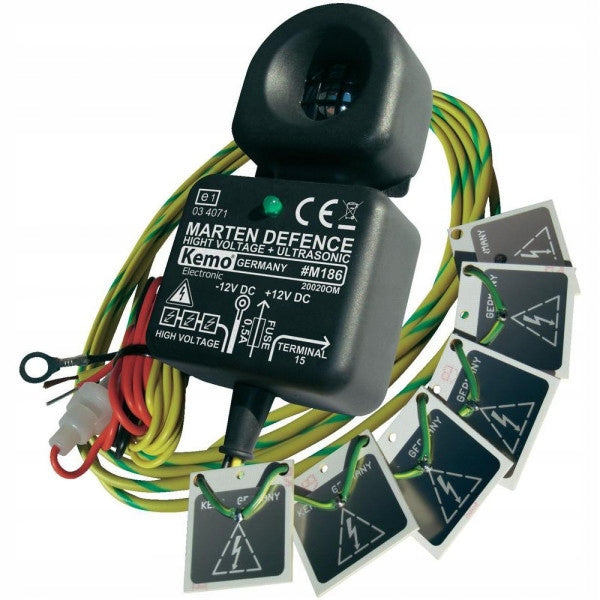

◼ high voltage contact plates: 6 pieces, about 40 x 40 x 1,5 mm each

◼ dimensions of the basic device: approx. 120 x 70 x 46 mm (without cable passage and mounting brackets)

Products come from polish distribution and are shipped from a warehouse located in Poland.

Access to all consumable and spare parts is provided by Polish distributor.
