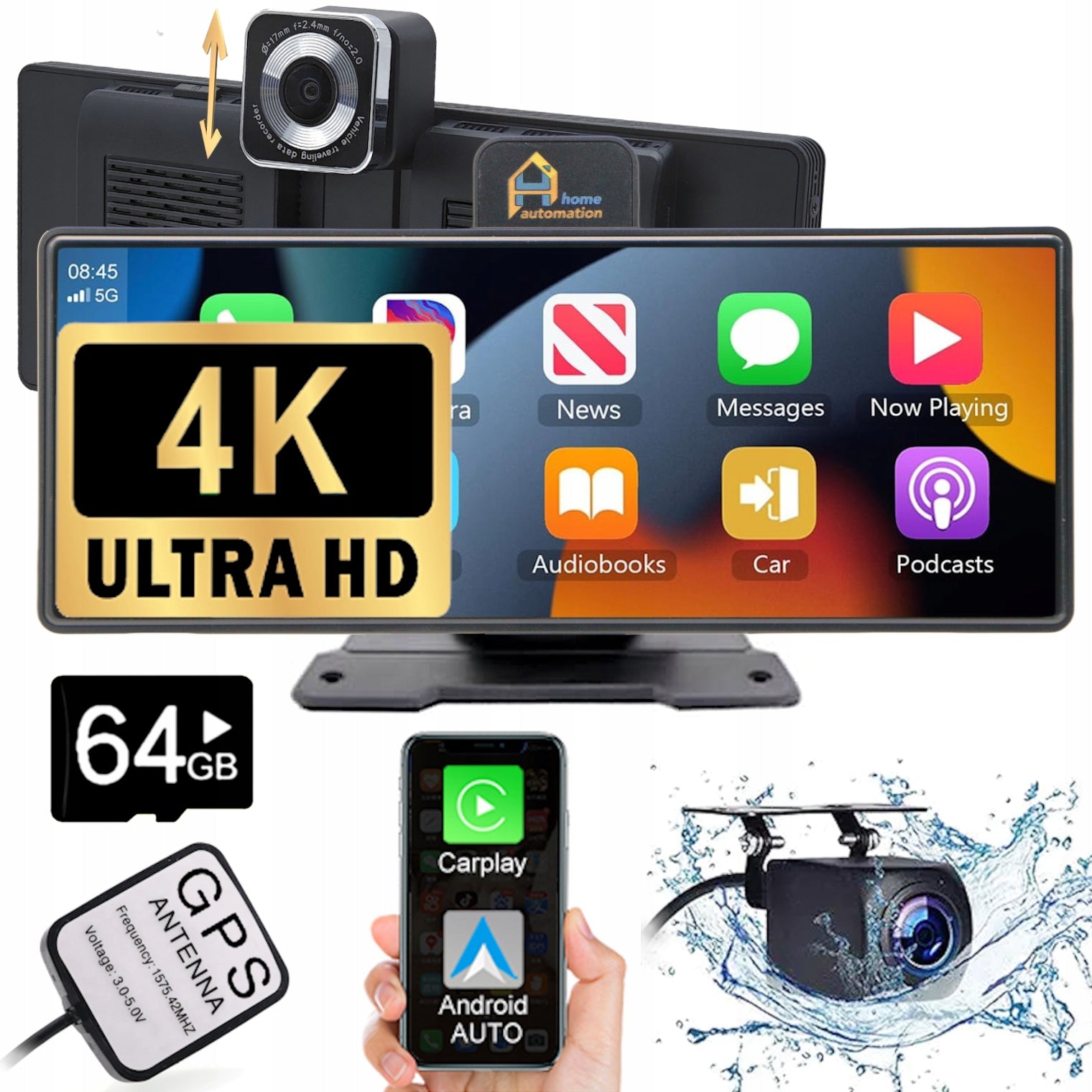

Automobilio monitorius su navigacija, 4K kamera ir Android Auto / CarPlay

Trumpai apie prekę

Prekė: Automobilio monitorius su navigacija, 4K kamera ir Android Auto / CarPlay. Kategorija: Vaizdo registratoriai.

• Gamintojas: Home Automation
• Modelis: HE521

✅ Video Recorder / Car driving recorder with a resolution of up to 4K (2160P) !

✅ Full HD automatic reversing camera

✅ Wireless monitor for car

✅ Apple CarPlay / AirPlay / Android Auto / Samsung MirrorLink

✅ GPS Navigation (in pairing mode)

✅ Car media player

✅ Hands-free

✅ Parking Monitoring

✅ Touch screen 10 inches

⚠ A smaller version of the 7 inch device is available in the Allegro 17127821914 offer

⭐ The most important parameter of the video recorder is the resolution of the recording, which is why our HE521 recorder, unlike similar products, provides very high recording quality parameters thanks to 4K resolution (rear: Full HD) and high-quality camera optics.

Any dangerous situation on the road, crash, scratch or act of vandalism in the parking lot will be recorded as evidence in the form of a clear video revealing the culprit.

☝ 4K recording is a clear picture of the recorded situation and registration numbers of the perpetrator’s car.

⭐ External GPS antenna provides constant recording of location and speed marker and the use of off-line navigation, without cellular network and Internet (maps must be downloaded beforehand).

☝ Own GPS guarantees confirmation of the speed and location of the vehicle when necessary to prove it.

⭐ Wireless Monitor

Using your smartphone, navigation, voice commands, watching videos and listening to music without taking your phone out of your pocket without having to reconnect (details below).

⭐ The reversing camera is automatic and turns on when the reverse gear is turned on and the rear view, unlike the image in the rearview mirror, is not obscured by any obstacles. A splashed with rain, dirty rear window or a car packed up to the roof will not be an obstacle to have a full-screen, ten-inch view of what is happening behind the car, and the function of an automatic, wireless screen for a smartphone will eliminate forever the need to move and mount the phone in the car.

⭐ The screen will turn on itself when you turn the ignition and connect to your smartphone itself, allowing you to use the phone app remotely, including of course from navigation.

⭐ The sound output can be directed at the cable or paired wirelessly with an external audio system, which gives great comfort of listening to music and the functionality of the hands-free phone.

☝ Every situation on the road is recorded by both cameras and can be found manually in the loop of recorded recordings using the time of the event or its location. When the SD card is full, the oldest recordings are overwritten by the latest ones.

☝ The film may block the driver or automatically protect itself against overwriting by fresher recordings after a shock caused by a sharp braking or collision.

• MENU in Polish

Distribution of similar devices from other sources does not provide a Polish menu, but only a poor version of the Polish language. The manufacturer of the polish version of the device, Home Automation, dealt with a comprehensive correction of the language binding of the recorder.

• Instruction manual in Polish

Five times more extensive than the standard English version or its translation, it contains more detailed descriptions, solutions and tips and shows the hidden possibilities of the product and additional accessories.

• Instant service located in Wrocław

Service repairs are carried out immediately after sending the damaged product, which enables appropriate technical facilities and spare parts storage, so if, for example, the cable breaks during assembly, or the screen breaks, the repair will take only a few days, without the need to wait for the shipment to be carried out to another country.

• Telephone and email technical support

If you have any questions, doubts will be dispelled by our highly qualified specialists during a telephone conversation, or outside the opening hours of the hotline we will answer your inquiry by email within a few hours

Left: Interface when paired with phone

On the right: Main menu (available in Polish)

1. Automatic start of recording - The recorder starts automatically and starts recording when the car ignition is turned on and automatically turns off when the ignition is turned off (with a delay of several seconds). The recorder must be constantly connected to the power supply from the car cigarette lighter socket.

2. Reverse camera with cable 6 or 10 meters (surcharge) - real-time image, undisturbed weather conditions, vehicle length not important.

3. 10-inch, full-format touch screen provides crystal clear images without any lag. HDR, WDR and Auto Adjusting Brightness Streaming Mirror systems make the user experience amazing.

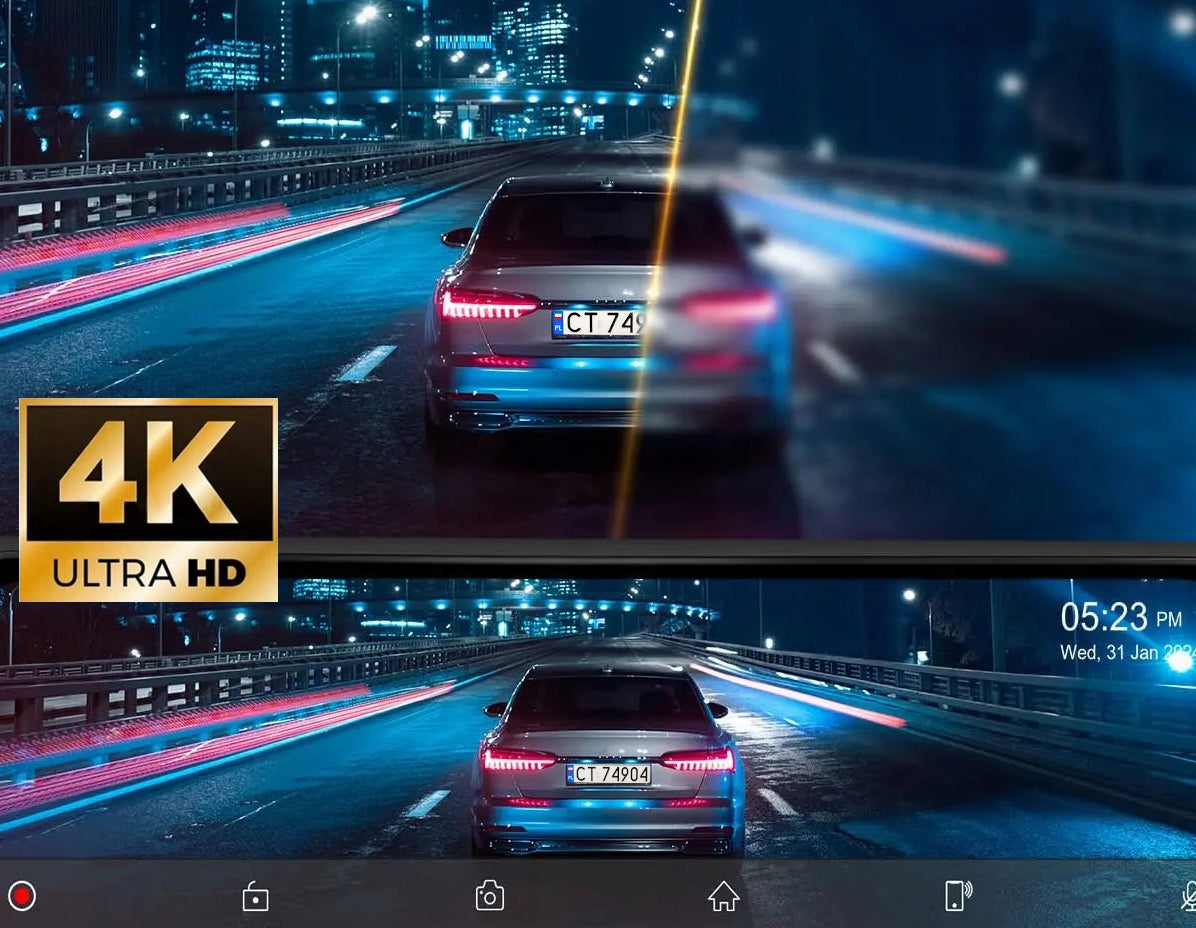

4. Recording in 4K, The front camera captures 2160P and the rear camera 1080P. The wide dynamic range of the systems controlling the adaptation of image parameters allow you to record optimally even in poor visibility by adjusting the exposure time to make the recording readable.

In order to reduce the volume of a single recording and save space on the SD card, the resolution of the front camera is possible to manually set: HD/FullHD/QHD/4K.

5. The 170° wide-angle lens significantly expands the driver’s field of view and allows you to capture every road event from a wider perspective. It allows you to record details even outside the driver's eye area.

6. WDR night mode (Wide Dynamic Range). This function works in car cameras by using appropriate algorithms to analyze image exposure and dynamically changing the values of underexposed and overexposed pixels of monitored scenes in order to show underexposed elements in the image. Thanks to this, we have the ability to accurately record the scene despite high contrast. Thanks to the wide lens and WDR technology, the device performs well even in difficult lighting conditions. The extended dynamic range of the image allows for a clear and detailed image, thanks to the skilful leveling of both too bright and darkened fragments of the recording. Thanks to the WDR function, it is possible to maintain the readability of the entire observed scene.

7. Recording in a loop

The system records both video channels at all times in a loop on the micro SD card (the oldest recordings are overwritten by the latest) and secures the recording in memory automatically when shock or impact is detected by the shock sensor (G-sensor). Security consists in copying a file to a protected folder whose contents are not overwritten by the recording loop.

The length of a single recording can be set to 1/3/5 min.

8. Parking mode

Securing the recording in parking mode occurs after noticing a twitch or shock caused by an event, where the sensitivity of activating the alarm is possible to set.

Watching the parking guard requires drawing a very small amount of electricity from the battery, ranging from a dozen to several dozen mA, but even such a small amount will cause the battery to discharge after a few days, which is why the parking menu assumes a maximum parking time of 10 hours, after which the device is completely disconnected from the power supply from the car.

9. Automatic monitoring and start

The power supply has an ACC initiation input, which connected to +12V DC after the ignition provides switching off, on and going into parking standby depending on the position of the car ignition.

☝Alternatively, the ACC cable can be permanently connected to +12VDC together with the BAT+ power supply cable. This will cause continuous recording of images from both cameras but loss of the device’s automatic shutdown function. This involves greater current consumption (several hundred mA) with the screen on, which can be lowered (to below 100mA) by activating the screensaver or manually turning off the screen with the button for parking time.

⚠ To ensure proper operation of the device in parking mode, it is necessary to connect the power supply in the fuse box using a dedicated power supply.

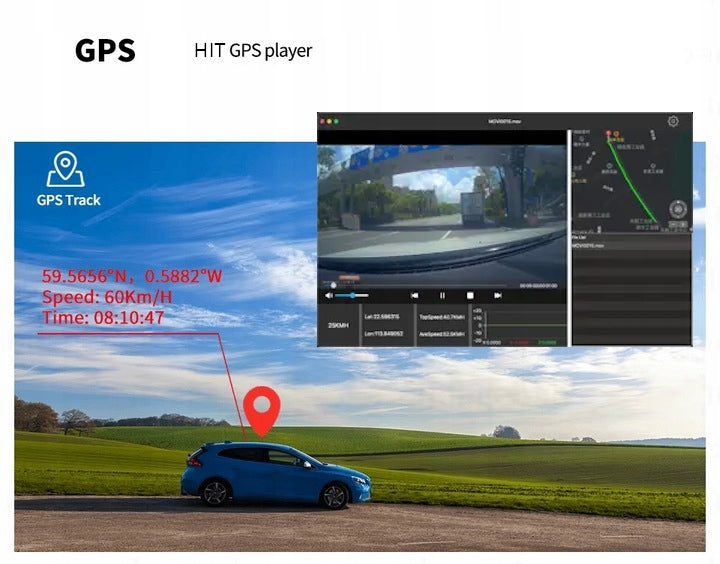

10. GPS antenna

In the event of a collision or police control, information about the exact position of the vehicle or its speed at a given moment is often needed, which is why the recorder is also equipped with the ability to record these parameters. Each recorded video frame is accompanied by information about the speed and GPS coordinates of the vehicle.

☝GPS Logger function - provides marking each frame of the film with GPS position coordinates in which the vehicle was located at the moment, along with a satellite-synchronized timestamp.

Determining the current position of the vehicle on an ongoing basis. Control the route and current position of your car. Each recording secured by the device has a built-in GPS position marker, time and speed.

Recordings are saved in a special way that allows you to read GPS coordinates saved on recordings by a dedicated HIT GPS Player program, which allows you to visualize the course of the car route on the map and play it along with the recorded footage from cameras frame by frame on a PC or laptop with Windows.

This makes it easy to find a recorded video presenting the situation on the road from a given place selected on the map.

The program is recorded to an SD card automatically when formatting it on the device.

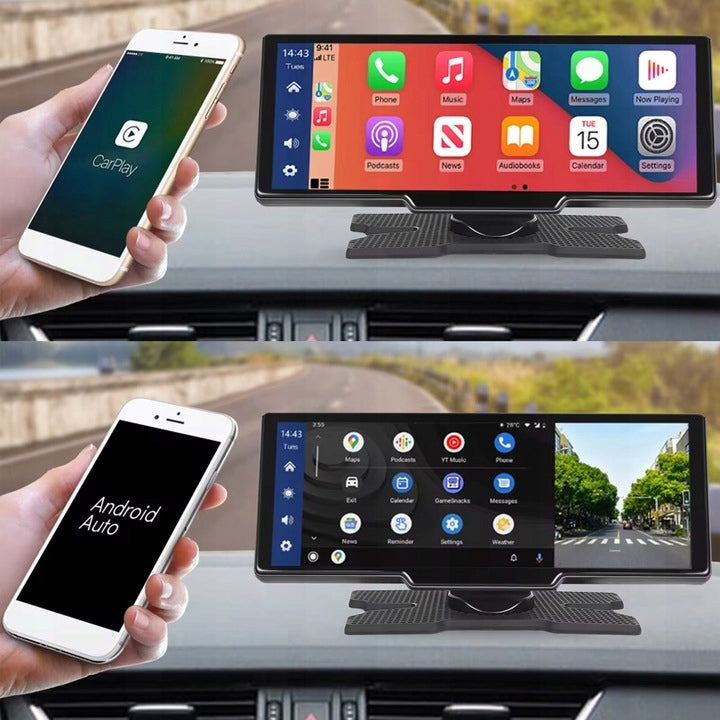

11. Wireless screen for smartphone

After activating the phone connection, applications from the phone are available on the screen of the device and you can freely use navigation, multimedia, the Internet or phone calls

1. Android Auto (⚠ Android smartphones and the Android Auto app installed) - connect the HE502 to your smartphone to access navigation, play music using Siri or Google voice assistant, allowing you to make phone calls and much more.

2. Apple Carplay (⚠ Any iPhone with Carplay) - makes it easy to access iPhone features including calls, notifications, messages, maps, media, and more.

3. MIrror Link (⚠ Android and iPhone) - transfers the image from the smartphone screen to the device screen one to one.

☝In remote connection mode to your phone via Android Auto, a preview from any camera is constantly available.

⚠ In the highest models of premium phones, e.g. Samsung galaxy S25 ultra, very often you need to go into the programming options of the phone and allow Android Auto wirelessly.

Applications compatible with Android Auto and Carplay include:

• ➡ phone calls and text messages (e.g. voice reading and dictation of messages);
• ➡ instant messaging (e.g. Messenger, WhatsApp, or Skype);
• ➡ applications, navigation, Google Maps, Yanosik;
• ➡ playing music (from phone memory or e.g. Spotify, Tidal, Deezer, and Google Play Music).
• ➡ It is possible to remotely receive images from cameras and control the device using an application on a smartphone via a WiFi wireless network, which is emitted by a built-in module compliant with the 802.11 a/b/g/n standard

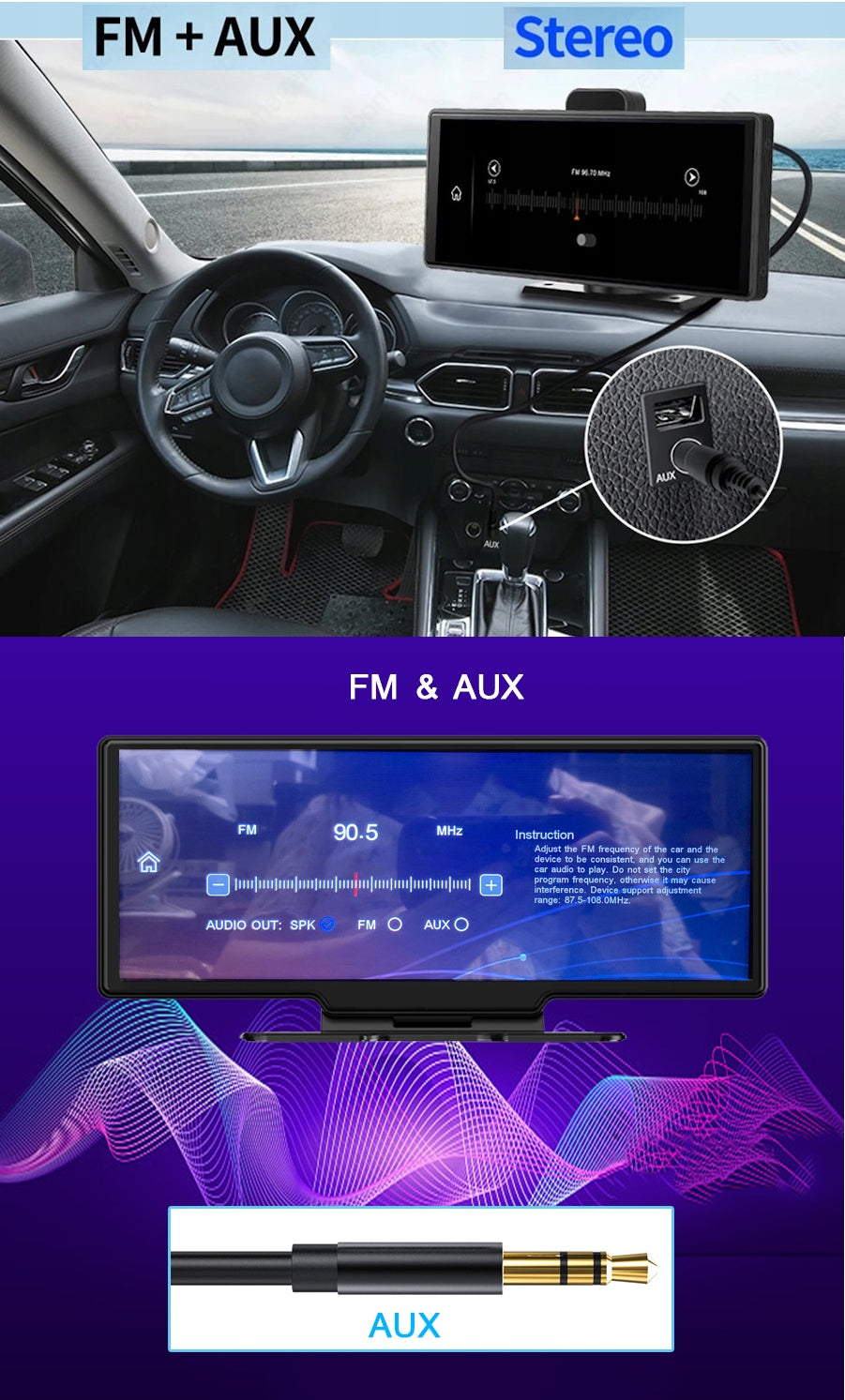

12. Stereo sound output

Hands-free phone functions and listening to music from the device can be realized using:

♫♪ FM transmission from the device to the car radio,\

♫♪ connecting the mini Jack cable to the AUX input in the car,

♫♪ using the built-in speaker

♫♪ Bluetooth connections

Connection via cable eliminates noise heard in radio transmission, and the AUX output of the device is equipped with active filters of high and low frequencies. A module was also used to reduce the noise generated by the connection using a cable, through an impedance fit.

⚠ BlueTooth is necessary to maintain the connection of the smartphone with the device in Android Auto, Carplay or Mirror Link mode, therefore it is not possible to transmit sound via BT

Camera Image Display Modes:

• Front or rear
• Front and rear 1:1
• Automatic activation of the extended (160°) view from the reversing camera on the reverse camera (adjustable auxiliary lines applied)

Technical data:

• Screen size: full screen, rectangular, 10,26 inch screen HD IPS 1600x600 touch screen
• Front resolution: 4K 2160P@25fps (F/2.0)
• Back resolution: 1080P@25fps (F/2.0), cable: 6m/10m (extra charge)
• External memory: max. 128GB micro SD, Class 10 u3/V30
• RAM: 2GB DDR3
• Camera Viewing Angle: Front 170°, rear 160°
• Speaker and Microphone: Built-in
• Number of Video Channels: 2
• WiFi Connectivity: Supported
• Bluetooth Connectivity: Supported

1. HE521 screen for dashboard with mounting system
2. Rear camera with 6m cable (surcharge up to 10m on offer 17646347298)
3. Dedicated car power supply with GPS antenna socket LUB dedicated power supply for fuses with GPS antenna socket
4. AUX cable, length 1,5m
5. GPS antenna
6. Manufacturer recommended 64GB micro SD memory card, Class 10 u3/V30

⚠ You should select ONE power supply and inform us about your choice. In the absence of a choice, any will be sent.

⚠ If you want to buy both power supplies, you must make a deposit in the offer 17646371666 (just copy this number in the Allegro search engine)

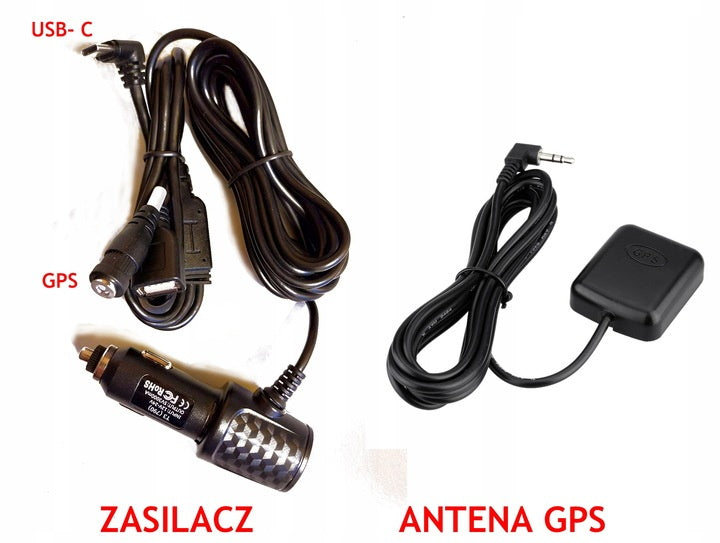

Dedicated power supply:

The power harness is equipped with a socket for connecting an external GPS antenna

☝The fuse power supply is also with a dedicated GPS socket.

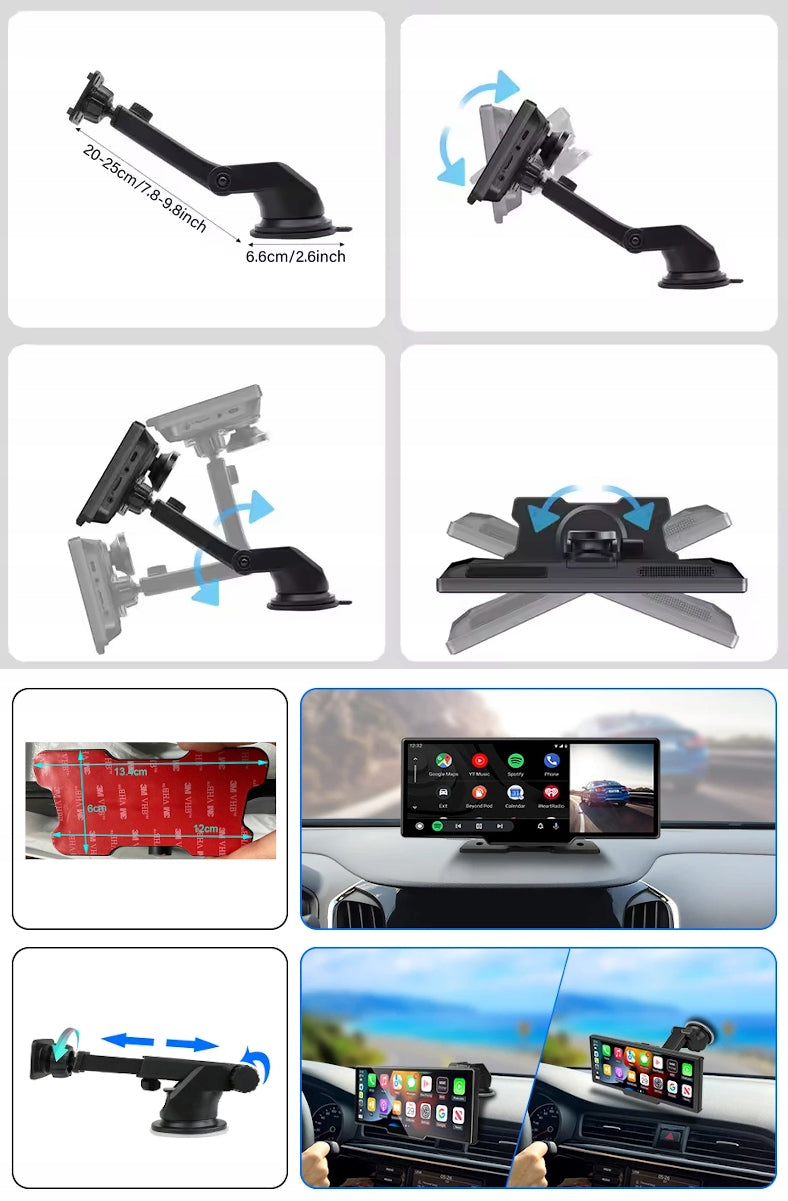

Installation of the device:

✅ Standard handle for cockpit

For fastening, an extremely durable double-sided adhesive made of polyurethane foam with a shape matching the mounting base is used. It should be applied to a clean, dry and degreased gasoline extraction surface of the cockpit in a previously selected place ensuring convenient touch operation of the display and full visibility of the device screen.

It is also possible to strengthen the connection with screws through the holes provided for this purpose in the base.

It should be noted that the view obtained for the front camera was as unobstructed as possible, the frame captured by it was as large as possible, giving a full picture of the situation on the road.

✅ Telescopic vacuum holder

As a ☝additional☝ mounting option, we recommend a holder for the so-called. "suction cup" can be mounted to the cockpit or glass, depending on your preference. Extremely flexible, sticky, soft microrubber coating the contact surface ensures a highly durable screen mount, and the tripod design adjustable in all directions gives the possibility of any orientation and position of the screen. The holder is available in a separate offer - 17950244776

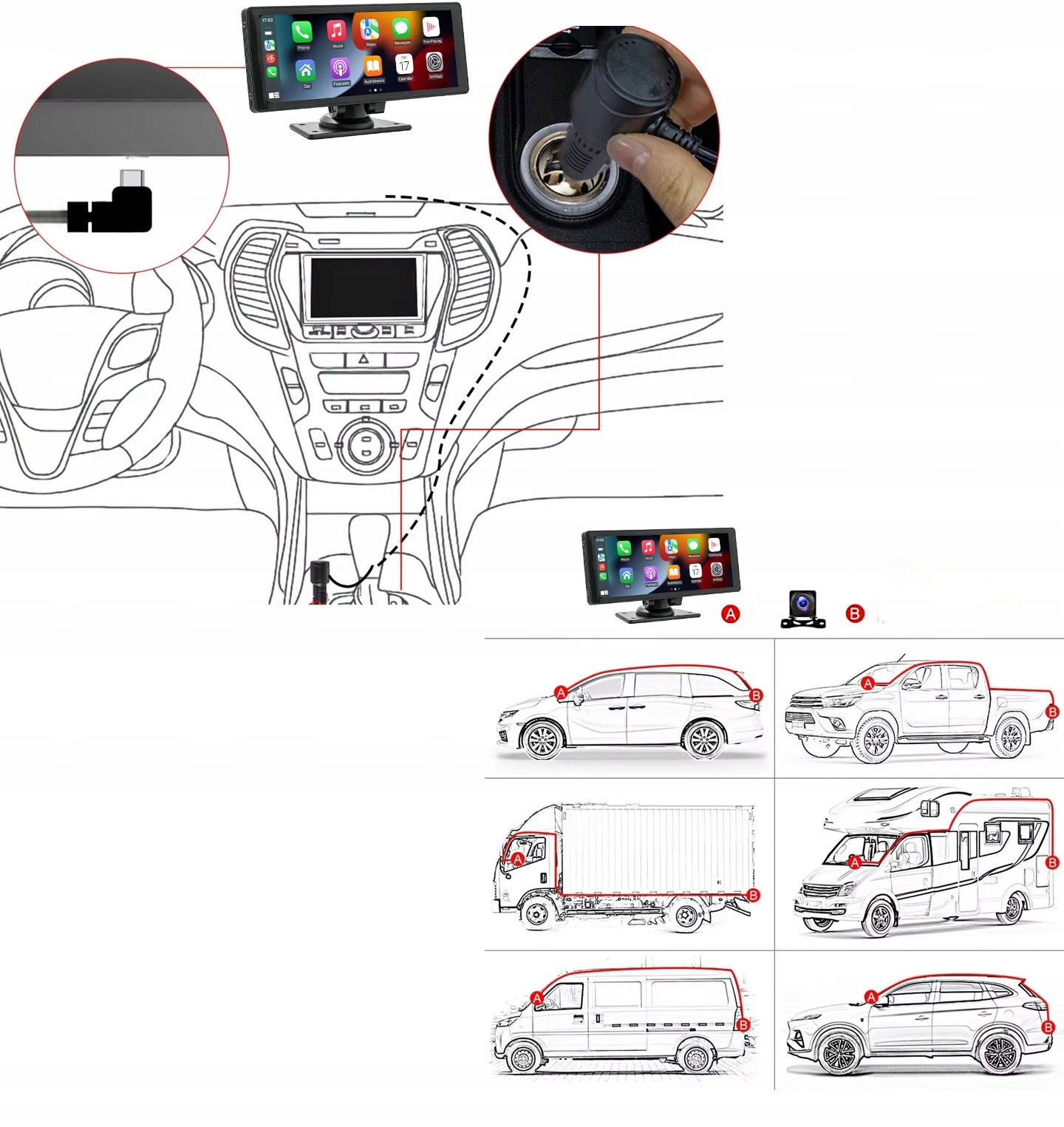

Connection of power supply and rear camera:

✅ Parking power supply:

The cables derived from the power supply are terminated with car mini fuses, making it easy to connect them to the power supply in the vehicle fuse box.

The BAT+ cable should be installed in the fuse socket, where there is a constant voltage of +12V at all times, even when the ignition is turned off.

The ACC cable is a trigger input to which a constant voltage of +12V must be given, which wakes the device from hibernation to normal operation and prevents its further sleep. It can be any fuse socket in the box, which is powered after switching the ignition to the first position, i.e. in a typical case, e.g. radio fuse, or dashboard backlight. Usually, it is not even necessary to replace the existing fuse with a fuse, which terminates the power supply cable, because there are several free sockets in the box, which are powered only after unlocking the ignition.

✅ Car power adapter:

The plug fits into the car cigarette lighter socket. This type of power supply does not ensure that the parking functions of the device are maintained or automatically activated after turning the ignition to the "I" position.

✅ Rear camera

The camera is connected to the device using a cable terminated with a mini Jack 3,5mm plug from the screen side and a 4-pin connector from the camera side. Although our camera is waterproof (IP67 class), the same connector is not, so it is necessary to protect the connector from moisture with the included heat shrink cover.

The camera can be installed inside the car on the headliner behind the rear window (darkened windows are not an obstacle) or outside, in any convenient place, or using a dedicated license plate frame with a socket for mounting the camera, available in a separate offer.

The reversing camera mode together with the auxiliary lines is activated automatically on the screen when the reverse gear is turned on, provided that the activation cable is connected to the +12V DC reversing light in the car.
