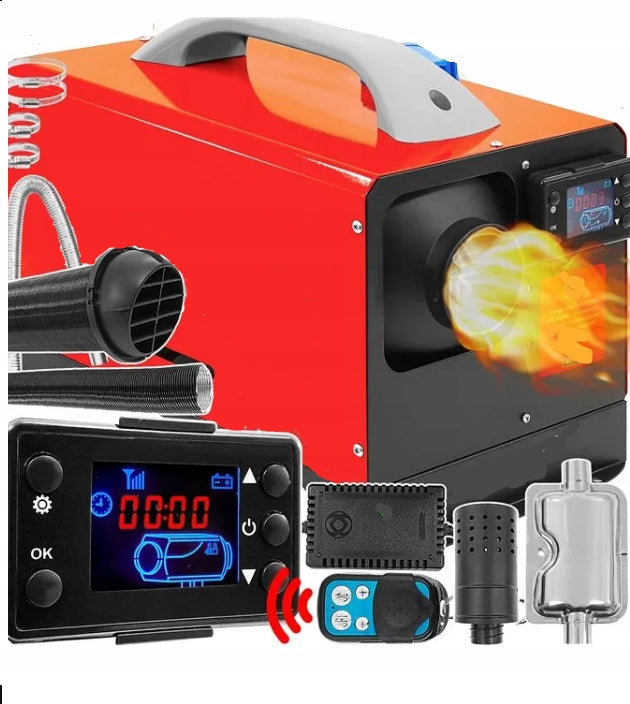

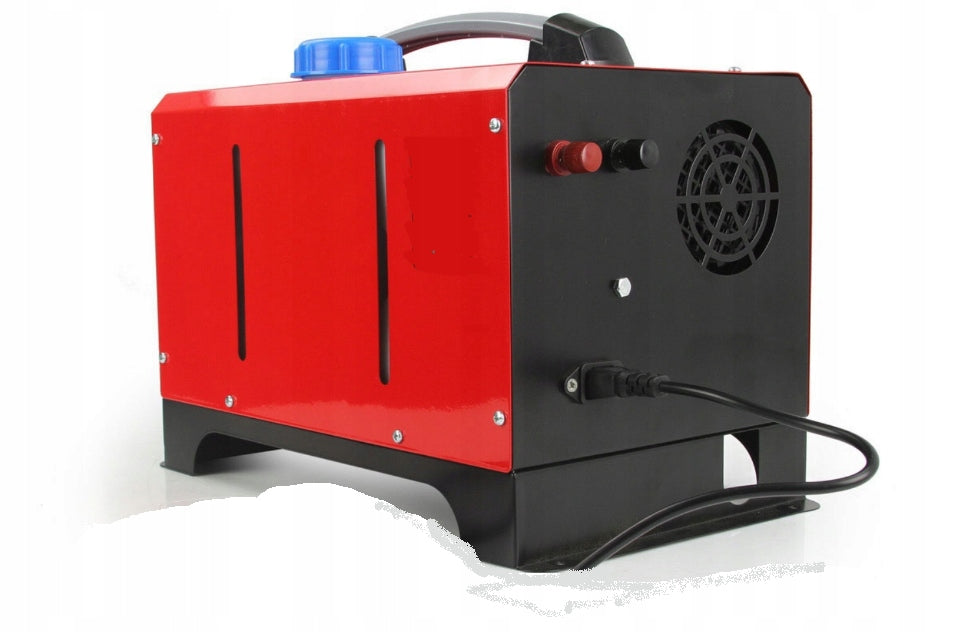

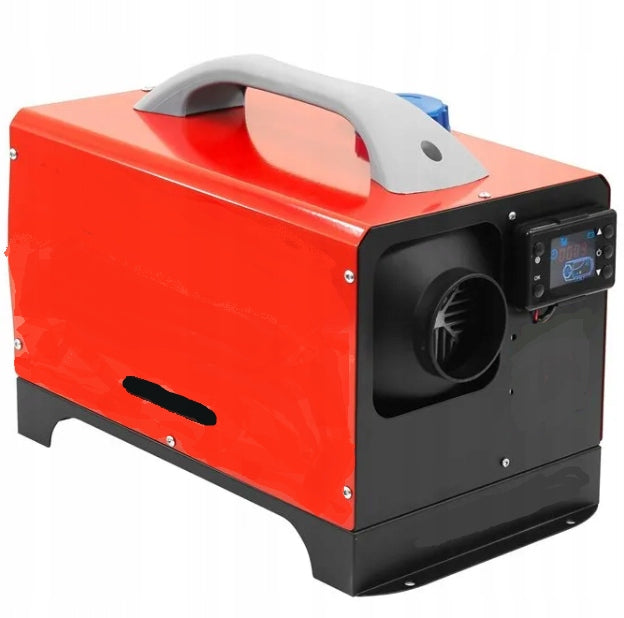

Automobilio oro šildytuvas PARKING HEATER, 12V/230V, 12 kW

Trumpai apie prekę

Prekė: Automobilio oro šildytuvas PARKING HEATER, 12V/230V, 12 kW. Kategorija: Oro šildytuvai.

• Gamintojas: Boxer
• Modelis: bx-901

✅ Diesel parking heater 12 V/24 V/230 V 1 – 12 kW – (Parking heater).

Are you looking for reliable heating for your warehouse, workshop, garage, car, van, truck, RV or boat? Diesel-powered parking heater that operates independently of the engine. With a power range of 1 to 12 kW, it will quickly heat your cabin, cargo space or living area – even at very low temperatures.

✅The most important advantages

• Wide power range of 1 to 12 kW – fast heating of small and large spaces.
• Power supply 12V/24V/230V – flexible installation in passenger cars, vans, trucks, motorhomes, boats and machines.
• Independent of the engine – comfort and fuel efficiency without the operation of the power unit.
• Automatic and manual mode – set the temperature (5 – 30 °C) or choose 1 of 6 gears (H1 – H6).
• Control panel – displays gear/temperature, temp. housings, supply voltage, operating status, alarms.
• Timer – start/stop programming (0,1 to 24 hours).
• Altitude mode (“plateau”) – stable operation at high altitudes.
• Priming / manual fuel feeding – easy first start after assembly.
• 433 MHz remote control – remote switching on and adjusting (pairing up to 5 remote controls).
• High efficiency, low fuel consumption – heat quickly, quietly and economically.

⭐Technical specification

• ➜Fuel: Diesel (diesel)
• ➜Heating power: 1 – 12 kW
• ➜ Power supply: 12 V / 24 V / 230 V (DC/AC – according to version)
• ➜Control: Manual mode (H1–H6) and automatic mode (set temperature 5 – 30 °C)
• ➜Temperature range work: approx. −50 °C to +45 °C (according to manufacturer data)
• ➜View parameters: gear/temperature, temp. housings, voltage, status, error codes
• ➜Additional functions: timer (0,1 to 24 h), altitude mode, pump priming,
• ➜Security: overtemperature, voltage control, diagnostics (E‑2 codes...E‑9)

⭐Assembly instructions (shortcut)

• ➤The unit can be mounted inside or outside (protect against water; tight sealing to the ground).
• ➤Inflow of combustion air – from the outside of the vehicle; exhaust gas outside, away from flammable materials and materials (outlet vertically down ~90° ± 10°).
• ➤Hot air inlet/outlet – do not cover; protect against contact with passengers and luggage.
• ➤Fuel consumption – from the tank of the vehicle or a separate tank; use the included wires and fittings, avoid air loops (bubbles).
• ➤Fuel pump – cool place, away from heat sources; installation with anti-vibration handle.
• ➤Electrics – proper voltage (12/24 V 230V), fuse, solid connections; do not turn off “hard” – the device undergoes cooling after the foot.
• ➤Safety: do not use during refuelling; do not install in potentially explosive atmospheres (fuel stations, fuel/dust storage facilities).

Innovative Closed Combustion Chamber Technology

Thanks to the use of a closed combustion chamber, the heater does not emit exhaust gases into the interior of the vehicle or room. This means no unpleasant odors and no impact on air humidity. You can use it with confidence in cars, caravans, boats or even in garages and warehouses.

Comprehensive Application

The heater is independent of the operation of the vehicle engine, which allows it to be used at any time. Ideally suited for:

• Passenger cars and delivery vans
• Trucks
• Caravans
• Construction and agricultural machinery cabins
• Boats, ships and yachts
• Garages, warehouses and workshops

Power supply

The heater can be connected to the AC 230V/50Hz mains, which allows heating rooms, warehouses, garages, or under a car lighter or DC 12V 15A battery so that you can easily heat your vehicle or caravan.

Automatic start-up and shutdown

After setting the clock, you can program the start-up time of the heater and the moment when it is to turn off, which allows you to heat the room to have favorable working conditions.

Air filter

By using an air filter at the end of the intake pipe, we significantly reduce the risk of damage to the heater by sucking in some dirt that can damage the heater. In addition, the use of an air filter reduces the noise of the heater, which significantly improves the comfort of using it in vehicles.

Silencer

Thanks to the silencer, we reduce the noise emitted by the heater during operation.

Specifications
