Automobilių garsiakalbiai u-Dimension EL Comp 6 su Vibrofiltr 1.8 antivibracinėmis kilimėliais

Trumpai apie prekę

Prekė: Automobilių garsiakalbiai u-Dimension EL Comp 6 su Vibrofiltr 1.8 antivibracinėmis kilimėliais. Kategorija: Garsiakalbiai.

• Gamintojas: no brand
• Modelis: EL Comp 6

2-way car speaker system 165mm, 4ohm, 70/150W + free 2 dampening mats Vibrofiltr PRO 1.8 with dimensions 50x70cm (0,7m2)

Main features:

• Conical design of woofers
• Peak power: 150W, Continuous power: 70W (RMS)
• Impedance 4Ohm - compatible with car radio
• Compact design that works well in most cars
• Balanced tweeters
• Frequency Response: 60 - 22 000 Hz
• Sensitivity (@2.83V): 90 dB

We are an Authorized U-Dimension Dealer. The product comes from Polish distribution.

ATTENTION!! As a few items on display, we have in stock so orders are processed immediately!!

u-Dimension EL Comp 6 + free 2 large sheets of professional soundproofing mats Vibrofiltr PRO 1.8mm (2 pcs. 50x70cm / 0.7m2), retail value PLN 58.

2-way speaker system characterized by a balanced, pleasant and "European" sound profile. Thanks to very good cooperation with amplifiers with low power output (including most radio players), the ELEMENT series is mainly dedicated to novice lovers of car hi-fi as an excellent entry into the world of inexpensive, but truly branded car audio.

BASIC PARAMETERS:

• 2-Way Separated Speaker System
• diameter of woofer baskets: 165 mm
• Woofer coil diameter: 25 mm
• Tweeter dome diameter: 25 mm
• Impedance: 4 ohms
• RMS power: 70 W
• Maximum power: 150 W
• frequency response: 60 - 22 000 Hz
• Efficiency: 90 dB (1W/1m)
• Splitting frequency: 4500 Hz (6/6 dB/oct. )
• depth of woofer installation: 60 mm (approx. 58 mm without rubber magnet cover)
• Tweeter polarity marking: cable with subtitles = positive connector (+)
• Polish importer guarantee: 24 months

Tweeters:

• 25 mm dome membrane made of silk
• efficient neodymium magnetic system
• Pure Oxygen Free Copper (OFC) speaker cables terminated with spade connectors
• mounting accessories

Medium-woofers (woofers):

• diameter 165 mm
• lightweight and rigid PP conical membrane with anti-resonance embossing and additional holes in the boot under the pollen cap to increase the efficiency of the coil cooling system
• Phase equalizer style pollen overlay, improving the detail of midrange sound in a wider range of listening angles, e.g. with low-mounted woofers
• upper suspension for large linear diaphragm swings over a wide frequency range made of butyl rubber with high damping properties
• rigid pressed steel basket with large holes, ensuring free flow of air "pumped" through the back of the membrane
• Vibration coil wound with pure copper wire
• magnet protected by a rubber protective cap with a central ventilation hole increasing the efficiency of the coil cooling system, which consequently increases its power strength and reduces the failure rate of the speaker
• rubber flange integrated into the basket, which is also a mounting element of the metal grille - thanks to this solution, the speaker together with the mounted grille has a much smaller overall diameter compared to grilles mounted in the traditional way
• metal mesh grilles pressed into the rubber flange integrated into the woofer basket

Passive crossovers:

• HP/LP filters - 6/6 dB/oct. (4500Hz)
• high-quality MKP capacitors in the tweeter track, significantly improving the sound quality
• PTC - thermal protection of tweeters against damage
• circuit paths printed from copper foil with twice the thickness (compared to the previous version) to minimize resistance affecting the level of the audio signal
• filter for tweeters designed (calculated) to work with an external resistor attached to the connector lowering the volume level of tweeters (an additional parallel resistor mounted to the crossover connector, together with a serial resistor already mounted inside the crossover creates an L-pad silencer lowering the volume of the tweeter by -3dB)

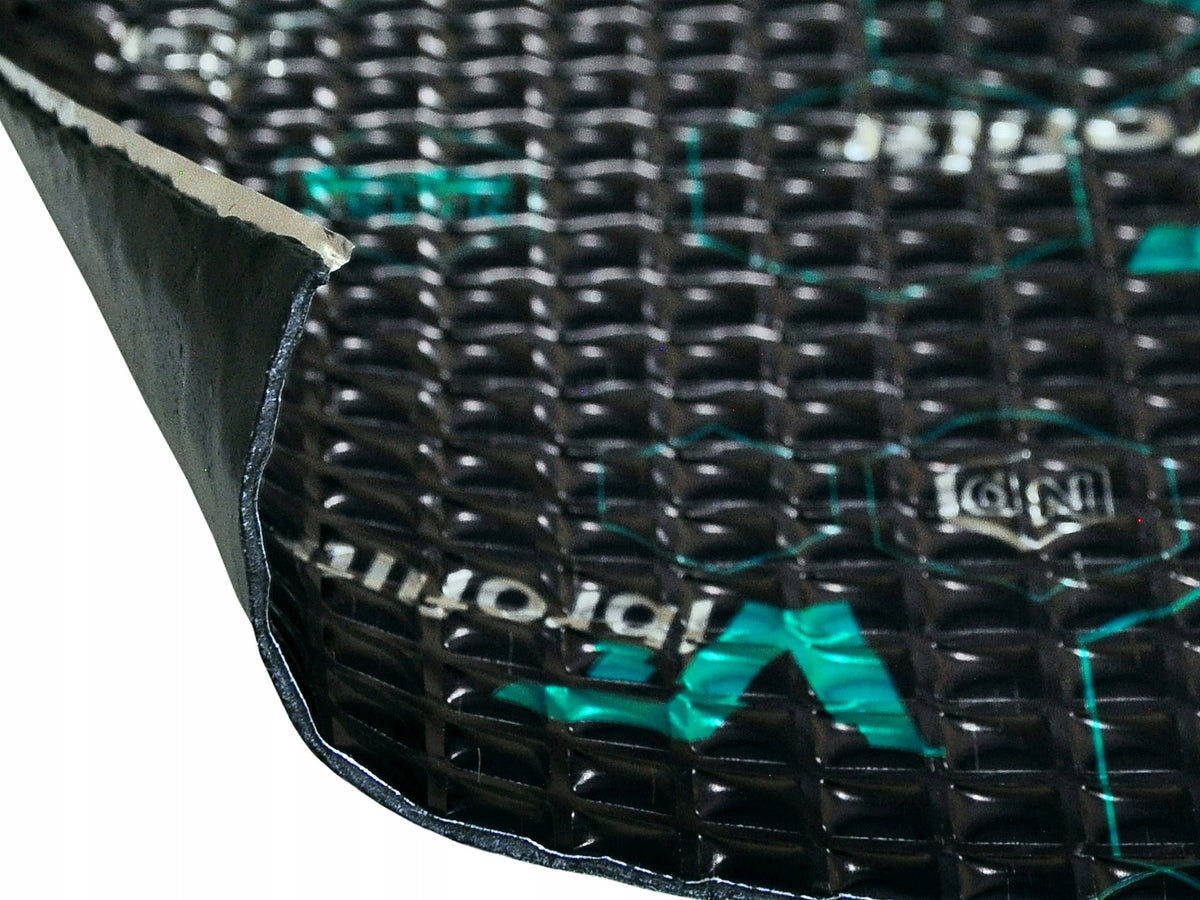

Vibrofiltr PRO 1.8 dampening mats

Self-adhesive, lightweight professional-grade anti-vibration mat with increased viscosity and installation flexibility, designed to dampen vibrations, noise and acoustic resonances of car body elements, yachts, machines, industrial equipment, computer equipment housings, electronics or household appliances - 1 sheet measuring 500x700 mm (0,35 m2), mat thickness 1,8 mm, aluminum foil thickness 100 micrometers (0,1 mm), MLF=0,29.

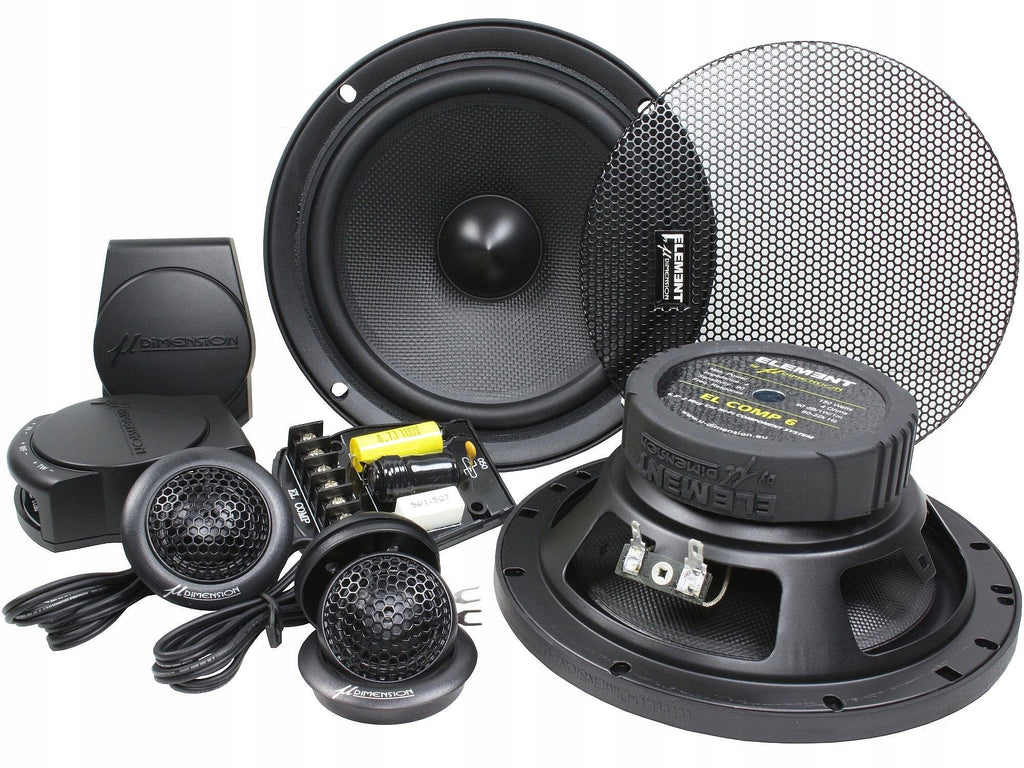

The set includes:

• 2 tweeters (tweeters)
• 2 mid-woofers (woofers)
• 2 passive crossovers
• 2 metal woofer grilles
• 2 additional resistors for the L-pad silencer lowering the volume level of tweeters by -3dB
• accessories for mounting tweeters
• instruction, sticker with ligo u-Dimension
• 2 large sheets (50x70cm) of soundproofing mats Vibrofiltr PRO 1.8 mm

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	EAN (GTIN)	4532817925918
Parametry	Manufacturer code	EL Comp 6
Parametry	Manufacturer	no brand
