Baseino šilumokaitis 60 kW, 250 l/min

Trumpai apie prekę

Prekė: Baseino šilumokaitis 60 kW, 250 l/min. Kategorija: Baseinų šildytuvai.

• Gamintojas: no brand
• Modelis: 7017497
• Galia: 60000 W

Description

Immerse yourself in the art of luxurious water temperature control with this pool heat exchanger, which, thanks to its unique dimensions, perfectly fits into any environment, not only being a decorative element, but also offering an unprecedented high efficiency of 60 kW. The unique reverse port design provides optimal water flow dynamics, allowing you to spontaneously switch between heat or cold, making every bath a start of pleasure.

Key Features

Sturdy and durable: Made of SS 304 stainless steel, which is repeatedly polished and sanded to ensure rust resistance and long service life, ideal for chlorinated or salt water swimming pools and jacuzzis.

High efficiency: The 60 kW power provides a pool water flow of 55 GPM (14,7 l/min) and a hot water flow of 6,6 GPM (24,7 l/min) and separates the pool water from the boiler water, effectively transferring heat between them.

Fast heating: This product provides a heating power of 200 K Btu/h with a temperature difference of 60°C (140°F) between incoming and hot water, ensuring instant heating without waiting.

Energy saving: The ingenious design of the bellows ensures fast operation of the device, maximizing the use of solar energy or boiler and improving the overall thermal efficiency of the system. In addition, purely physical operation, without the need to connect to a power source, makes it ?? It is a very reliable, efficient and economical solution.

Healthy and hygienic: The trayless design provides two separate channels for hot and cold water, greatly reducing the risk of contamination of water sources.

Flexible mounting: It can be mounted vertically or horizontally, depending on your needs. The compact size of 5*19'' allows you to save space effectively.

Easy cleaning: With its smooth and non-marking surface, it can be easily cleaned with a damp cloth.

Details

Heat dissipation from pipelines: Accelerates heat transfer and ensures maximum efficiency.

Protective housing: High quality 304 stainless steel cover protects the heating element from direct contact with people or animals, ensuring the safety of use.

Reverse output and inlet: The inlet and outlet are reversed, both on opposite sides, which optimizes water flow dynamics and improves heat transfer efficiency.

Application

Suitable for swimming pools, jacuzzi, hot tub shower tray heating, wood garden stoves, circulation heating, inflatable heating, underfloor heating, snow melting systems, solar water heaters and more. It can be used with any type of pool water, whether treated or salty.

Specification

Model: MF-200

Color: Silver

Assembly Method: Freestanding

Assembly Required: Yes

Material: SS304 stainless steel

Process: Polishing

Power: 60 kW

Capacity: 200 kBtu/h

Pressure test:

Pool water circulation – 10 bar

Hot water circulation – 5 bar

Pressure Strength: 2,5 kg/5,51 lbs

Pool water flow: 250 l/55 gallons/min

Hot water flow rate: 30 l/6,6 gallon/min

Maximum pressure: 145 PSI

Maximum temperature: 110°C/230°F

Pool volume: 250 m3

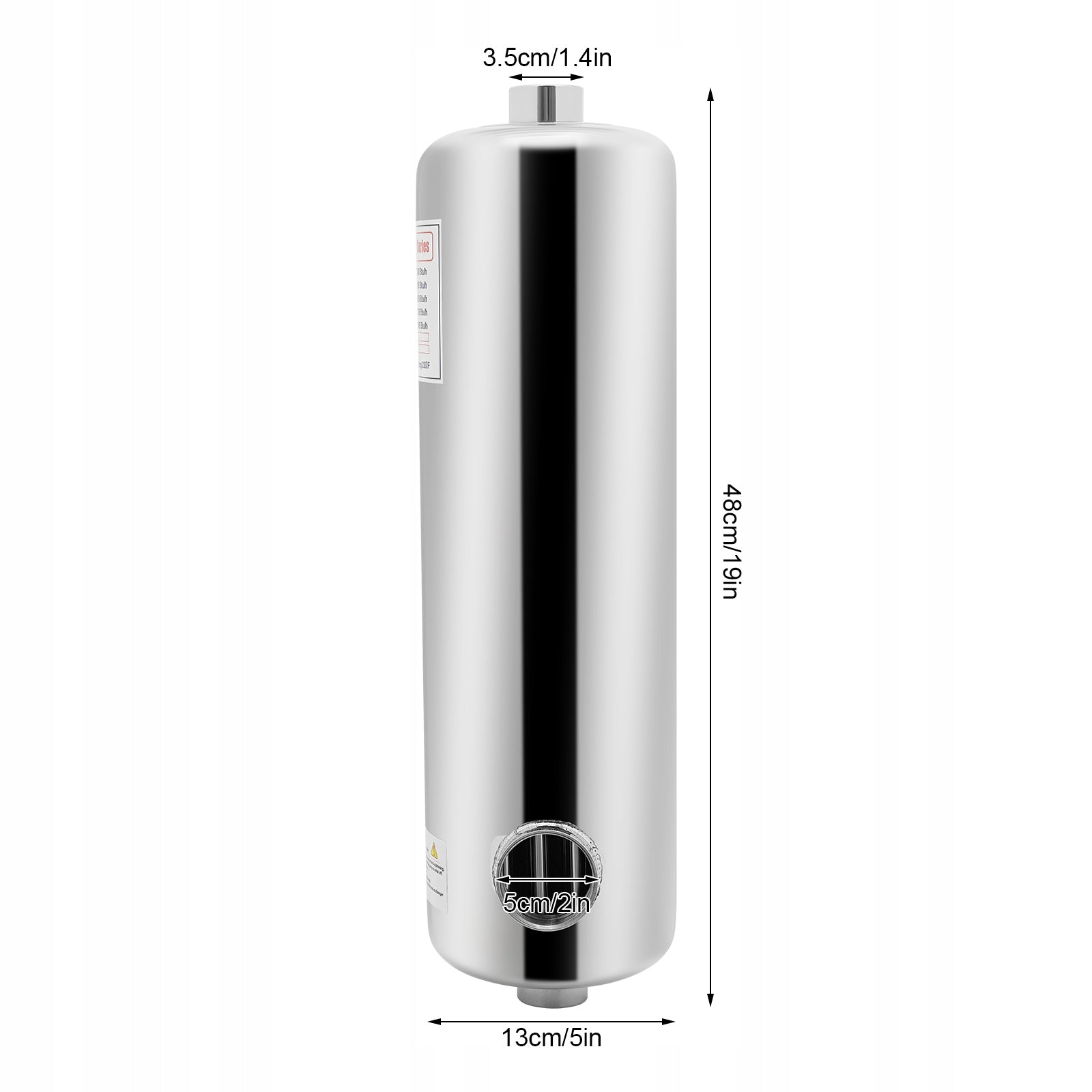

Product Dimensions (D. x H ): 13 x 48 cm/5 x 19 inches

Side port size: 5 cm/2 inches

Upper port size: 3,5 cm/1,4 inch

Package Dimensions: 49*17*17 cm/19,29*6,69*6,69 inch

Gross weight: 4,7 kg/10,36 lbs

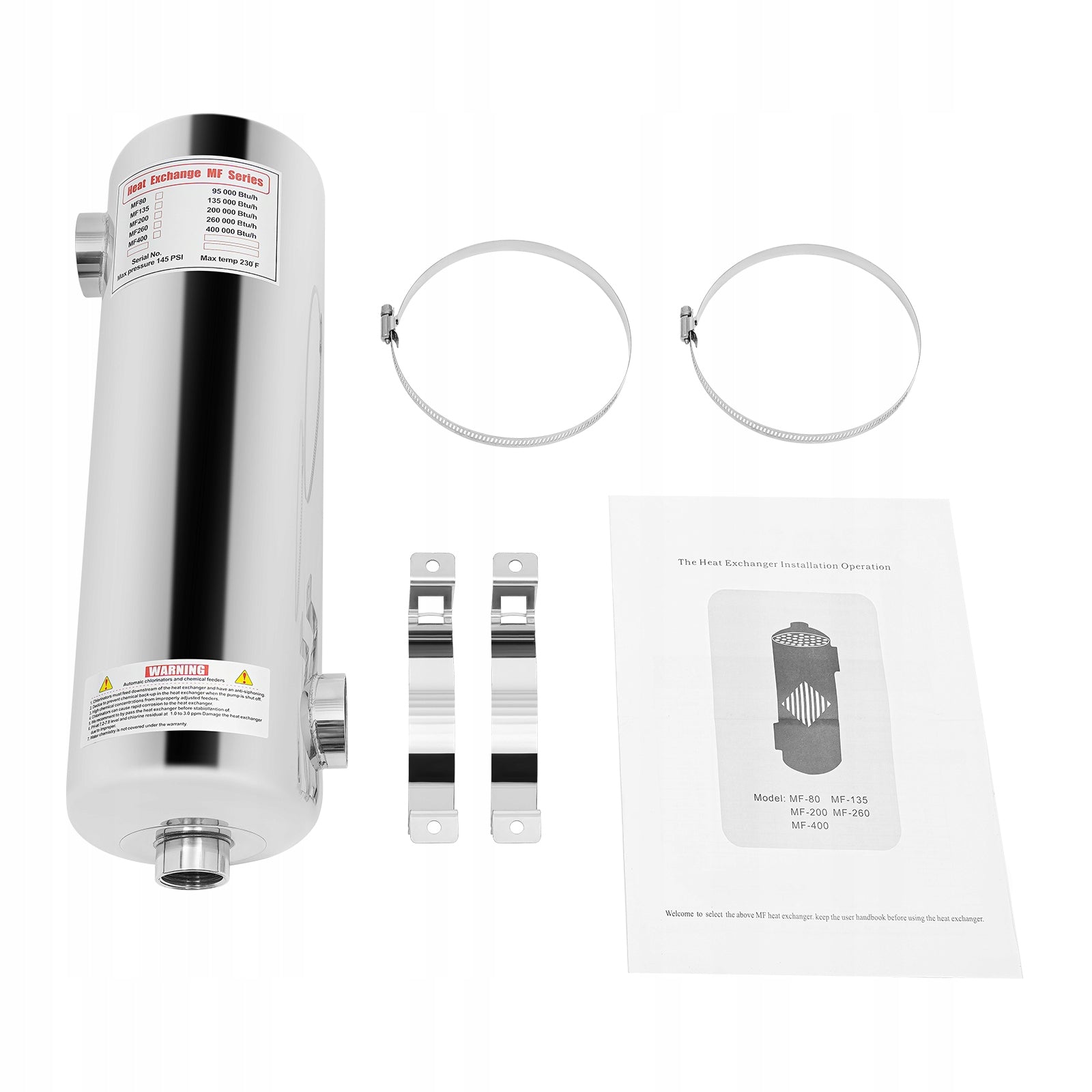

Content of the package:

1 x Pool Heat Exchanger

1 x User Manual in Chinese and English

All accessories for use

Notes

1. Please check the style and size before purchasing.

2. Before installation and use, please carefully read the instruction manual and label, paying special attention to the included safety instructions.

3. Please note that the recommended maximum concentration of chlorides in fresh/pure water below 60°C (140°F) in the exchanger is 300 mg/l and should be reduced as the water temperature rises. Exceeding the recommended chloride concentration or directly using a chlorator can cause pitting corrosion of stainless steel. Titanium heat exchangers for swimming pools are recommended for use in environments with high chloride concentrations or in salt water systems. 4. Please note that the heat exchanger is always installed in the countercurrent system and should be installed behind the filter and pump. It must be auxiliary to the water in the boiler and standard precautions must be taken to prevent air congestion.

5. No persons may be present in the water during the operation of the heat exchanger.

6. Do not place two heat exchangers in the pool at the same time.

7. The product requires a heating circuit for proper operation and a thermostatic circuit to ensure a continuous thermostatic effect.

8. Please take into account the slight differences in color caused by the flash light and the manual measurement error of 1-3 cm. Please make sure that this does not bother you before placing your order.
