Baseino šilumokaitis, efektyvus 25 m³, 1 1/2

Trumpai apie prekę

Prekė: Baseino šilumokaitis, efektyvus 25 m³, 1 1/2. Kategorija: Baseinų šildytuvai.

• Gamintojas: Promag
• Modelis: MPGMF-80
• Galia: 30000 W

Promag MPGMF-80

We invite you to familiarize yourself with our full offer Allegro account promagmarket_pl by clicking on the option 'all items of the seller'.

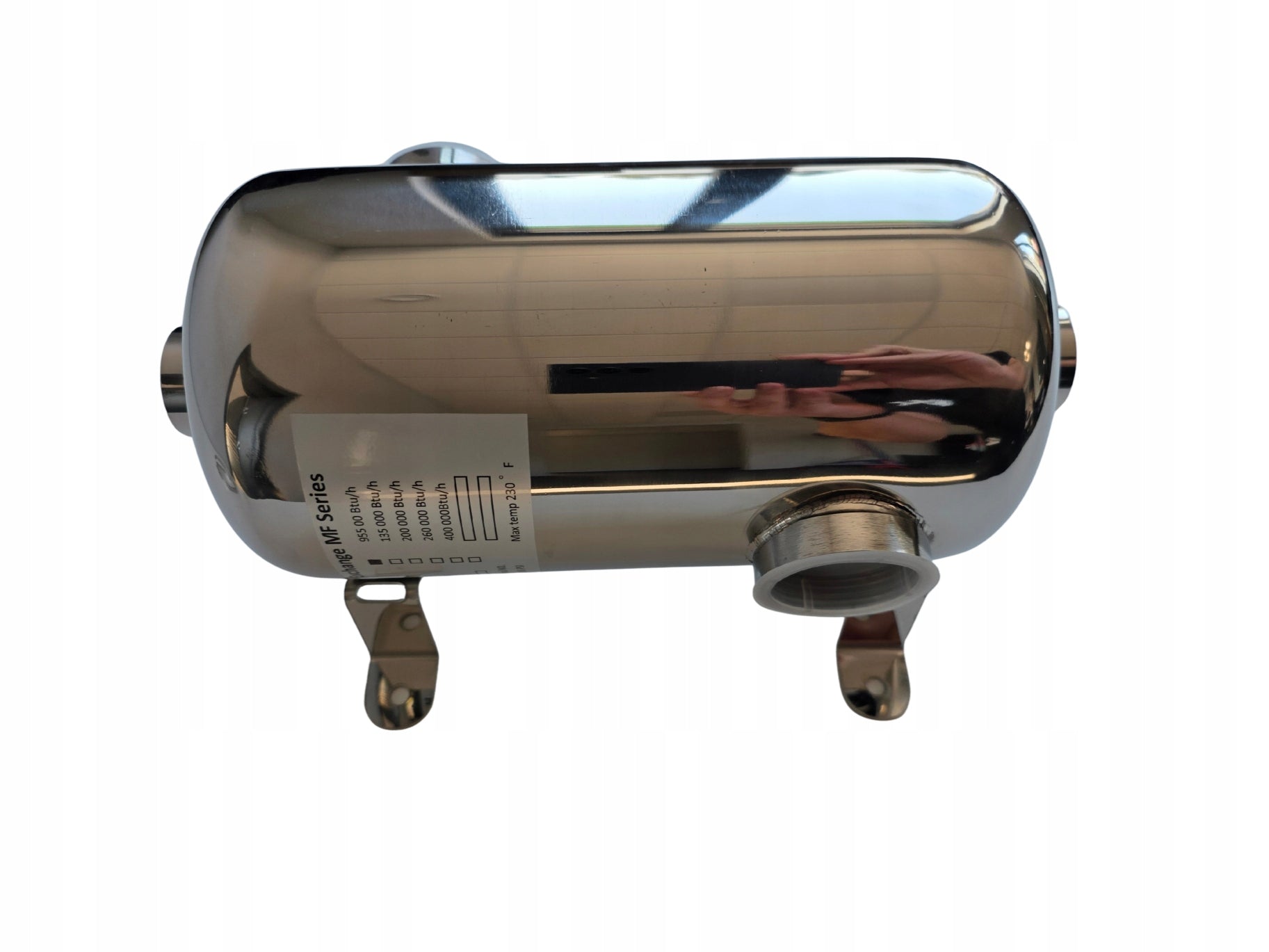

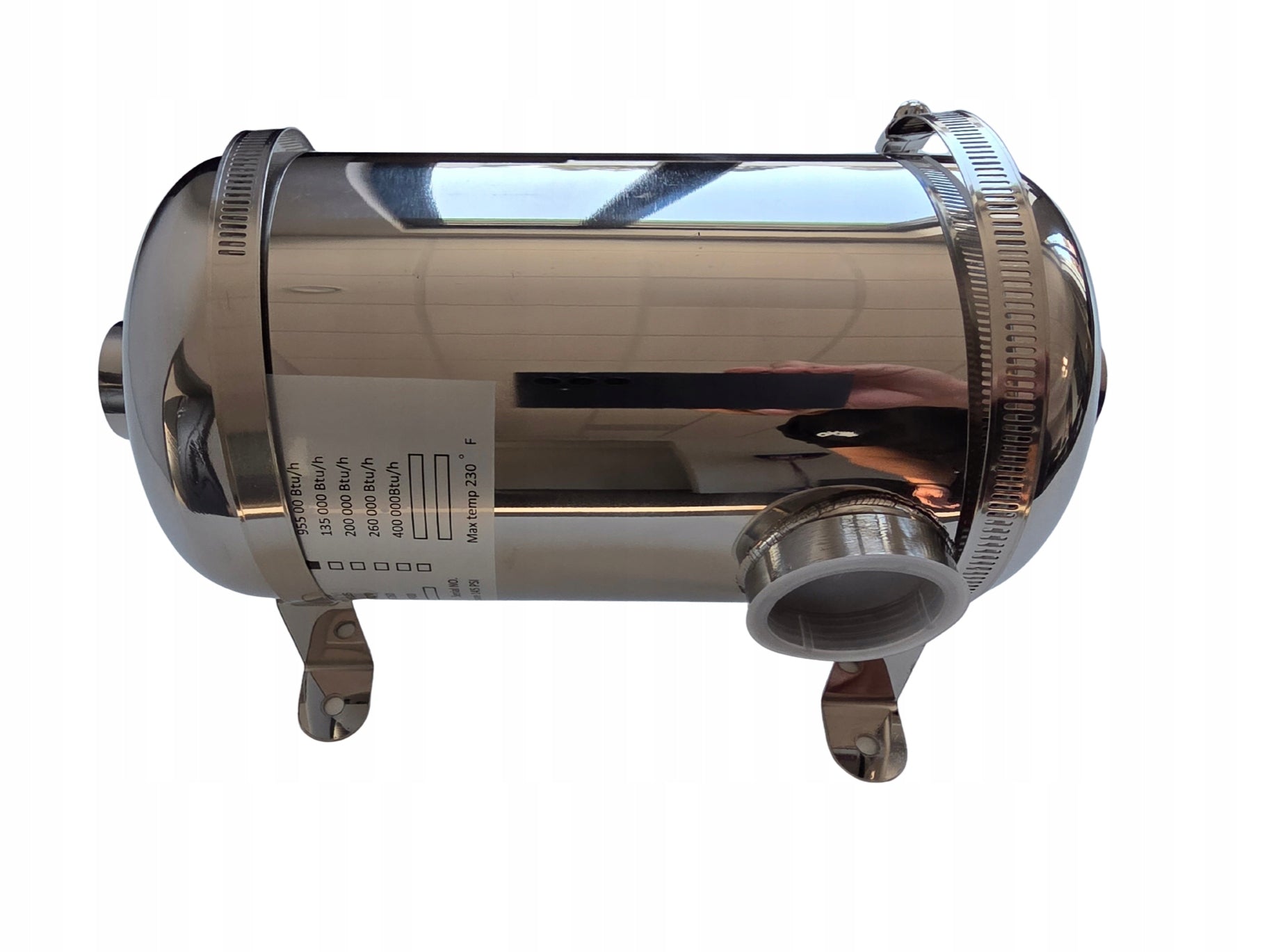

The MPGMF-80 pool heat exchanger is a high-performance shell-tube device with a capacity of up to 30 kW, designed for efficient heating of water in pools with a volume of up to 25 m³. Thanks to its ANSI 316 stainless steel construction, it provides exceptional durability and corrosion resistance in pool installations.

PROMAG products are synonymous with the highest quality, durability and reliability. Each element is created with attention to detail, using proven materials and modern solutions, which translates into safety of use and long service life. By choosing PROMAG, you focus on reliability confirmed by experience.

Key benefits

• Fast water heating: Thanks to the shell-tube design, heat exchange between the boiler and the pool occurs instantly, allowing you to enjoy warm water almost all year round.
• Self-cleaning technology: Specially profiled corrugated tubes force turbulent flow, which drastically reduces the deposition of impurities and scale.
• Maximum corrosion resistance: The use of ANSI 316 steel guarantees insensitivity to pool chemicals and aggressive external factors.
• Compact dimensions and high power: The device generates high heating power while maintaining small dimensions (292 x 146 mm), facilitating installation in tight engine rooms.
• Low operating costs: The use of an existing heating system (CO furnace, solar panels) is much cheaper than the use of energy-intensive electric heaters.

Technical specification

Full product specification available in the 'Parameters' tab.

• Nominal power: up to 30 kW (80 kBTU/h)
• Material: ANSI 316 stainless steel
• Heating medium connections (F1, F4): 2x GW 1"
• Heated agent connections (F2, F3): 2x GW 1 1/2"
• Heat transfer area: 0,20 m²
• Working pressure / test pressure: 10 bar / 13 bar
• Maximum flow rate (heating/swimming pool): 18 l/min / 150 l/min
• Temperature range: -10°C to +110°C
• Maximum pool volume: 25 m³

Application

The MPGMF-80 exchanger is dedicated to work in a variety of heating systems, especially in home and recreational conditions:

• Private swimming pools and SPA: Heating pool water using gas, solid-state boilers or heat pumps.
• Solar systems: Transferring energy from solar collectors to water tanks or pool basins.
• Floor heating: Separation of heating systems in single-family houses.
• Surface defrosting: Anti-icing systems for driveways and parking lots.
• Industry: Cooling of oils, engines and powertrains.

How the product works

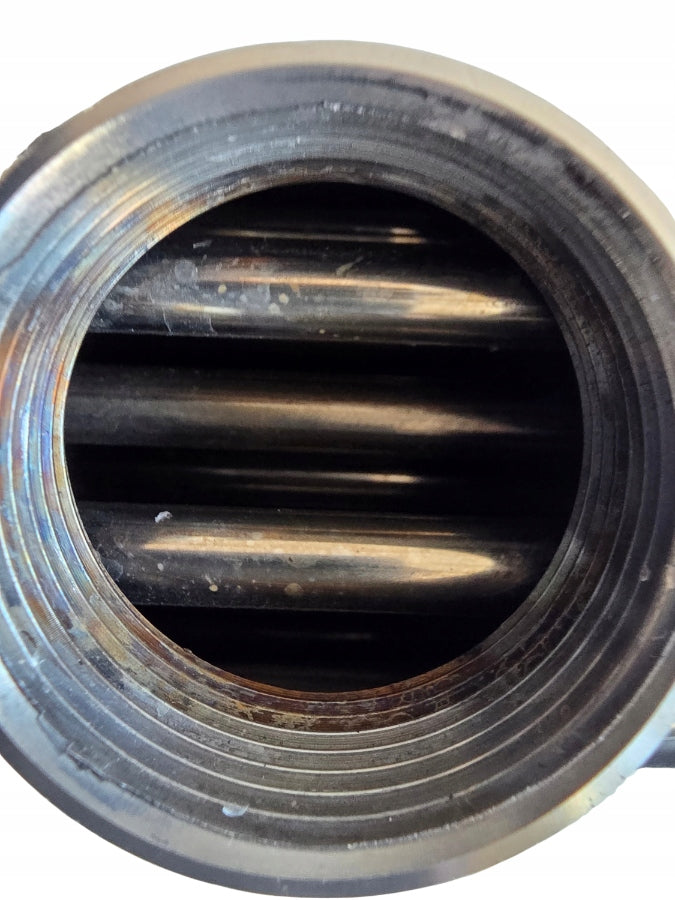

The device is a flow exchanger, countercurrent. Inside the sealed jacket there are corrugated tubes (tubes). Hot water from the boiler flows through the tubes, giving off the heat of the pool water, which flows inside the mantle in the opposite direction. Flushing tubes increases liquid turbulence, which maximizes energy output and prevents deposit buildup.

Benefits for the user

• Saving time and money: Faster pool heating time means less fuel consumption and longer bathing pleasure.
• Durability for years: Made of high-quality 316 steel makes it a one-time purchase, resistant to cracks and pitting corrosion.

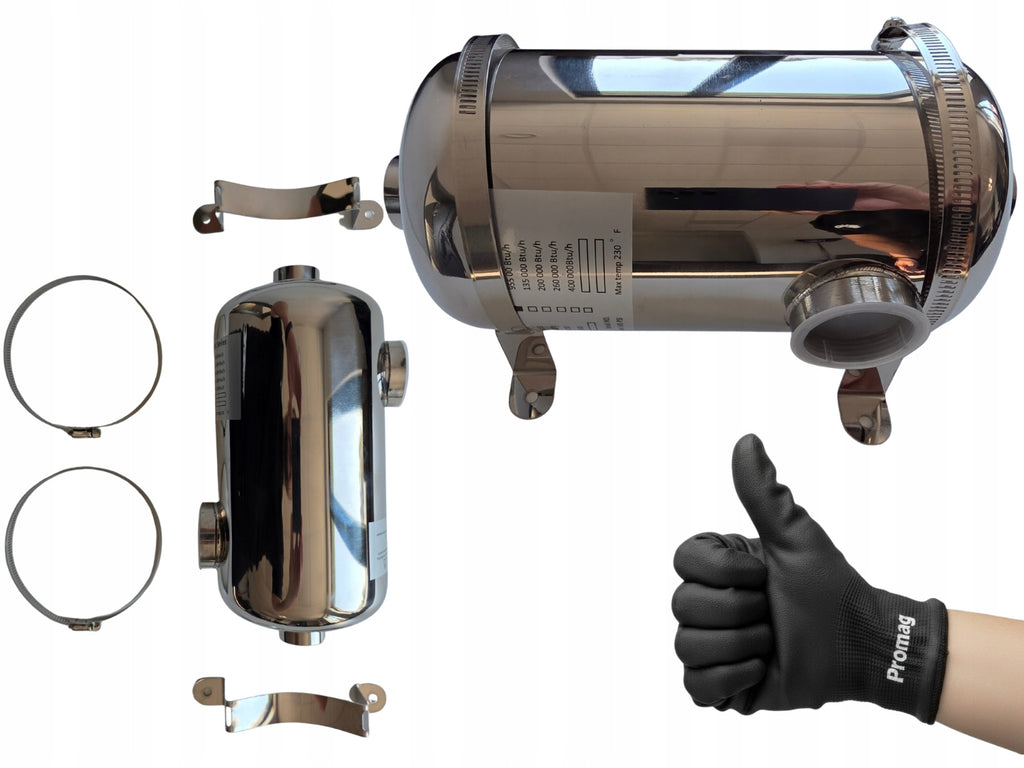

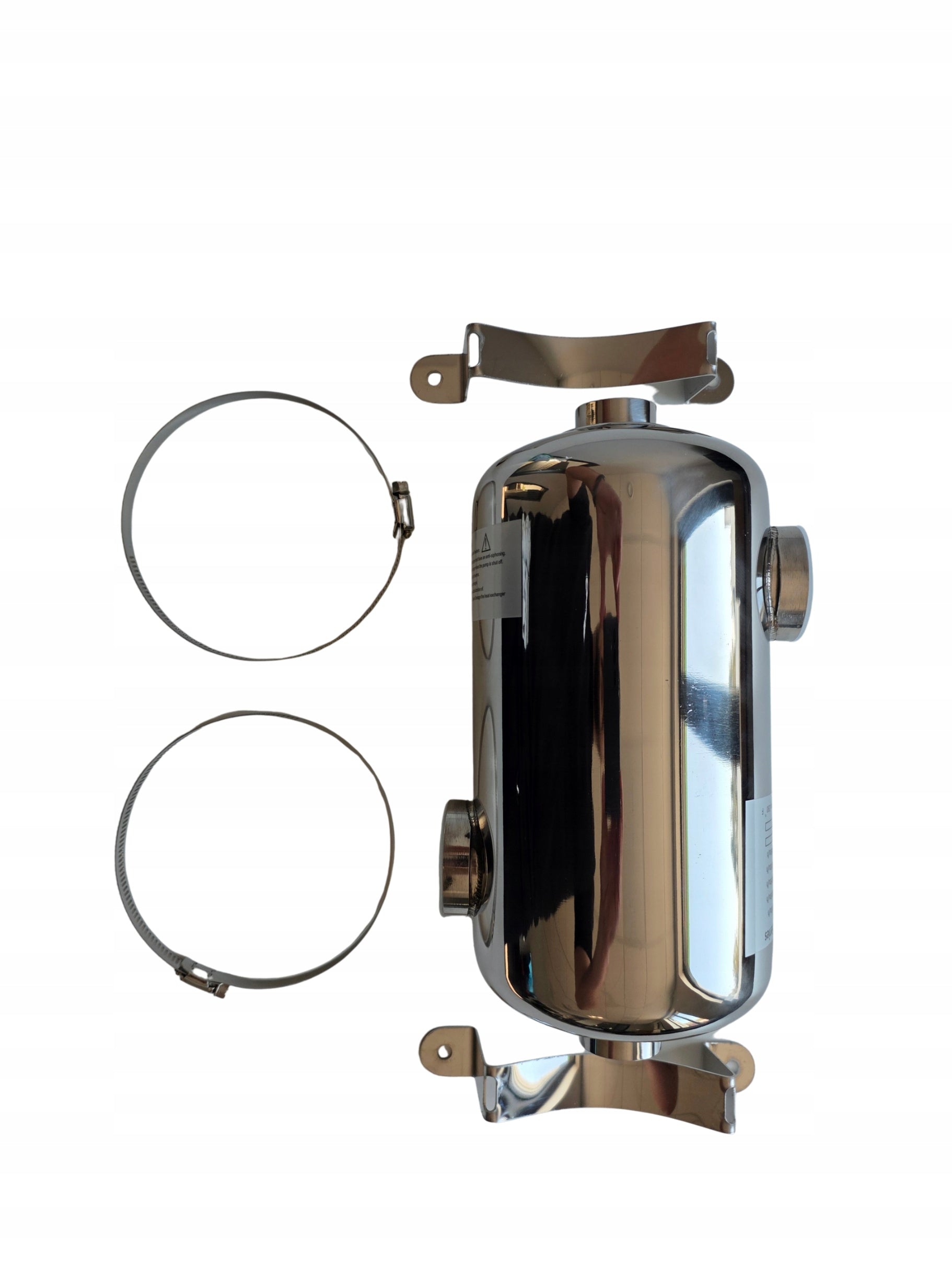

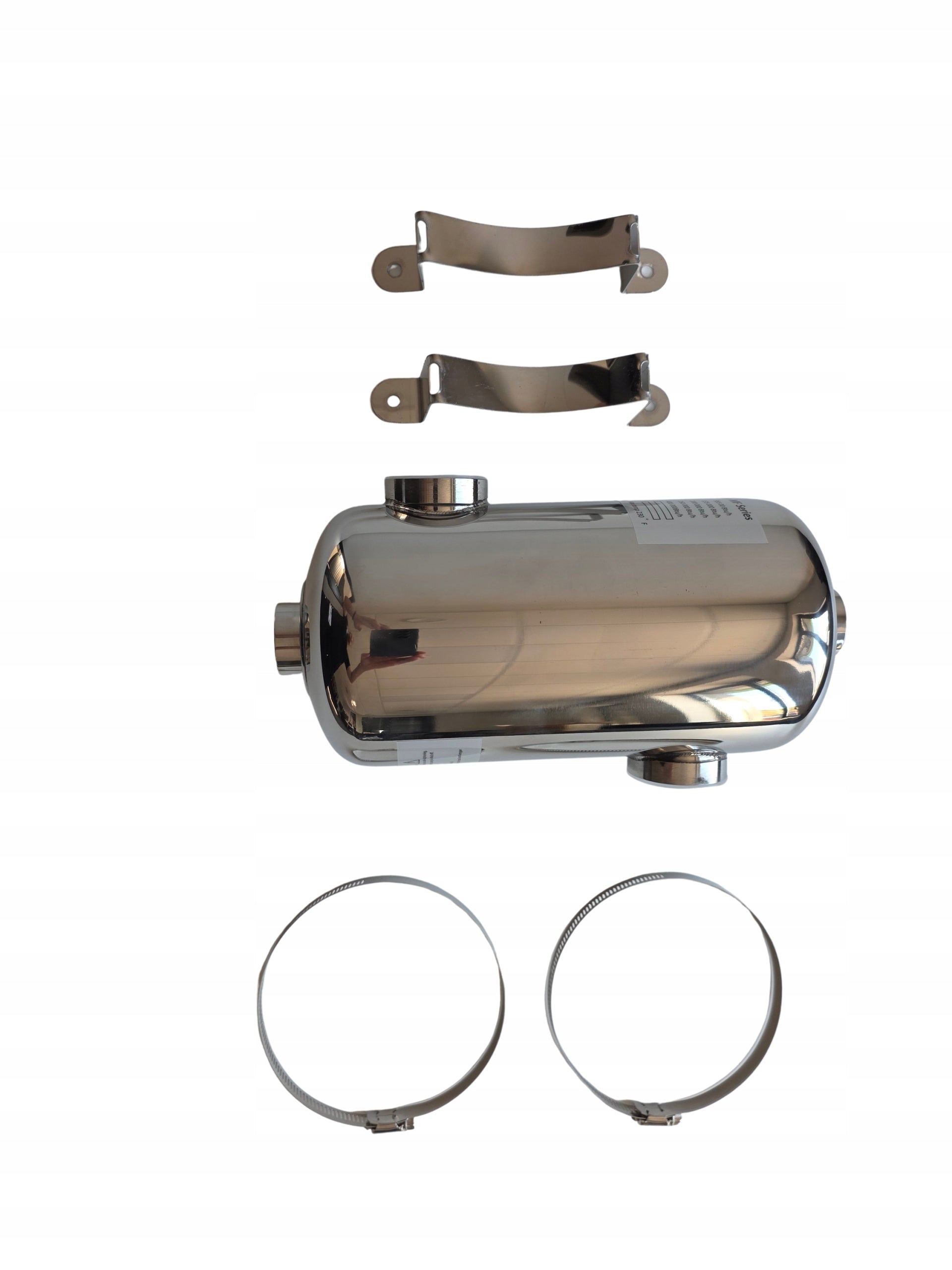

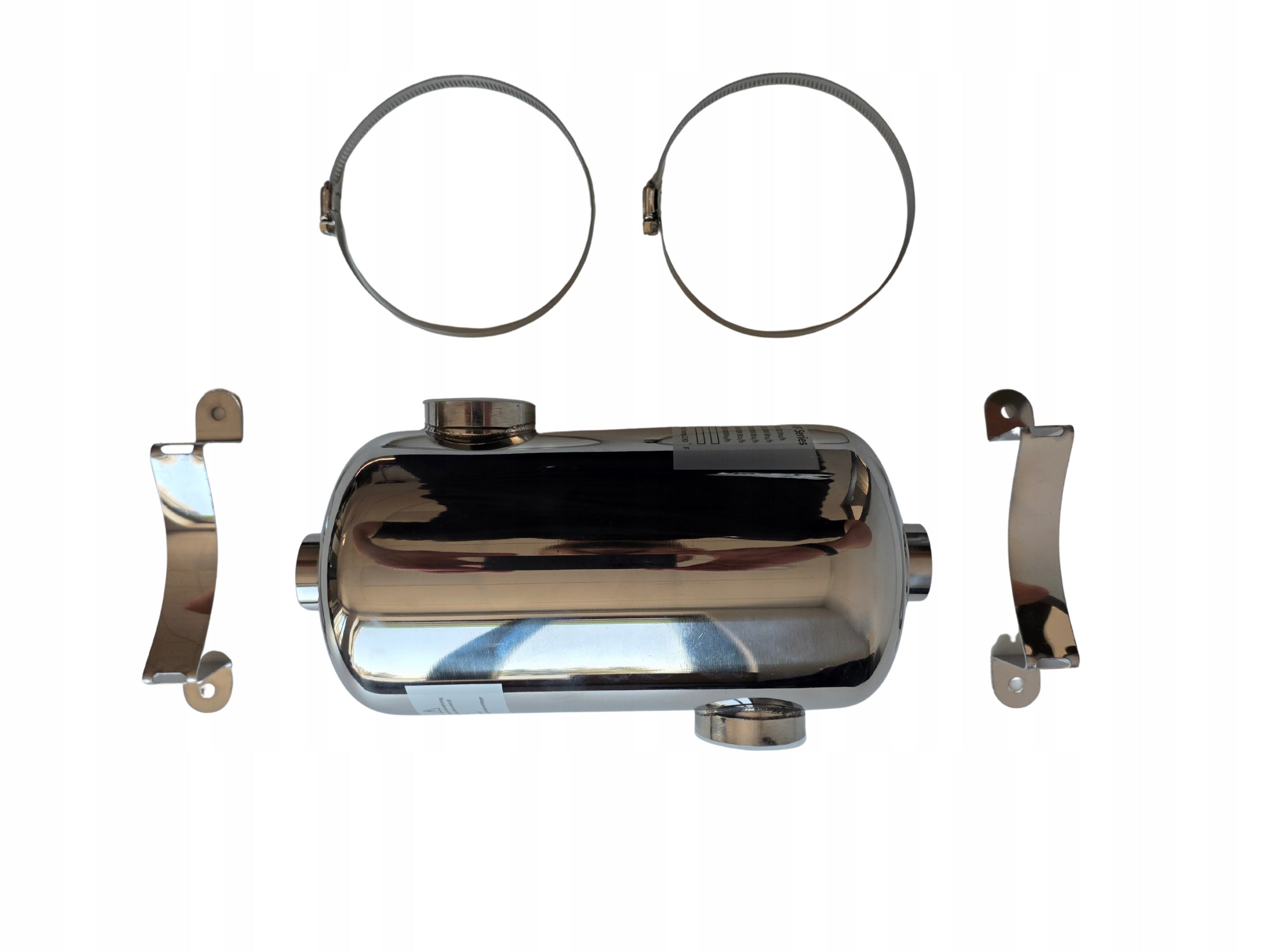

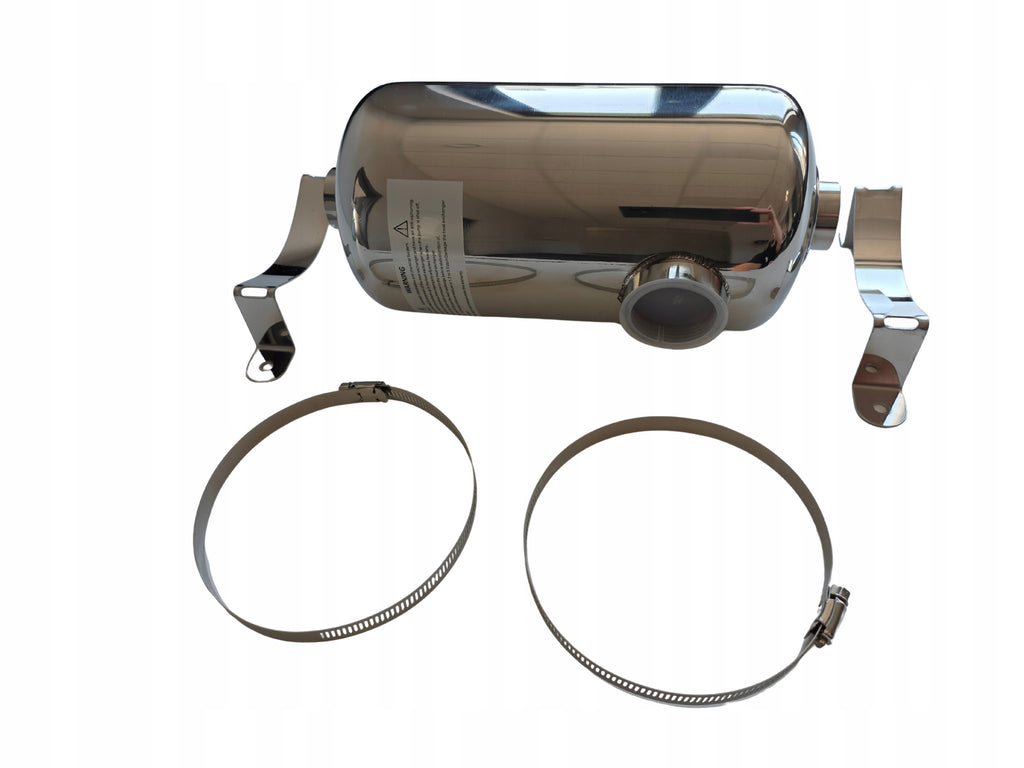

• Assembly safety: The included mounting brackets and standard internal threads ensure stable installation and tightness of the system.
• Universality: Possibility of cooperation with almost any heat source available in Polish construction (boilers, renewable energy sources).

FAQ (Frequently Asked Questions)

Why is 316 steel better for my pool? Stainless steel 316 has higher resistance to pitting corrosion, which is crucial in installations in contact with different water quality and pool chemistry.

Is this exchanger enough for a 40 m³ pool? The MPGMF-80 model is dedicated to swimming pools up to 25 m³. With a larger pool, the heating time will be too long, so we recommend choosing a higher power model.

Can I connect the heat exchanger to the heat pump? Yes, the exchanger works perfectly with heat pumps, however, it should be remembered that a lower supply temperature from the pump can reduce its nominal efficiency.

Does the exchanger need frequent cleaning? Thanks to the use of corrugated pipes causing turbulence, the device has a self-cleaning function, which minimizes the need for servicing.

Take care of the ideal water temperature in your pool and choose a proven solution from a Polish supplier. Bet on the performance and reliability of the MPGMF-80 exchanger – order now!

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Promag
Parametry	Power	30000 W
Parametry	Manufacturer code	MPGMF-80
Parametry	EAN (GTIN)	5905616384047
Parametry	Packaging status	original
