Baseino šilumos siurblio apėjimo rinkinys, 50 mm, pilnas komplektas

Trumpai apie prekę

Prekė: Baseino šilumos siurblio apėjimo rinkinys, 50 mm, pilnas komplektas. Kategorija: Siurbliai ir filtrai.

• Gamintojas: no brand
• Modelis: bypass

The bypass kit allows you to control the flow of water to the heat pump - installed between the pool filter, heat pump and the pool. If the pool installation is equipped with a treatment system that dispenses products into the pool water, e.g. Chlorine or salt - this workaround is placed before this installation. Thanks to the use of good valves, you can freely adjust the flow or completely close the circuit, e.g. to dismantle the device for the winter.

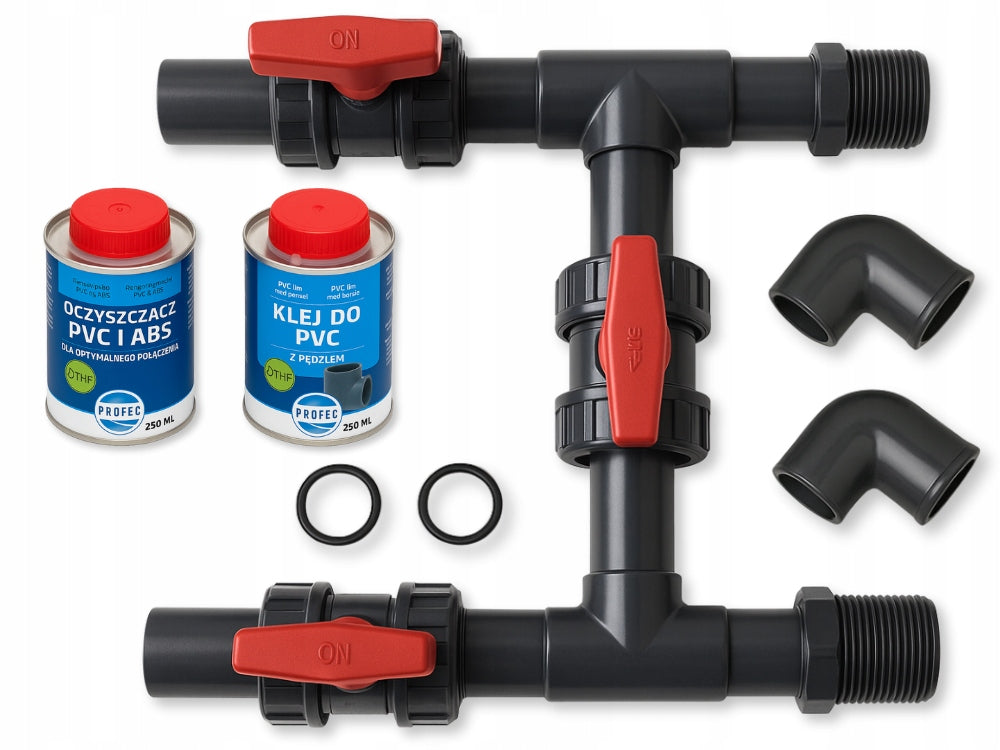

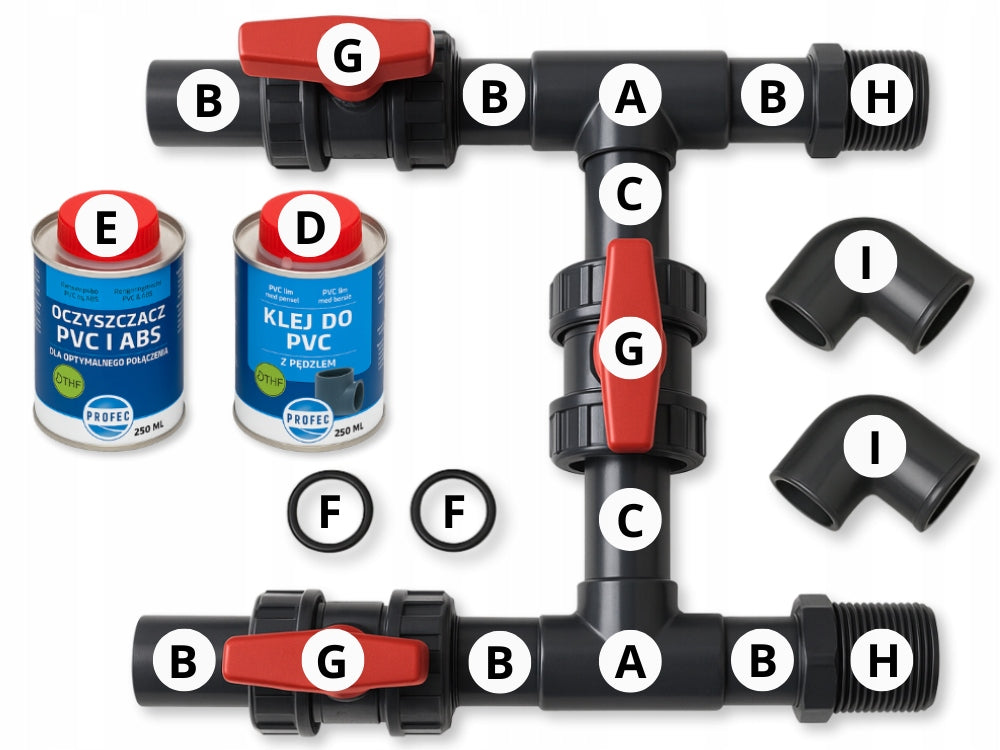

Components:

• 2 x 50 mm PVC tee
• 6 x PVC pipe 50 mm, L 100 mm
• 2 x PVC pipe 50 mm, L 120 mm *
• 1 x PVC adhesive 100 ml
• 1 x PVC cleaner 125 ml
• 2 x Hose Seal
• 3 x 50 mm PVC ball valve
• 2 x 50x63x2 hose tip
• 2 x PVC knee (enables parallel bypass installation relative to the heat pump)

* 2 x PVC pipe 50 mm, L 120 mm - for possible trimming depending on the distance between the inlet and the water outlet in the heat pump.

Bypass should be glued on its own.

Bypass elements must be dismantled for the winter.

A - swimming pool

B - heat pump

C - drain

D - inflow

E - pump / filter

F 1/2/3 - valve 1/2/3
