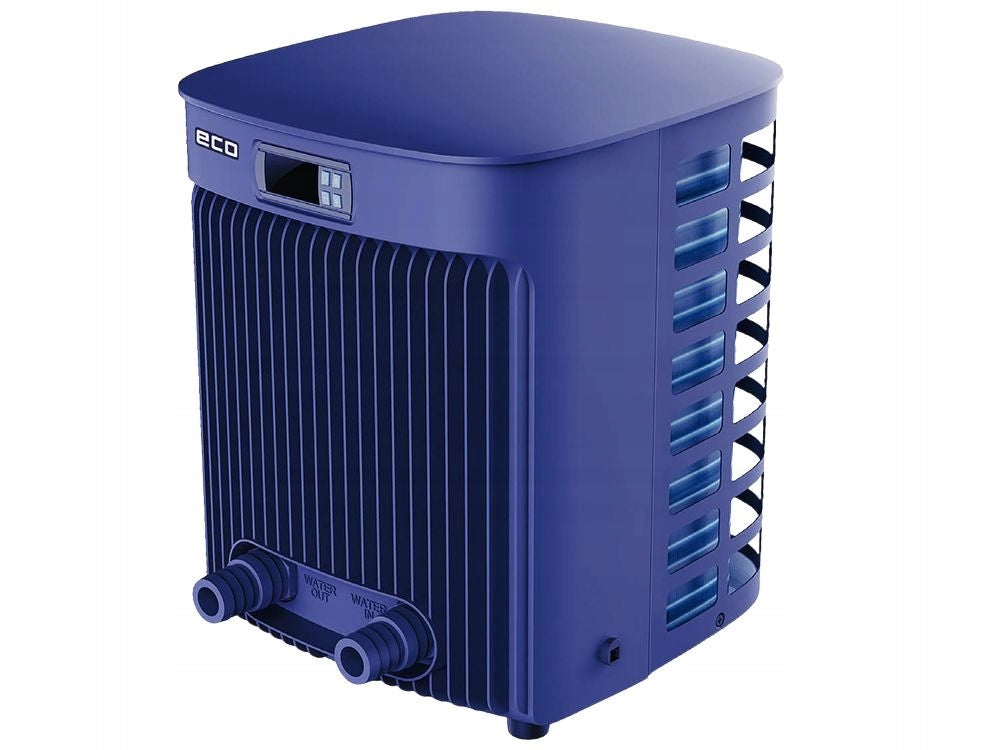

Baseino šilumos siurblys, 4,2 kW, tinka 5–16 m³ vandeniui

Trumpai apie prekę

Prekė: Baseino šilumos siurblys, 4,2 kW, tinka 5–16 m³ vandeniui. Kategorija: Baseinų šildytuvai.

• Gamintojas: Bevo
• Modelis: 7032423
• Galia: 3.2 W

4,2KW 5-16m3

Heating pump Eco Mini designed for swimming pools - allows you to heat water in the pool and maintain its constant temperature when the ambient temperature exceeds 12oC - an ideal solution for small above-ground pools.

Maximum pool volume: 5-16 m3

Flow rate: 2 m3/h

IMPORTANT INFORMATION!!

When purchasing a heat pump that will be connected to the ground pool of Intex or Bestway, we recommend that its maximum volume is 12,8 m3.

Elements to pay attention to when choosing a heat pump:

• pool size
• whether a pool cover is used
• time of year of use of the pool

Characteristics:

• light and compact;
• safe temperature switch;
• temperature heated to 35 degrees;
• 32 and 38 mm hose connection (not included);
• R32A gas - environmentally friendly;

Additional important information:

• in winter or when the ambient temperature drops below 0oC, always remove the water from the heat pump, otherwise, due to freezing, the titanium heat exchanger may be damaged, resulting in the loss of warranty;
• The control panel with display should be stored in a dry place to protect it from moisture damage;
• Always keep the heat pump upright. If it was tilted at an angle, wait at least 24 hours before starting it;

MINIMUM PUMP DISTANCES BETWEEN OTHER OBJECTS

PARAMETERS:

• Heating power A28/W28: 4.2 kW
• Heating power A15/W28: 3.2 kW
• Power consumption: 1 kW
• Maximum pool volume: 5-16 m3
• Maximum intensity: 13 A
• COP at A28/W28: 4.2
• COP at A15/W26: 3.5
• Power supply: 220-240/50 HZ/1PH
• Controller: electronic
• Heat exchanger: titanium in PVC
• Compressor type: rotary
• Compressor brand: Hitachi
• Cooling agent: R32
• Noise level: 46dB (1m); 55dB (10M)
• Water connection: 32 and 38 mm
• Water flow: 2 m3/h
• Net dimensions: 460/434/433 mm
• Gross dimensions: 530/520/495 mm
• Net weight: 26 kg
• Gross weight: 30 kg
