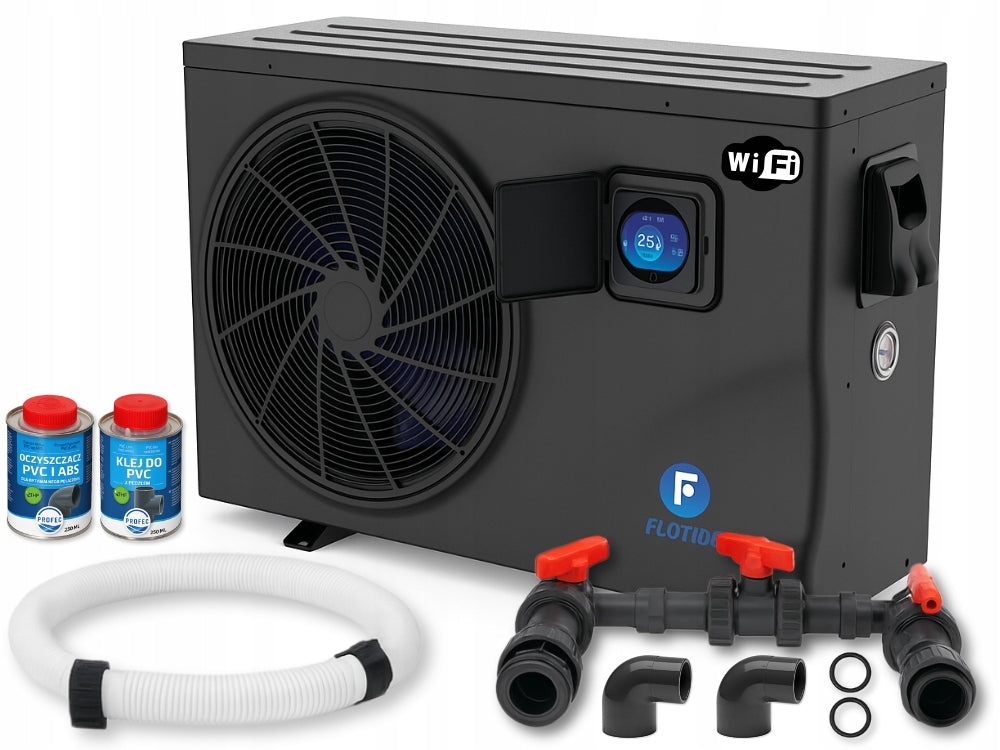

Baseino šilumos siurblys Flotide Inverter, 45 m³, su BYPASS

Trumpai apie prekę

Prekė: Baseino šilumos siurblys Flotide Inverter, 45 m³, su BYPASS. Kategorija: Siurbliai ir filtrai.

• Gamintojas: no brand
• Modelis: 7034988

Type SX9/32 - 45 m3

Heating pump Flotide Inverter designed for swimming pools - allows you to heat water in the pool and maintain its constant temperature. The inverter heat pump offers the ability to change the thermal performance depending on weather conditions. Thanks to SmartGrid technology, the compressor and fan speeds will be variable to reduce noise and energy consumption by up to 50%.

Maximum pool volume: 25-45 m3

Flow rate: 4.0 m3/h

IMPORTANT INFORMATION!!

When purchasing a heat pump that will be connected to the above-ground pool, we recommend that its maximum volume be 36 m3.

Built-in Wi-Fi module

Connect to the Flotide Inventer heat pump from your smartphone using the app - Aqua Temp

Elements to pay attention to when choosing a heat pump:

• pool size
• whether a pool cover is used
• time of year of use of the pool

Characteristics:

• energy class A;
• inverter heat pump offers the possibility to change the thermal efficiency depending on weather conditions;
• COP performance factor up to 10,3;
• housing made of ABS;
• full-flow;
• easy temperature control with glass touch display;
• quiet operation thanks to the use of low-noise rotary compressor and quiet variable speed fan;
• R32A gas - environmentally friendly;
• automatic defrosting;
• titanium heat exchanger resistant to salt and chlorine;
• winter cover as standard;
• Wi-Fi module included;
• The model operates in outdoor temperature ranges from -7℃ to + 43℃
• water temperature from 9℃ to 40℃

Additional important information:

• Before opening the heating pump housing, always turn off the power supply, because inside there is a device under high electrical voltage;
• Always keep the heat pump upright. If it was tilted at an angle, wait at least 24 hours before starting it;

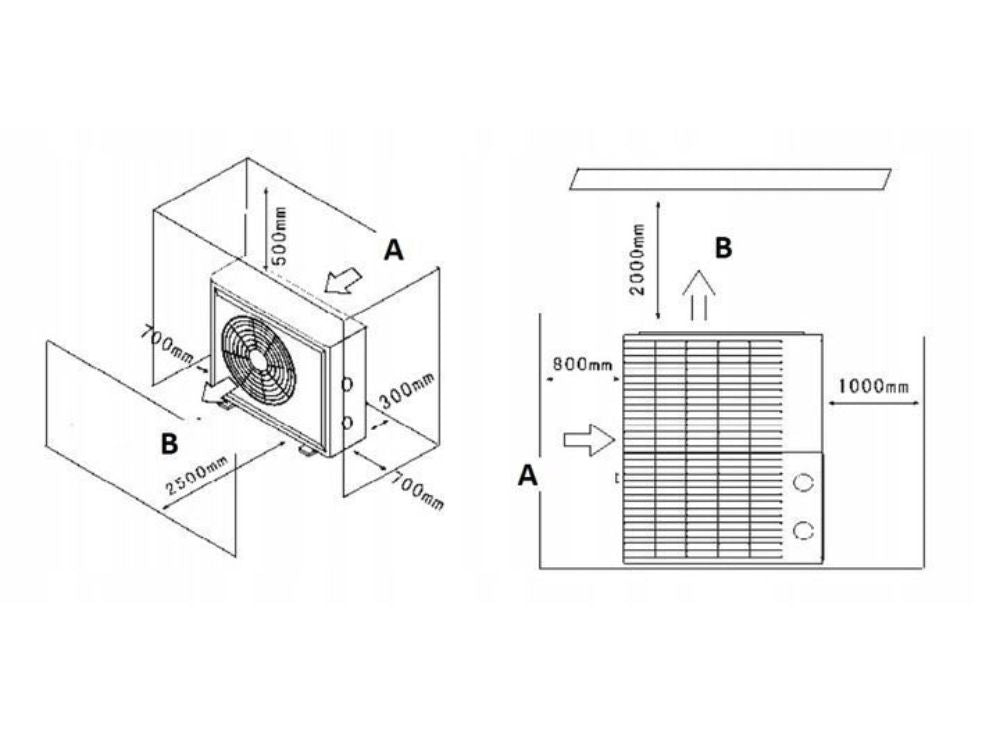

MINIMUM PUMP DISTANCES BETWEEN OTHER OBJECTS

A - air outlet

B - air intake

The device can be installed in virtually any outdoor location as long as the minimum distances between other objects are maintained.

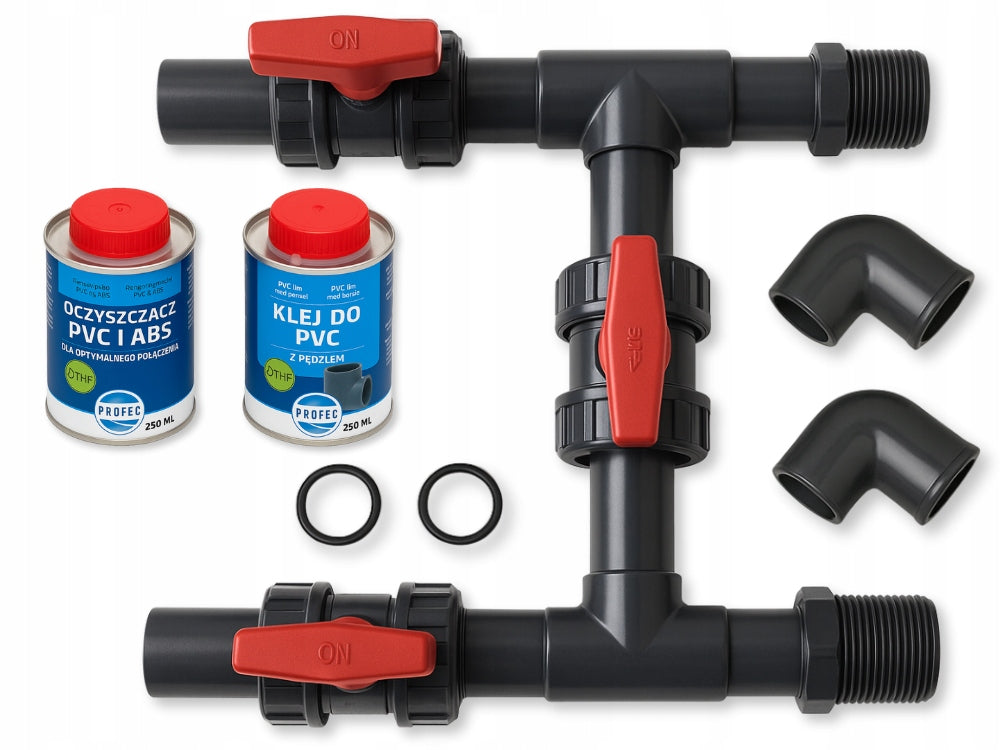

The Hydro-Pro pool heat pump is mounted on the bypass - by-pass (hydraulic bypass). A complete self-assembly kit is included. Thanks to the use of good valves, you can freely adjust the flow or completely close the circuit, e.g. to dismantle the device for the winter.

Bypass elements must be dismantled for the winter.

Sample photo of mounting with elbows (1), and without elbows (2).

EXEMPLARY CONNECTION OF A HEAT PUMP

A - swimming pool

B - heat pump

C - drain

D - inflow

E - pump / filter

F 1/2/3 - valve 1/2/3

PARAMETERS:

• Heating power A27/W27: 9.0 ~2.4 kW
• Heating power A15/W25: 6.5 ~ 1.2 kW
• Heating power A10/W25: 5.9 ~ 1.56 kW
• Heating power A5/W25: 4.8 ~ 1.3 kW
• Heating power A0/W25: 4.57 ~ 1.15 kW
• Heating power A-5/W25: 4.13 ~ 0.93 kW
• Power consumption: 2.25-0.36 kW
• Maximum pool volume: 25-45 m3
• Maximum intensity: 9.9 A
• COP at A27/W27: 10.0-5.8
• COP at A15/W25: 6-4.1
• COP at A10/W25: 5.0-3.6
• COP at A5/W25: 4.2-3.3
• COP at A0/W25: 3.8-2.9
• COP at A-5/W25: 3.4-2.5
• Security: 15.00 A
• Power supply: 220-240/1/50 V/Ph/Hz
• Controller: electronic
• Heat exchanger: titanium
• Compressor type: AC Inverter
• Compressor brand: Green
• Factor: R32
• Number of fans: 1
• Fan power consumption: 40 W
• Direction of flow: levels
• Noise level (1 m): 38-48 dB(A)
• Water connection: 50 mm
• Water flow: 4.0 m3/h
• Net dimensions: 888/360/618 mm
• Gross dimensions: 980/420/640 mm
• Net weight: 42 kg
• Gross weight: 54 kg
