Baseino šilumos siurblys HEWALEX PCWBi 17,8 kW su bajpasu

Trumpai apie prekę

Prekė: Baseino šilumos siurblys HEWALEX PCWBi 17,8 kW su bajpasu. Kategorija: Siurbliai ir filtrai.

• Gamintojas: Hewalex
• Modelis: HPBY178B

Inverter heat pump for swimming pool

HEWALEX PCWBi 17,8 kw kW-B

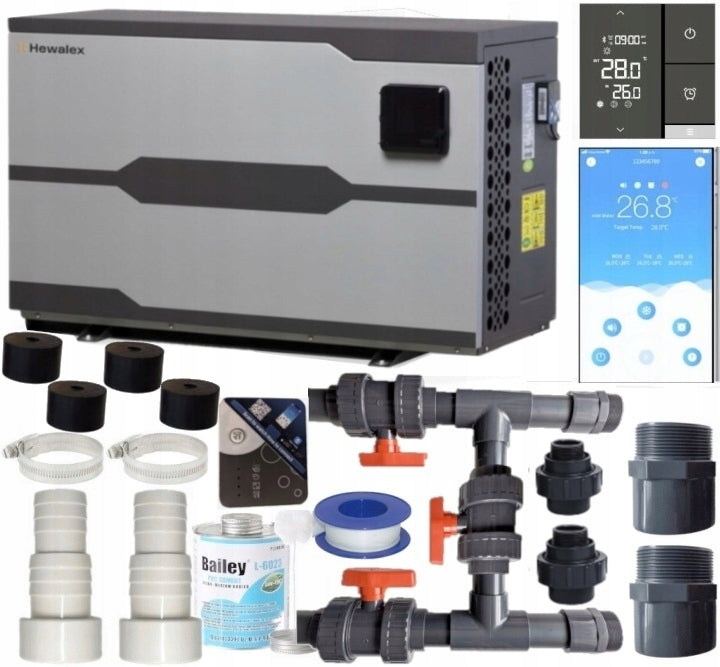

INCLUDED:

• Heat pump series PCWBi 17.8 kW
• Operation and assembly manual
• Warranty card
• Vibration insulation pad 4 pcs.
• Screw for glued joints PVC-U 50mm, Gz 6/4” 2 pcs.
• Hose for condensate drain 3 pcs.
• Connection to condensate drain 3 pcs.
• WiFi Module

YOU BUY FROM A CERTIFIED DISTRIBUTOR

We know perfectly well the differences between different brands that are noteworthy and have a long warranty. Test our knowledge and be sure that the model you choose will be suitable for your pool and temperature expectations.

We are not a construction market.

We are certified specialists. For years, we have been advising customers on how to choose a heat pump so as not to overpay for electricity. We know perfectly well the differences between different brands that are noteworthy and have a long warranty. Test our knowledge and be sure that the model you choose will be suitable for your pool and temperature expectations. Be sure that the equipment is selected for your pool, not “by eye”.

— Grzegorz Jasiński, Owner and Chief Technical Expert

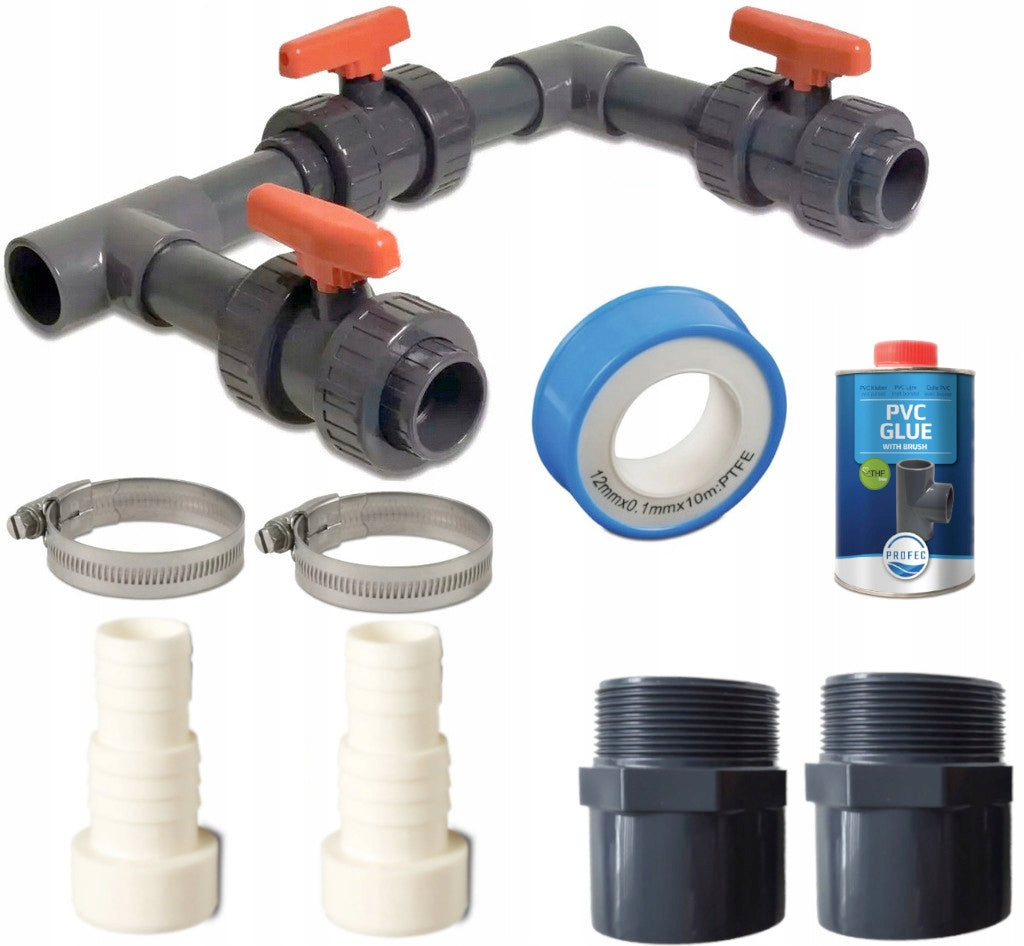

EXTENDED BYPASS INCLUDED:

• 1 - BAJPAS 50mm for self-assembly
• 2 - tapered SLEEVES for hose 32/38 mm - 2x
• 3 - Galvanized hose clamp band - 2x
• 4 - GLUE with brush
• 5 - TEFLON SEALING TAPE
• 6 - Nuts for a typical pool hose

Connect pool hoses to the set

• for 32 and 38mm clamps
• on nuts of typical models

I n t e x / B e s t w a y

Water parameters for the pump:

• The maximum free chlorine level is 1500mg Cl/litre of water.
• The maximum salinity of pool water is 10g NaCl/litre of water.

M i t s u b i s h i - The heart of your pool

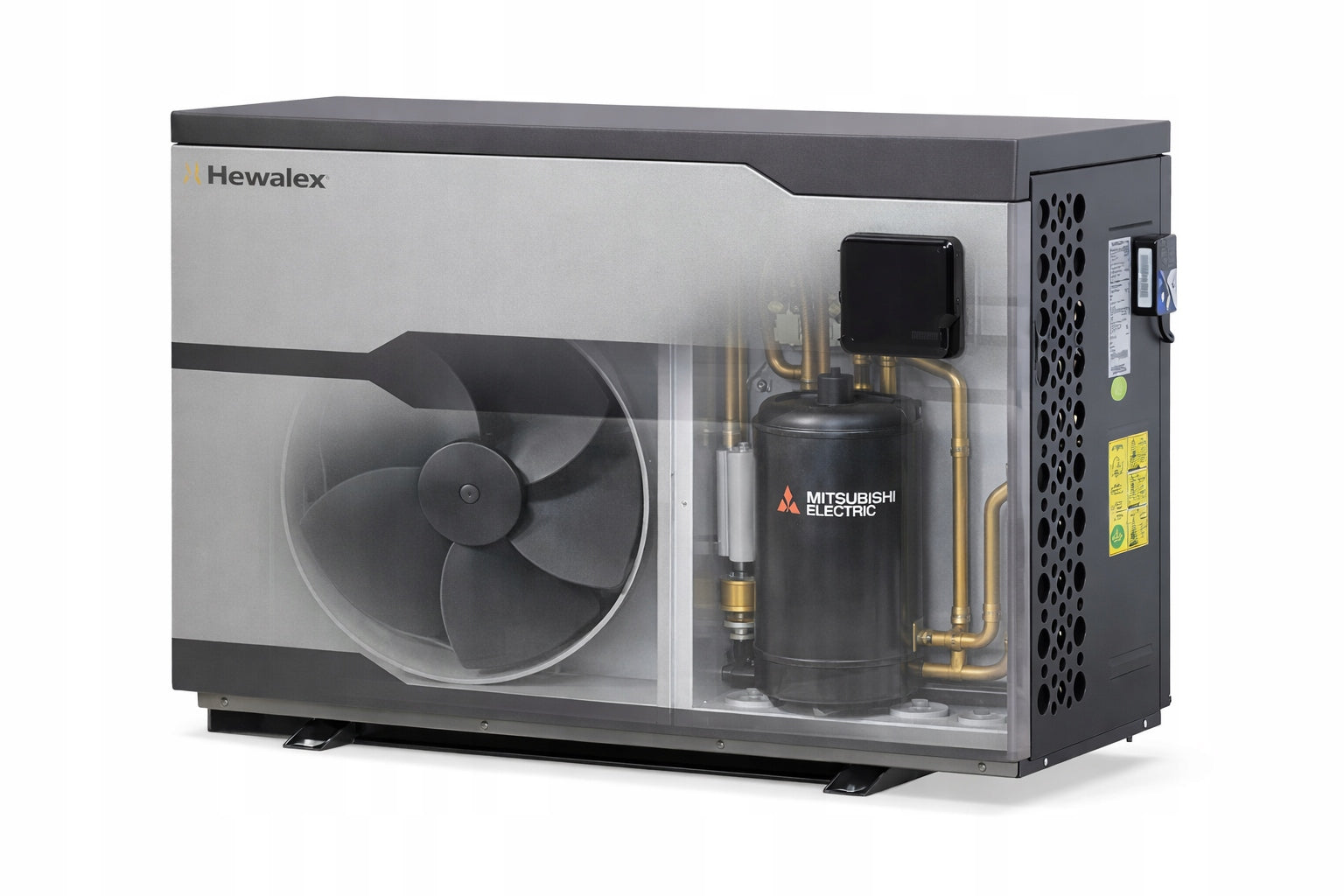

Dedicated Mitsubishi inverter compressor in your pump, you invest in technology from the world leader in air conditioning and refrigeration. This is no ordinary device – it is an intelligent system that takes care of your comfort and wallet.

Why is this solution better for you?

• Liquidity, not "Jumps" (Scope 20 to 100%): The Mitsubishi compressor acts as a gas pedal in a modern car – smoothly adjusts the power to the current water temperature. Once the pool is heated, the pump slows down, using only a fraction of the energy needed to maintain the heat.
• Extreme Lifespan: By avoiding constant starting and stopping, components wear out much slower. It is a technology for years that guarantees reliability even under intensive use in the season.

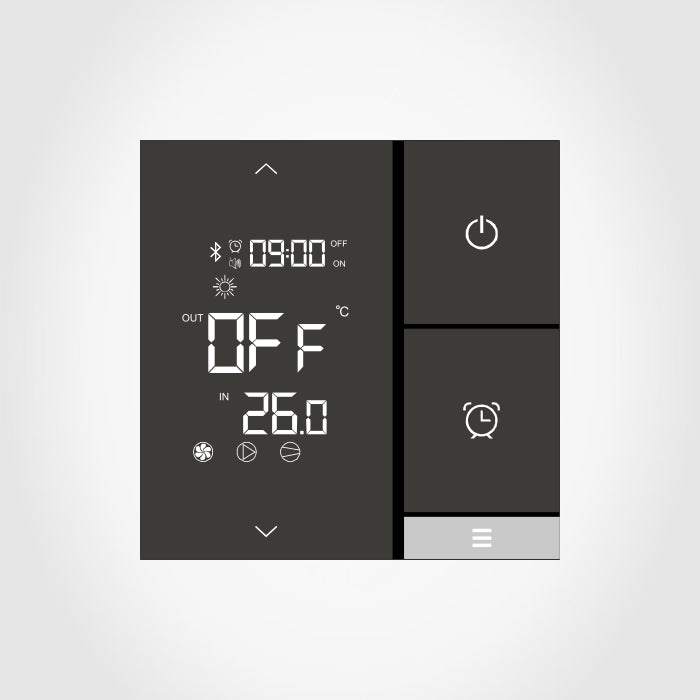

Touch heat pump controller

Inverter heat pumps for swimming pool Hewalex PCWBi-B are equipped with a colorful, touch LED controller that allows us, among others:

- setting the heating or cooling temperature

- setting working time

- the ability to set the "quiet operation" mode

Low cost with high comfort of pool water heating

PCWBi heat pumps, using mostly renewable energy, ensure low costs of heating pool water. Due to the low operating temperatures, PCWBi heat pumps achieve particularly high operating efficiency. The COP for the PCWBi pumps temporarily exceeds 16 (in section A27/W26).

NOTE: In the case of heat pumps intended for heating pool water, energy efficiency classes are not suitable, as in the case of heat pumps used for heating buildings or heating domestic hot water.

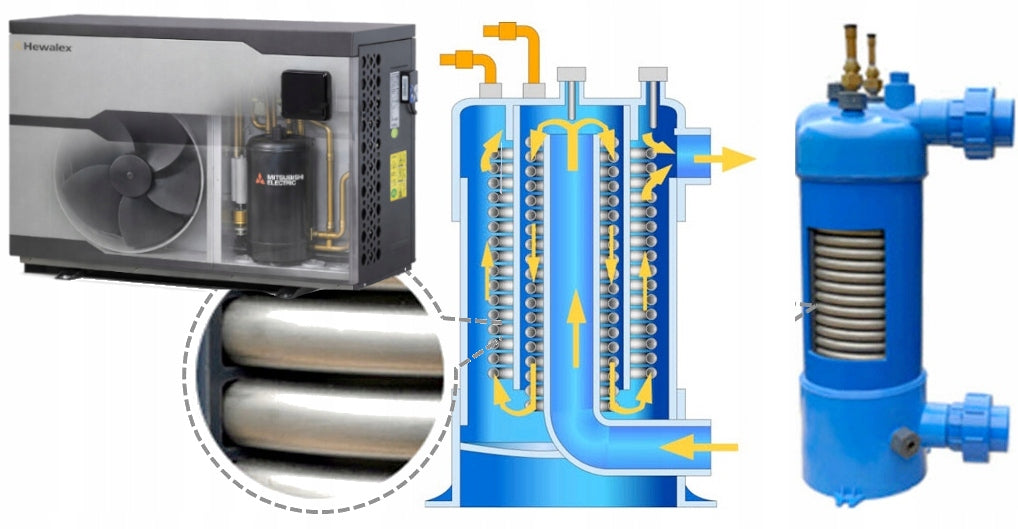

TITANIUM STEEL HEAT EXCHANGER

The special design of the heat exchanger and condenser, made of titanium steel, ensures resistance to pool water.

The design of the titanium heat exchanger significantly increases efficiency and provides sufficient heating power; the exchanger is made of high-quality titanium steel and PVC, resistant to the chemistry used for water treatment in swimming pools

FUNCTIONAL CONTROLLER WITH BLUETOOTH

Functional, easy-to-use controller with touch screen, heating/cooling temperature setting and operating times. With the mWiFi module, it is possible to control and preview work using a mobile application.

The pumps we have come from the latest delivery, they have a built-in Bluetooth module

Comfort among the sounds of nature

The biggest advantage of the Mitsubishi inverter is the work culture. At lower loads, the compressor operates almost silently. Thanks to this, relaxation in the pool or rest on the terrace takes place in absolute peace, without the cumbersome hum known from older devices.

Pool heat pumps PCWBi-B thanks to the use of an inverter compressor and fan covers, work with previously unattainable minimum volume levels. The level of 36 dB(A) at a distance of 1 meter, achieved with the smoothly reduced efficiency of the heat pump means that when relaxing in the garden, we will hear primarily louder birdsong. So for the highest demands, when the house is located in an extremely quiet area, the choice of heat pump PCWBi-B will have additional justification.

If you plan to mount close to the pool, the full range of sound is

• 1m 40-50 dB(A)
• 10m 20-30 dB(A)

Special solutions for the construction of the PCWBi heat pump

The PCWBi heat pump is specially designed to work for pool water heating. The pumps of the PCWBi series use modern inverter rotary compressors. Smooth regulation of heating power allows you to adjust the work to temporary thermal needs, but also reduce the volume level of the working device. The special design has a shell-tube heat exchanger built into the heat pump, where the refrigerant transfers heat directly to the flowing pool water. Protection of the heat pump against possible loss of water flow is provided by a built-in flow rate sensor.

HEAT PUMP PROTECTION FUNCTION AGAINST FREEZING

The people on the evaporator cause disruption and decreased airflow, which in turn results in less free heat consumption and more compressor operation. Defrosting depends on the indications of the temperature sensor placed on the evaporator.

• AUTOMATIC DEFROSTING
• EVAPORATOR DEFROSTING MODE
• FUNCTION OF PROTECTING THE HEAT PUMP FROM FREEZING

Convenient and quick installation of the PCWBi heat pump directly by the pool

The PCWBi heat pump has a lower noise level compared to other models of this power. This is due to the use of an inverter compressor, which reduces performance smoothly and at the same time the volume level. For the PCWBi 13,0kW-B heat pump, the volume level can be only 37 dB(A), which does not prevent them from being installed directly by the pool.

Convenient to use controller with the ability to operate via smartphone application

The controller resistant to external conditions is built on a heat pump. The settings include m.in.:

• operating mode selection: AUTOMATIC / HEATING / COOLING
• working time intervals, e.g. for 2-zone energy purchase tariffs
• setting the required pool water temperature
• alarm states, e.g. lack of water flow

With the mWiFi module, it is possible to control and preview the work using a smartphone application (application in language. English).

Instructions for installation and operation below in the additional information tab.

The PCWBi 17,8kW-B air/water heat pump is designed for direct connection to the pool water process circuit. It is used to heat water, as well as to cool it if necessary. The distinguishing feature of the device is the smooth regulation of heating power thanks to the use of an inverter compressor.

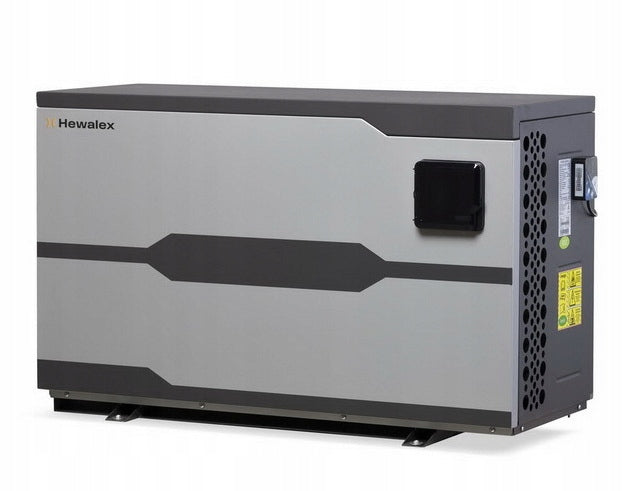

GALVANIZED STEEL HOUSING

The housing made of galvanized steel in a universal subdued color retains its properties in subsequent years of operation, being resistant to external conditions.

Differences between PCWBi-B heat pump and PCWBi-C

Hewalex offers two types of inverter pool heat pumps: PCWBi-B and PCWBi-C. Both models differ not only in appearance and color, but also in key design features.

PCWBi-B heat pumps are equipped with Mitsubishi compressors. In addition, the method of ejecting air from the fan is carried out sideways and from the bottom, contributes to reducing noise during operation. Due to the above design differences, PCWBi-B heat pumps are one of the quietest devices of this type on the market.

PCWBi-C heat pumps, on the other hand, are equipped with Gree compressors and have a standard air ejection method.

• The maximum salinity of pool water is 10g NaCl/litre of water.

*Data according to EN 14511 for operating point A27/W26 (air at input 27°C, water at output 26°C).

**Data for air at the entrance 20°C and water at the exit 26°C, pool depth assumed: 1,2 m.

Specifications
