Baseino šilumos siurblys HOT SPOT 5 kW, iki 20 m³

Trumpai apie prekę

Prekė: Baseino šilumos siurblys HOT SPOT 5 kW, iki 20 m³. Kategorija: Siurbliai ir filtrai.

• Gamintojas: Toshiba
• Modelis: HOT SPOT 5 kW

The subject of the auction is:

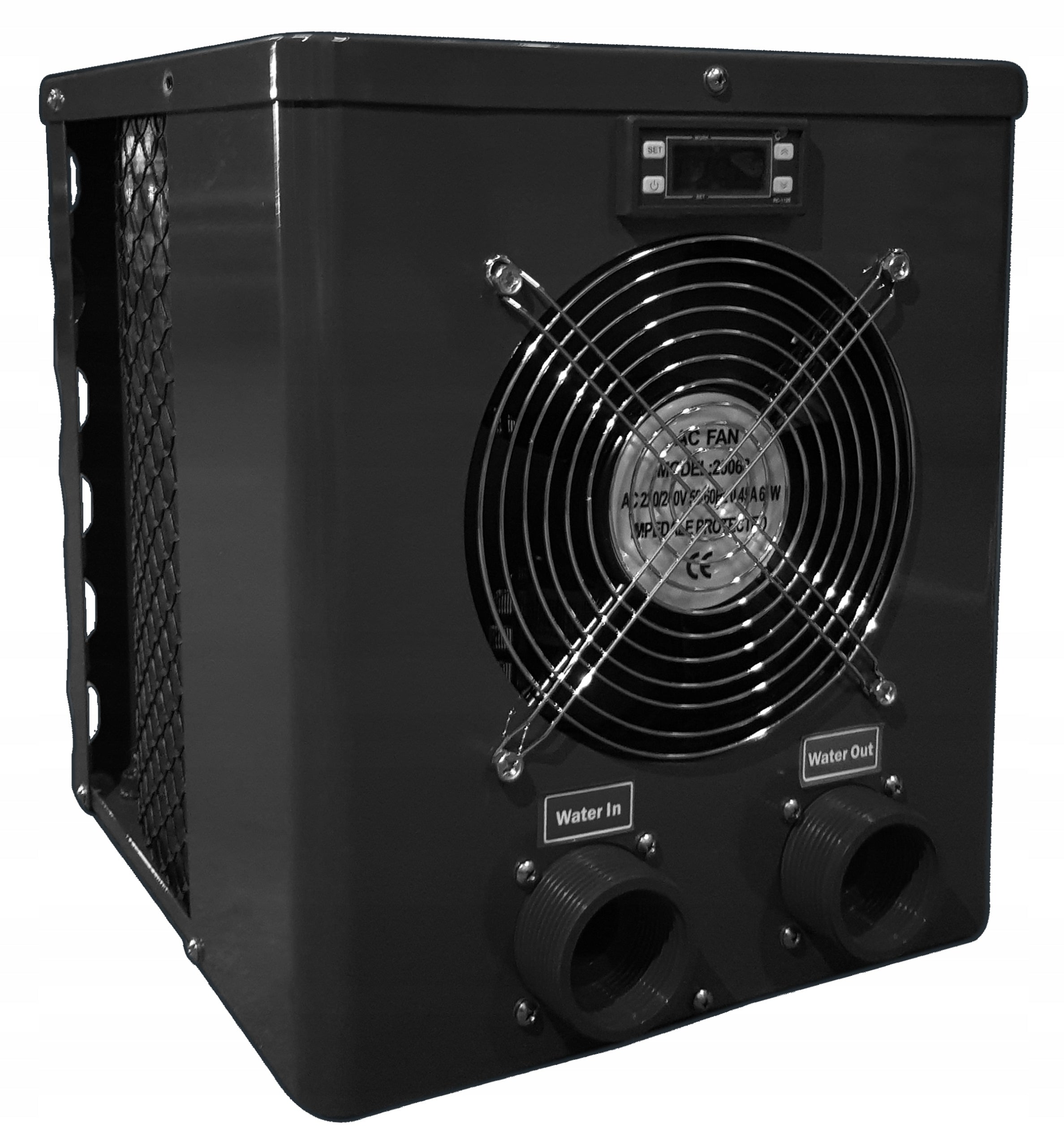

HEAT PUMP MODEL HOT SPOT 5kW

FOR POOLS UP TO 20 m3 with cover

Reductions for hose 32/38 mm and worm bands FREE!!!

Other models of heat pumps at other auctions.

Characteristics of the offered heat pump:

Heating power 4,5 kW A27/W27

COP 4,4

Heating power 3,4 kW A15/W26

COP 3,58

Cooling agent R32

Optimal flow rate 2,4 m3/h

Power consumption 1,02 kW

Compressor brand Toshiba

Power supply 230/50 V/Hz

Noise level (1m) 53 dB (A)

Noise level (10m) 33 dB (A)

Water connection to hose 32/38mm

control on LCD

Titanium exchanger resistant to chlorine and salt used in electrolysis (up to 0,4% )

Heating functions

Net dimensions 44 x 37,5 x 48 cm

By pass required

Net weight 28 kg

The heat pump must be installed outside.

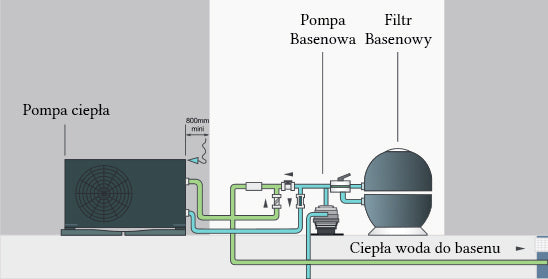

Principle of operation of the heat pump

Pumpsheats use free ambient heat energy.

This energy is transferred to the pool water.

The pool pump directs water through the pump exchanger

warm and warms the pool.

The heat pump includes a fan that draws in air from the outside and directs it above the surface of the energy collector.

The refrigerant absorbs heat from the air, which is subsequently evaporated. Warm gas flows through the compressor,

where it is compressed until a very hot gas is formed,

which then passes through the heat exchanger.

Here heat exchange takes place - warm gas gives away

warmth of cooler water in the pool flowing through the exchanger.

The pool water gets warmer and the hot gas gets

cooling, flows through the capacitor exchanger, returns to the liquid state and after passing the expansion valve,

The whole activity starts again.
