Baseino šilumos siurblys NEO-14, 13,6 kW, iki 60 m³, Full Inverter, WiFi

Trumpai apie prekę

Prekė: Baseino šilumos siurblys NEO-14, 13,6 kW, iki 60 m³, Full Inverter, WiFi. Kategorija: Siurbliai ir filtrai.

• Gamintojas: no brand
• Modelis: NEO- 14 13,6kW

The subject of the auction is:

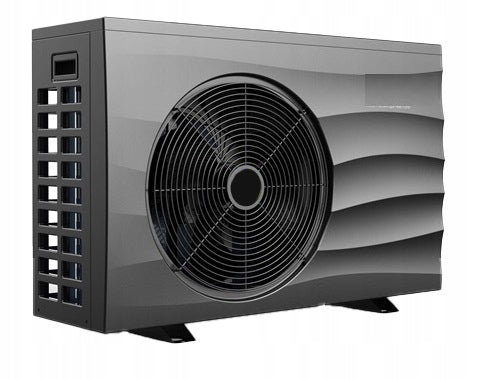

HEAT PUMP model NEO-14 Full Inverter

o power heating 13,60 kW

AUTOMATIC DEFROST

FOR POOLS UP TO 30-60 m3 with cover

Includes WiFi module, anti-vibration pads and winter cover.

If you need professional advice in choosing the right heat pump for your pool....

Other models of heat pumps at other auctions.

Characteristics of the offered heat pump:

Heating power 3,23-13,60 kW A26/W26

Power consumption 0,25-2,45 kW

COP 5,54-13,16

AUTOMATIC DEFROST

Heating power 2,72-10,12 kW A15/W26

COP 4,41-6,84

Power consumption 0,40-2,29 kW

Cooling agent R32

Black ABS housing

Optimal flow rate 5-7 m3/h

Toshiba compressor

Power supply 230/50 V/Hz

Noise level (1m) 36,2-44,3 dB (A)

Water connection 50mm

control on LCD

flow sensor

quiet operation

Titanium exchanger resistant to chlorine and salt used in the electrolysis process ( up to 4% )

Net dimensions 862 x 365 x 660 mm

Net weight 40 kg

The heat pump must be installed outside.

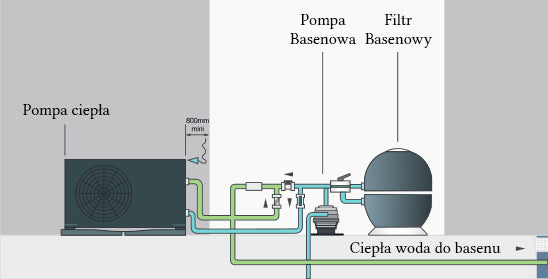

Principle of operation of heat pump

Pumpsheat uses free ambient heat energy.

This energy is transferred to the pool water.

The pool pump directs water through the pump exchanger

warm and warm swimming pool.

The heat pump includes a fan that draws in air from the outside and directs it above the surface of the energy collector.

The refrigerant absorbs heat from the air, which is subsequently evaporated. Warm gas flows through the compressor,

where it is compressed until a very hot gas is formed,

which then passes through the heat exchanger.

Here heat exchange takes place - warm gas gives away

warmth of cooler water in the pool flowing through the exchanger.

The pool water gets warmer and the hot gas gets

cooling, flows through the capacitor exchanger, returns to the liquid state and after passing the expansion valve,

The whole activity starts again.
