Baseino šilumos siurblys Pixel 3,87 kW, iki 20 m³, su automatiniu atitirpinimu

Trumpai apie prekę

Prekė: Baseino šilumos siurblys Pixel 3,87 kW, iki 20 m³, su automatiniu atitirpinimu. Kategorija: Siurbliai ir filtrai.

• Gamintojas: no brand
• Modelis: Mini HP 4.0

The subject of the auction is:

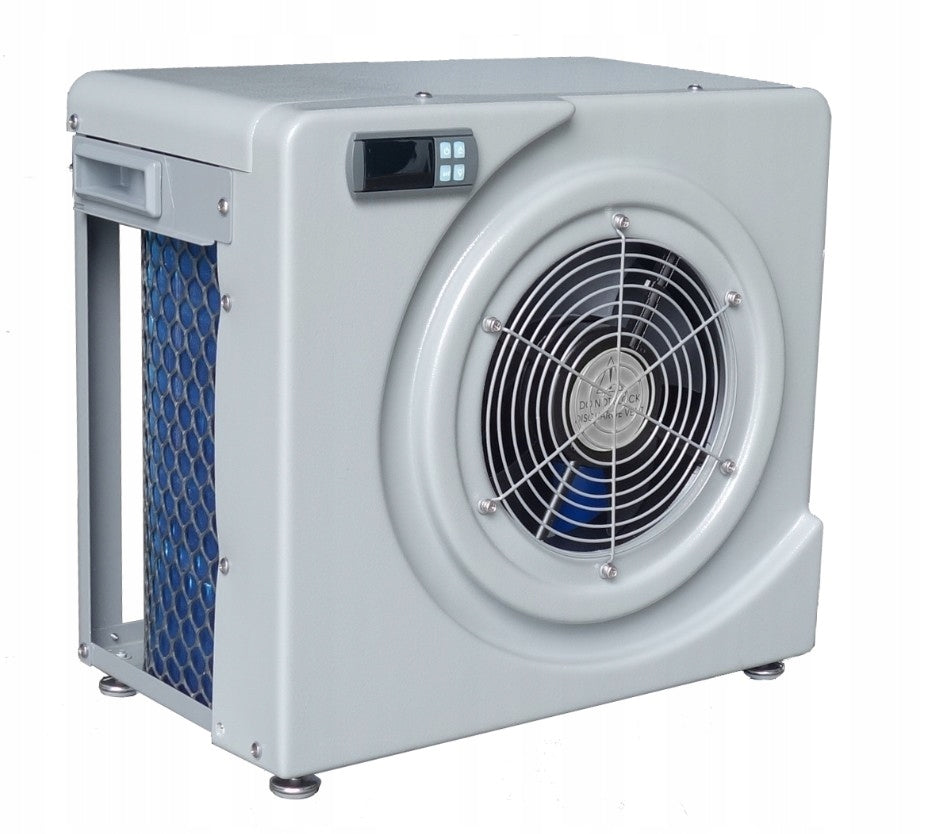

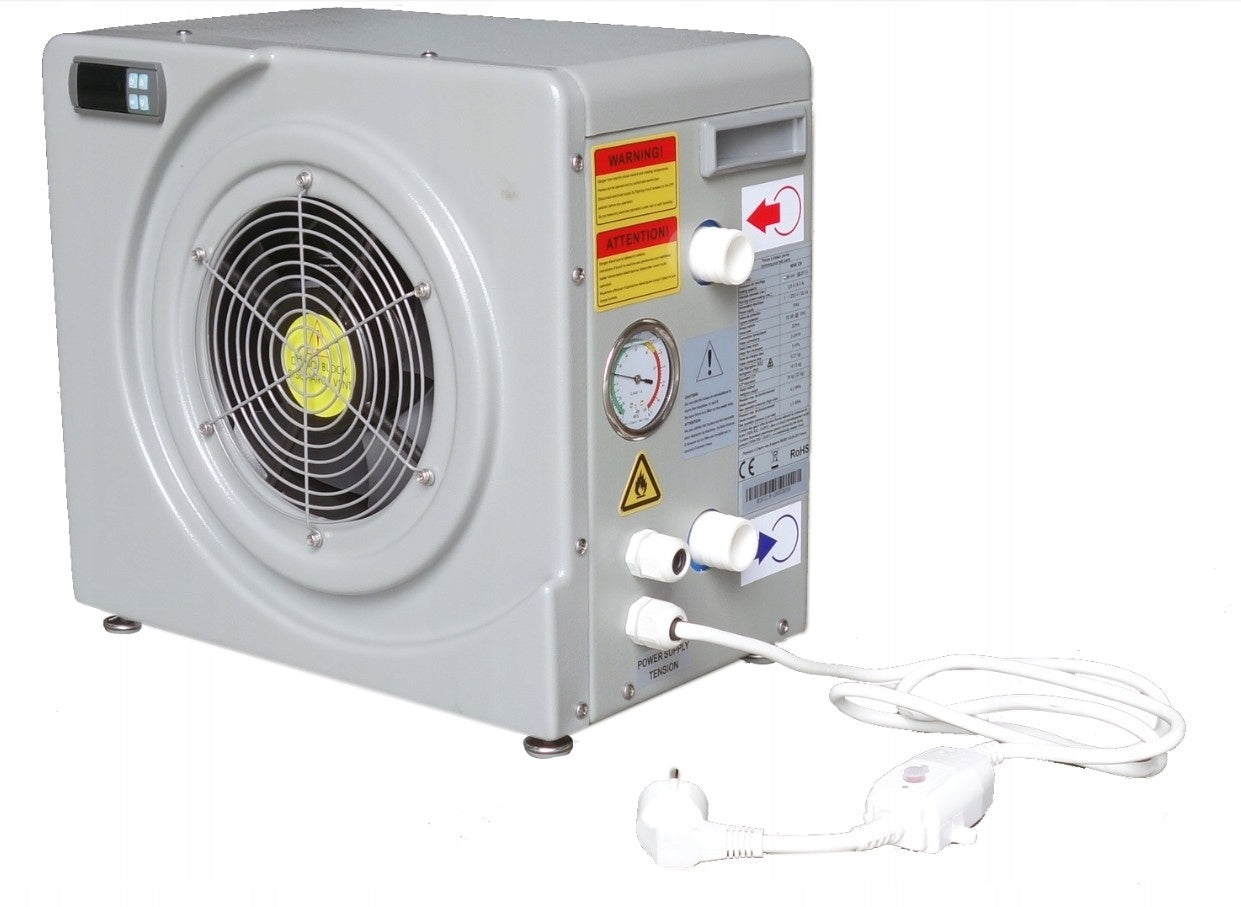

Mini HP 4.0 HEAT PUMP with 3,87 kW

FOR POOLS UP TO 20 m3 with cover

AUTOMATIC DEFROST

Reductions for 32mm hose and worm bands for hose FREE!!!

Other models of heat pumps at other auctions.

Characteristics of the offered heat pump:

As one of the few mini heat pumps it has

AUTOMATIC DEFROST

Working temperature 8°C~38°C

Heating power 3,87 kW A28/W28

COP 3,99

Power consumption 970W

Heating power 3,1 kW A15/W28

COP 3,69

Cooling agent R32

Optimal flow rate 2-4 m3/h

Power supply 230/50 V/Hz

Noise level (10m) 33 dB (A)

Water connection to hose 32mm

control on LCD

Titanium exchanger resistant to chlorine and salt used in electrolysis (up to 0,04% )

Functions heating

By pass required - available in our other auctions.

Net weight 22 kg

Heat pump sent on pallet.

The heat pump must be installed outside.

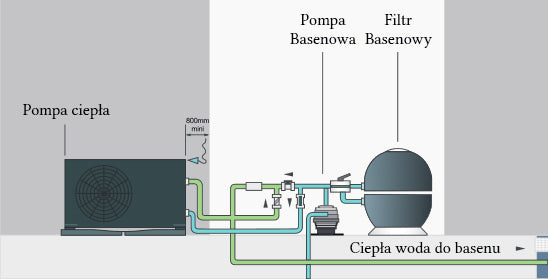

Principle of operation of heat pump

Pumpsheat uses free ambient heat energy.

This energy is transferred to the pool water.

The pool pump directs water through the pump exchanger

warm and warm swimming pool.

The heat pump includes a fan that draws in air from the outside and directs it above the surface of the energy collector.

The refrigerant absorbs heat from the air, which is subsequently evaporated. Warm gas flows through the compressor,

where it is compressed until a very hot gas is formed,

which then passes through the heat exchanger.

Here heat exchange takes place - warm gas gives away

warmth of cooler water in the pool flowing through the exchanger.

The pool water gets warmer and the hot gas gets

cooling, flows through the capacitor exchanger, returns to the liquid state and after passing the expansion valve,

The whole activity starts again.

Specifications
