Baseino šilumos siurblys Steinbach 8,5 kW, iki 45 m³

Trumpai apie prekę

Prekė: Baseino šilumos siurblys Steinbach 8,5 kW, iki 45 m³. Kategorija: Siurbliai ir filtrai.

• Gamintojas: Steinbach
• Modelis: 049207

The subject of the auction is:

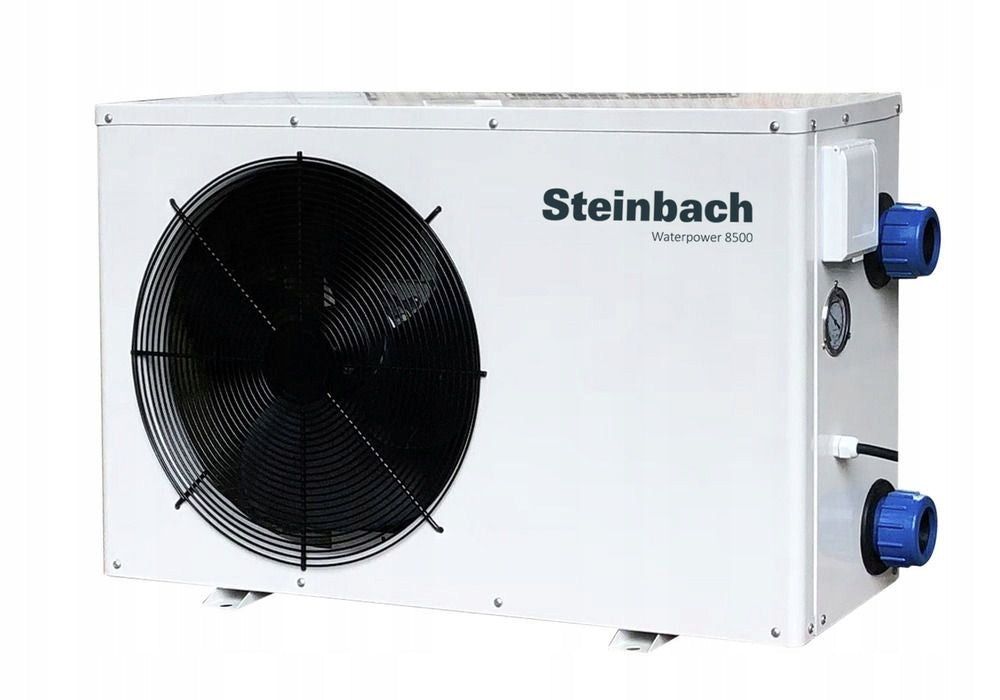

HEAT PUMP Steinbach Model Waterpower 8500

heating power 8,5 kW

AUTOMATIC DEFROST

FOR POOLS WITH A CAPACITY OF MAX. UP TO 45 m3 with cover

Reductions per hose 38 mm FREE!!!

If you need professional advice in choosing the right heat pump for your pool...

Other models of heat pumps at other auctions.

Characteristics of the offered heat pump:

Heating power 8,5 kW

AUTOMATIC DEFROST

COP 6,0

Cooling power 6,0 kW

Cooling agent R32

Optimal flow rate 6,0 m3/h

Power consumption 1,45 kW

Air flow 2000 m3/h

Compressor brand Toshiba

Power supply 230/50 V/Hz

Noise level 50 dB (A)

Water connection 50mm

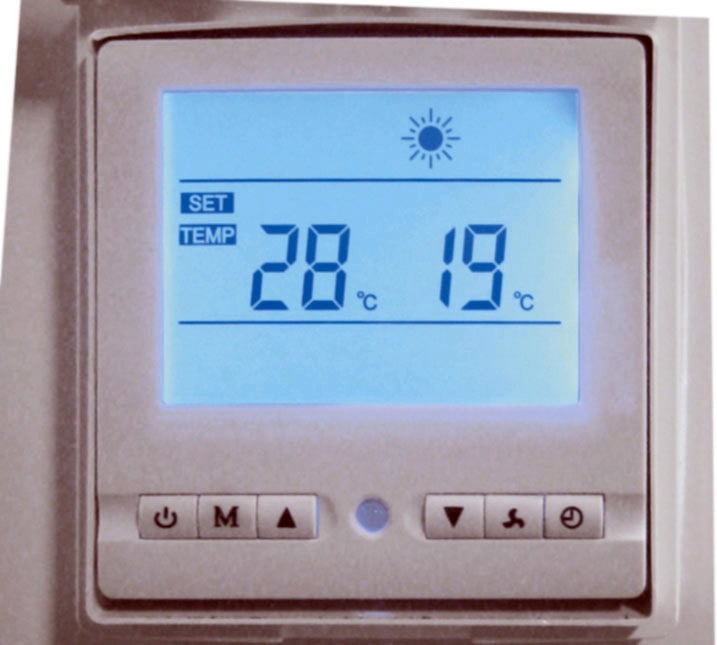

control on LCD

flow sensor

quiet operation

Time programmer (TIMER)

Titanium exchanger resistant to chlorine and salt used in electrolysis (up to 0,4% )

Heating / cooling functions

Net dimensions 84,5 x 54 x 28,5 cm

Net weight 47 kg

The heat pump must be installed outside.

Principle of operation of heat pump

Pumpsheat uses free ambient heat energy.

This energy is transferred to the pool water.

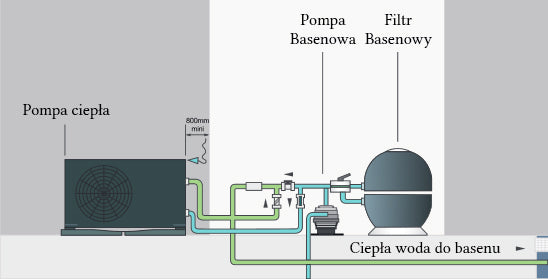

The pool pump directs water through the pump exchanger

warm and warm swimming pool.

The heat pump includes a fan that draws in air from the outside and directs it above the surface of the energy collector.

The refrigerant absorbs heat from the air, which is subsequently evaporated. Warm gas flows through the compressor,

where it is compressed until a very hot gas is formed,

which then passes through the heat exchanger.

Here heat exchange takes place - warm gas gives away

warmth of cooler water in the pool flowing through the exchanger.

The pool water gets warmer and the hot gas gets

cooling, flows through the capacitor exchanger, returns to the liquid state and after passing the expansion valve,

The whole activity starts again.
