Baseino siurblys su smėlio filtru, 9600 l/val.

Trumpai apie prekę

Prekė: Baseino siurblys su smėlio filtru, 9600 l/val.. Kategorija: Siurbliai ir filtrai.

• Gamintojas: Monzana
• Modelis: 106833

The SF96K sand filter system is equipped with rich accessories and leaves nothing to be desired. Top-mounted 7-way valve provides excellent service.

In addition, the SF96K sand filter system is suitable for saltwater pools

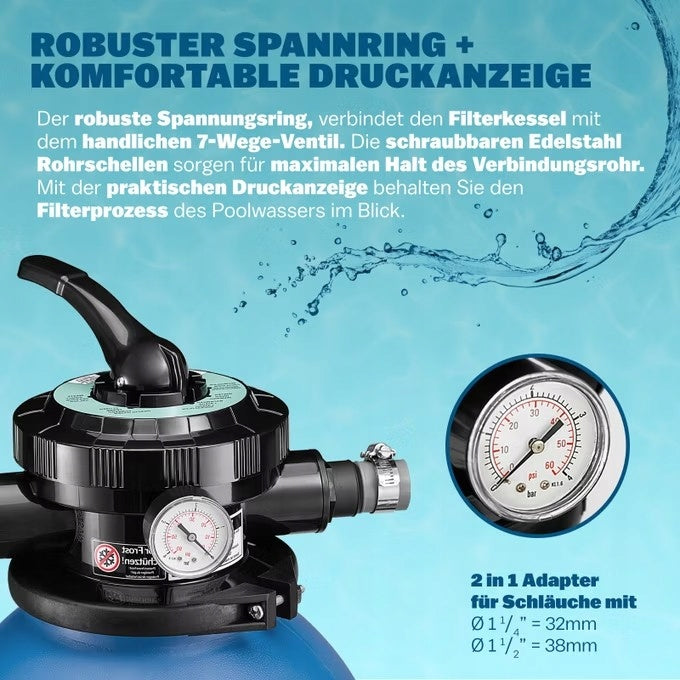

7-Way Top Mounted Valve:

1. filtration - purifies water - setting for normal operation.

2. Backwashing - filter cleaning

3. rinsing - causes residual cleaning and compaction of sand

4. circulation

5. outflow

6. winter - position recommended in winter

7. closed

Large tank capacity:

Our sand filter system has a large tank capacity of about 25 liters.

Up to 20 kg of filter sand can be poured into the filter tank.

Suitable for all commonly used types of sand filters:

The sand filter system can be filled with the most popular types of sand filters:

• Filter sand (quartz sand)
• Filter balls
• Filter glass

Advantages of the product:

• Particularly high flow rate of 9 600 l/h
• Top-Mount Four-Way Valve
• Base for a stable and secure position
• Large tank capacity: 25 liters
• Detailed instruction manual
• With convenient blood pressure monitor (manometer)
• Efficient pump
• Integrated pre-filter
• Durable pump housing
• Drain valve on pump body and pre-filter
• Certificate TÜV Rheinland - safety checked by GS (see product group: MZPP => model number: MZPP15)
• IPX5 - protection against jet water

Attention! | Flammable Substance Warning| Household Use Only| Danger of Crushing. Do not touch moving parts.

Technical data:

• max. flow rate: 9 600 l/h
• Tank capacity: 25 liters
• Suitable for filter sand weighing up to 20 kg
• Pump height: 9 m
• Max. Power: 450 W
• Degree of protection: IPX5
• Power cable: length 190 cm
• 2-in-1 adapter: Ø 1¼" = 32 mm | Ø 1½" = 38 mm
• Color: Black, Blue

NOTE:

It is recommended to dismantle the system in winter, especially in case of risk of frost!

The pipe connecting the tank to the pump is located in the boiler pipe of the sand filter system. Before starting the device, it should be removed and connected in the place provided for this.

After filling the sand filter system, remove the filling aid.

If you use filter balls in our filtration system, you must also not perform backwashing!

If you use pool hoses with a 1½" connection, you can cut our adapter to the correct hose size to ensure maximum flow.

We recommend that you never fill the tank fully to allow adequate air circulation.

Scope of delivery:

• Sand filter system with pump and accessories
• Pre-filter
• User manual

ATTENTION! Sand is not included in the scope of delivery!
