Baseino smėlio filtras, 400 W, 10 000 l/val.

Trumpai apie prekę

Prekė: Baseino smėlio filtras, 400 W, 10 000 l/val.. Kategorija: Siurbliai ir filtrai.

• Gamintojas: Powermat
• Modelis: PM1351

Model: PM-PPDB-400J | sand and ball filtration | integrated pressure gauge | strainer basket | easy operation

High-performance sand pump designed for larger garden pools. It provides effective filtration, strong flow and comfortable operation throughout the season. The design with 7-function valve and easy-to-read manometer makes it easy to control pressure and service the installation.

▶ PERFORMANCE 10 000 l/h | ▶ POWER 400 W | ▶ 7-FUNCTION VALVE | ▶ MANOMETER | ▶ STRAINER BASKET | ▶ SAND 0,5–1,2 mm / BALLS | ▶ IPX5

When filtration in the pool weakens, it can be the fault of the soiled deposit or improper mode of operation. This pump solves both problems — the manometer shows the flushing moment, and the 7 modes allow you to react right away. Stable flow 10 000 l/h keeps the water in good condition.

The PM-PPDB-400J is chosen by people expecting stable filtration and simple operation in larger garden pools. Users appreciate its reliability, readable manometer and efficiency 10 000 l/h.

🔷 Proven effectiveness – strong flow keeps water in good condition throughout the season.

🔷 Refined design – 7-function valve and pressure gauge facilitate ongoing filtration control.

🔷 Safety and durability – class IPX5 and strainer basket protect the pump from greater contamination.

🔷 Flexible filter medium – works with sand 0,5 – 1,2 mm (13 kg) and filter balls (400 g), which allows you to easily adjust the filtration method to the needs of the pool.

It is a choice for people who want certain equipment, operating stably and without unnecessary complications in the daily operation of the pool.

The PM-PPDB-400J is designed for stable filtration throughout the season, especially in larger garden pools. The design based on proven solutions allows you to maintain clean water without complicated operation.

• • Performance 10 000 l/h – ensures effective circulation and quick water purification even in large swimming pools.
• • 7-function valve – allows filtering, rinsing, circulation, drainage, recirculation, closure and winter mode without additional devices.
• • Integrated pressure gauge – allows you to control the pressure and easily determine the moment of rinsing the bed.
• • Support for two types of medium – quartz sand 0,5 – 1,2 mm (13 kg) or filter balls (400 g).
• • IPX5 tightness class – safe operation in garden conditions, splash and moisture resistance.
• • Strainer basket – protects the pump and filter bed from larger contaminants.
• • Easy installation – can be mounted above or below the water mirror, all elements are included.
• • Low maintenance – intuitive maintenance and quick cleaning thanks to easy access to components.

For users who expect reliable, predictable work and simple operation for many seasons – this is a solution that really facilitates the daily use of the pool.

The pump is equipped with a preliminary basket filter, which stops larger contaminants even before entering the system. Thanks to this, protects the rotor, improves operational stability and reduces the risk of failures resulting from minor dirt.

This is a solution that is often lacking in cheaper constructions – here you get a durable and more resistant pump for the whole season.

The PM-PPDB-400J pump is designed for use in changing garden conditions. Its design ensures stable operation even when the installation requires a stronger flow or longer filtration time.

• 🔹 Smooth operation under variable load – the device maintains constant circulation, so that the water remains clear at every stage of use of the pool.
• 🔹 High efficiency for complex installations — 10 000 l/h flow allows you to handle both standard and more demanding filtration systems.
• 🔹 Stability throughout the season – the design minimizes efficiency drops, which means less interference and quieter system operation.
• 🔹 Energy-efficient characteristics – efficiency is achieved without excessive energy consumption, which helps maintain lower operating costs.

It is a solution for people who want their pool to work confidently, predictably and without having to constantly control the pump operation.

The box comes with everything you need to run filtration without any additional purchases. Installation is intuitive and all components are adjusted to work immediately when plugged in.

• 🔵 Full set of accessories – hose, fittings, bands, gaskets and mounting hardware.
• 🔵 Quick first start – all components fit together without combination.
• 🔵 Thoughtful configuration – the pump and tank are prepared to start filtration immediately after installation.

The kit is perfect for those who just want to connect their device and get started, without looking for additional parts.

• Power supply: 230 V / 50 Hz
• Maximum power: 400 W
• Maximum capacity: 10000 l/h
• Maximum lifting height of liquids: 10 m (1 bar)
• Backwash pressure: 0,65 – 0,7 bar
• Pressure connection: 1-1/2”
• Suction connection: 1-1/2”
• Connector for water: 38 / 32 mm
• Sand type: 0,5 – 1,2 mm quartz sand
• Tank capacity: 13 L
• Maximum filter cylinder pressure: 2 bar
• Maximum sand filling capacity: 13 kg
• Maximum number of filter balls: 400 g
• Effective filter surface: 0,07 m²
• Protection class: IPX5
• Minimum water temperature: 5°C
• Maximum water temperature: 40°C
• Sound power level LwA: 80 dB(A) (K=3 dB(A))

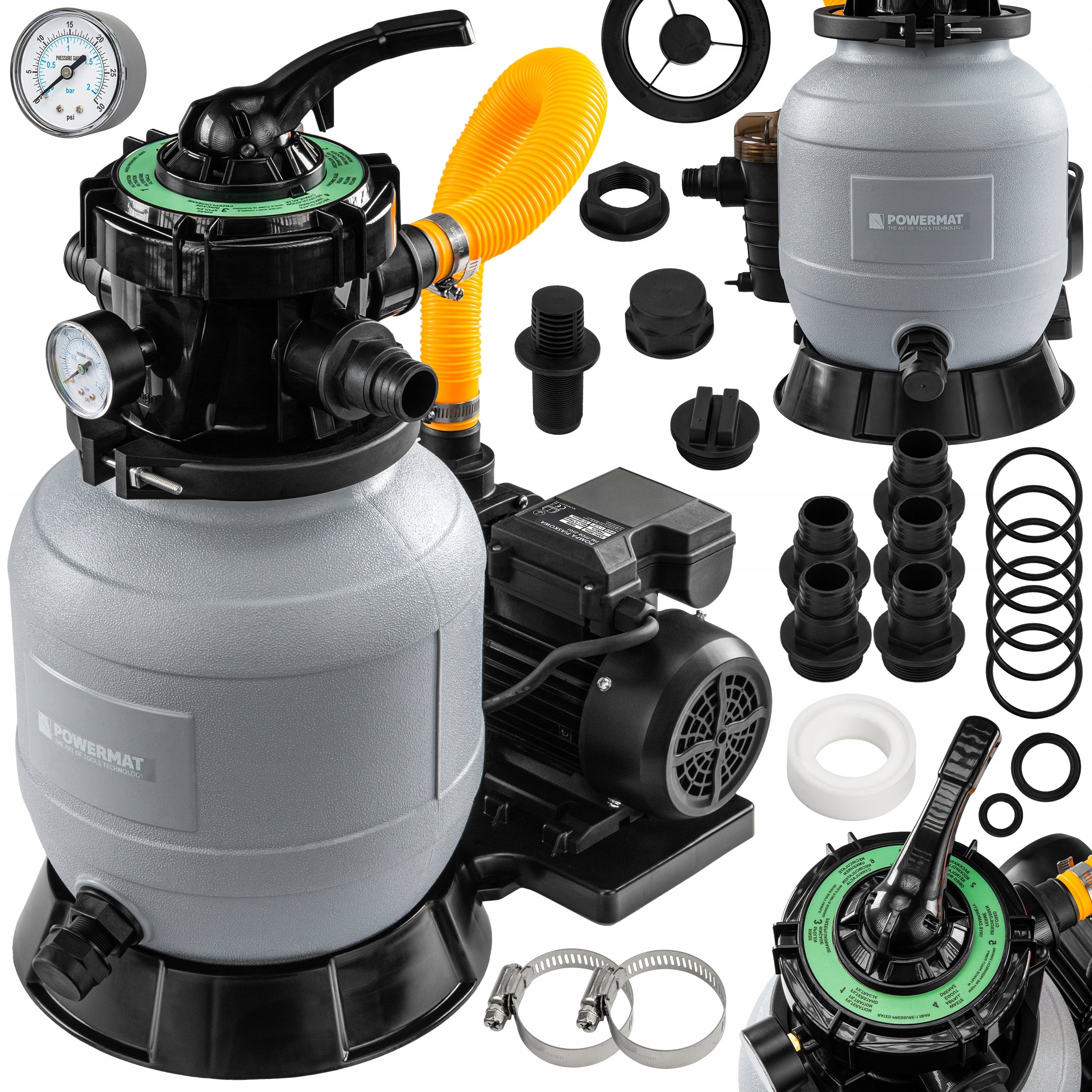

• Sand pump Powermat PM-PPDB-400J
• Pressure gauge
• Hose
• Connection connector – 5 pcs.
• Gasket – 8 pcs.
• Clamp band – 2 pcs.
• Sealing tape
• Cork
• Sand Refill Adapter
• User manual
• Original packaging

The 400 W Powermat sand pump provides a stable flow rate of up to 10 000 l/h, ensuring that filtration works safely and evenly even in large pools. Constant performance translates into clean water, less interference and convenient operation of the entire system throughout the season.

The pump supports two types of filter materials: quartz sand with a fraction of 0,5 to 1,2 mm (up to 13 kg) and filter balls (up to 400 g).

The user can adjust the medium to their own preferences and working conditions. Both solutions effectively eliminate pollution, ensuring high water quality in the pool.

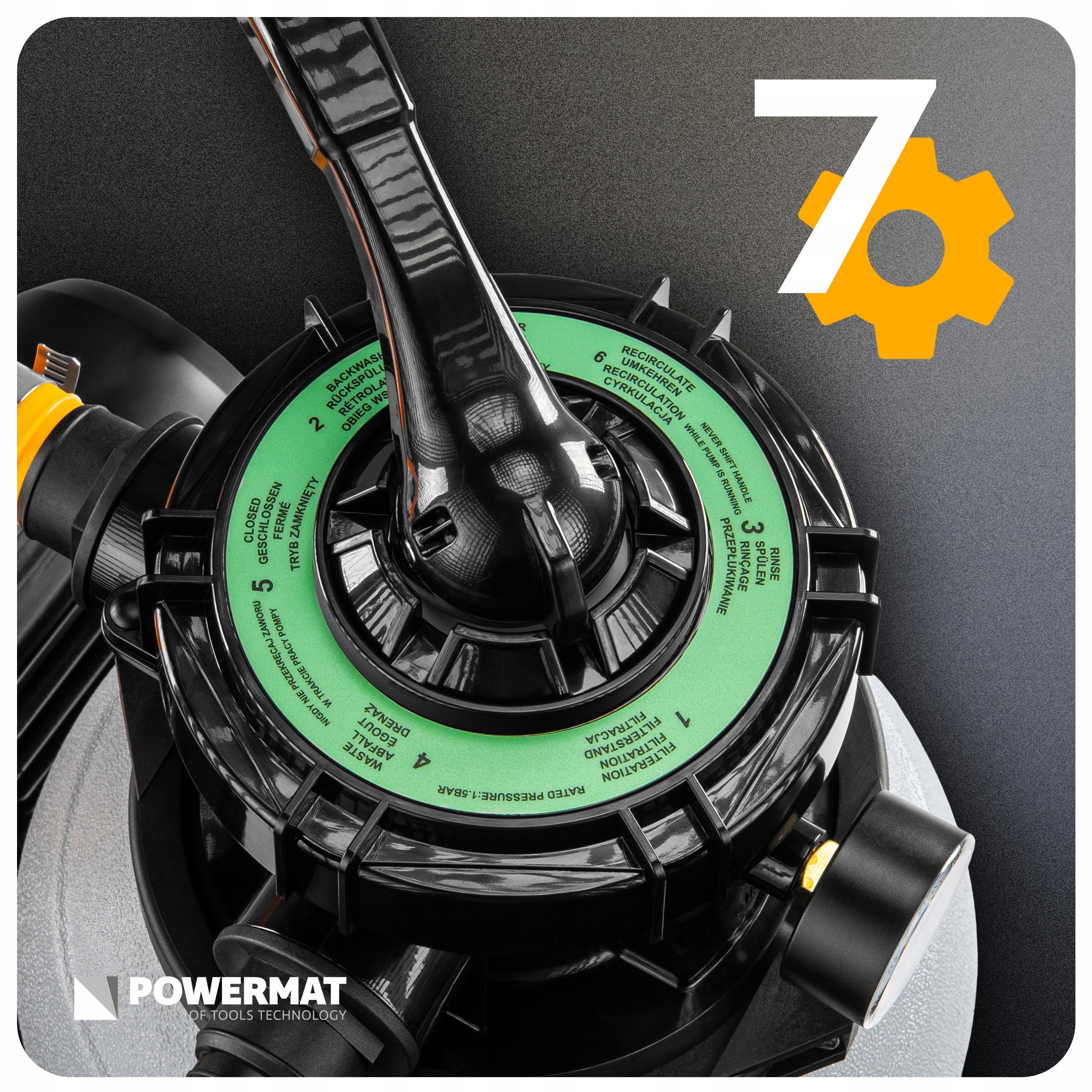

The 7-position valve offers different operating modes, thanks to which it is possible to quickly adjust the pump functions to the operational needs and seasonal conditions, without the need to interfere with the installation.

🟠 WORK MODES

• FILTER – the basic mode for constant filtration of water through the filter medium, ensuring its purity during everyday use.
• BACKWASH – a mode that reverses the flow of water in order to flush impurities from the filter bed and restore its patency.
• RINSE – activated after backwashing, removes debris from the system and prevents them from returning to the pool.
• WASTE – allows you to quickly empty the pool or remove excess water, bypassing the filter.
• CLOSED – closes the water flow throughout the system; used during maintenance work or interruptions in use.
• RECIRCULATE – allows water to circulate without filtering it, e.g. when dissolving chemicals.
• WINTER – winter mode protecting the valve and tank from freezing; activated after the end of the season and emptying the installation.

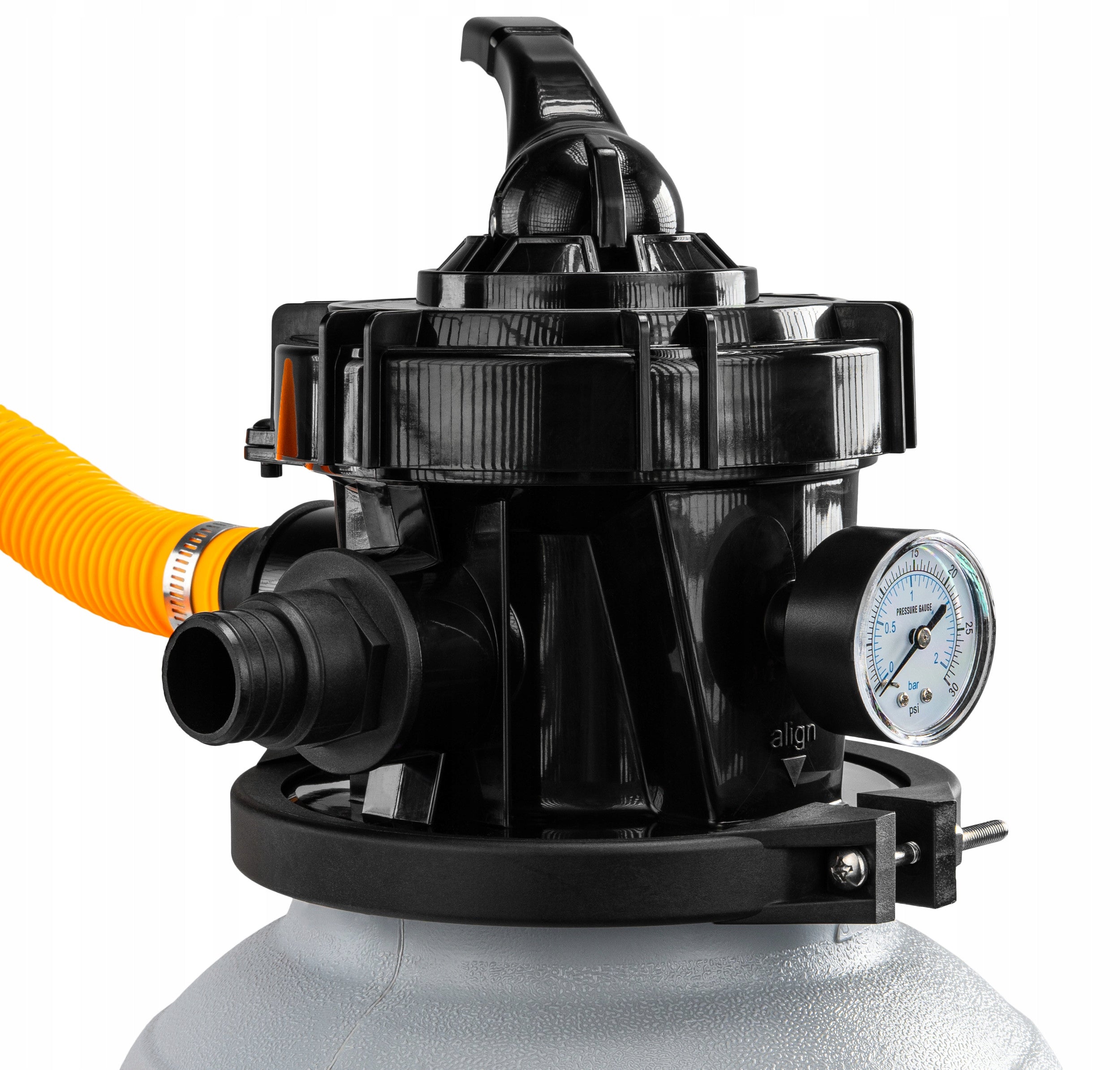

The pressure gauge allows precise control of pressure in the filtration system, which allows you to quickly assess the moment of rinsing the bed or the need for maintenance. The easy-to-read indicator makes it easy to work with the installation and helps maintain filtration in optimal conditions throughout the season.

The device can be mounted both above and below the water level, and all necessary mounting accessories are included.

Maintenance is simplified thanks to the intuitive disassembly of components and procedures such as backwashing, which allows you to keep the pump in excellent condition throughout the season.

The pump is designed to work with terrestrial and dug-in pools.

Its design and efficiency make it an excellent choice for medium and large garden tanks, ensuring effective circulation and purification of water in all conditions of use.

The preliminary filter basket eliminates larger dirt such as leaves or insects before the water reaches the main filter bed.

This protects the elements of the pump from damage and improves the efficiency of the entire water treatment process.

The pump achieves a efficiency of 10 000 litres per hour, which allows for effective filtration of even larger pools in a short time and ensures stable flow in demanding installations.

Thanks to optimal energy consumption and the possibility of long-term use of the same filter medium, the device guarantees low operating costs and effective cleaning throughout the season.

The pump housing has a tightness class of IPX5 and electrical protection, which ensures safe use according to the instructions. The design of the pump protects against dry operation, reducing the risk of damage.

WINTER mode protects the installation for the winter season, protecting it from freezing. The condition is emptying the pump and storing it in a dry place, which allows you to maintain efficiency for the next season.

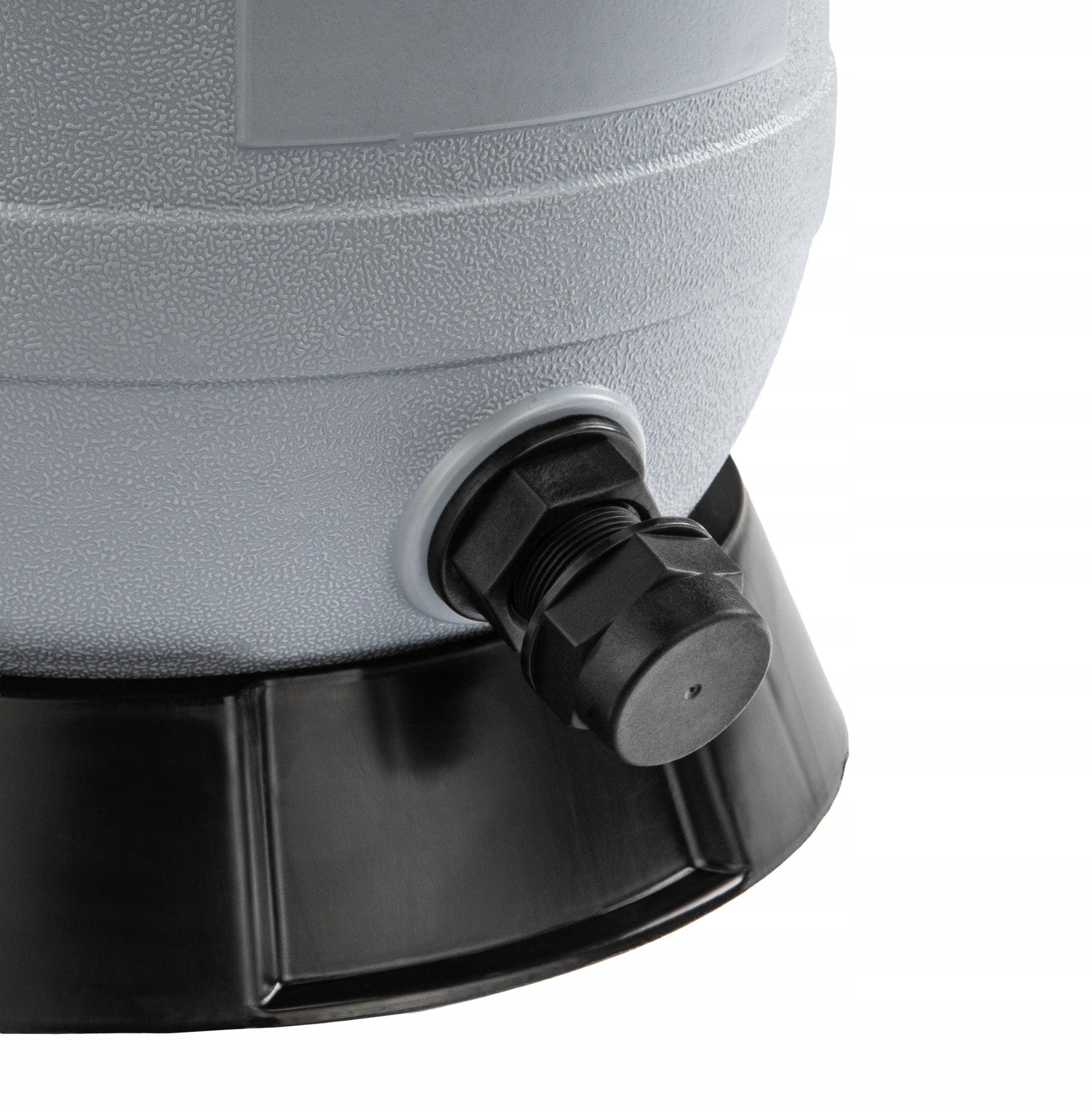

The tank is equipped with a convenient bottom drain, which makes it easy to quickly empty the set after filtration or before wintering. This makes maintenance faster and cleaner, without the need to tilt the entire pump.

You have at your disposal a pump with efficiency of 10 000 l/h, with a prefilter that protects the rotor, and a manometer indicating the moment of rinsing. With 7 modes of operation, you can easily respond to the needs of the pool. A simple, reliable choice for everyday use.

The PM-PPDB-250J pump can work with both quartz sand and filter balls. The choice depends on how often you want to perform the service and what quality of water you have in the pool. Below are simple steps to make your decision and installation easier.

• • Quartz sand (0,5 – 1,2 mm – up to 13 kg) – a classic filter medium: good pollution retention, not requiring frequent replacement, optimal choice for typical pool use.
• • Filter balls (up to 400 g) – lighter medium with lower flow resistance: faster filtration, easier installation and less pump load, especially with frequent use or smaller tanks.

STEP BY STEP — CARTRIDGE INSTALLATION

• 1) Open the tank and make sure the preliminary strainer basket is clean.
• 2) If you use sand, pour it slowly, evenly spreading in the tank up to the full recommended capacity (up to 13 kg).
• 3) If you use filter balls, pour them into the tank and gently spread them — enough for 400 g.
• 4) After filling, close the lid and connect the system according to the instructions.
• 5) Start the pump and check the pressure on the pressure gauge – stable indications indicate proper filtration.

In short: sand is a durable and proven solution, and filter balls are a convenient alternative with less resistance. Both media work effectively, so choose the one that suits your mode of operation.

❓ Can the pump handle a larger pool?

Yes - The capacity of 10 000 l/h enables effective filtration in medium and large pools, maintaining a stable flow throughout the season.

❓ Can I use sand and filter balls?

Yes — the pump works with quartz sand 0,5 – 1,2 mm (up to 13 kg) and filter balls (up to 400 g).

❓ Why is there a pressure gauge and how to use it?

Manometer shows an increase in pressure in the filter. As the indications grow, it is a sign that the deposit needs rinsing.

❓ What is a 7-position valve used for?

The valve allows you to work in 7 modes, m.in. filter, flush, circulation, trigger and winter mode.

❓ Does the pump have safety features?

Yes – the IPX5 enclosure and electrical protection ensure safe operation and protect the pump from dry running.

❓ Is the pump ready to use out of the box?

Yes — the kit includes all mounting hardware, hose, fittings, gaskets and sealing tape.

❓ How to take care of the pump before winter?

Use winter mode, empty the tank and store the pump in a dry place.

❓ Does the prefilter really do anything?

Yes — the built-in filter basket traps larger contaminants and protects the rotor.

Specifications
