Baseino vandens šilumokaitis, 50 kW, baseinams iki 38 m³, 1 1/2

Trumpai apie prekę

Prekė: Baseino vandens šilumokaitis, 50 kW, baseinams iki 38 m³, 1 1/2. Kategorija: Baseinų šildytuvai.

• Gamintojas: Promag
• Modelis: MPGMF-135
• Galia: 50000 W

Promag MPGMF-135

We invite you to familiarize yourself with our full offer Allegro account promagmarket_pl by clicking on the option 'all items of the seller'.

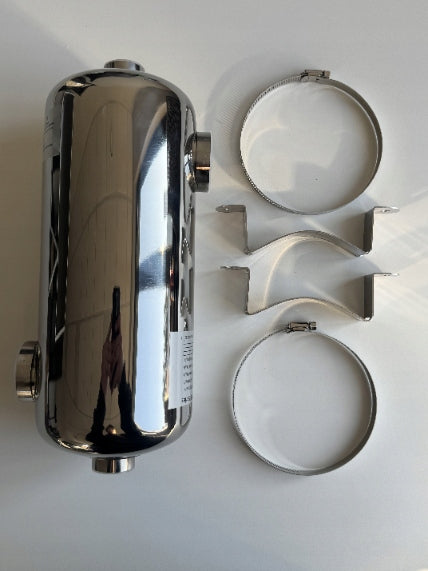

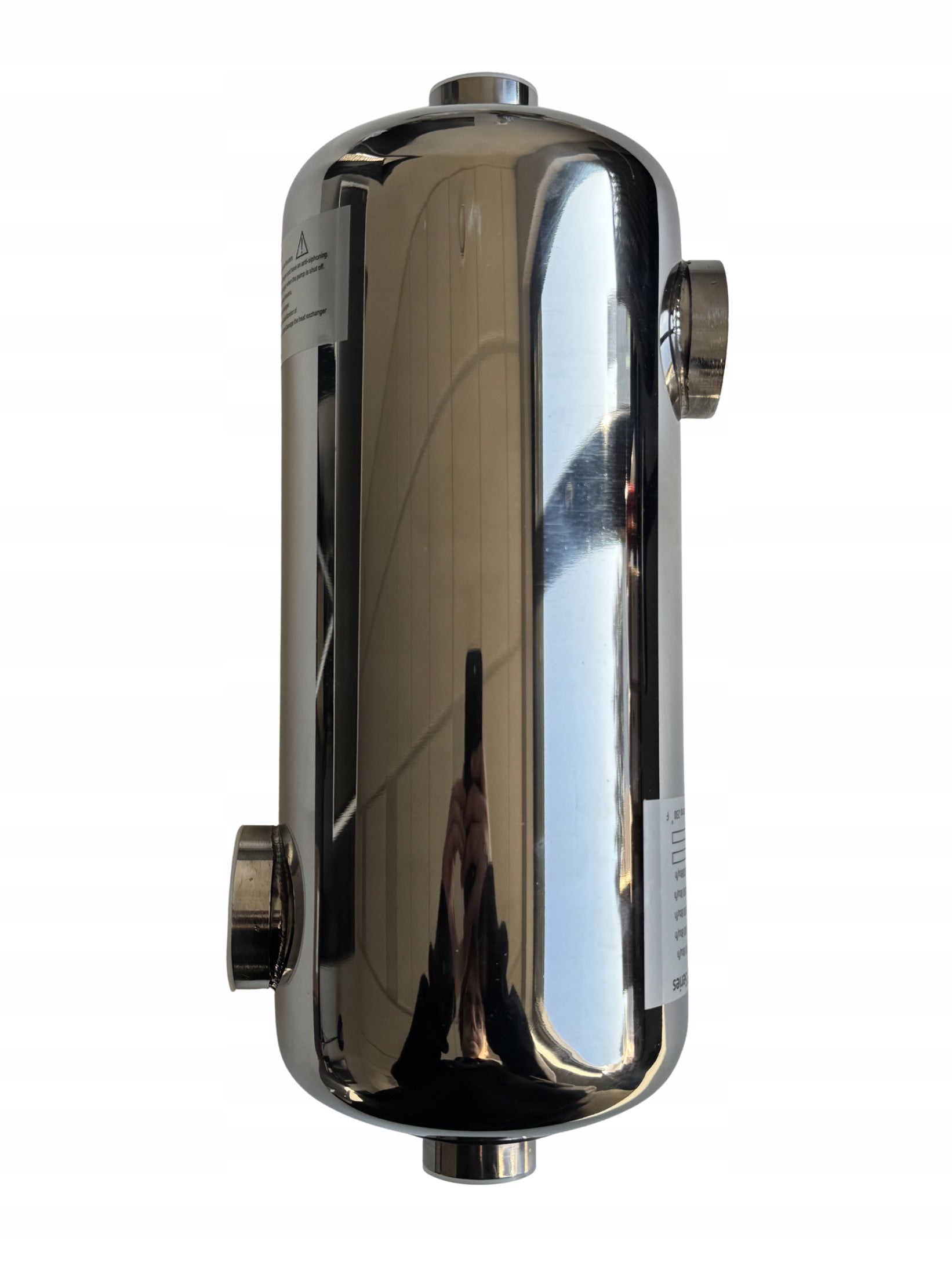

The MPGMF-135 pool heat exchanger is a professional 50 kW shell-tube device designed for efficient water heating in pools up to 38 m³. Made entirely of ANSI 316 stainless steel, it guarantees the highest resistance to corrosive pool chemistry and trouble-free operation for many seasons.

PROMAG products are synonymous with the highest quality, durability and reliability. Each element is created with attention to detail, using proven materials and modern solutions, which translates into safety of use and long service life. By choosing PROMAG, you focus on reliability confirmed by experience.

Key benefits

• Instant water heating: Thanks to the countercurrent design and corrugated tubes, heat transfer occurs much faster than in standard solutions.
• Self-cleaning technology: High flow turbulence inside the pipes prevents limescale and contamination, which minimizes maintenance needs.
• Resistance to pool chemistry: The use of ANSI 316 steel provides protection against pitting corrosion, which is crucial in chlorinated water installations.
• Low operating costs: The use of an existing CO boiler for heating the pool is many times cheaper than the use of electric heaters.
• Compact and durable construction: The small dimensions of the device allow for easy installation even in tight pool engine rooms.

Technical specification

Full product specification available in the 'Parameters' tab.

• Nominal power: 50 kW (135 kBTU/h) with a temperature difference of 60°C
• Material: Stainless steel ANSI 316
• Heating medium connections (F1, F4): 2x GW 1"
• Swimming pool water connections (F2, F3): 2x GW 1 1/2"
• Heat transfer area: 0,30 m²
• Working pressure / test pressure: 10 bar / 13 bar
• Flow (heating / heated): 25 l/min / 200 l/min
• Maximum pool volume: 38 m³

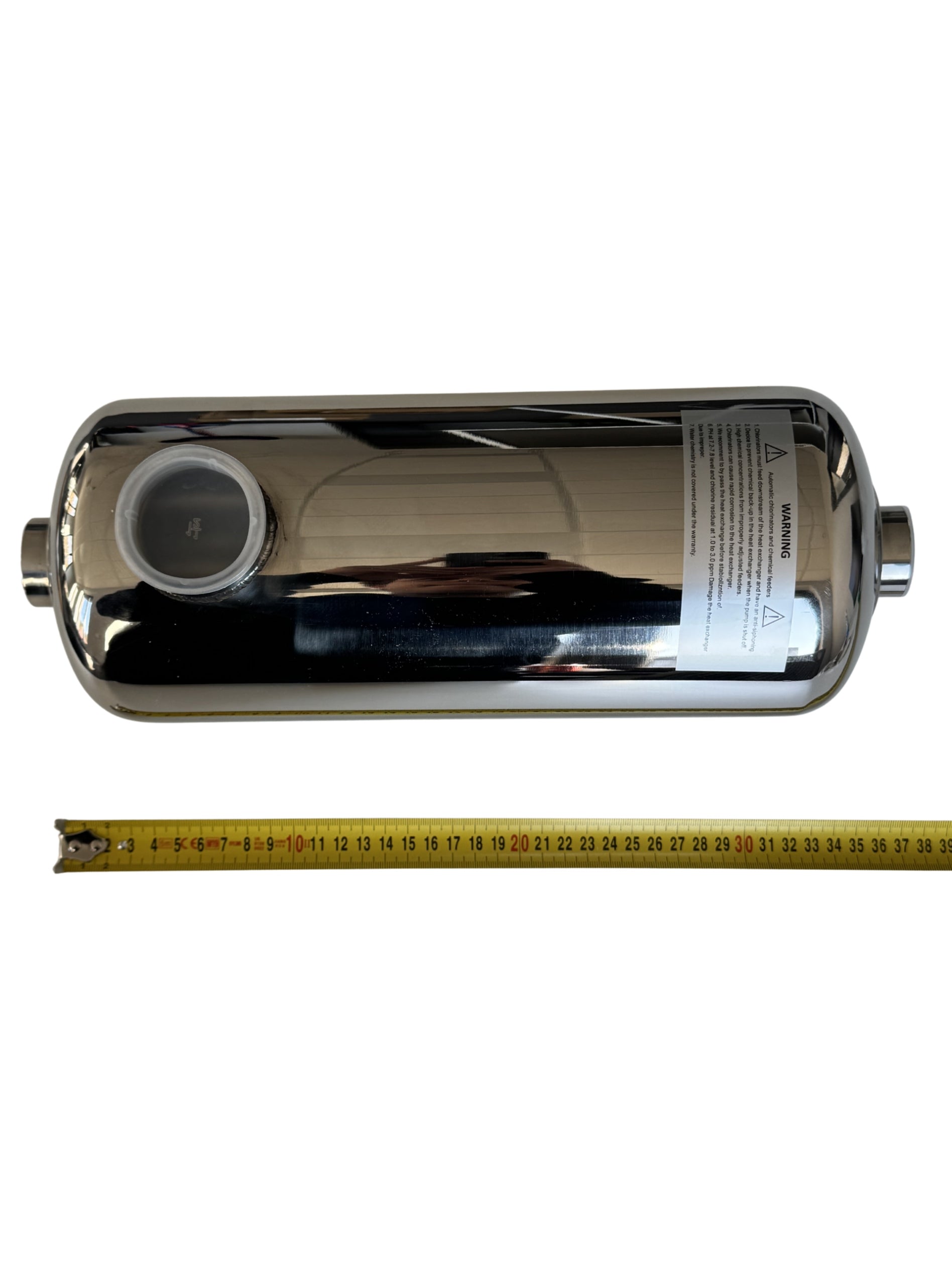

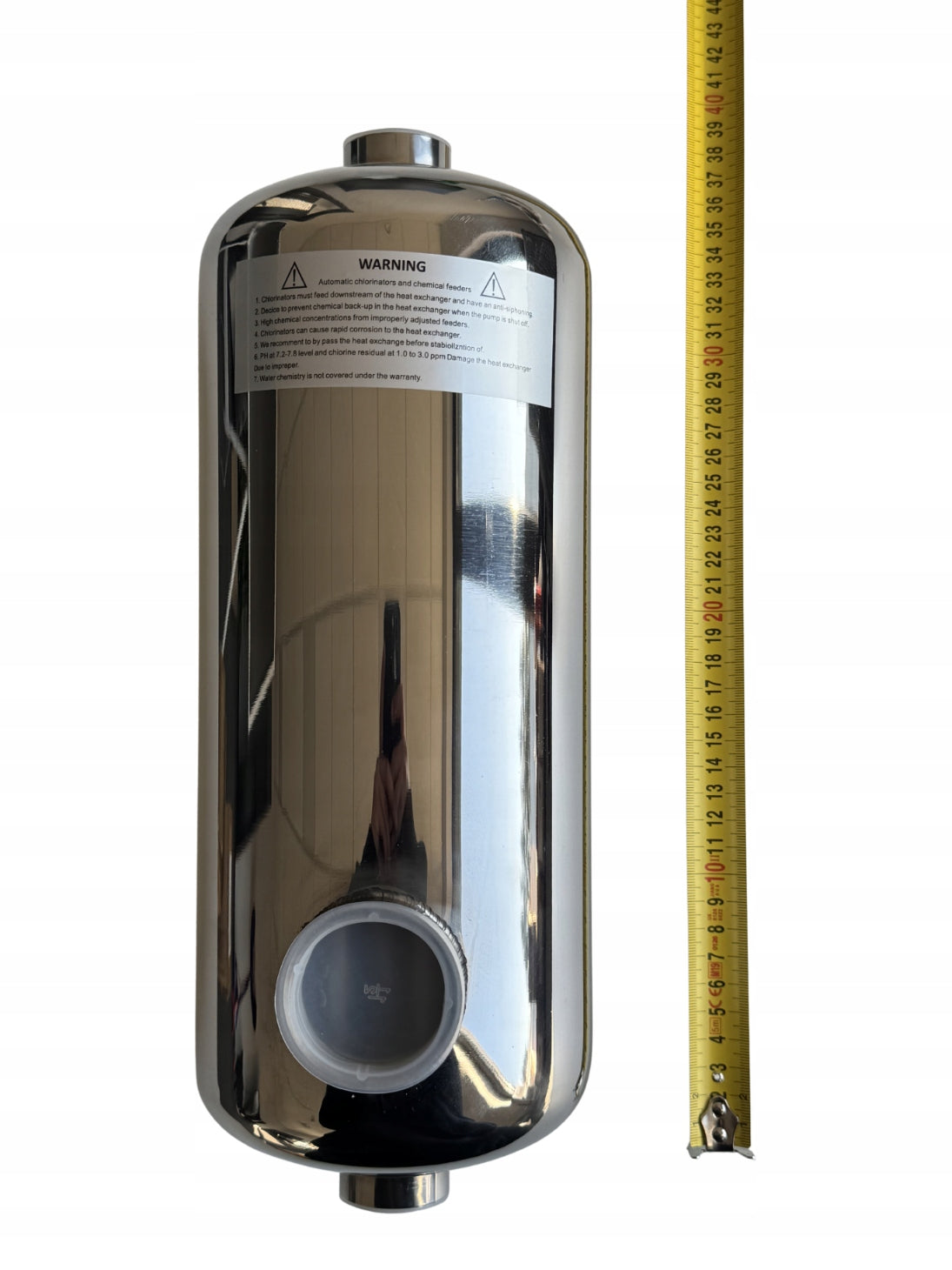

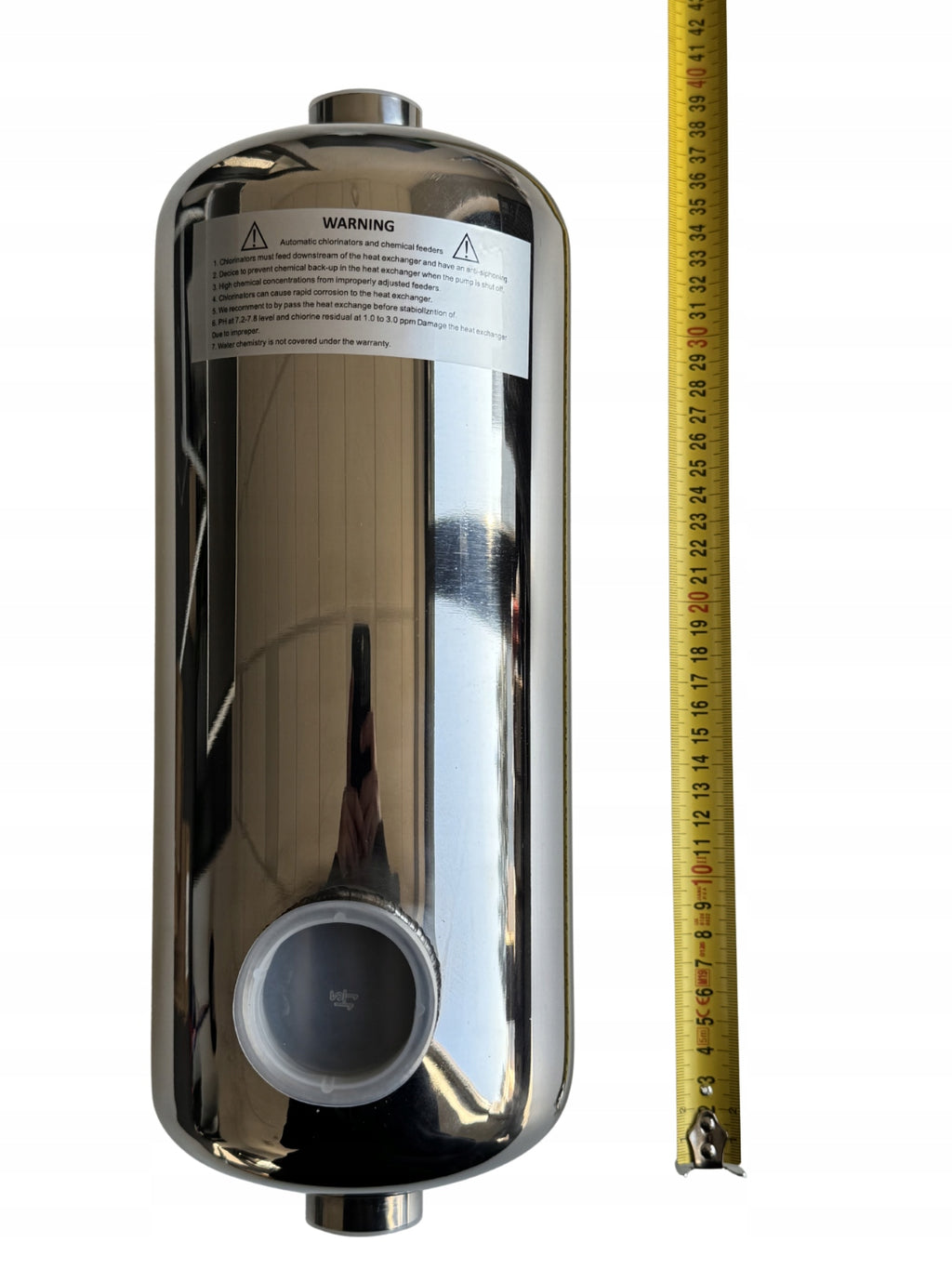

• Dimensions: 354 x 146 mm

Application

The MPGMF-135 exchanger is a versatile solution used in modern heating systems:

• Private and public swimming pools: Connecting pool basins to gas, solid-state boilers or heat pumps.
• SPA systems and hot tubs: Quick water preparation in tanks with smaller cubic capacity.
• Renewable Energy Sources: Cooperation with solar installations to manage surplus energy in summer.
• Defrosting systems: Heating driveways, ramps and parking lots using glycol as a medium.
• Industry: Cooling of engine oils and drive systems in difficult operating conditions.

How the product works

The MPGMF-135 exchanger operates in a countercurrent system, which means that the heating medium (e.g. Boiler water) and heated medium (pool water) flow in opposite directions. Heat is transmitted through the walls of specially corrugated tubes placed inside the jacket. Corrugation forces turbulent motion, which dramatically increases energy efficiency and reduces the formation of mineral deposits, ensuring consistent performance of the device.

Benefits for the user

• Durability for decades: ANSI 316 stainless steel has higher resistance to pitting corrosion, which is crucial in installations in contact with different water and chlorine quality.
• Thermal comfort: Allows you to use the pool almost all year round, regardless of the air temperature.
• Investment safety: The product is ISO-9001-2009 and PED 97/23/EC certified, which confirms compliance with strict quality standards.

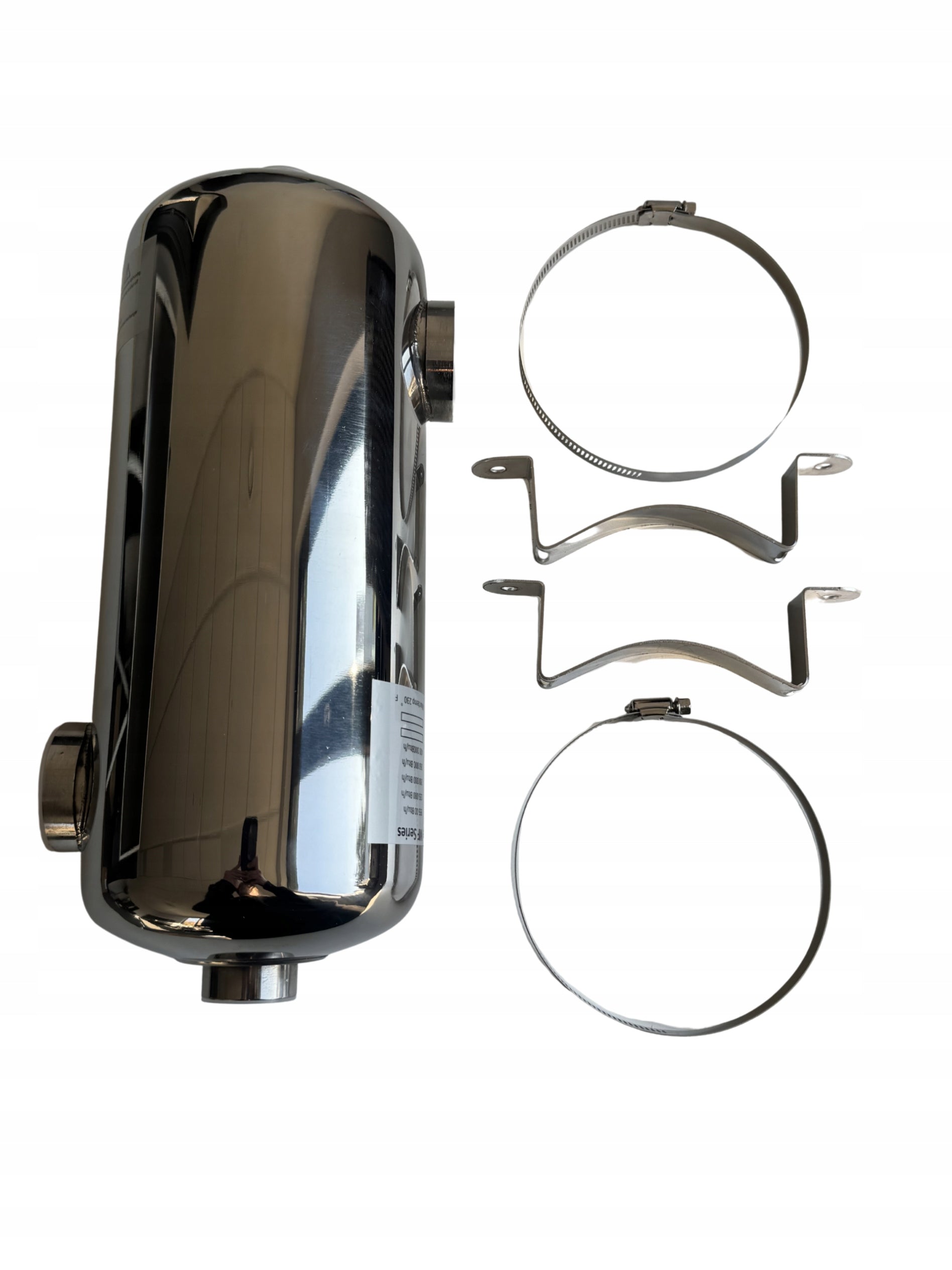

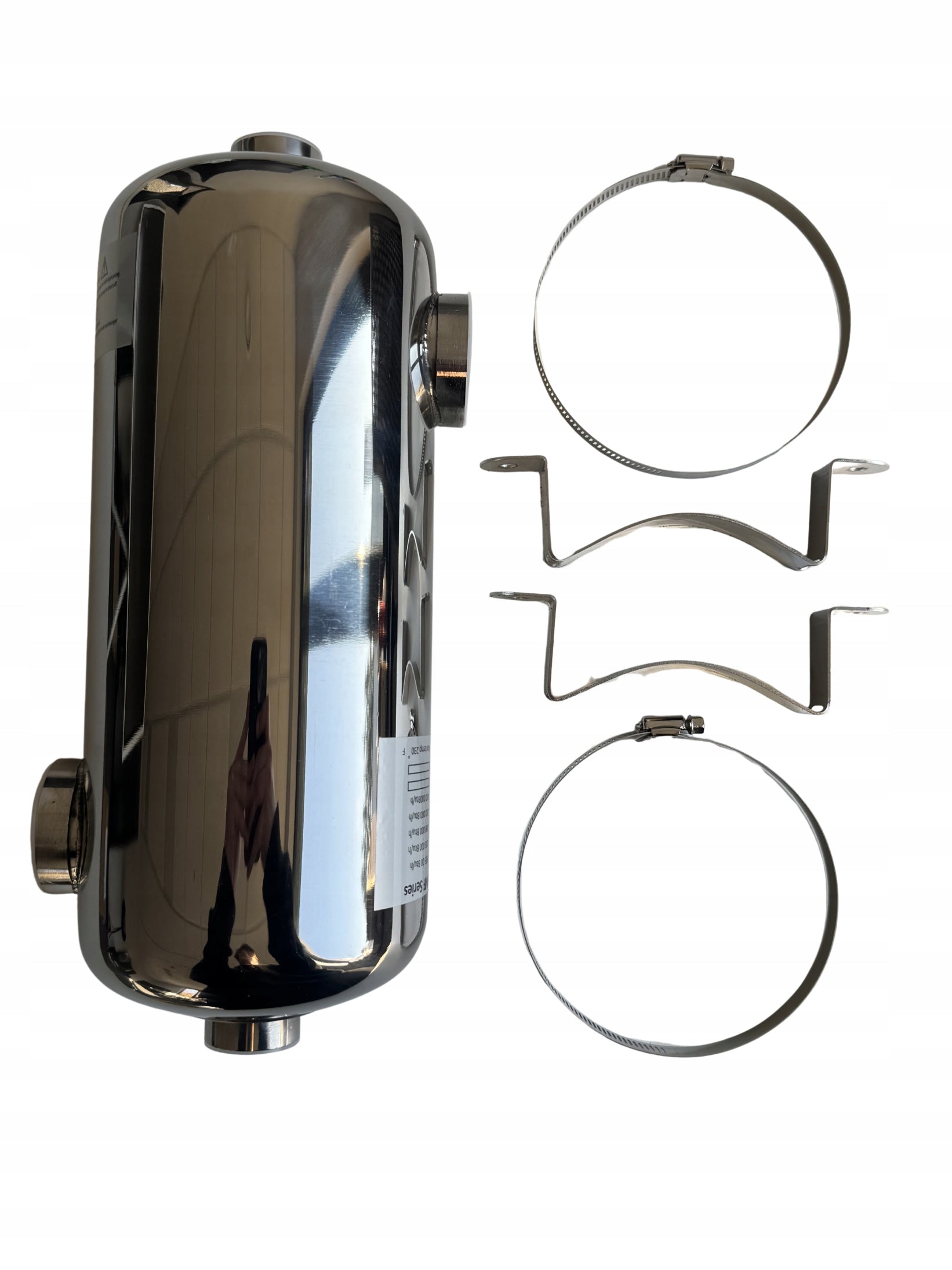

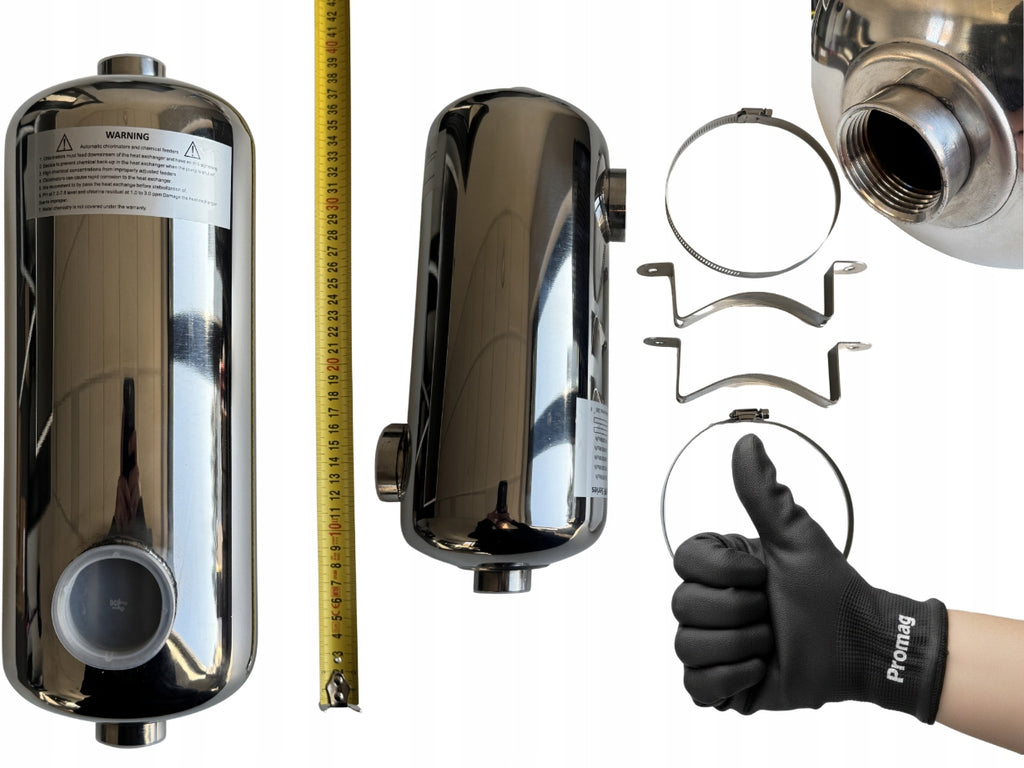

• Easy installation: Standard internal threads and included mounting brackets allow for quick and aesthetic installation in the system.

FAQ (Frequently Asked Questions)

Can the exchanger work with salt water? ANSI 316 steel is very resistant, however, with a high concentration of salt (electrolysis), it is recommended to regularly check water parameters or use titanium exchangers.

How do I calculate if 50 kW is enough for my pool? Multiply the pool volume by the temperature difference and coefficient of 1,16, and then divide by the heating time – the MPGMF-135 model will optimally handle basins up to 38 m³.

Will the performance decrease with glycol? Yes, when glycol is used as a heating medium, the heat transfer efficiency drops to about 90% of the nominal value.

Why is 316 steel better than standard solutions? Stainless steel 316 has higher resistance to pitting corrosion, which is crucial in installations in contact with different water quality and aggressive pool chemistry.

Take care of the perfect water temperature in your pool and enjoy your bath no matter the weather. Choose a reliable MPGMF-135 exchanger from PROMAG – bet on proven technology and the highest performance now!

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Promag
Parametry	Power	50000 W
Parametry	Manufacturer code	MPGMF-135
Parametry	EAN (GTIN)	5905616383927
Parametry	Packaging status	original
