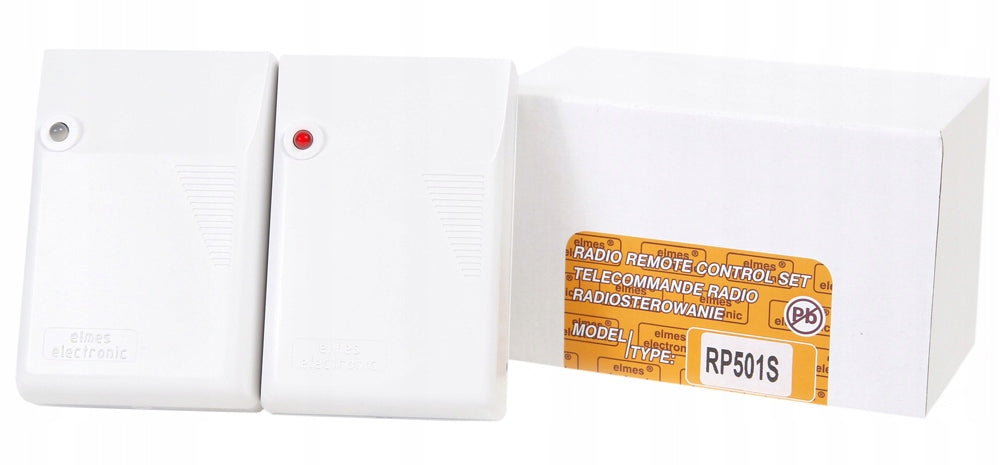

Belaidis 4 kanalų siųstuvas Elmes RP501S, iki 500 m

Trumpai apie prekę

Prekė: Belaidis 4 kanalų siųstuvas Elmes RP501S, iki 500 m. Kategorija: Išoriniai moduliai.

• Gamintojas: Elmes
• Modelis: RP501S radiopowiadomienie 4-kan. do 500m

Radio controller RP-501S 4-channel radio notification ELMES

The RP-501 is designed for wireless transmission of four-channel information over a distance of up to 500 meters. It can be used in alarm systems to notify about the alarm or the status of detectors, for remote control with a stationary transmitter, as well as wherever it is necessary to wirelessly transmit four-bit information. The system consists of a receiver and transmitter powered by 12V. The transmitter can also be powered by a 9V battery, the status of which is controlled. High quality and reliability of the device confirmed by the TECHOM kl. certificate "C" allows you to use the device in professional alarm systems.

Application:

✅ Alarm system

Note! RP501 radio notification can be applied to any alarm system!

This solution is for you if:

➡ You are looking for a wireless way to transmit information at a distance.

➡ You need notifications about the alarm or the status of detectors in the alarm system.

➡ You want to remotely control various devices using a stationary transmitter.

➡ You need wireless transmission of four-bit information.

➡ You expect high quality and reliability of device in professional alarm systems.

Top features that solve your problem:

✔ Receiver superheterodyne,

✔ Operating frequency: 434MHz band,

✔ Transmission type: 64 bit,

✔ Number of code combinations: 16777216,

✔ LED Signaling

ELMES ELECTRONICS

Founded in 1990, Elmes Elektronik designs and manufactures electronic devices for alarm systems, access control and remote control. The company specializes in the production of low-power radio equipment meeting polish and European standards of approval for use without additional permits and registration. It offers certified serial products with dynamically variable code. The design of products is supported by a computer CAD system, and testing is carried out using modern prmeasurement and control boards. Production is carried out in surface mounting technology on assembly machines.

⚙ TECHNICAL DATA OF RP501S: ⚙

• Device type: Radio notification
• Working frequency: 433.92 MHz
• Number of pilots supported: 60
• Relay outputs: NO / NC
• Range: 500 m
• Security: Anti-sabotage (TAMPER)
• Dimensions: 60x95x32mm

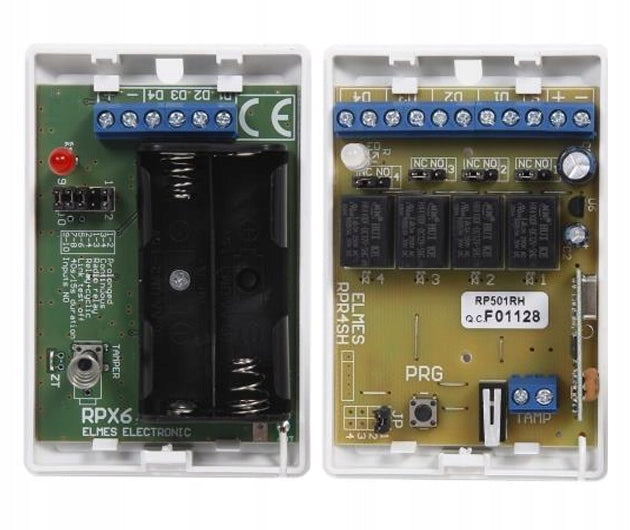

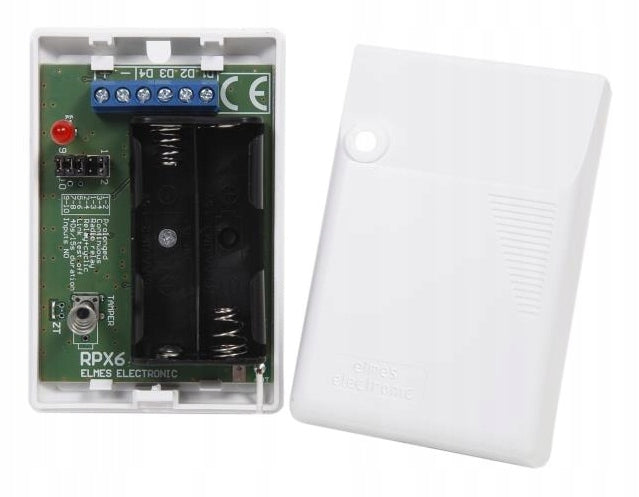

TRANSMITTER

• Number of channels: 4
• Types of inputs: NC
• Power Supply: 9-14V DC
• Power consumption (rest): 17uA
• Power consumption (transmission): 10mA
• Operating signal: LED
• Working temperature: 0°C...+40°C

RECEIVER

• Number of outputs: 4 relay + 1 OC
• Types of relay outputs: NC/NO
• Power Supply: 10-15V DC
• Power consumption: 20mA + 20mA for each included relay
• Operating signal: LED
• Maximum number of transmitters memorized: 60
• Working temperature: 0°C...+40°C
• Certificates: TECHOM kl. "C", CE

Radio controller RP501S from the brand ELMES.

This 4-channel radio notification was created to transmit wireless information up to 500 meters away. The RP-501S controller can be used in various alarm systems to notify about alarms or detector status. It can also be used for remote control using a stationary transmitter. It is ideal wherever wireless transmission of four-bit information is needed. The set consists of a receiver and a transmitter, which are powered by 12V. The transmitter can also be powered by a 9V battery, the status of which is controlled. With the TECHOM class "C" certification, you can be sure of the high quality and reliability of this device, making it ideal for professional alarm systems.

Choose the RP501S radio controller from the ELMES brand and enjoy reliable wireless distance information transfer.

Manufacturer code: RP501S

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Kind	other
Parametry	Series	RP501S radiopowiadomienie 4-kan. do 500m
Parametry	Brand	Elmes
Parametry	Power supply	batteries
Parametry	Additional features	radio communication
Parametry	Manufacturer code	RP501S radiopowiadomienie 4-kan. do 500m
Parametry	EAN (GTIN)	5906770225139
Parametry	Product weight with unit packaging	0.5 kg
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
