Belaidis radiatorius termostato rinkinys AURATON APUS SET 630

Trumpai apie prekę

Prekė: Belaidis radiatorius termostato rinkinys AURATON APUS SET 630. Kategorija: Rinkiniai.

• Gamintojas: Auraton
• Modelis: AURSMH2561010

REGULATOR + HEAD

Next Auraton 200 TRA

introduction no.: kc630

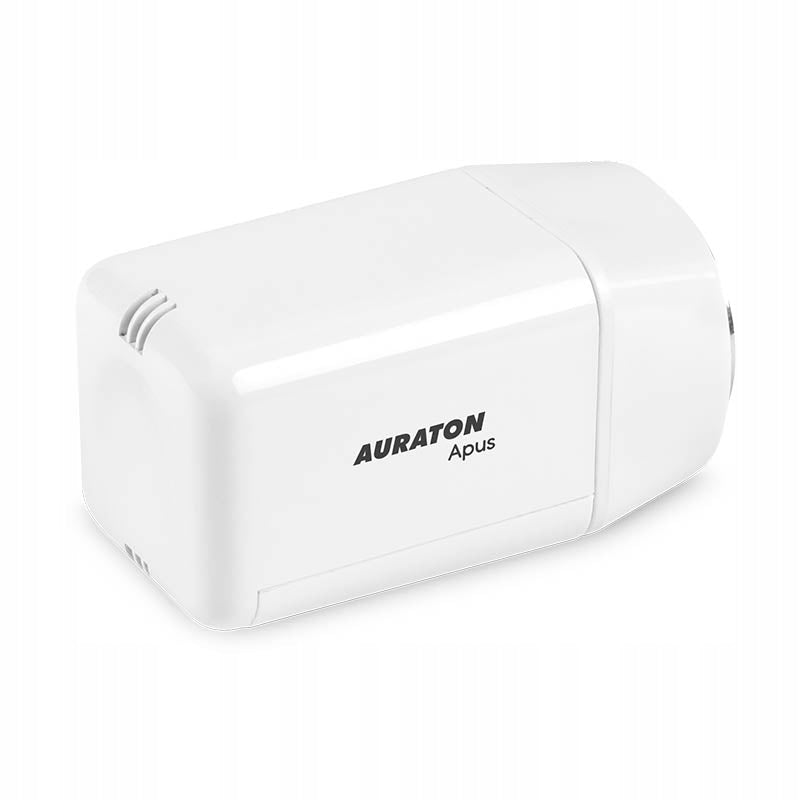

AURATON Apus SET is a set of electronic head and regulator designed for precise and efficient temperature control in rooms. Two-way communication between devices allows for accurate, proportional control of valve opening on the radiator. Auraton Apus SET regulates the opening of the valve in such a way as to supply the radiator with only as much heating medium as needed to maintain the desired temperature. This optimal solution avoids the undesirable phenomenon of overheating of the room and significantly contributes to reducing heating costs. One temperature controller allows you to work with any number of Apus heads.

Properties

• The "FrostGuard" function prevents the room from freezing.
• Possibility of cyclical reduction of the programmed temperature by 3°C for 6 hours.
• The backlit LCD display of the controller allows it to be operated in dimly lit rooms.
• Interference-free communication between devices.
• Two-way communication between devices for more accurate measurement and adjustment.
• Suitable for installation on M30x1.5 radiator inserts and, with the help of a special adapter, on Danfoss RA-N valves (adapter included).

Technical data

Wireless set AURATON Apus SET:

Operating temperature range

0 – 45°C

Temperature measurement range

0 – 35°C

Temperature control range

5 – 30°C

Hysteresis

±0.2°C

Accuracy of temperature setting:

0,2°C

Accuracy of temperature measurement:

±0.1°C

Additional function

FrostGuard

Work cycle

Daily

Control of working status

LED, sound (head) / LCD (regulator)

Power supply for 200 TRA regulator

2 AAA 1,5V alkaline batteries

Power supply for TRA head

2 AAA 1,5V alkaline batteries

Radio Frequency

868 MHz

Scope of action

In a standard building

wall thickness – approx. 30 m,

in open space up to 300 m

Specifications
