Belaidis užuolaidų valdymo modulis DieseRC, WiFi ir RF

Trumpai apie prekę

Prekė: Belaidis užuolaidų valdymo modulis DieseRC, WiFi ir RF. Kategorija: Automatizavimo moduliai.

• Gamintojas: no brand
• Modelis: 61151380

Product Description

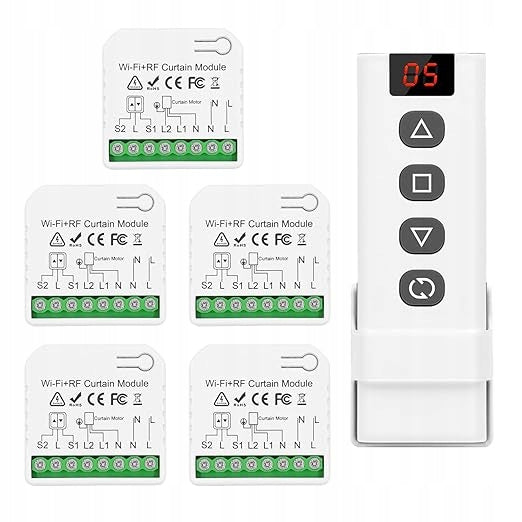

• Contents of the pack:
• 5 WIFI controller modules,
• 1 remote control.
• 1 instruction manual for the product.
• WIFI Controller Module:
• -Working voltage: AC 100V~240V
• -Maximum relay current: 10 A (5 A for induction load)
• -Standby power: 0,2 W
• - Wi-Fi: IEEE 802.11 b/g/n 2,4 GHz
• RF Frequency: 433 MHz
• -Supports coding: 1527 Learning code
• -Reception sensitivity: >97 dBm
• -Storage pilots: 20 pieces
• -RF Operation Mode: ASK Superheterodyne Wireless Reception
• -RF reception range: about 30-50m indoors
• -Working temperature: -30~+80
• - Size: 45 mm*45 mm*16 mm
• Parameters of remote control:
• RF Frequency: 433 MHz
• -Coding: 1527 Code of learning
• -Battery: 23 A 12 V
• -Lifetime: 500 000 times
• - Size: 11 mm * 37 mm * 15 mm

Excellent design Wireless WIFI + RF roller shutter controller module. This controller system allows you to upgrade your traditional switch to be able to operate it with the app and RF remote. This makes your blind (or AC awning/engine) smart and comfortable.

3 control methods This roller shutter control module is compatible with application control, RF remote control and manual switch.

Control by app This WIFI switch is compatible with the "Tuya" app and the "Smart Life" app, which are popular and widely used in the market. Connect this WiFi switch directly to your 2,4GHz Wi-Fi network for unlimited wireless control using your phone (Android and iOS). The WiFi switch is also compatible with Amazon Alexa (Amazon Echo/Dot/Spot), Google Home. It is able to perform several types of intelligent controls.

RF radio control RF 433MHz remote control switch, stable and reliable operation. Transmission of radio signal, which can pass through walls, floors, doors, signs, etc. It can be controlled from a distance of about 30-50 m in the open. It is a 5-channel remote control, which means it can control 5 receivers. Simply set the channel on the remote control to control the different receiver controllers.

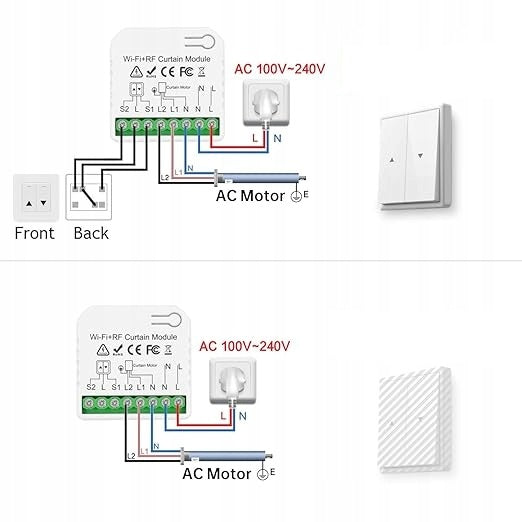

Easy to install The size of the WiFi switch is 45 x 45 x 16 mm. It can be easily hidden in most electrical enclosures or junction boxes. It can be easily installed to control the AC motor (4- or 5-wire). No wiring required.

Quality assurance High quality relay can be used more than 400 000 times. This WIFI switch adopts 10A relay. The maximum inductive load is about 5A. The receiver is suitable for AC voltage 100V~240V, so AC 240V/220V is OK.

Wide application Products can be used in homes, farms, factories, offices, etc. You can remotely operate the WIFI switch module over the Internet from anywhere. For example, blinds, electric curtain switches, awnings, blinds, garage doors, AC motors, etc. Note: This module is compatible with 4-wire motor (2 input phase wires, 1 neutral wire and 1 ground wire)

Application pairing:

1. Your phone is connected to 2,4 GHz Wi-Fi. And turn on Bluetooth.

2. The WIFI curtain module will automatically go into the “Network pairing” state when the blue light starts flashing when the power is turned on. (If not, reset the device first. Press and hold the learning button of the WIFI curtain module for about 10 seconds until the blue light starts flashing. This means that the device is in a “network pairing state”)

3. Open the “Tuya” or “Smart Life” app.

4. The WIFI curtain module icon will appear on the app interface, then follow the instructions in the app interface. (If not, click “Add Device” and select the “Curtain Module” icon)

RF signal pairing:

1. Press the learning button once (on the curtain module).

2. Press the first button on the remote, good luck.
