Belaidžių vaizdo stebėjimo kamerų rinkinys 4x 5MP su 1TB disku, baltos spalvos

Trumpai apie prekę

Prekė: Belaidžių vaizdo stebėjimo kamerų rinkinys 4x 5MP su 1TB disku, baltos spalvos. Kategorija: Rinkiniai.

• Gamintojas: DVS
• Modelis: ZESTAW 4 KAMER WIFI DO MONITORINGU TUBA 5 MPX 1TB

Designed for people looking for high-quality products at an affordable price. The kit includes robust wireless cameras from the polish brand DVS. We designed this kit based on user needs. Thanks to their compact design and durable components, they are easy and comfortable to use. The cameras are ideal for both indoor and outdoor use.

• Looking for reliable and durable monitoring for years at a reasonable price?
• Want to install the kit yourself without any CCTV knowledge?
• Don't have the option to run cables?
• Don't want to overpay for features you won't use?

We have something that will meet all your expectations! Order and check the quality of our kits.

____________________________________

WHY DVS MONITORING???

Protecting a property that is important to us doesn't have to involve high expenses of several thousand zlotys. We aim to offer solutions that provide optimal parameters at an affordable price for customers who want to secure their home, shop, office, or garage.

☑ Remote View from anywhere in the world

✅ Application for phone in Polish

✅ Wireless communication of the set - over the local WiFi network

✅ Smooth, detailed image with high resolution 5Mpx

✅ Night lighting with powerful SmartIR diodes with a range of up to 30m

✅ Audio support - built-in microphone and speaker

✅ Digital ZOOM 4X (four times)

✅ Sturdy, white metal housing with tightness class IP66

✅ Notifications on smartphone o detected motion detection

✅ Detailed instructions for configuration andtechnical support

⭐ Advanced features of the DVS ⭐ WiFi camera set

⚡Motion detection⚡

Motion detection is an advanced function that is based on the analysis of changes taking place in the area observed by the camera. When moving objects are detected on stage, the camera will send a notification! It is possible to set the appropriate sensitivity of action.

-

⚡Automatic overwriting of recordings⚡

The oldest recordings will be automatically replaced with new ones, without having to remove the disk or reformat it. If you decide that you want to keep some of the recordings, you can indicate them as excluded from overwriting, or use the archiving option on an external device that you connect to the USB port of the recorder.

⭐ Night Vision! ⭐

The camera has an integrated modern SmartIR infrared illuminator with an effective range of up to approximately 30 meters. This means that if there is insufficient lighting, it switches to black and white mode and transmits an image from the monitored area even in complete darkness. Unlike older illuminators, Smart IR provides even illumination of the monitored area (without spot overexposure), guarantees longer component lifespan, and does not attract insects!

⭐ Monitoring system management - as easy as ever! ⭐

The set offers preview by both smartphone, as well as TV, monitor or tablet. The free Polish-language CamHipro application enables full support of the set from your phone.

⭐ Key features of the CamHipro ⭐ app

• Real-time preview
• Possibility to play and download recordings saved on the disk in the recorder
• Notifications on your phone when motion is detected
• Managing the basic functions of the set
• Possibility to control rotary cameras
• Access for up to 64 users

⭐ Why WiFi monitoring? ⭐

By choosing a WiFi monitoring system, you get:

✅ Wireless communication - the video transfer kit between the cameras and the recorder uses a local WiFi network, so there is no need to pull cables.

✅ Save money - when choosing a WiFI set, you do not have to plan and lay down the network installation. Depending on the region, the prices of installation services often exceed even twice the value of the equipment itself. The set prepared by us is designed for self-assembly! Just set up the appliances and then screw to the wall/ceiling and you're done! We have described the camera configurations in detail in a special prepared manual. In more difficult situations, a dedicated technical support department is at your disposal.

✅ Image quality - IP cameras offer more than 30% better image than analog cameras. There is also no risk of electromagnetic interference in the image unlike analog systems.

✅ WPA2-PSK - encryption is a Wi-Fi security standard that uses the WPA2 authentication protocol and pre-shared key (PSK), i.e. a key previously established. There is a security that protects the Wi-Fi network from unauthorized access, ensuring the confidentiality and integrity of the transmitted data.

⭐ For whom? ⭐

Cameras have been designed to be used in as many objects as possible:

Thanks to the sealed housing resistant to rain, dust and frost, the camera can be mounted both indoors and outdoors!

WiFi sets will find their application wherever the location of the cable is problematic and there are no factors that may interfere with the operation of cameras.

When deciding on wireless monitoring before mounting cameras, we recommend testing the ranges.

The set allows you to preview the image using:

1. Monitor / TV - by connecting it to the DVR with HDMI or VGA cable
2. Phone / tablet - via a dedicated application Android or iOS

⭐ Full support for ONVIF ⭐

The DVS WiFi set is based on components supporting the fully integrated ONVIF protocol.

It is a protocol that allows you to easily connect various video monitoring devices, such as cameras, recorders, and video management software.

⭐ The DVS set can be configured in 2 different ways! ⭐

✅ Wired - Connect all cameras with UTP cable cat. 5e to *switch with our internet router and DVR

*Switch should have a minimum number of inputs corresponding to the number of cameras we want to connect + 2 inputs to connect the DVR and Internet router

✅ Wirelessly, home network - We configure all our cameras with a home WiFi network to which the recorder must be wired.

The solution is recommended for users with an extensive and stable home network

⭐ Blue line of wireless cameras DVS WIFI ⭐

Our blue line of wireless systems is security for many years. All products in our blue product line are fully compatible and offer the possibility of easy connection and management with a single mobile application. The kit can be installed and configured with a comprehensive user manual and system configuration, making it easy to install and manage. In case of any difficulties, a package dedicated to technical support is included in the set, which guarantees quick and effective assistance in case of any questions or needs related to our products.

⭐ Universal complete set ready for assembly ⭐

The offered set is based on very high quality branded components of the top manufacturer in its industry DVS Poland and Seagate

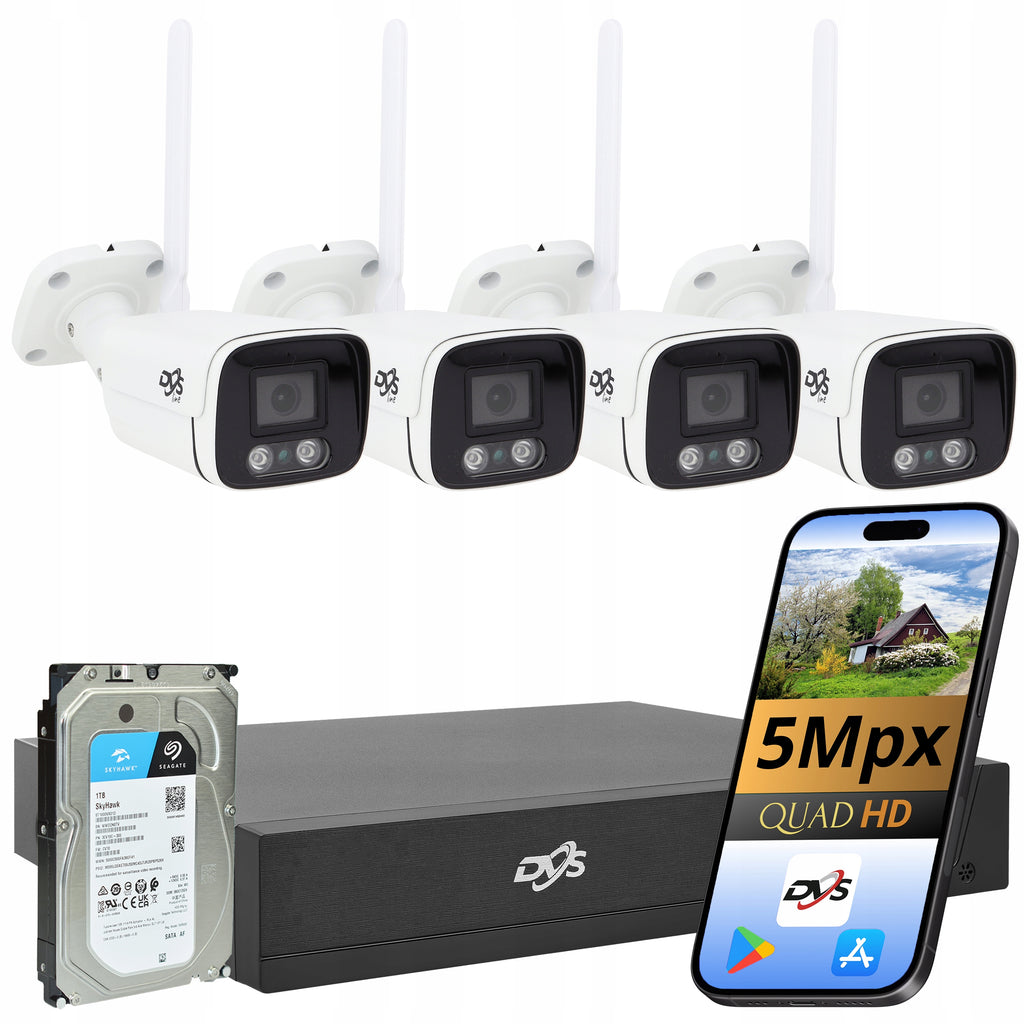

You get a complete, ready-to-assemble monitoring which includes:

• 4x White Camera DVS 5Mpx (2592x1944p) - DVS-MP5036ET-IRW
• Network recorder DVS IP (8 channels to 8Mpx) - DVS-NVR0801-E8
• SEAGATE HDD 1TB for CCTV (adapted to record 24/7)

The DVS ET-IRW series has been designed for users who do not have the possibility of cable position and expect reliability and simplicity. Installation and operation is intuitive, and the instructions prepared by a dedicated technical department will guide you through the process of installation and configuration of the kit. It's never been this easy!

The kit allows you to preview the image using:

1. Monitor / TV - by connecting it to the DVR with an HDMI or VGA cable
2. Phone / tablet - via a dedicated application CamHipro

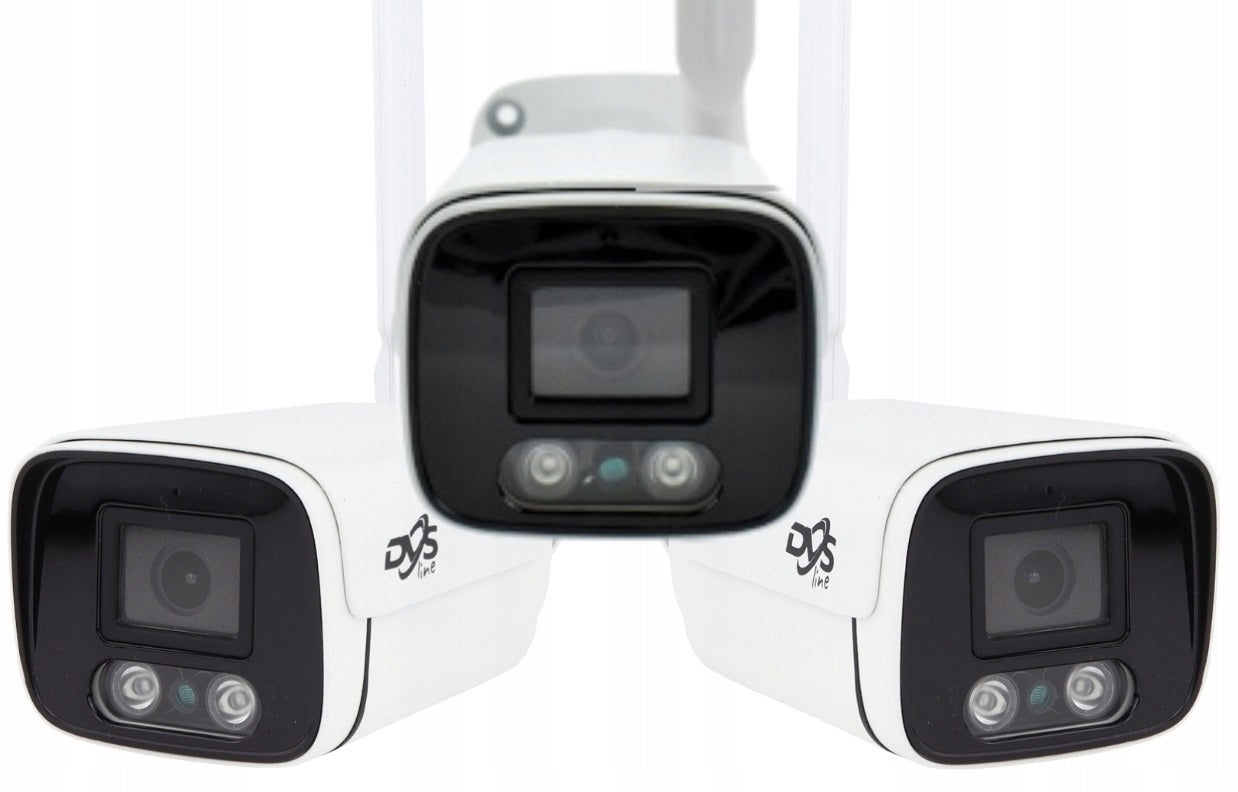

⭐ Wireless WIFI Camera DVS-MP5036ET-IRW ⭐

This advanced camera from the DVS wireless kit is equipped with a solid metal housing in white, which provides not only strength, but also excellent camouflage. Adjusting the camera on the mount allows easy adjustment of the viewing angle and mounting as needed, and visibility up to 30m IR guarantees clear image even in complete darkness. The device is designed for external and internal use, making it a universal choice for a variety of environmental conditions.

Equipped with a 5Mpx sensor and sensor with a 1/3" Progressive Scan CMOS sensor, offering exceptional image quality in all lighting conditions. Thanks to the mechanical ICR filter and the IR radiator with a range of up to 30m, the camera provides a clear image even in total darkness. IP66 protection class guarantees resistance to adverse weather conditions, and the wide-angle lens 3.6 mm allows for effective monitoring. The device supports the ONVIF protocol, making it a versatile choice for any WIFI system. Remote connection to the camera from your smartphone allows you to operate the device at any time, from anywhere!

DVS-MP5036ET-IRW specification:

• Resolution: Quad HD 2560x1944p (5.0Mpx) at 15kl. /s.
• Lens and Viewing Angle: Focal length 3.6mm ; Viewing angle 86°
• Transducer: 1/3" Progressive Scan CMOS
• Type: IP WiFi
• Night light: infrared range up to 30 meters
• Leak-proof class: IP66 (resistant to water, dust, dust, high and low temperatures)
• Mobile application: CamHiPro (Android and iOS)
• Housing type: tube
• Housing color: white
• Housing material: metal
• Image compression: H.265+
• Memory card slot: microSD up to 128GB
• Supported protocols: IPv4, HTTP, HTTPS, TCP, RTSP, DHCP, DNS
• Support for: ONVIF (ProfileS), PSIA, CGI, ISAPI
• Shutter speed: 1/3 to 1/100 000
• Mechanical ICR Infrared Filter: yes
• Motion detection: yes (4 areas)
• Privacy masks: yes (4 areas)
• Increased Resolution Areas (ROI): yes (4 areas)
• Operating temperature: from -40°C to +60°C
• Camera adjustment on the mount: left/right 0-360°, up/down 0-180°
• Built-in microphone: Yes
• Built-in speaker: Yes
• Sensitivity: 0,01 Lux
• Power supply: 12VDC
• Signal Connector Type: RJ45
• Dimensions: 182mm x 165mm x 68mm

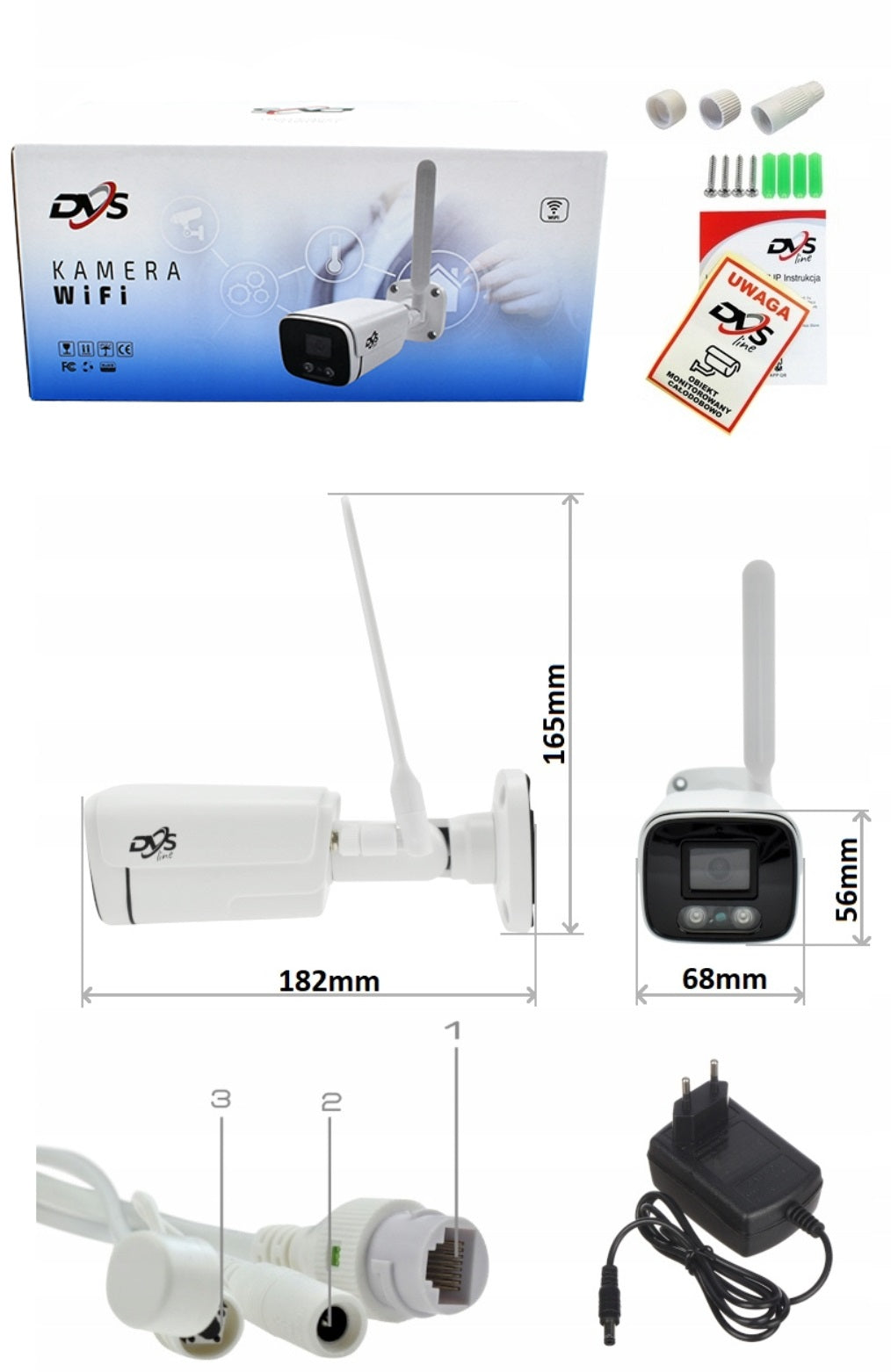

Description of connectors:

• 1) RJ-45 socket (If the range of your WiFi is too weak, you can use this socket by connecting the camera wired to the router)
• 2) Power socket (power supply included)
• 3) Reset button (Before the first start, it is recommended to restore the camera to factory settings by holding the button for about 7 seconds)

⭐ Network recorder DVS-NVR0801-E8 ⭐

The recorder from our offer is a device with high functionality, supporting disk support up to 8TB, which allows long-term storage of large amounts of data. The advanced motion detection function is an advanced motion detection system that increases safety by alerting in the event of unauthorized entry into the protected area. With the recording schedule, the user can schedule automatic video recording, which optimizes memory management. The recorder supports up to 8 cameras up to 4K 8Mpx, thanks to the support of the ONVIF protocol guarantees compatibility with the latest IP/WIFI monitoring systems.

The recorder ensures interoperability with a wide range of wireless devices. Preview on TV with HDMI output offers images with the highest available resolution. The loop recording function enables automatic overwriting of the oldest recordings, ensuring continuity of monitoring without the need for manual data cleaning.

Specification of DVS-NVR0801-E8

• Maximum supported resolution: 4K Ultra HD 3840x2160p (8Mpx)
• Maximum number of cameras supported: 8
• Bitrate: 80Mbps
• Number of disks supported: 1
• Image compression: H.265+
• Outputs: DC 12V (1x), HDMI (x1), VGA (x1), USB (x2), audio out (x1), LAN (x1)
• Network connector: RJ 45 10M/100M
• Mobile application: CamHiPro
• Maximum number of remote users: 64
• Protocol support: Onvif 2.04
• Power supply: DC 12V, 2A
• Dimensions: 255mm x 230mm x 45mm
• Operating temperature: from -10°C to +45°C
• Weight: 1200g
• Housing type: metal

Connectors:

1. DC 12V SOCKET - power connection
2. HDMI- monitor/display connection
3. VGA - monitor/display connection
4. 2x USB - connecting a mouse or pendrive
5. AUDIO - connection of speakers
6. LAN - internet connection / switch

• Professional disk designed for continuous operation of a reputable brand
• SATA 6 Gb/s interface
• 64 Mb cache

Professional hard drive SkyHawk™ 1TB designed for continuous operation, reputable brand Seagate. They are adapted to work in round-the-clock mode offering stable operation up to 1 000 000 hours.

⭕ FREQUENTLY ASKED QUESTIONS ⭕

1. Can this monitoring kit be started on its own?

Yes, the kit can be started on its own. Just connect the equipment to the power supply, and then use the app on your CamHipro phone, according to the instructions, configure the cameras to the local wifi network.

2. What is the maximum distance between the DVR and the camera?

The main determinant is the power of your WiFi router, it determines the distance between the cameras and the router, the recorder itself is connected wired to the Internet network.

ATTENTION! - WiFi range is very individual. The range can be affected by the thickness and number of walls as well as m.in the number of WiFi networks, microwaves, mirrors, high voltage poles, etc. Before installing cameras, we recommend configuring them and thoroughly testing the quality of your network.

3. Can the WiFi signal be amplified?

In case of problems with wifi range, several solutions can be applied.

1) The use of an additional WiFi repeater to strengthen your wifi network,

2) Configuration of cameras via external signal repeater. In this case, the signal passes on the principle: recorder -> wifi router -> repeater -> camera, making the signal much stronger.

3) Mounting stronger antennas to cameras than basic ones that have a gain of 3dBi

4. What happens when the internet stops working?

When the Internet in the local wifi network disappears, the remote preview of the DVR through the application on the phone will be lost. The equipment itself will continue to record images from cameras and the transmission will take place on the local network.

5. How to connect the DVR to the Internet?

The recorder must be connected wired to a router that has access to the Internet. Alternatively, an Access point device can be connected to the DVR, which will connect to the local Wi-Fi network (no such device is included).

6. Can I have a preview on my phone?

Yes, you can. The recorder must first be connected to the Internet and configured with the CamHiPro mobile application.

7. How to connect the disk to the recorder?

Unscrew the top cover of the recorder, connect the drive with two wires (SATA + power supply), and then attach the screws to the base of the recorder.

8. How to get an image from the DVR?

The recorder should be connected to the TV or monitor via VGA or HDMI connector (input). Once connected, the start screen should appear. The first time you connect, the DVR configuration wizard will appear.

9. Can I connect the DVR to my laptop with VGA/HDMI cable?

No, laptops only have an output, not a video input. This prevents you from getting the image this way.

10. Can the cameras be mounted outside?

Yes, the cameras have a sealed housing with IP66 rating and can be mounted outdoors. When installing, we recommend properly securing the connection of the camera socket with the wiring.

⭐ Why choose this set? ⭐

Wireless WiFi monitoring set DVS is a comprehensive solution for people who value safety, reliability and modern technologies. The system has been designed for users who expect not only high image quality, but also simplicity of use, aesthetics of workmanship and reliable operation in all conditions. It is an investment in peace and full control over the protection of your home, office or property every day.

☑ Exceptional recording detail (5 Mpx) – provides high resolution that guarantees detailed and clear images, enabling precise recognition of details.

☑ Wireless WiFi technology – quick installation without the need for cables; an ideal solution where aesthetics and flexibility in camera placement count.

☑ Weather resistance – robust, sealed construction guarantees reliable operation regardless of the weather, both inside and outside buildings.

☑ Remote viewing and instant notifications – constant access to the image in real time from your smartphone and automatic alerts when motion is detected.

☑ Modern and discreet design – the sleek black housing blends perfectly with the surroundings without attracting unnecessary attention.

⭕Choose premium safety ⭕

Choose the DVS kit and be sure that everything that is important to you is always under your control. Choose a proven solution that combines technology, comfort and efficiency – focus on DVS monitoring and gain security that will serve you for years.

Offer Number: 17918099138
